Exquisite-Esp32-S3 Wifi Infrared Thermal Imaging Module Esp32 Serial Wifi RGB Development Board 80×62 Pixel Infrared Array A

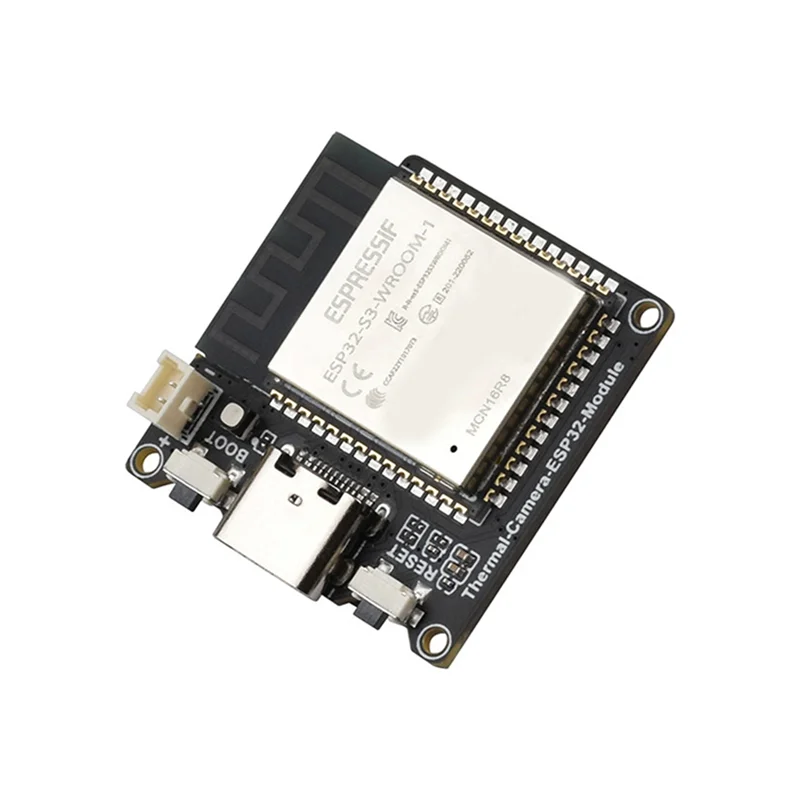

1. Equipped with ESP32-S3-WROOM-1 module, equipped with Xtensa 32-bit LX7 dual-core microprocessor, the main frequency can reach 240MHz, providing powerful data processing capabilities
2. Onboard antenna, supports 2.4 GHz WIFI (802.11 b/g/n) and Bluetooth 5 (LE) dual-mode communication
3. Built-in 512KB SRAM and 384KB ROM, stacked with 8MB PSRAM and external 16MB Flash
4. Use Type-C interface to improve device compatibility and user convenience

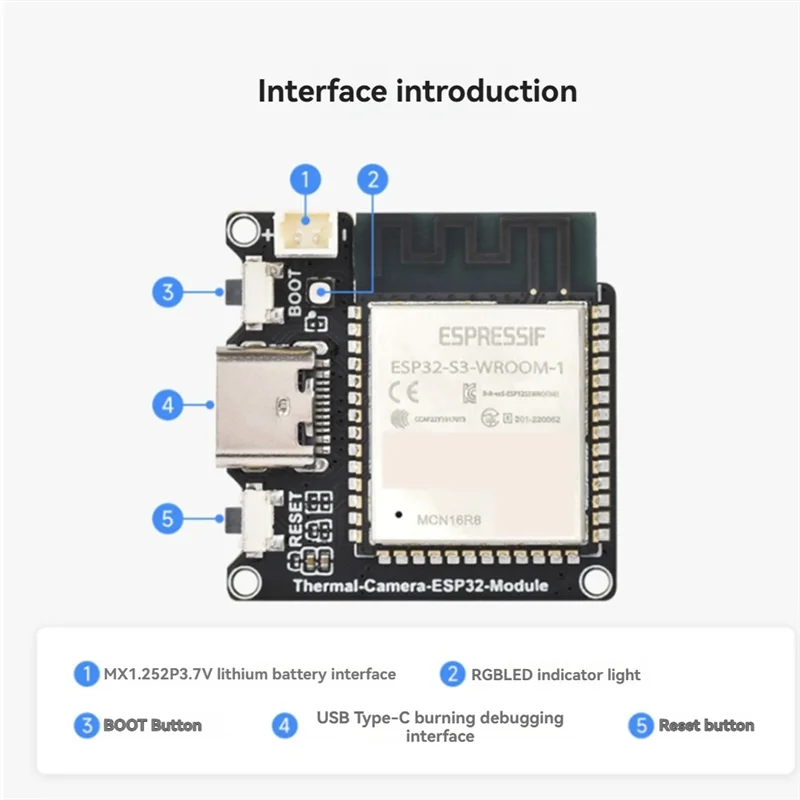

5. Onboard RGB LED indicator, real-time display of module operation status, convenient for equipment monitoring and maintenance

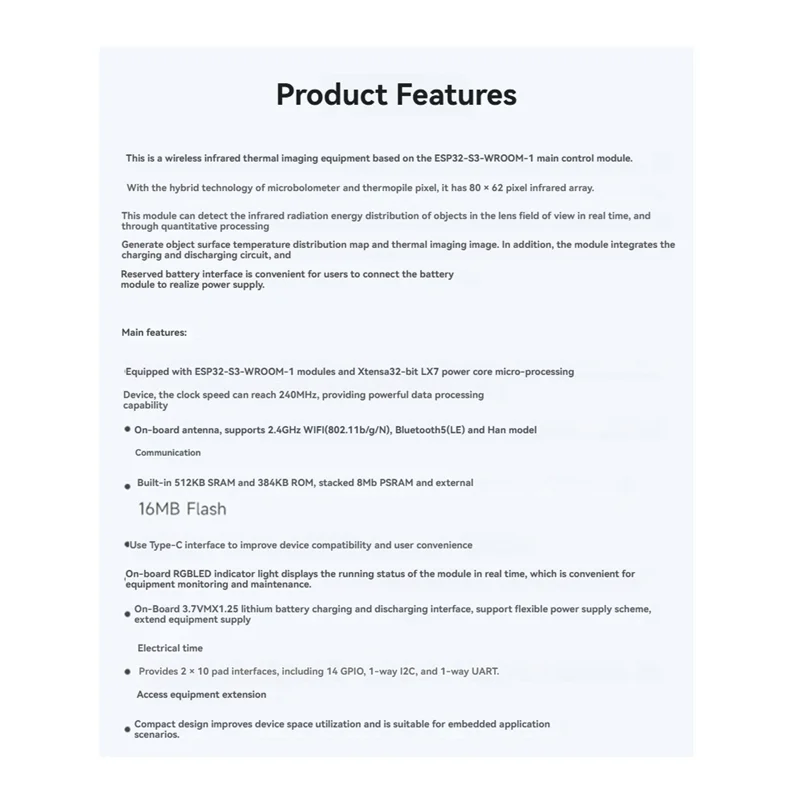

This is a wireless infrared thermal imaging device based on the ESP32-S3-WROOM-1 main control module. It uses a hybrid technology of microbolometer and thermopile pixels and has an 80x62 pixel infrared array. The module can detect the infrared radiation energy distribution of objects within the lens field of view in real time, and generate the object surface temperature distribution map and thermal imaging image through quantitative processing. In addition, the module integrates charging and discharging circuits and reserves a battery interface for users to connect the battery module for power supply.

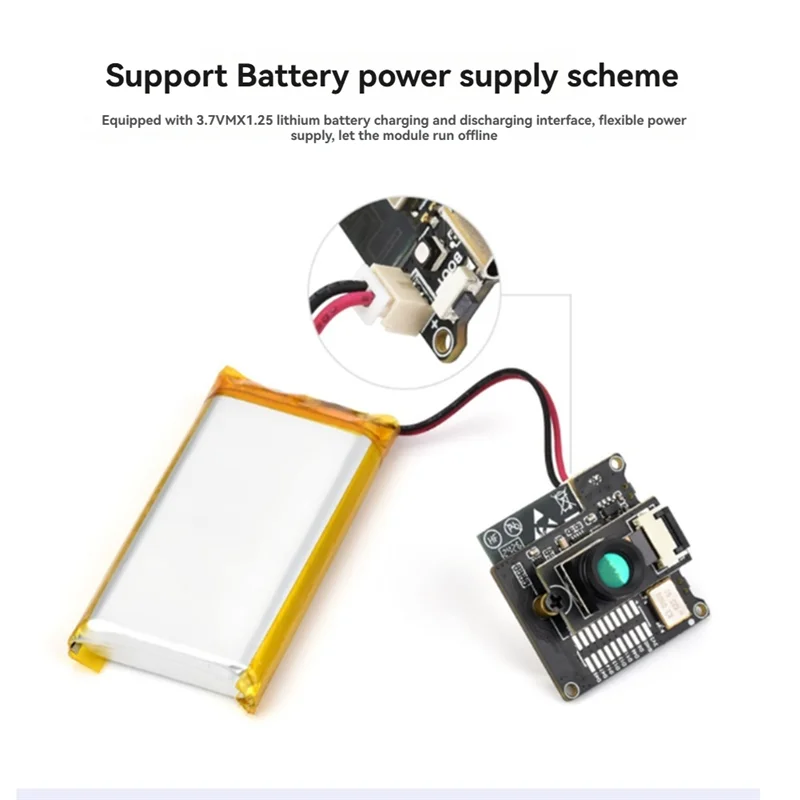

Onboard 3.7V MX1.25 lithium battery charging and discharging interface, supports flexible power supply solutions, and extends the power supply time of the device

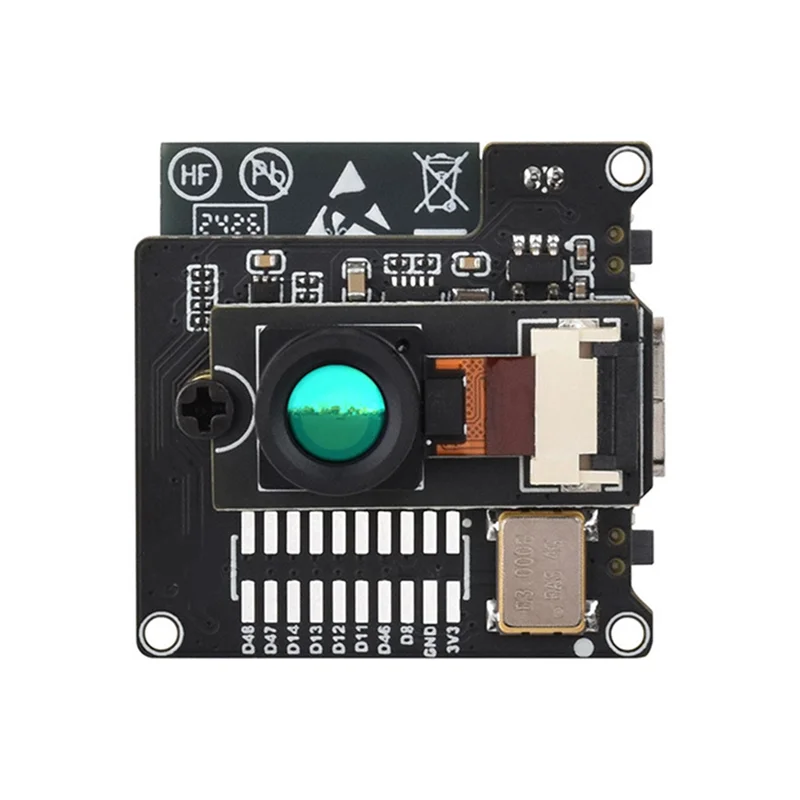

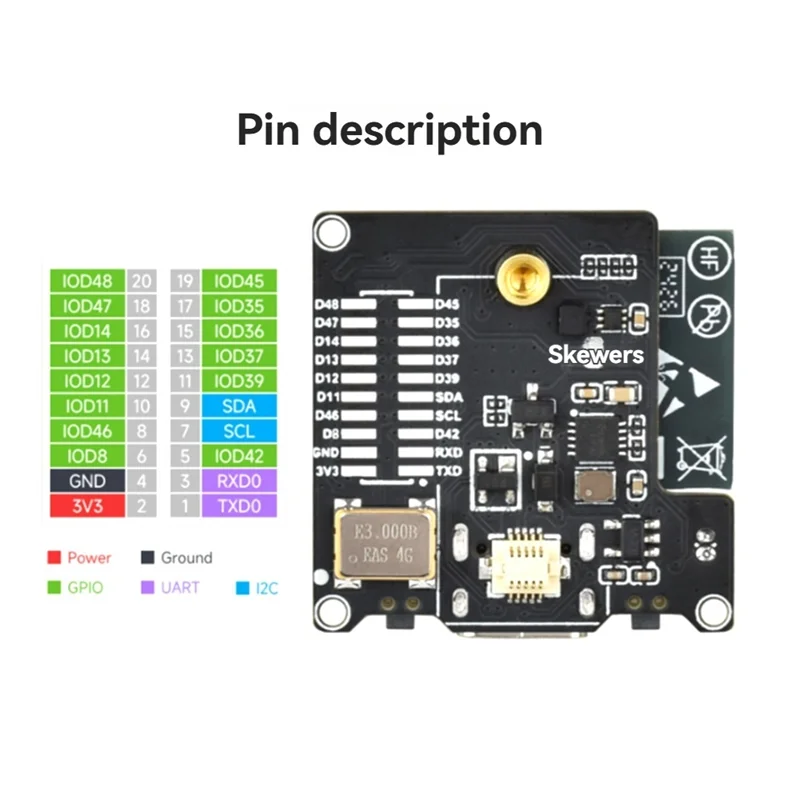

Provides 2x10 pad interfaces, including 14 GPIOs, 1 I2C and 1 UART, supporting
Support external devices to expand functions
Compact design improves equipment space utilization and is suitable for embedded application scenarios
The product appearance and printed words may vary depending on the batch, but this does not affect use.

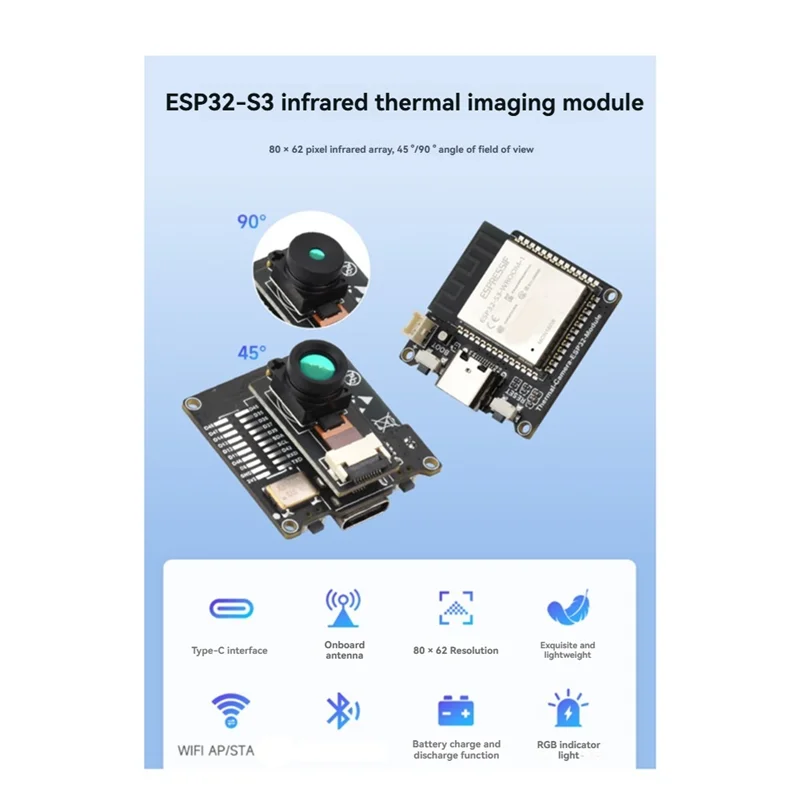

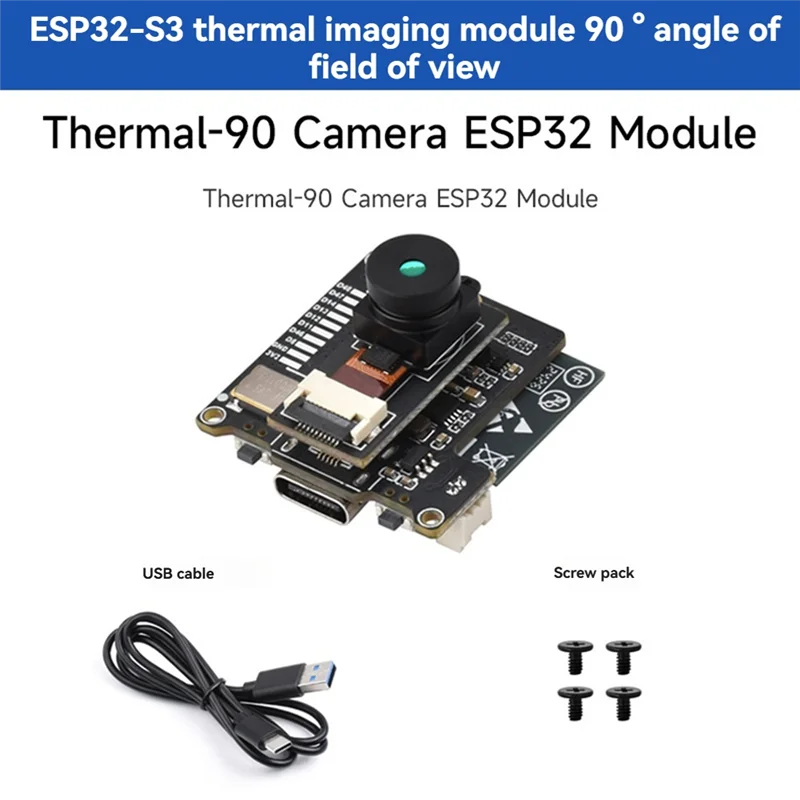

Specification:A:90-degree wide-angle version/B:45-degree regular version
Colour:As Shown
Material:PCB
Package Contents:
1 * Wifi Camera Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
