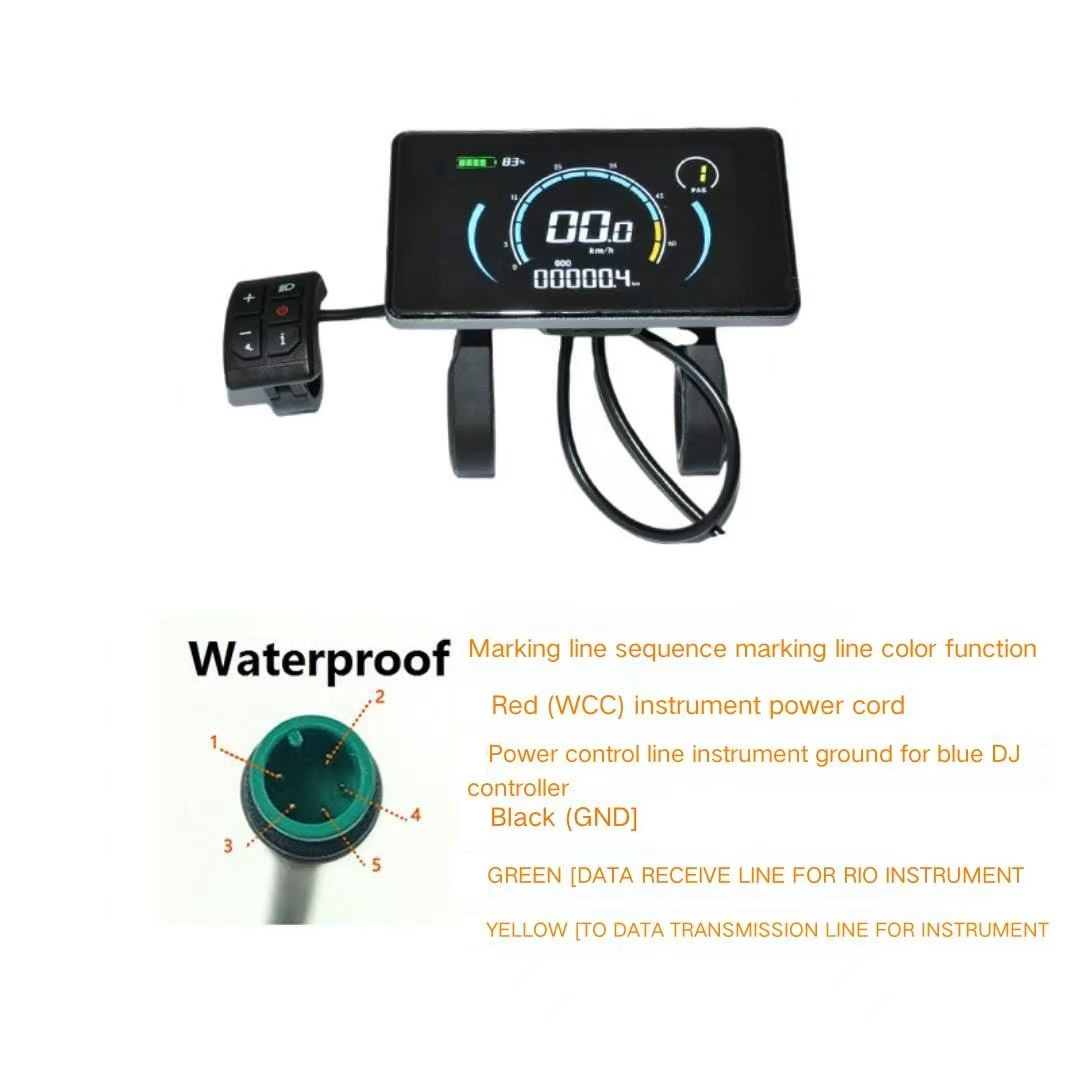

Product Description


Features：

1.PAS gear control and display;

2.Power display, power capacity percentage indicator, and undervoltage warning;

3.Speed display: real-time speed, maximum speed, average speed (can switch between metric and imperial system);

4.Mileage display: Minor mileage (TRIP), total mileage (ODO)

5.Gear assist gear control and display;  (3 modes available)

6.Help implement control and display;

7.Headlight control and display;

8.Fault and alarm warning;

9.Status display: brake, headlights, cruise speed, undervoltage;

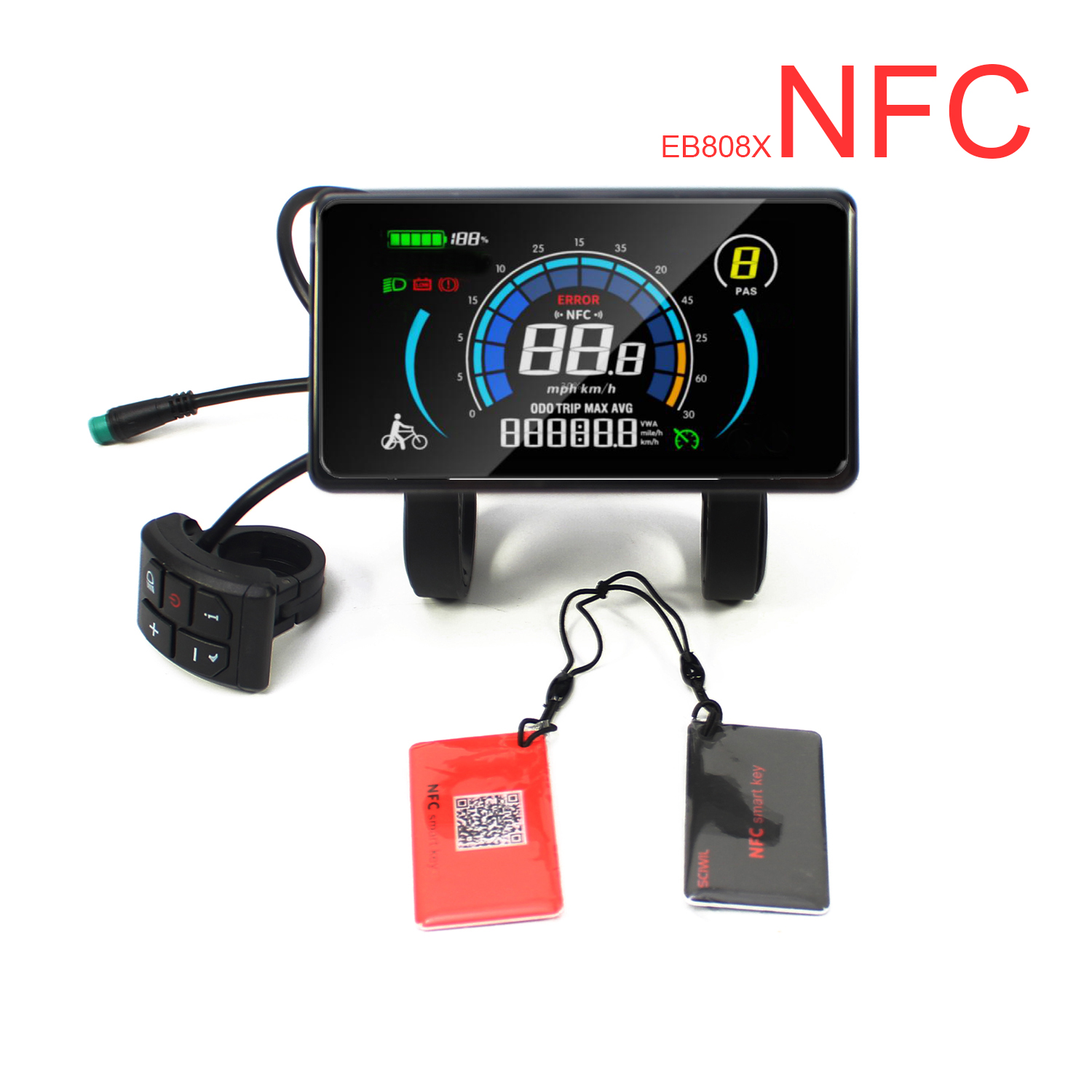

10.NFC credit card



Specification：

·Power supply: DC 24V/36V/48V/52V/60V/72V;

Communication protocol: UART OMD2

·Rated working current: 12mA;

·shutdown leakage current: <1uA;

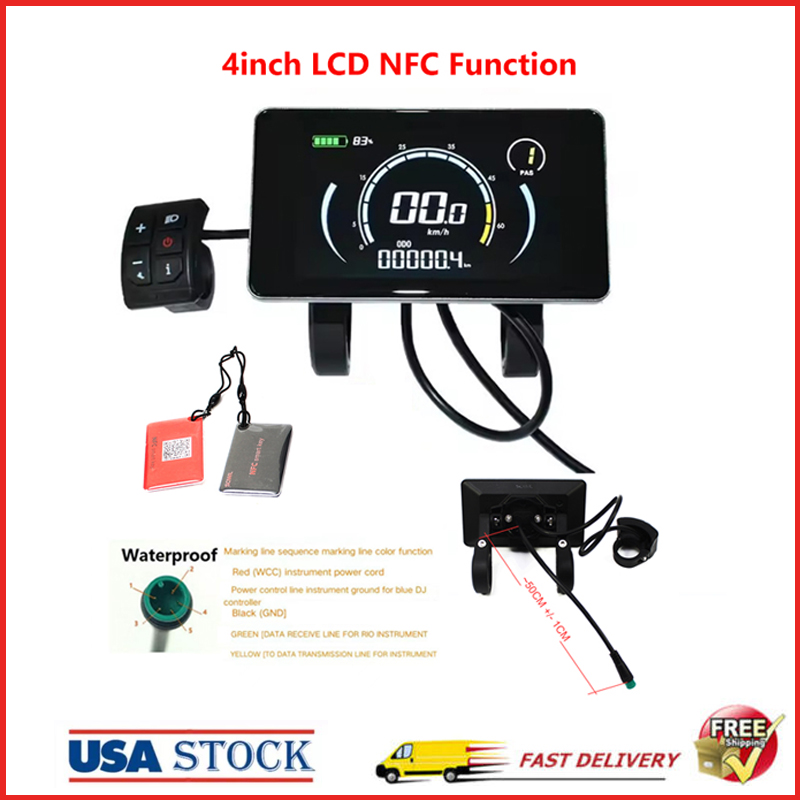

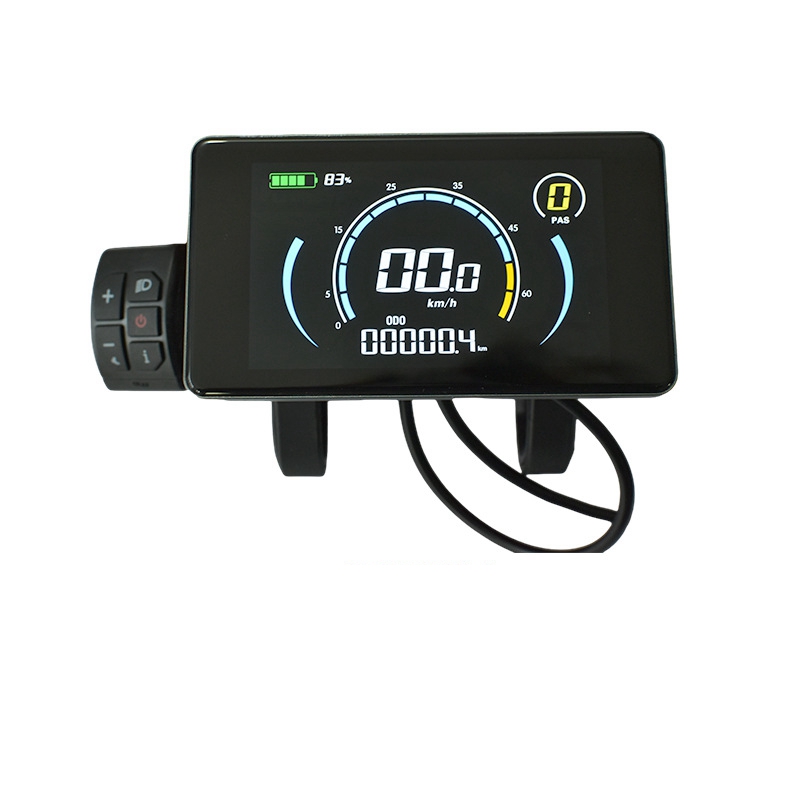

·Screen size: 4.0 "LCD;

·Communication method: UART(default)

·Optional functions: NFC

·Operating temperature: -20°C~60°C;

·Storage temperature: -30°C~70°C;

·Waterproof rating: IP66



P01: backlight brightness. Level 1 is darkest, level 3 is brightest;

P02: unit of mileage. 0: KM; 1: MILE;

P03: Voltage level. 24V-72V, default 36V;

P04: Sleep time. 0: no sleep. Other numbers are sleep time. Range: 1-60, unit minute;

P05: Power gear

0-3 mode: 0-3 gear; 1-3 mode: 1 gear to 3 gear, no 0 gear;

0-5 mode: 0 to 5 gear, 1,5 mode: 1 to 5 gear, no 0 gear;

0-9 mode: 0 to 9 gear, 1,9 mode: 1 to 9 gear, no 0 gear;

P06: Wheel diameter. Unit: inch; Accuracy: 0.1;

P07: Number of velocity measuring magnets. Range: 1-255;

P08: Speed limit. Range 0-100km/h

P09: Zero boot, non-zero boot Settings. 0: zero start; 1: non-zero start;

P10: Set the drive mode

l 0: power drive (determine how much power to output through the power gear, this time the handle is invalid);

l 1: electric drive (by turning the lever drive, the power gear is invalid at this time);

l 2: Power drive and electric drive coexist at the same time (electric drive is invalid in zero start state);

P11: Power sensitivity setting. Range: 1-24;

P12: Set the boot strength. Range: 0-5;

P13: Assist magnetic disk type setting. 5, 8, 12 magnetic steel three types;

P14: Controller current limit setting. Default 12A range: 1 to 20A (not supported by some controllers).

P15: Meter undervoltage value (function invalid)

P16: : ODO Reset Settings. Long press the up key for 5 seconds to clear ODO;

P17: Cruise control function. 0: no cruise speed 1: cruise speed;

P18: Shift shift (function invalid)

P19: Automatic headlight function 0 OFF/1 ON (not supported by some controllers)

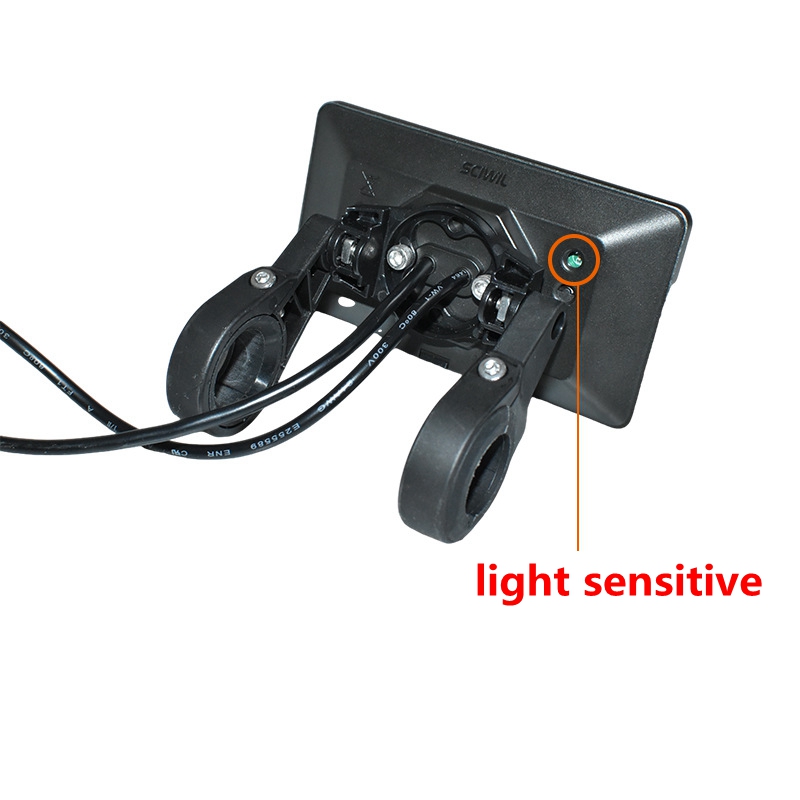

P20: Light sensitivity. (Some controllers are not supported)

P21: Boot password setting.

P22: Menu password Settings.



Error code：

E00 Normal status

E01 Reserved

The E02 brake is faulty

The E03 power source sensor is faulty (riding mark) cannot be configured in this alarm

E04 6KM cruise

E05 Live cruise

The E06 battery undervoltage

The E07 motor is faulty

The E08 rotary bar is faulty

The E09 controller is faulty

The E10 communication is faulty

The E12 BMS communication is faulty

The E13 headlamp is faulty

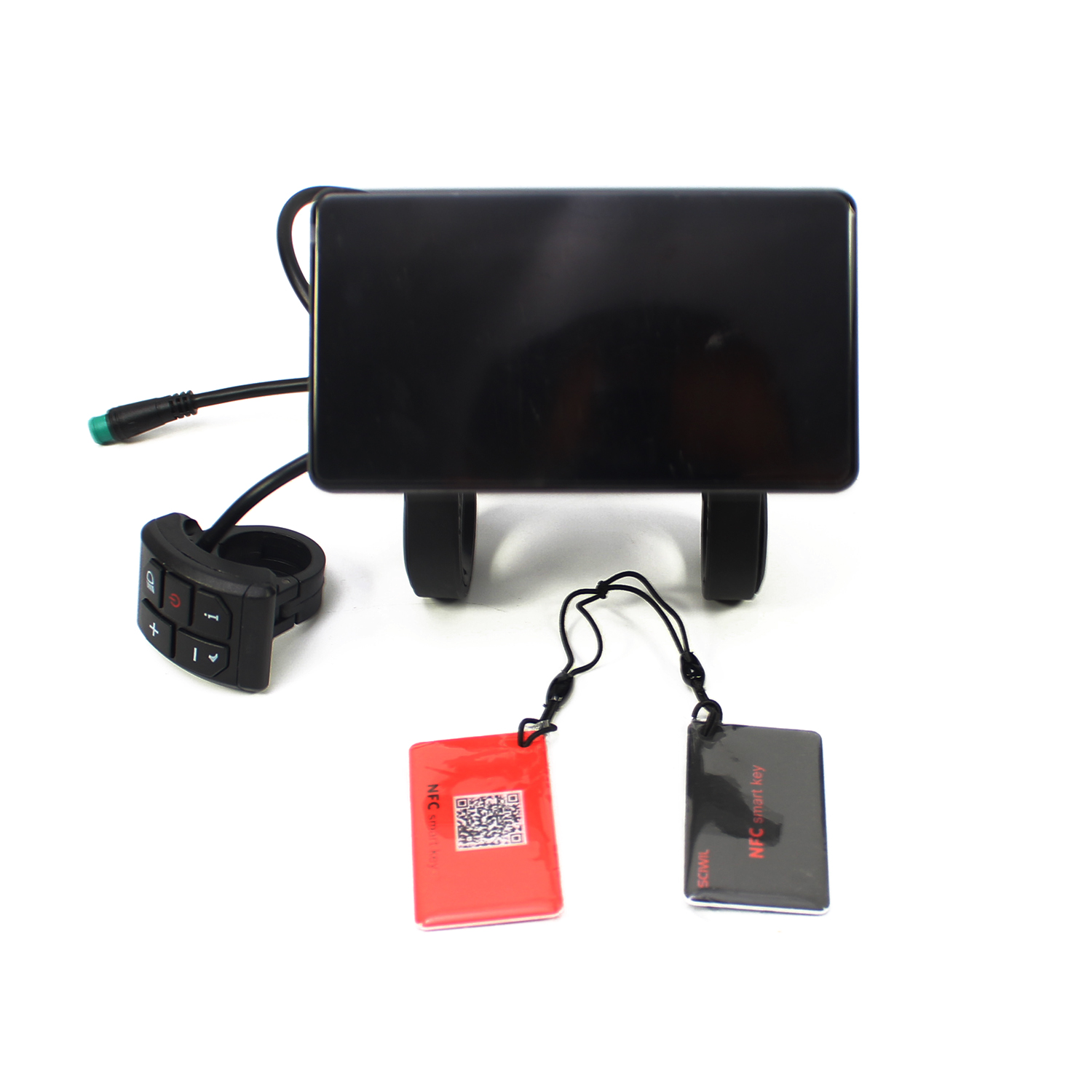

Package includes

1*Display

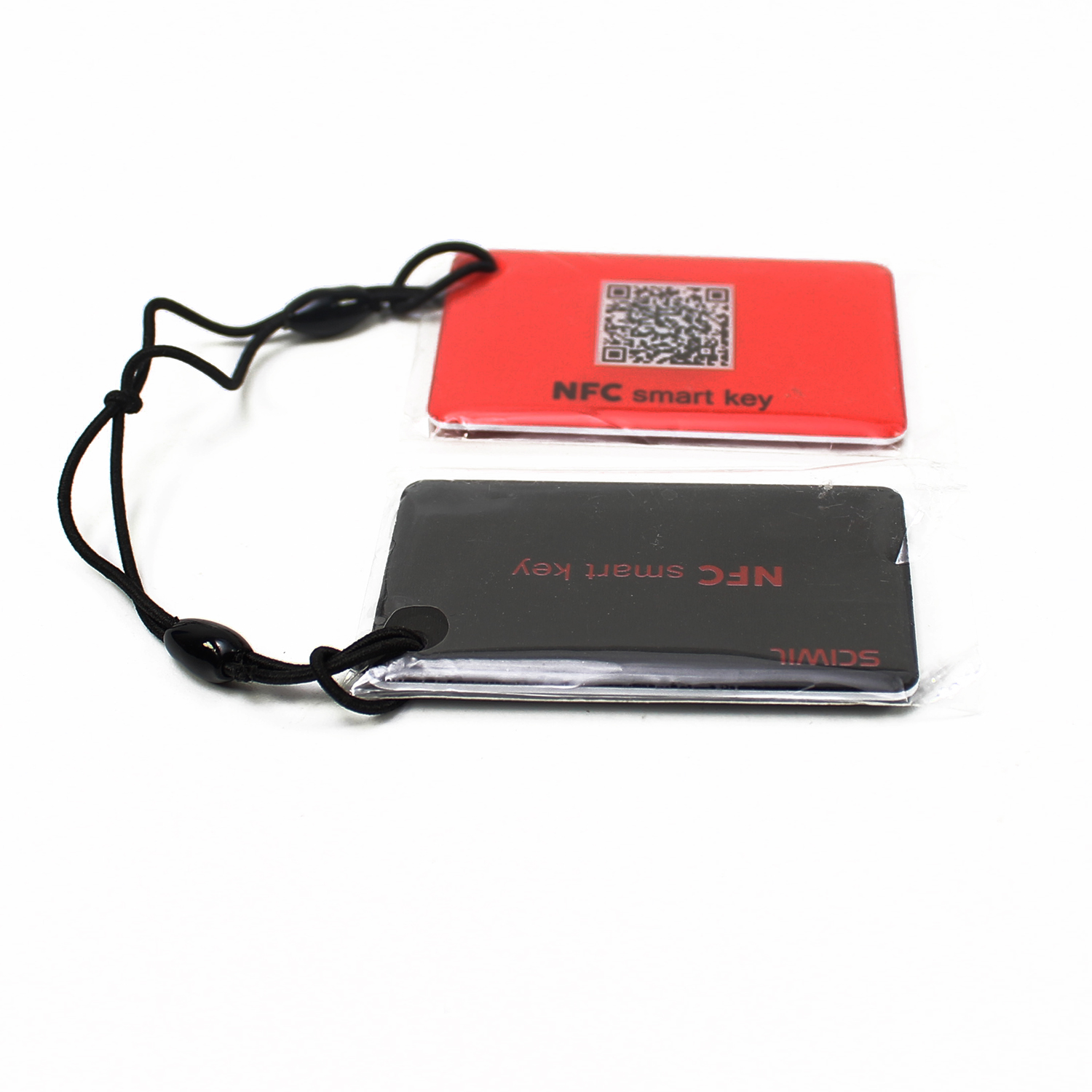

2*NFC credit card
