TE2000 Low Differential Pressure Gauge 0 60Pa Micro Pressure Positive Negative Manometer Clean Room HVAC Duct Laboratory

TE2000 Low Differential Pressure Gauge 0 60Pa Micro Pressure Positive Negative Manometer Clean Room HVAC Duct Laboratory

Package Includes:
One Piece Differential Pressure Gauge

Specifications:

  • Accuracy: ±2.5%FS

  • Housing Material: Die-cast aluminum case

  • Connections: 1/8 NPT for high and low pressure taps, dual connection options (side and back)

  • Overvoltage Protection: Rubber plug designed to burst at approximately 172 KPa

  • Rated Pressure: -68 to 100 KPa

  • Ambient Temperature Range: -7 to 60 °C

  • Mounting Hole Distance: 114 mm

  • Measurement Range: 0 to 15 KPa

  • Standard Accessories: Two 1/8” NPT plugs, two 1/8” threaded rubber hose connectors, and three flush-mount brackets with screws

Features:

  • Magnetic link transmission mechanism eliminates friction from gear-driven systems.

  • No fluid filling required for operation.

  • Pointer movement is smooth, without inertia or drift.

  • Provides instantaneous readings with no lag.

  • Excellent shock resistance and vibration stability.

  • Capable of measuring both positive and negative differential pressure.

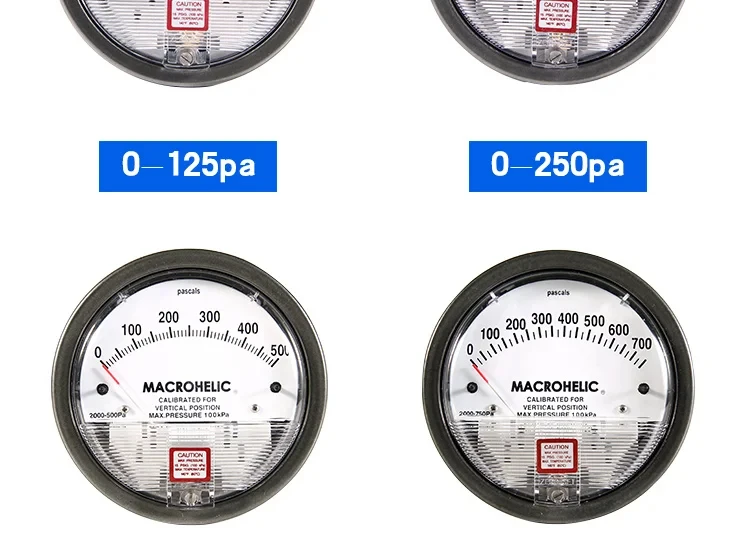

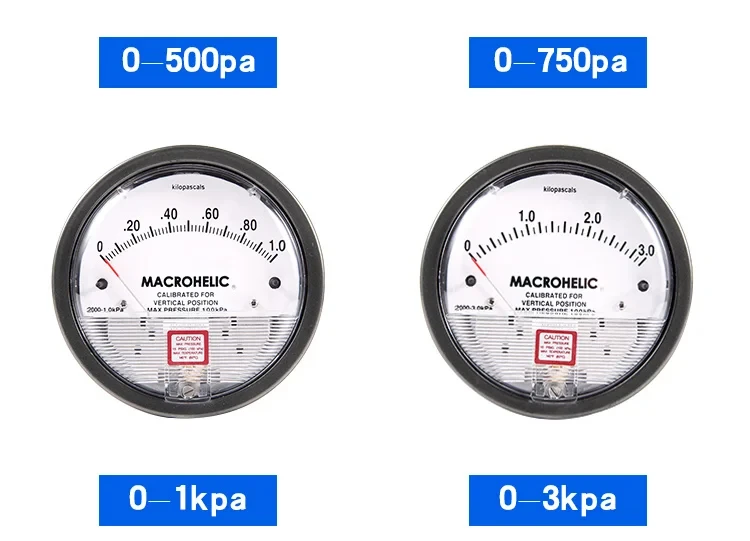

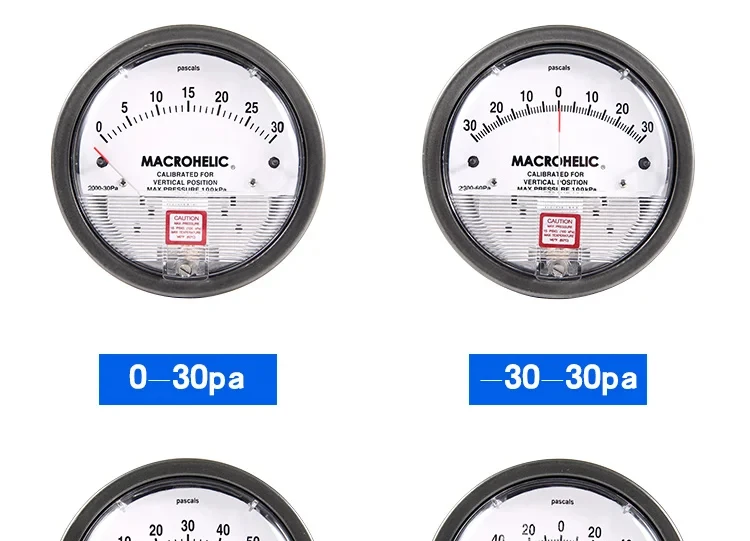

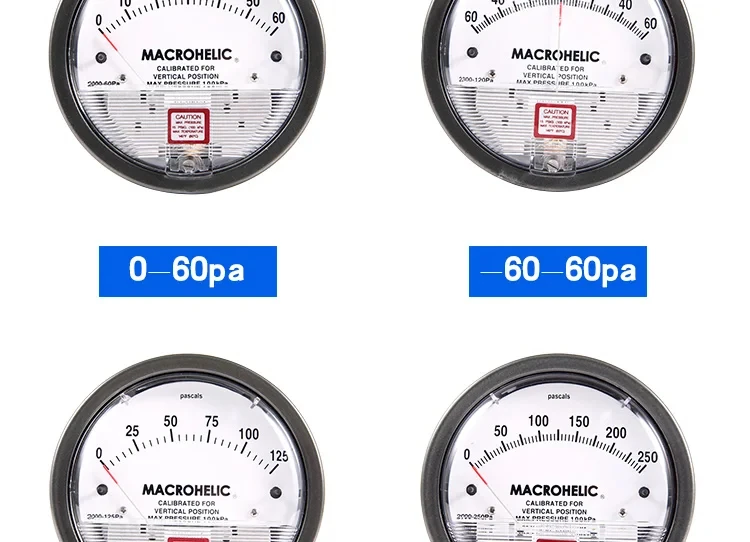

  • Available in various ranges, from 0–60 Pa to 0–210 KPa.

  • Equipped with dual pressure connections (side and back) and three installation options for flexible use.

  • High accuracy and cost-effective performance.



FAQs

Q1: How do I install the differential pressure gauge?
A1: The gauge can be installed using one of three included mounting brackets. Connect the high and low-pressure ports via the 1/8" NPT fittings, ensuring airtight sealing. Both side and back connections are available for flexible installation.

Q2: Can this gauge measure negative differential pressure?
A2: Yes. It is designed to measure both positive and negative differential pressure within its specified range, making it suitable for various industrial applications such as HVAC and cleanroom monitoring.
