Features:

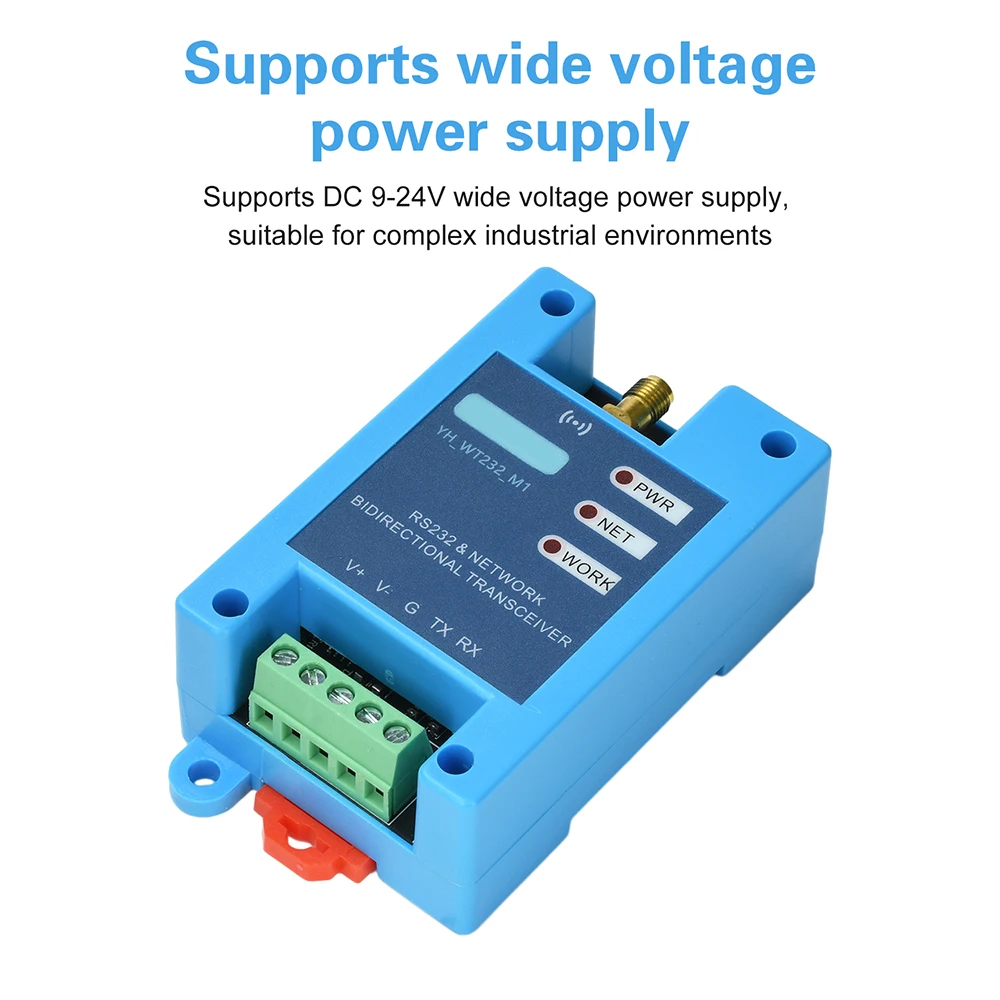

1. Supports DC9-24V wide voltage power supply, suitable for complex industrial environments.

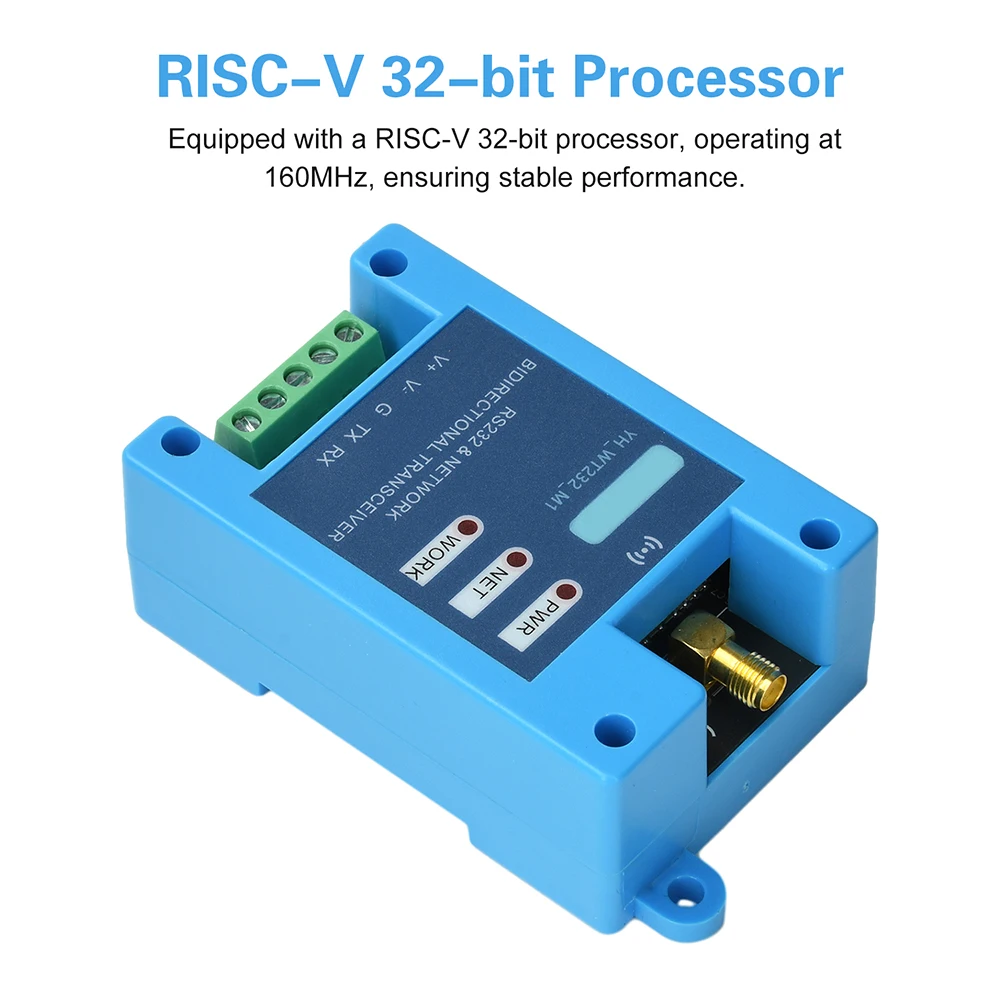

2. Equipped with RISC-V 32-bit processor, with a main frequency of 160MHz and stable operation.

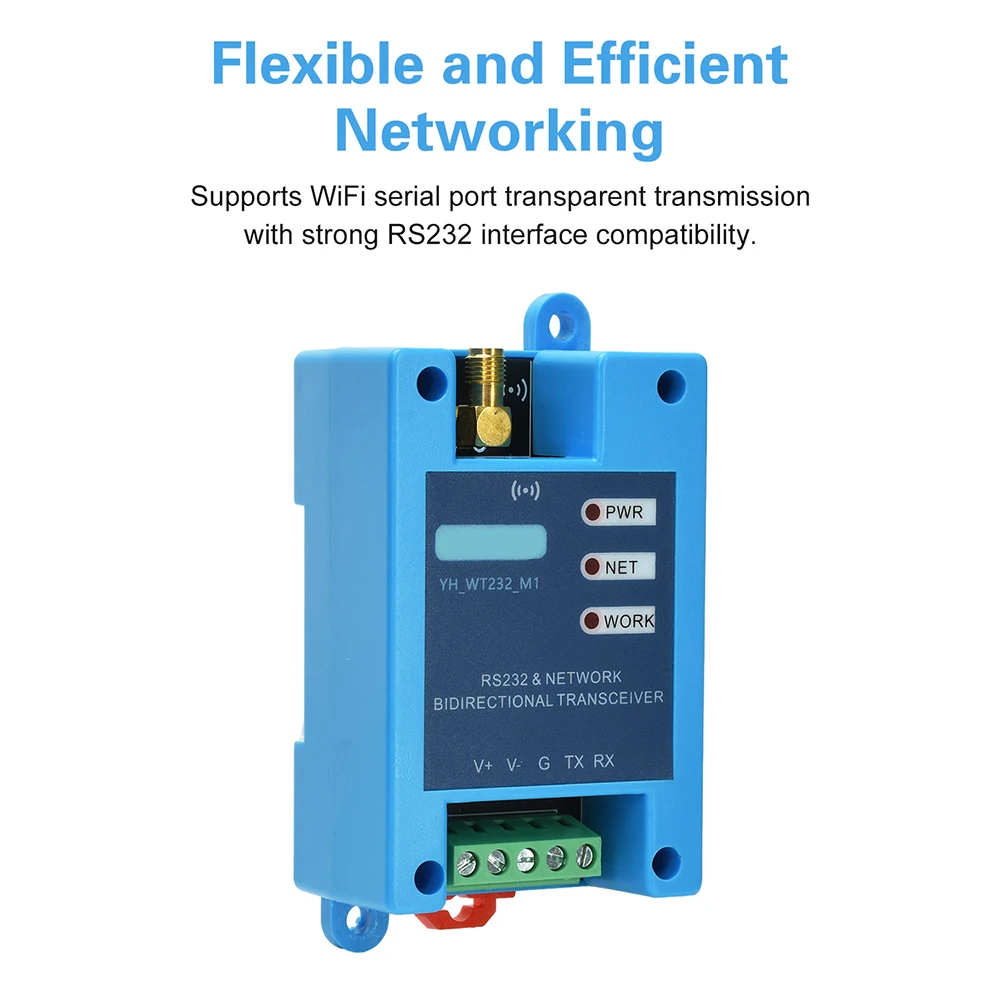

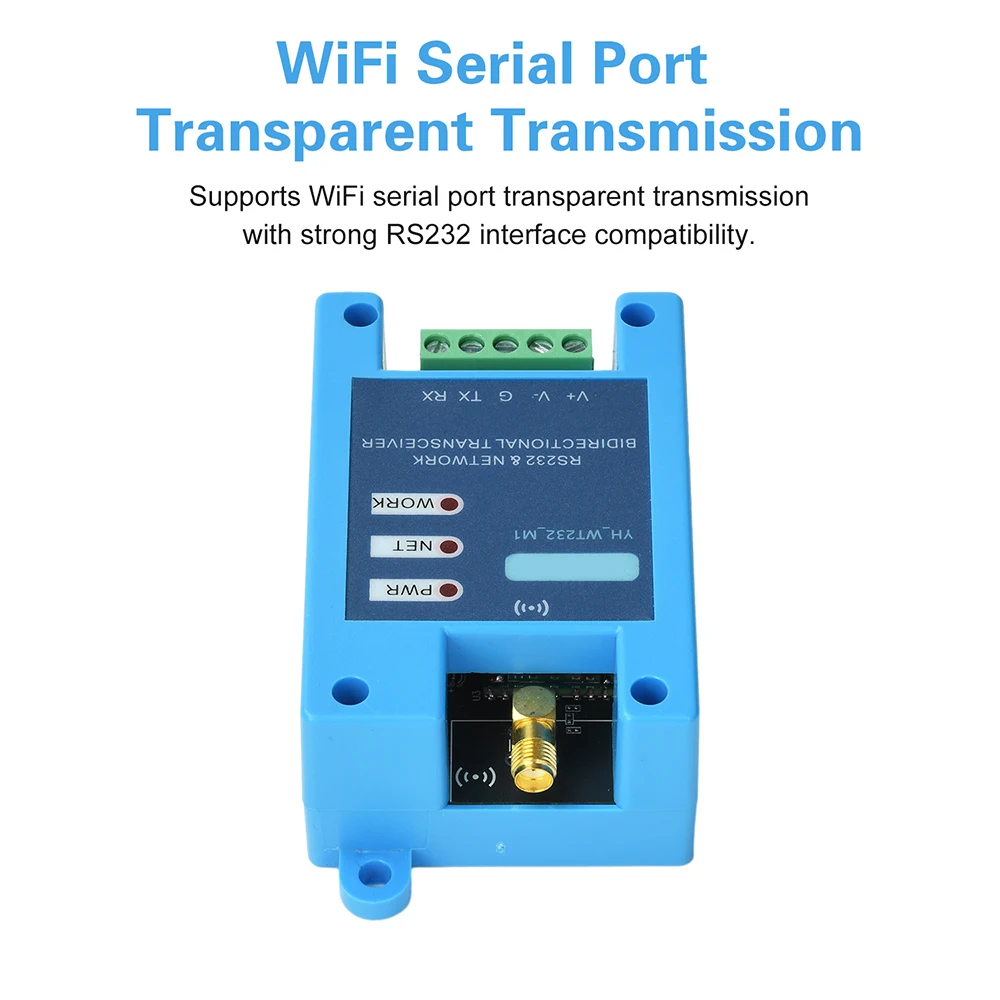

3. Supports WiFi serial port transparent transmission and strong compatibility with RS232 interface.
4. Multiple protocols support TCP/UDP/HTTP/MQTT, making networking flexible and efficient.

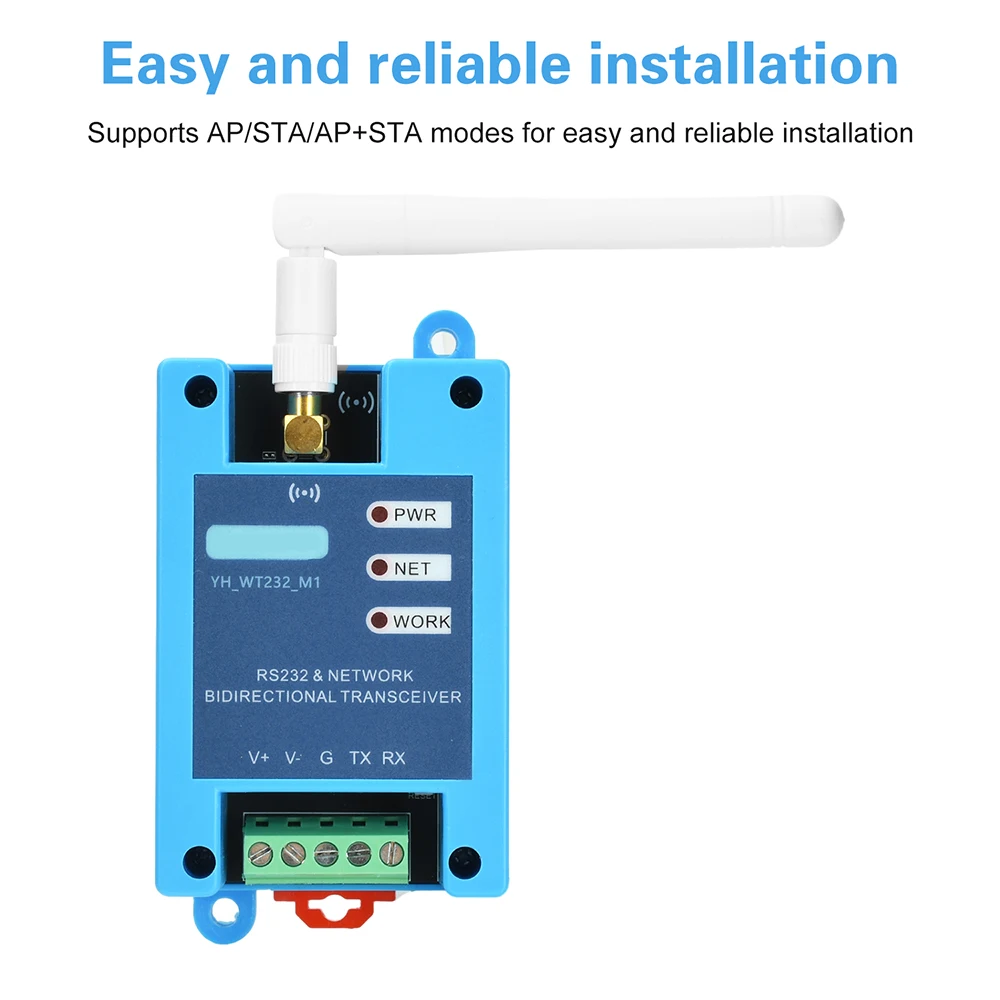

5. Supports AP/STA/AP+STA modes, easy and reliable installation.

Product Introduction

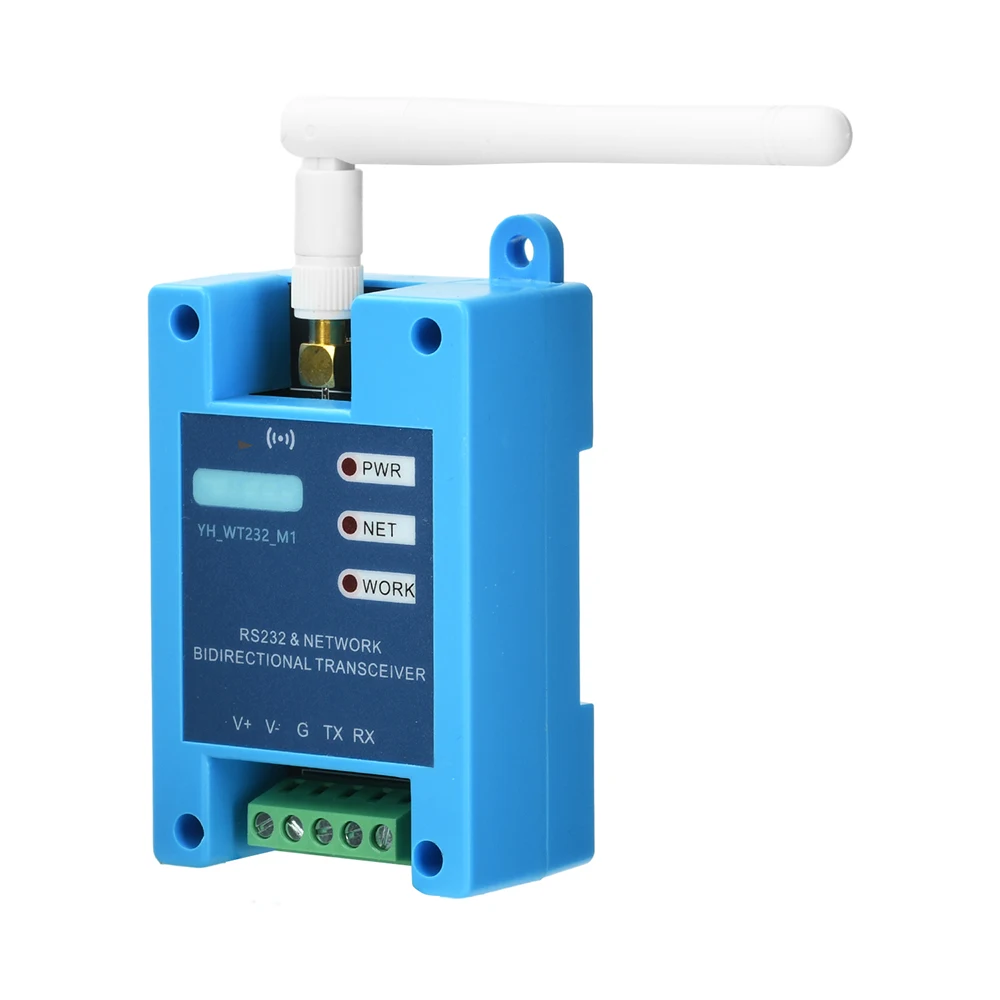

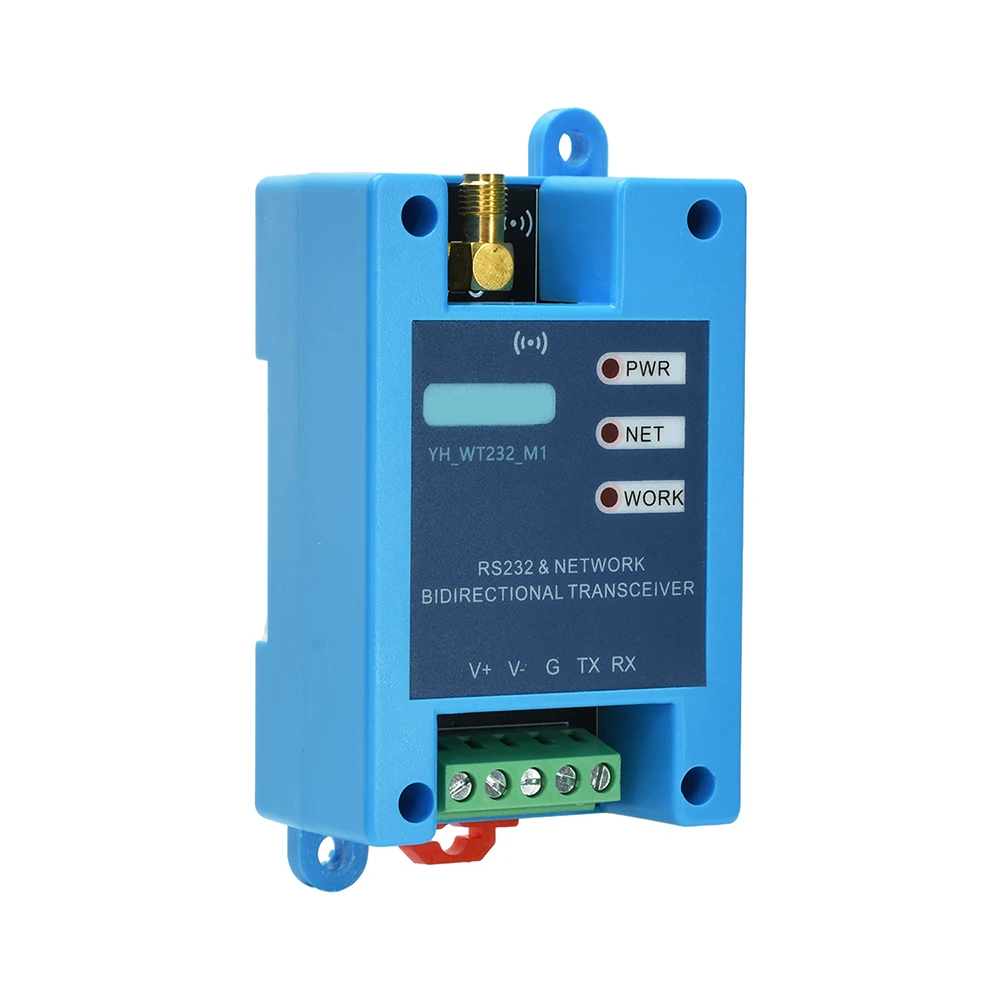

WT232nM1 is a multifunctional, multi protocol, WiFi serial port transparent transmission device. It aims to quickly and stably connect traditional serial devices such as PLCs, sensors, microcontrollers, etc. to wireless networks (WiFi) and IoT cloud platforms, enabling remote data transmission and device control.

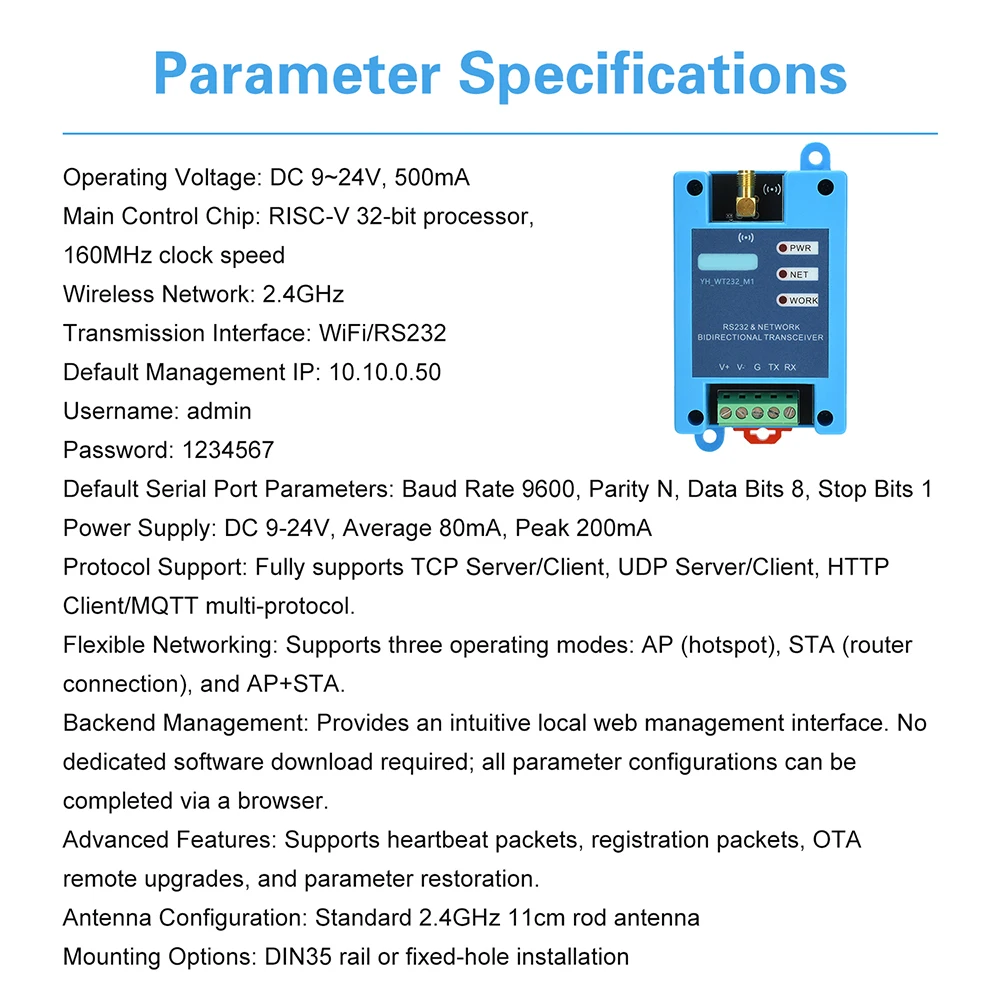

Parameter:
Working voltage: DC9~24V, 500mA
Main control chip: RISC-V 32-bit processor, with a main frequency of 160MHz
Wireless network: 2.4G
Transmission interface: WIFI/RS232

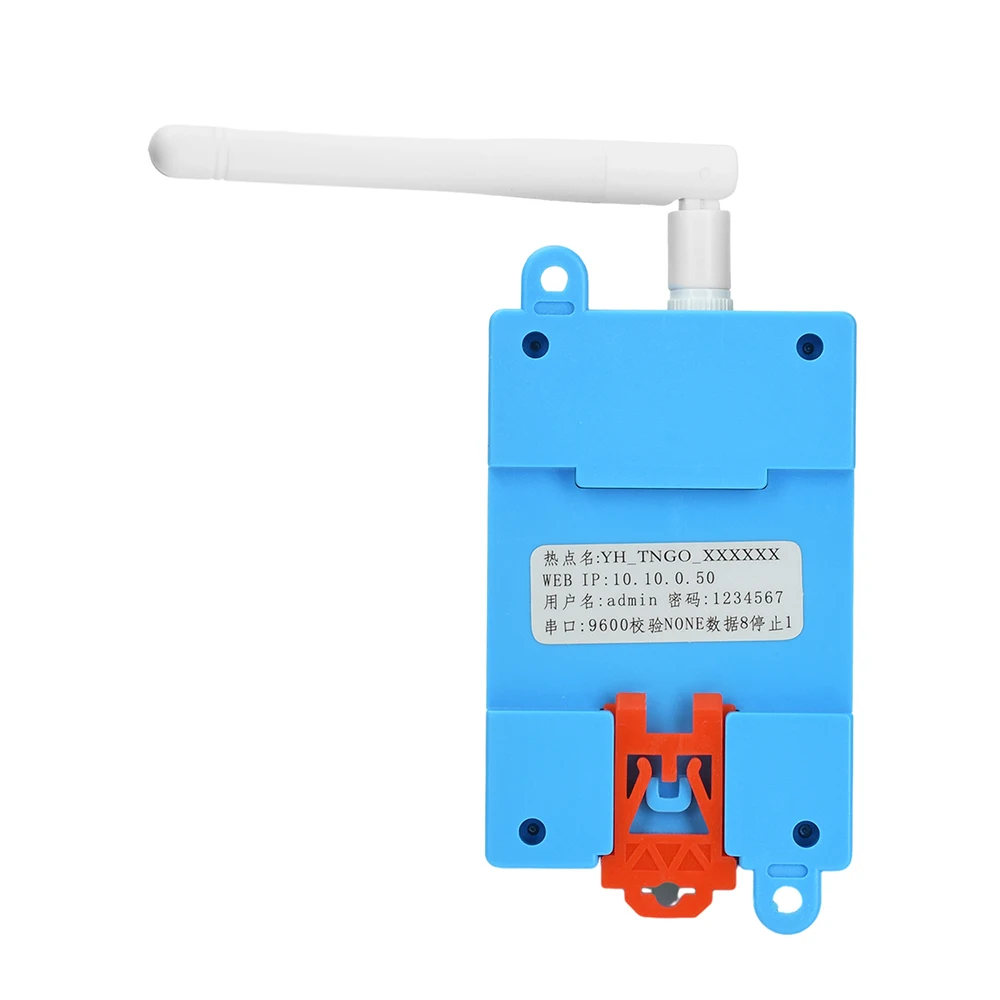

Default management IP: 10.10.0.50 Username: admin Password: 1234567
Default serial port parameters: baud rate 9600 checksum N data bits 8 stop bits 1
Working power supply: DC9-24V, average 80mA, peak 200mA

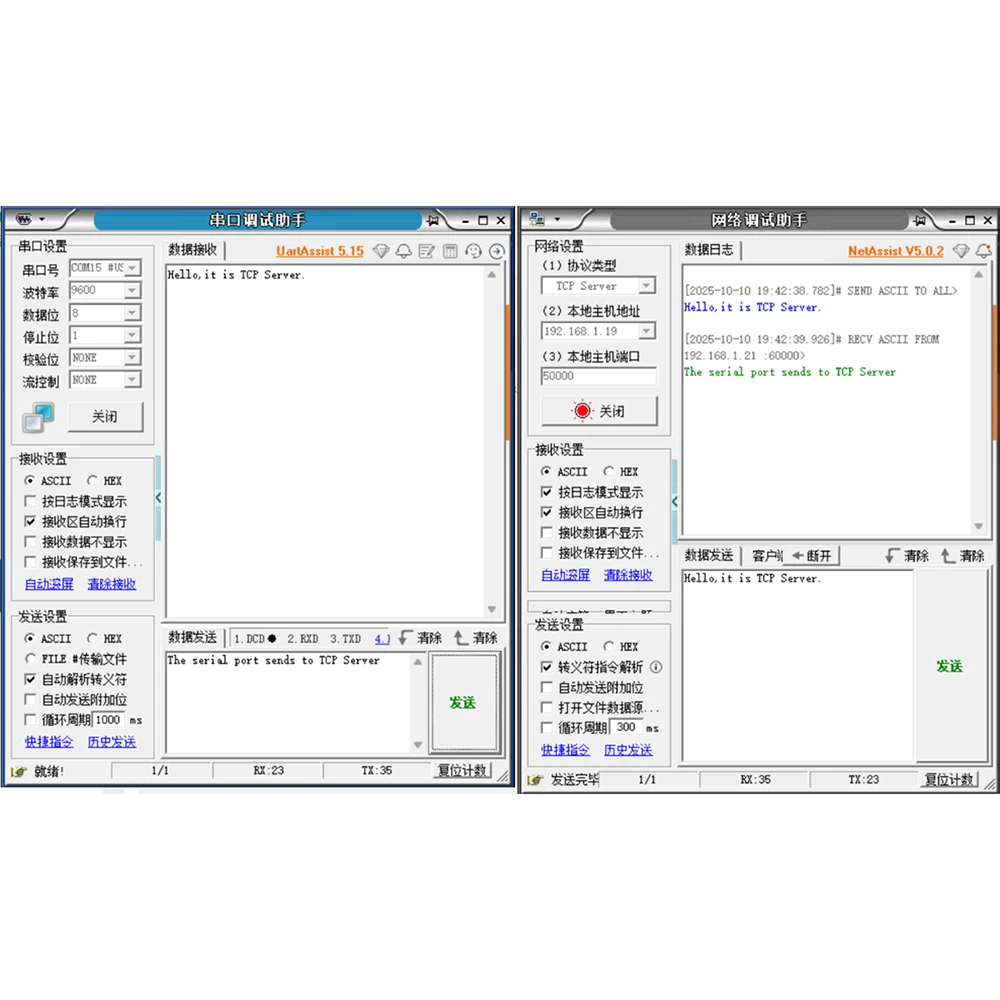

Protocol support: Fully supports TCP Server/Client, UDP Server/Client, HTTP Client/MQTT multi protocol.
Flexible networking: supports three working modes: AP (hotspot), STA (router connection), and AP+STA.

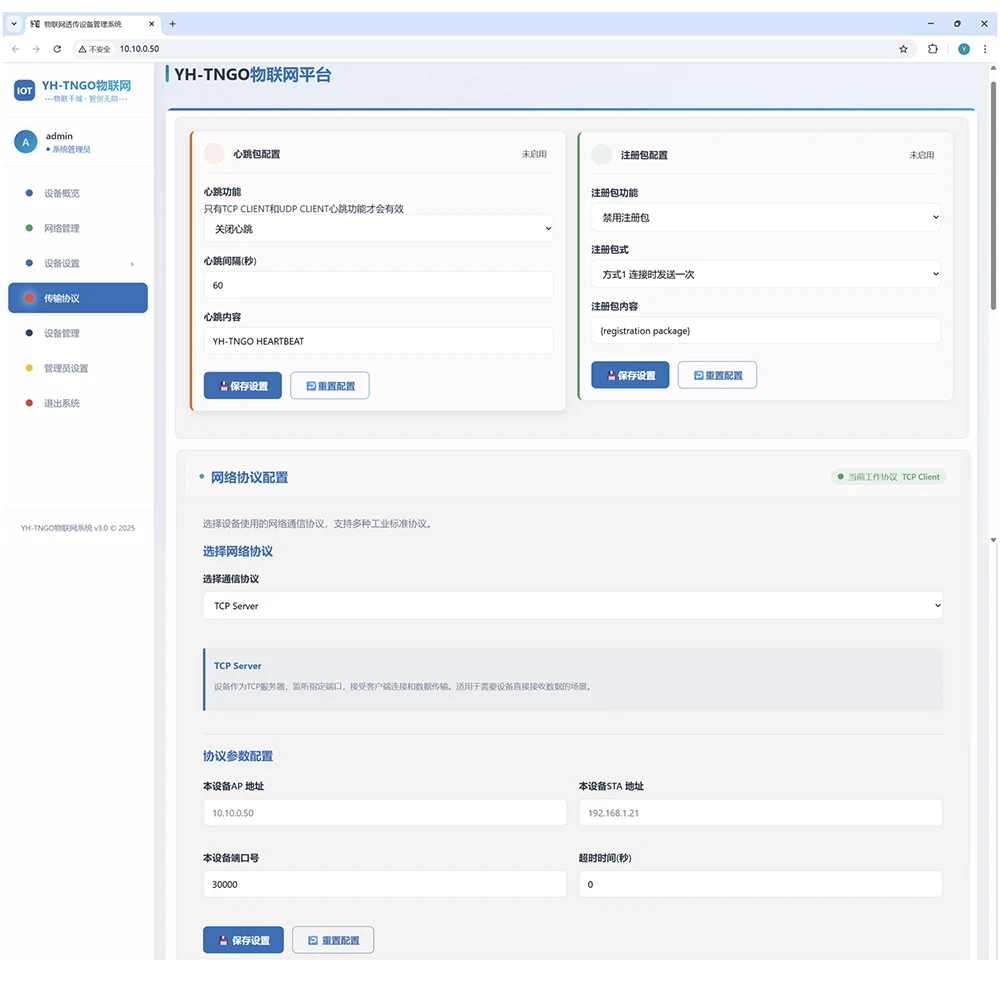

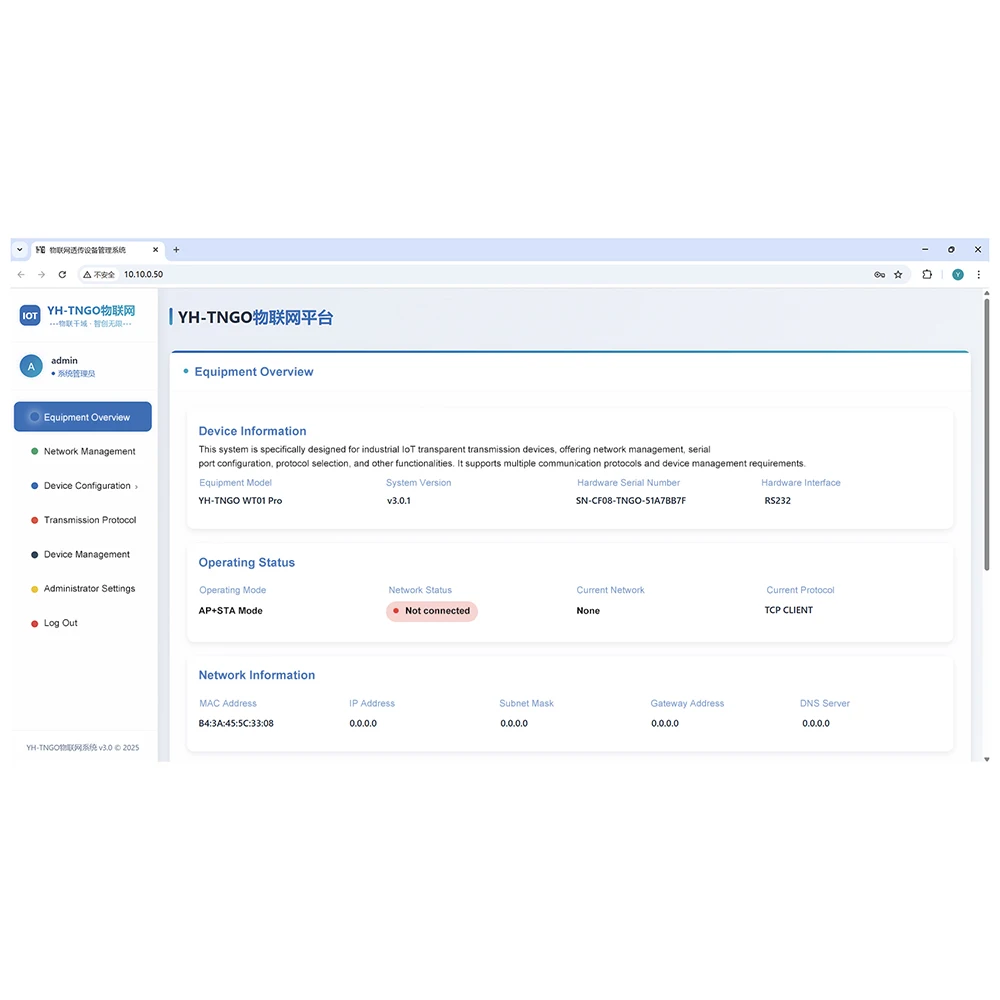

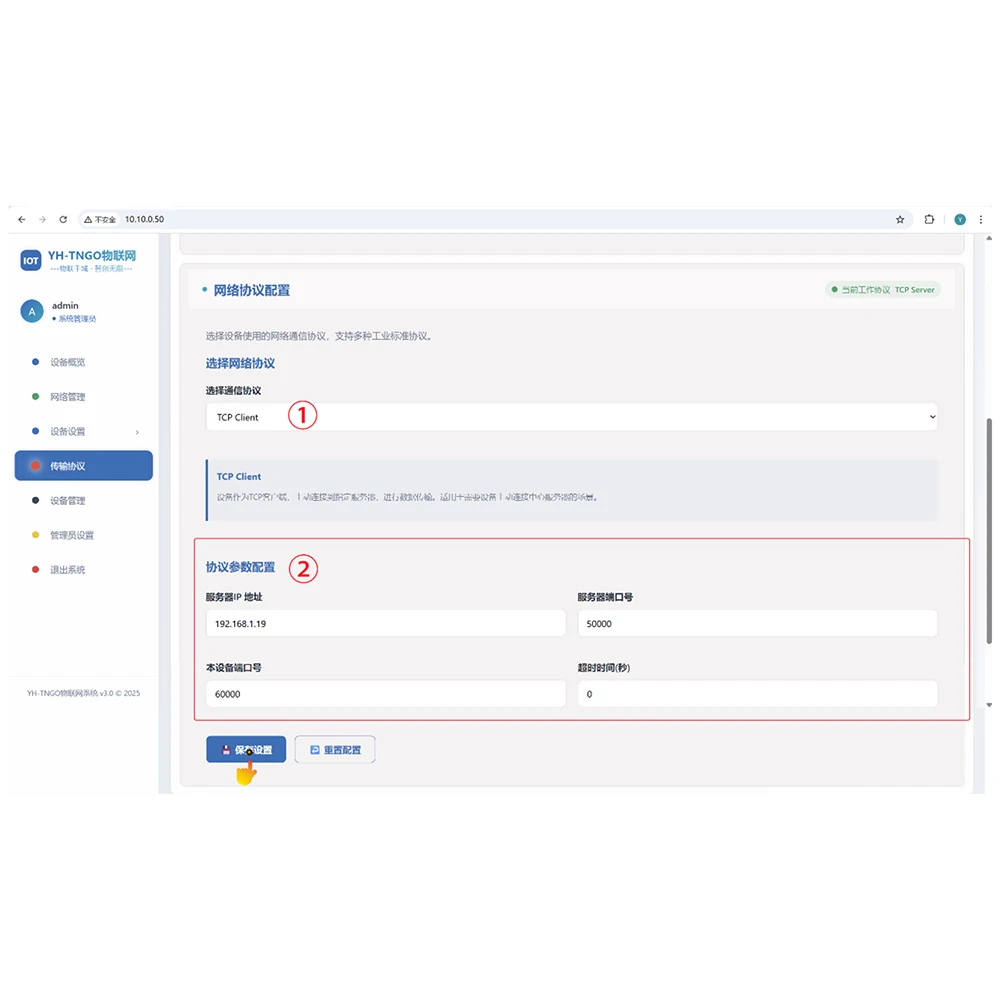

Backend management: Provides an intuitive local web management interface, without the need to download specialized software, all parameter configurations can be completed through a browser.
Advanced features: Supports heartbeat package, registration package, OTA remote upgrade, parameter recovery.
Antenna form: standard 2.4G rod-shaped 11cm antenna

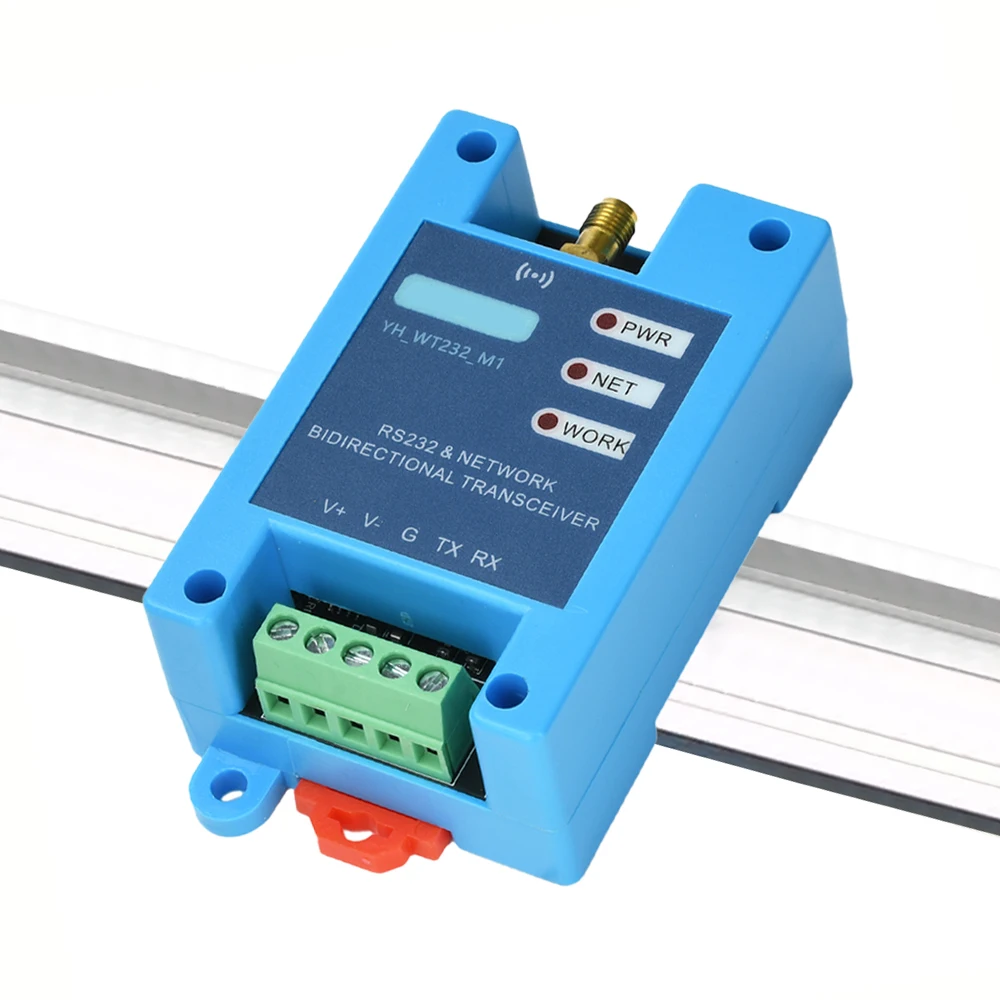

Installation method: DIN35 guide rail or fixed hole installation

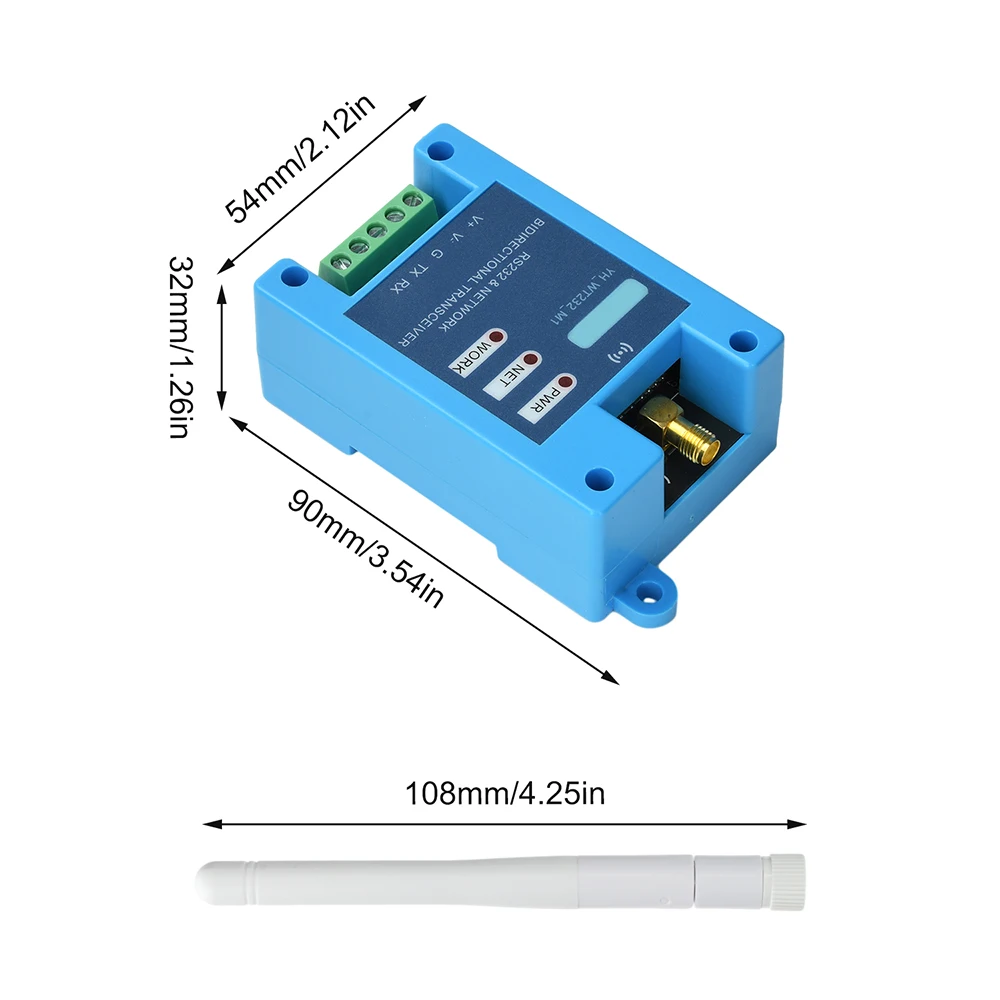

Size: 140 * 150 * 30mm
Ear removal size: 81X54X32 mm
Ear size: 90X54X32 mm

Package Include:
1X module
1X antenna
