Please note that this tester only has 220V version!!!
Product performance characteristics:

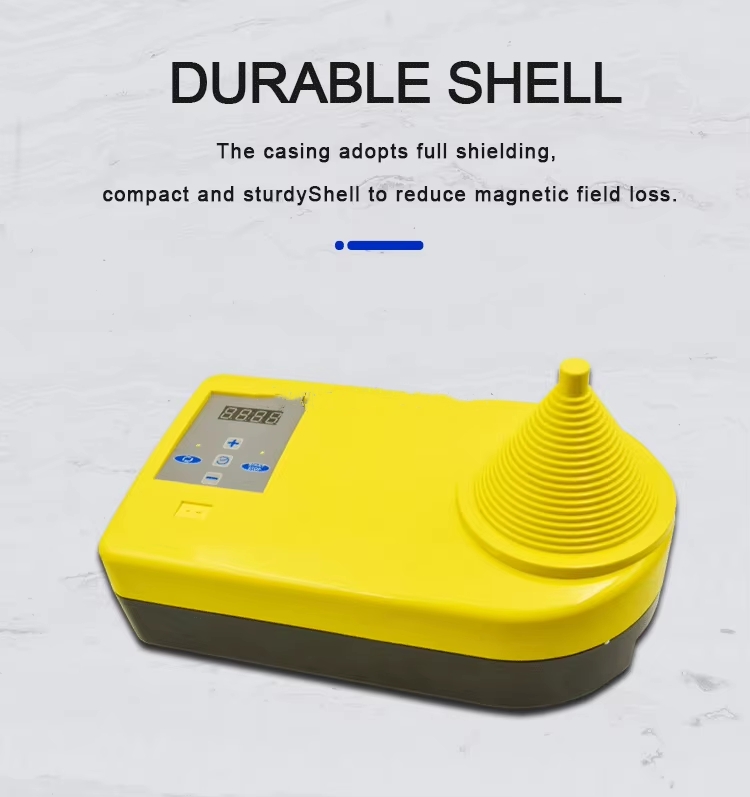

Integrated shell, compact, simple, and sturdy high-temperature resistant composite material.
Air cooled heat dissipation, long service life, and convenient maintenance.

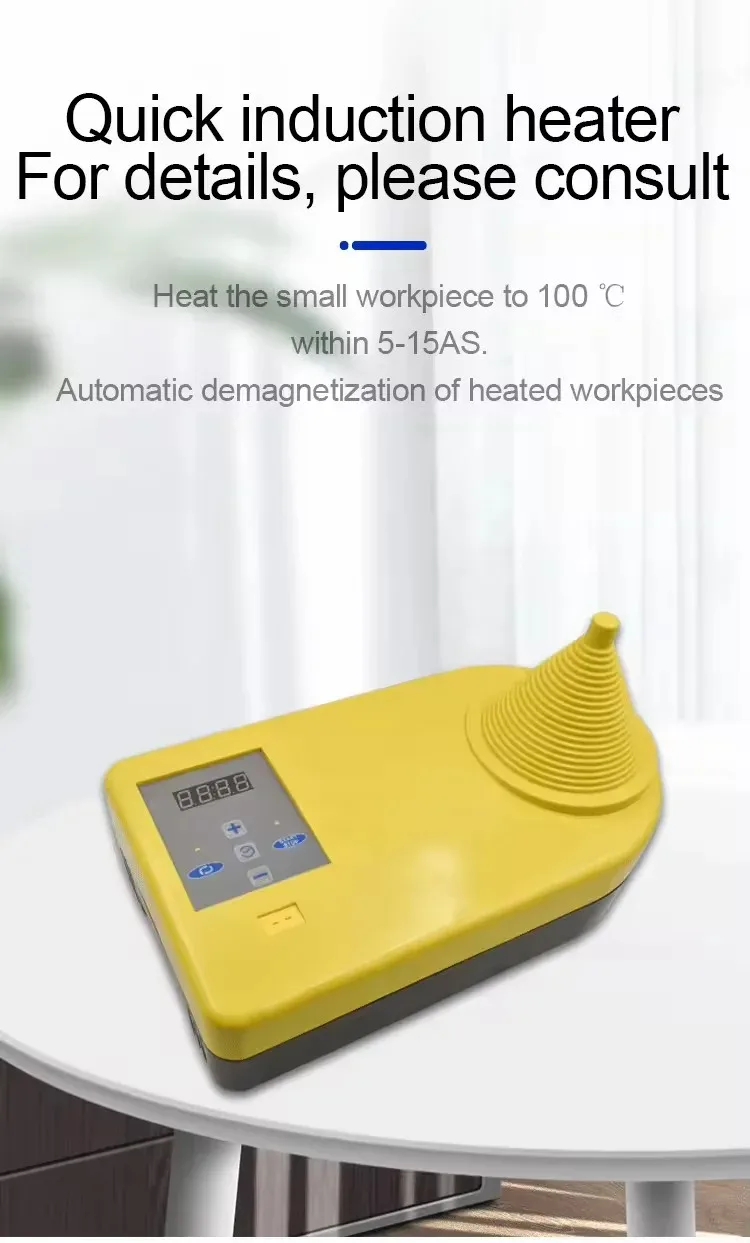

High efficiency, small workpieces can be heated to 100 degrees within 5-15 seconds.
Silent design, no noise pollution.

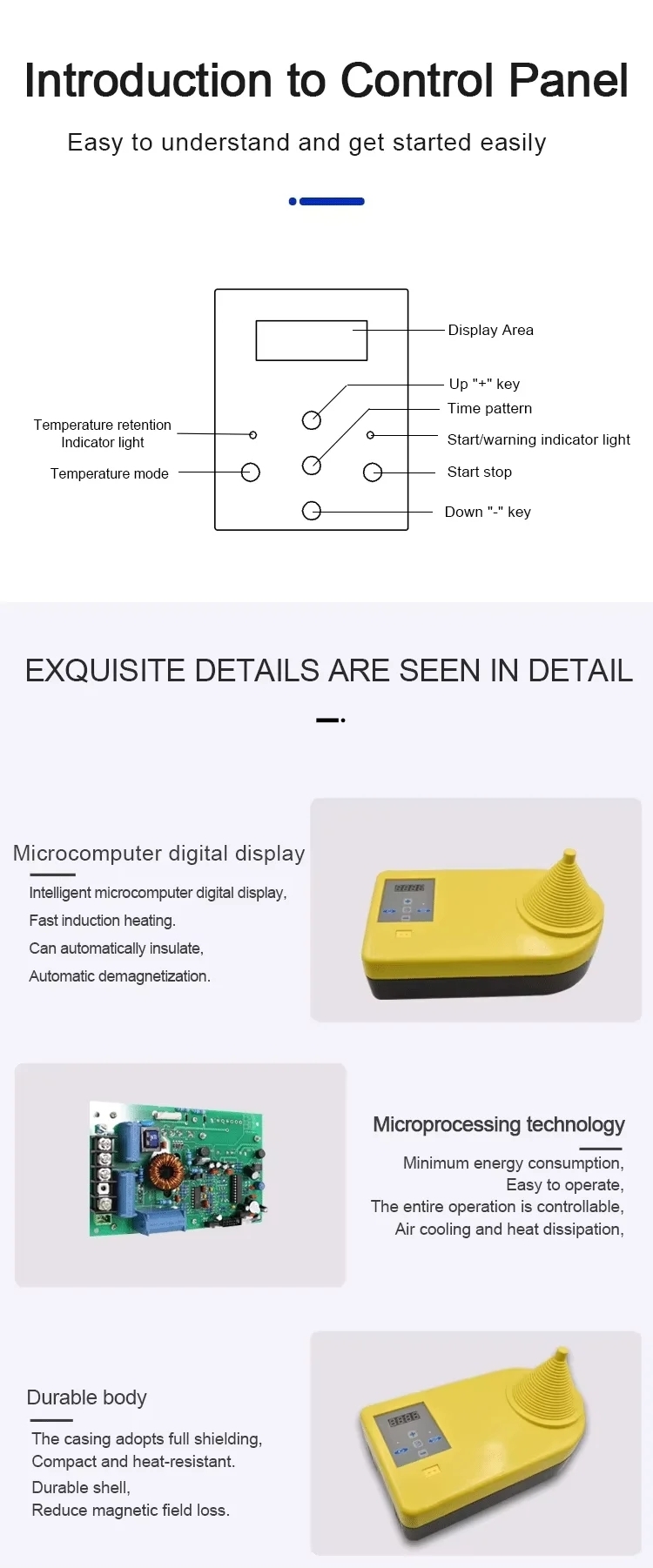

Three heating modes, Time Mode, Temperature Mode, and Temperature HoldingMode.
Built in over temperature protection device.
Automatic demagnetization of heated workpieces.

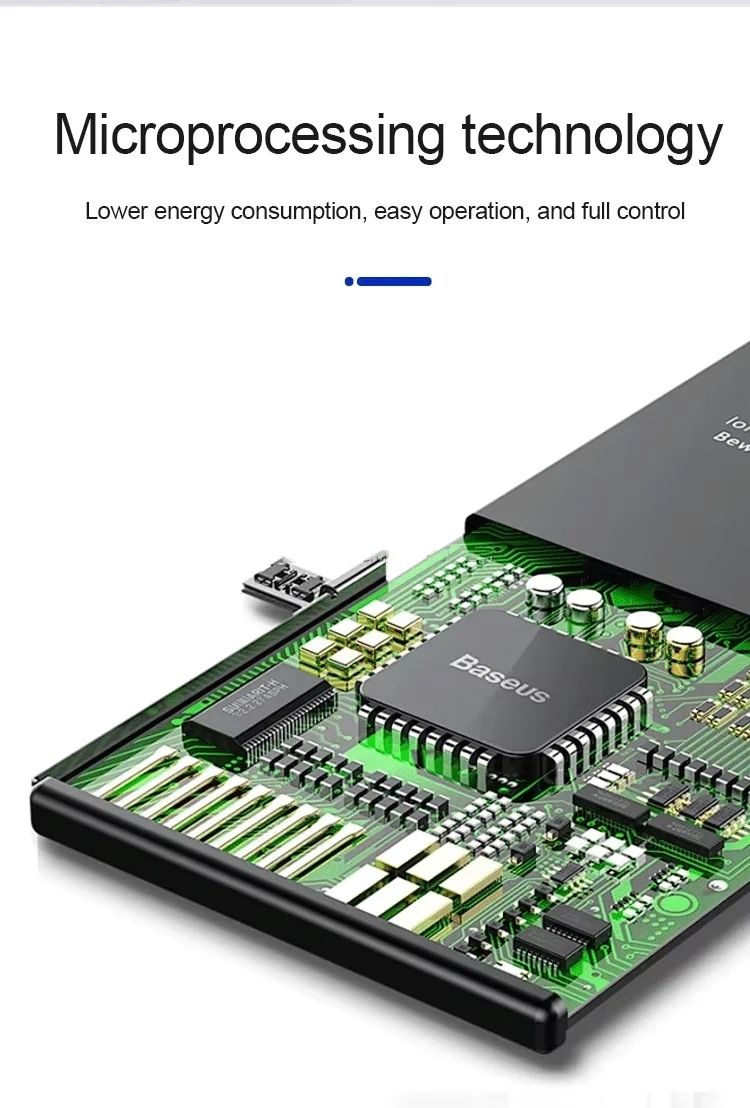

Microprocessing technology, lower energy consumption, simple operation, and full process controllability.

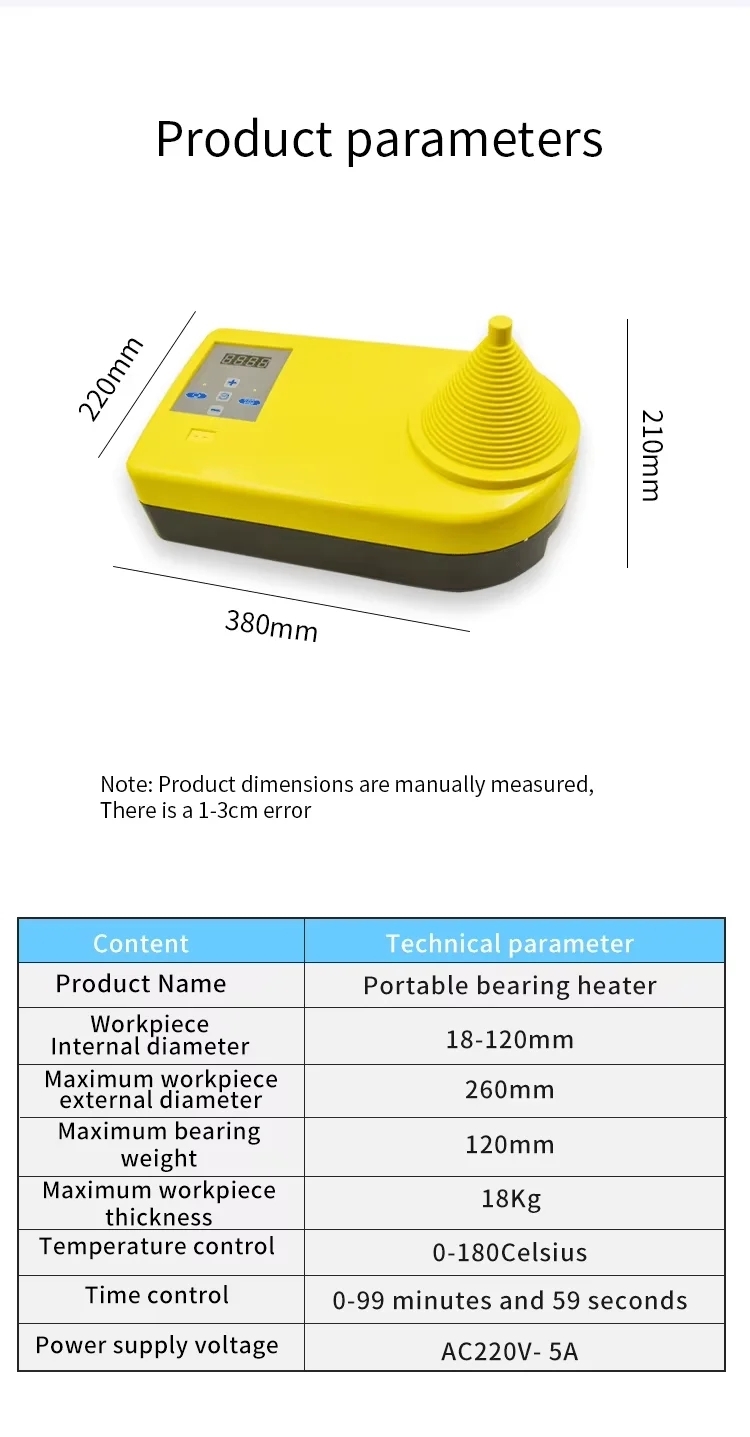

content | Technical parameter |
Product name | Tower type bearing heater |
Inner diameter of workpiece
| 18-20mm |
Maximum workpiece outer diameter
| 260mm |
Maximum workpiece thickness
| 120mm |
Maximum bearing weight
| 18kg |
Power supply voltage
| AC220V-5A
|
Temperature control
| 0-180 degrees Celsius
|
Continuous work | Yes |
Temperature retention
| yes |
Automatic demagnetization
| yes |
Forced air cooling
| yes |
Temperature protection
| yes |
Notes:
It is prohibited to start the heating device without load strictly.
When using temperature control mode, it should be ensured that the positive and negative poles of the sensor are connected correctly, the sensor should be adsorbed on the inner side of the workpiece reliably, and the contact surface should be kept clean. If there is an E30 prompt:please check if the sensor is properly connected or if it is caused by heating the workpiece too large; If repeatedly prompted: Please check if the sensor is damaged.
Items susceptible to magnetic fields should be kept away. For example, items such as pacemakers, hearing aids, magnetic tapes, magnetic cards, etc., with a safe distance of 2 meters.
