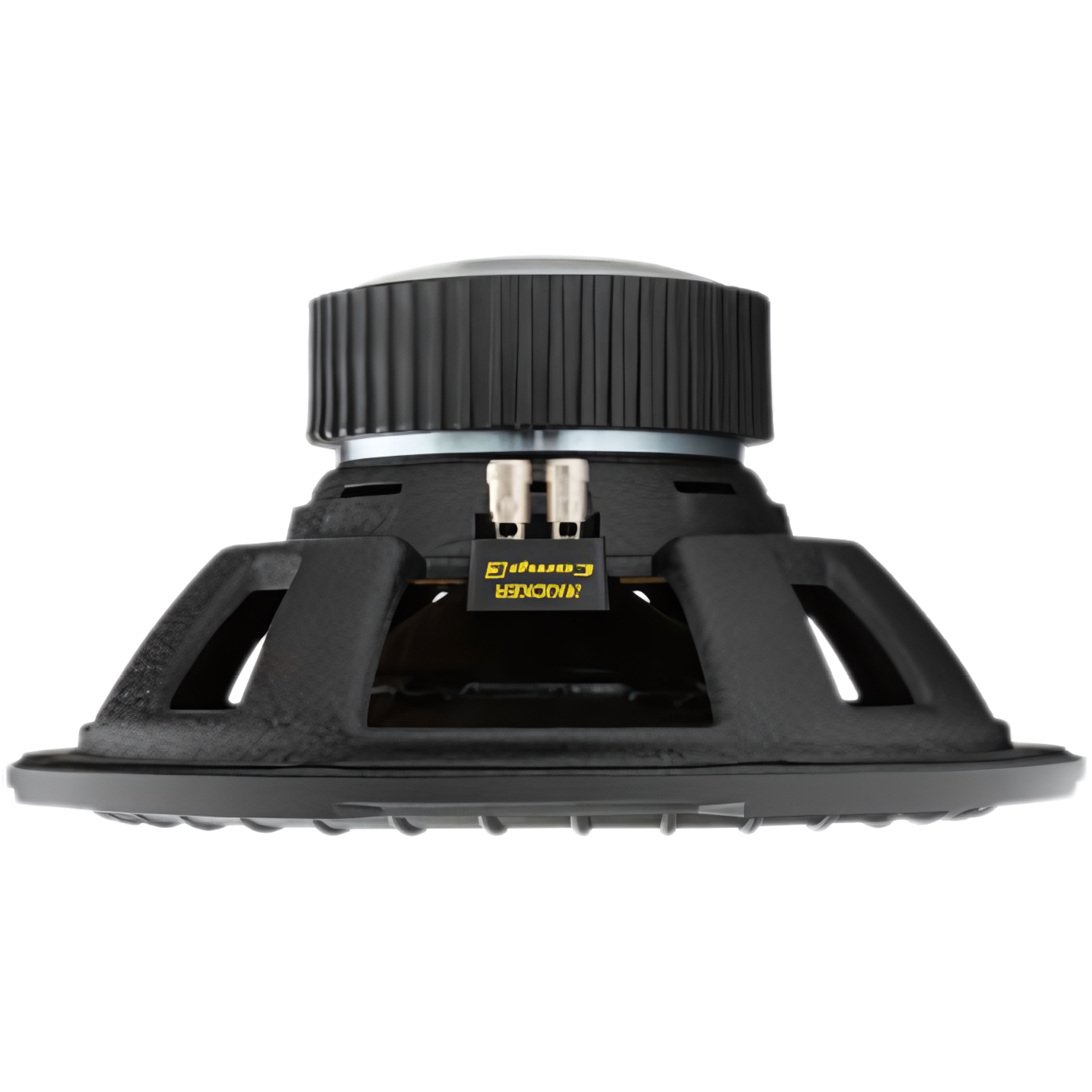

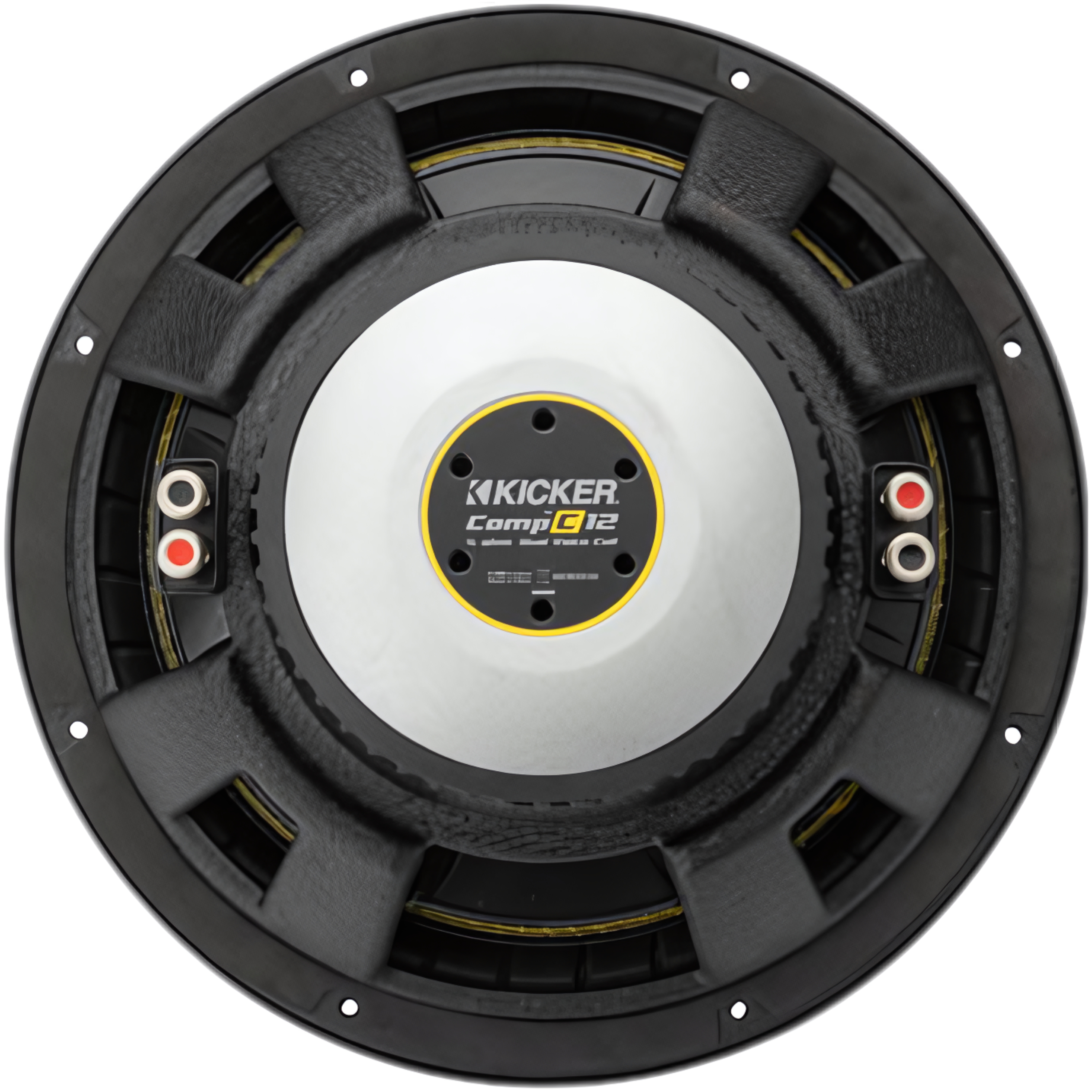

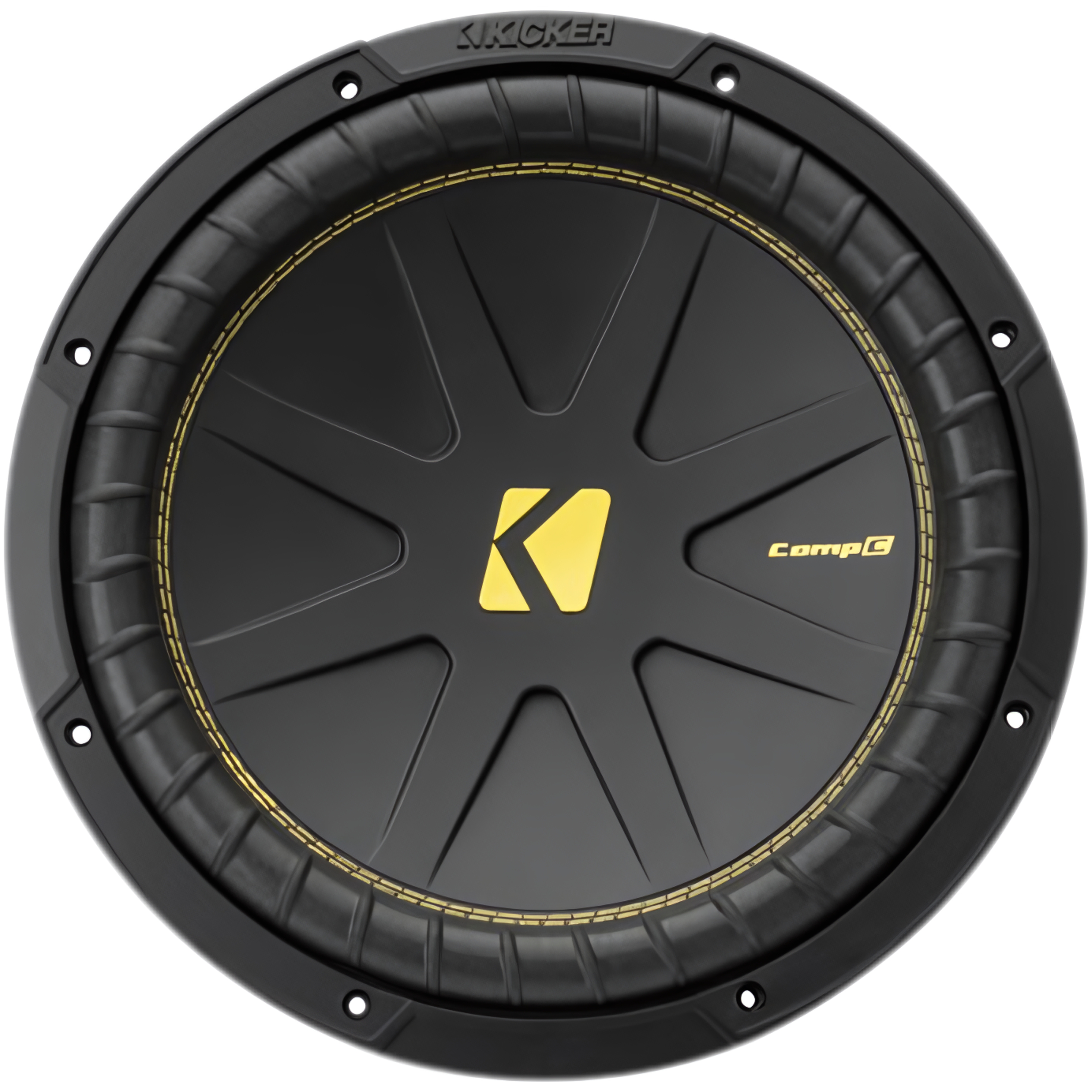

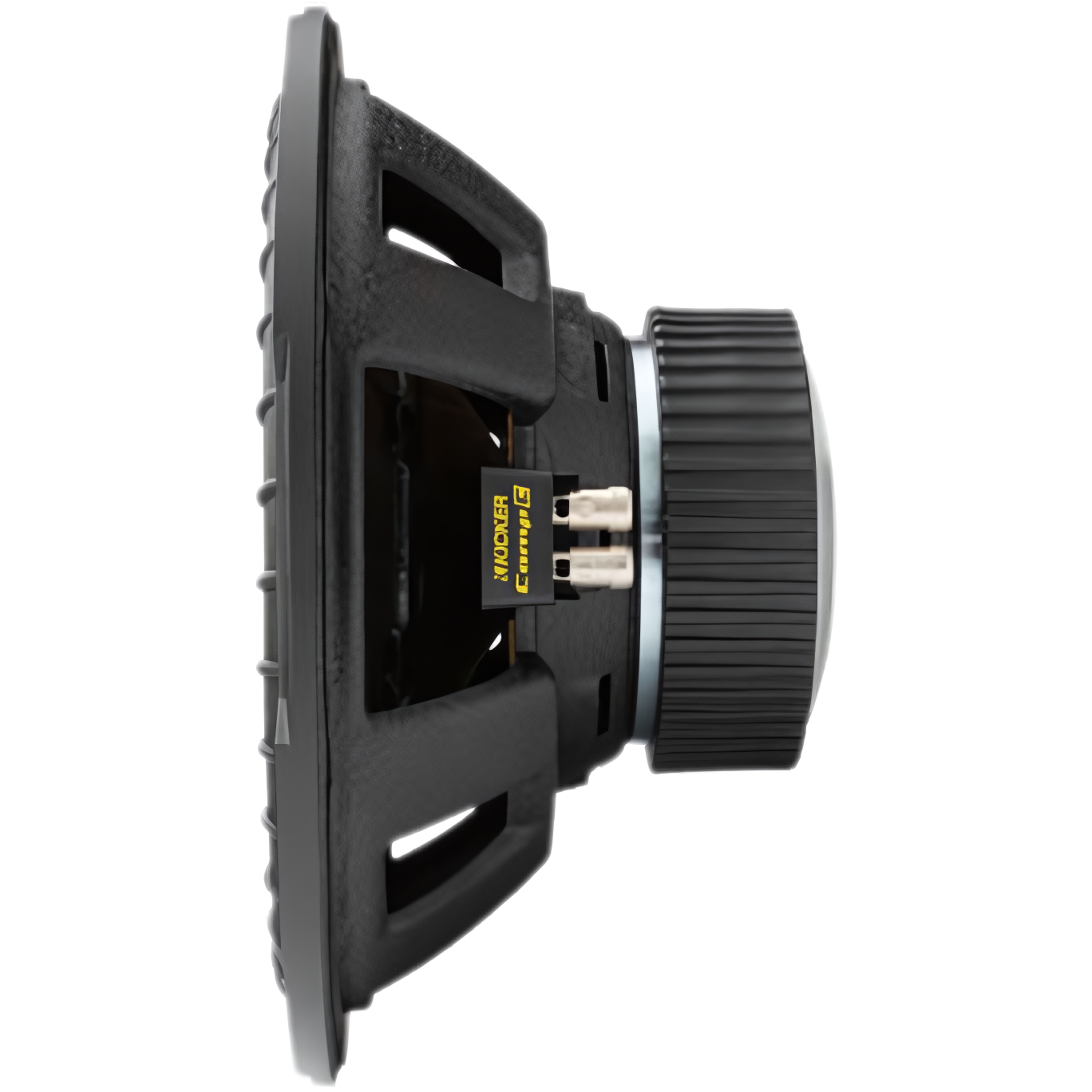

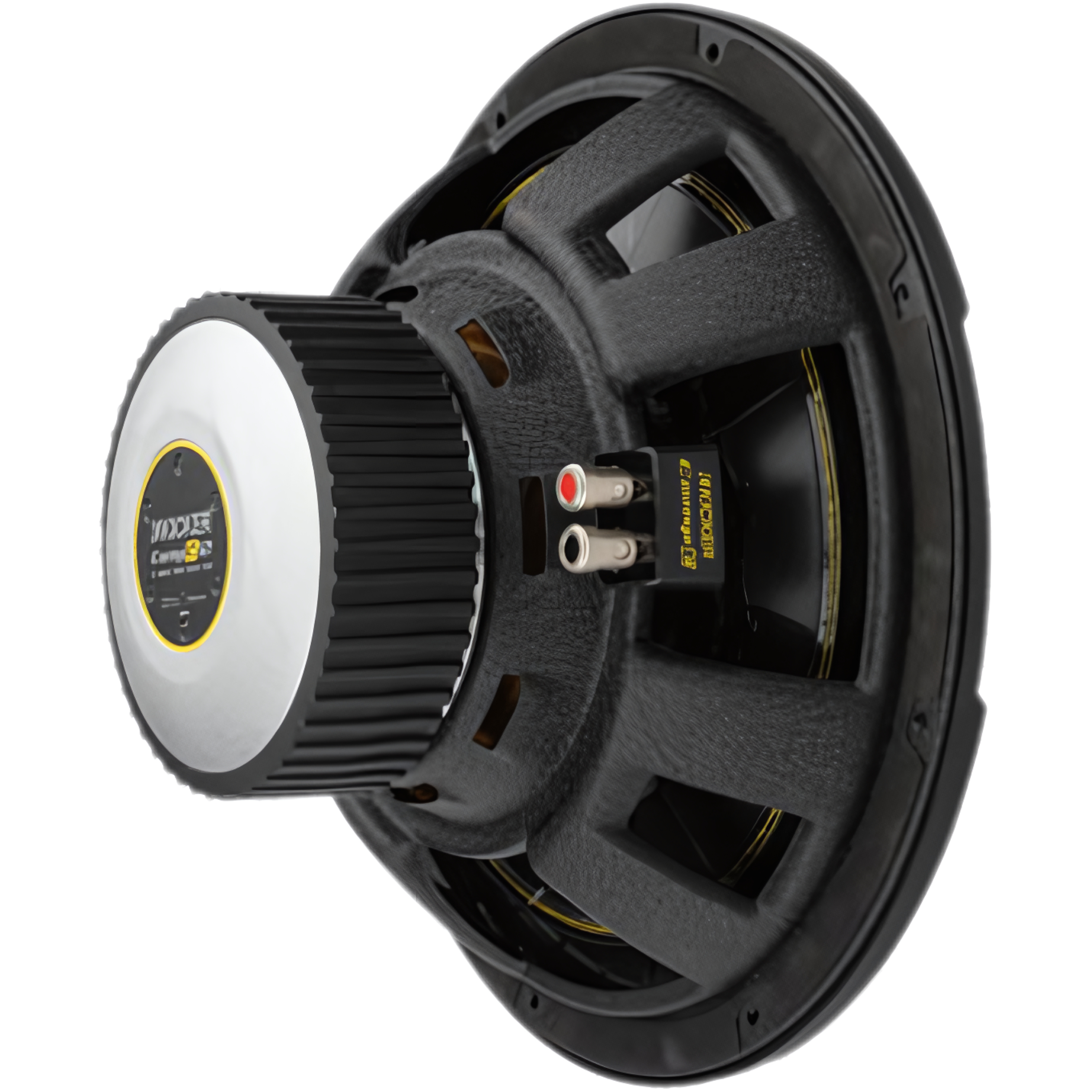

12" 150-300W RMS 4-Ohm DVC Subwoofer Kicker CompC Series / 50CWCD124

12" 150-300W RMS 4-Ohm DVC Subwoofer Kicker CompC Series / 50CWCD124

This Listing Includes:

• (1) 50CWCD124 12" Subwoofer

Description:

Experience the ultimate in bass performance with the Kicker CompC Series 12" DVC Subwoofer. Designed to deliver powerful, deep bass, this subwoofer features a dual 4-ohm voice coil configuration, allowing for versatile wiring options and enhanced power handling. With a robust RMS power range of 150-300 watts, it provides the perfect balance between intensity and clarity, making it ideal for both everyday listening and high-impact sound systems. Its durable construction ensures long-lasting performance, while its sleek design fits seamlessly into any setup. Elevate your audio experience with the Kicker CompC Series and feel every beat with precision and power.

Features:

• Dual Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass


• Injection-Molded Polypropylene Cone


• Forced-Air Cooling for Outstanding Durability


• Ribbed Polyurethane Surround


• Signature Yellow Surround Stitching


• High-Strength Spiralead Tinsel Leads


• Stamped Steel Basket


• High Temp Voice Coil


• Spring-Loaded Speaker Terminals

Specifications:

• Size [in, cm]: 12, 30


• Recommended Amplifier Power [watts RMS]: 150-300


• Peak Power Handling [watts, per ANSI/CTA-2031-A]: 600


• Sensitivity [dB 1w/1m]: 87.1


• Rated Impedance [OHMS]: 4 DVC


• Fs [Hz]: 30.6


• Frequency Response [Hz]: 27-500

Thiele & Small Parameters:

Electrical Parameters

• Re: 7.485 | Ohm | electrical voice coil resistance at DC


• Krm: 0.00485 | Ohm | WRIGHT inductance mode


• Erm: 0.925| WRIGHT inductance mode


• Kxm: 0.03795 | Ohm | WRIGHT inductance mode


• Exm: 0.775 | WRIGHT inductance mode


• Cmes: 613.11 | F | electrical capacitance representing moving mass


• Lces: 39.39 | mH | electrical inductance representing driver compliance


• Res: 63.035| Ohm | resistance due to mechanical losses


• fs: 32.45 | Hz | driver resonance frequency

Mechanical Parameters

• Mms: 127.2375 | g | mechanical mass of driver diaphragm assembly including air load and voice coil


• Mmd(Sd): 113.4135 | g | mechanical mass of voice coil and diaphragm without air load


• Rms: 3.299 | kg/s | mechanical resistance of total-driver losses


• Cms: 0.1895 | mm/N | mechanical compliance of driver suspension


• Kms: 5.275 | N/mm | mechanical stiffness of driver suspension


• Bl: 14.406 | Tm | force factor (Bl product)

Loss Parameters

• Qtp: 0.9025 | total Q-factor considering all losses


• Qms: 7.863 | mechanical Q-factor of driver in free air considering Rms only


• Qes: 0.934 | electrical Q-factor of driver in free air considering Re only


• Qts: 0.835 | total Q-factor considering Re and Rms only

Other Parameters

• Vas: 75.7283 | I | equivalent air volume of suspension


• n0: 0.2645 | reference efficiency (2 pi-radiation using Re)


• Lm: 86.425 | dB | characteristic sound pressure level (SPL at 1m for 1W @ Re)


• Lnom: 86.72 | dB | nominal sensitivity (SPL at 1m for 1W @ Zn)


• Sd: 530.93 | cm^2 | diaphragm area


• Xmax: 13.275 | mm

Measurements & Suggestions (Sheet)

• Outer Frame Dimension [in, cm]: 12-5/8, 32


• Mounting Depth [in, cm]: 5-3/4, 14.6


• Mounting Cutout [in, cm]: 11, 27.9


• Max Rec Sealed Box Vol [cu. ft, liters: 3.5, 99.1


• Min Rec Sealed Box Vol [cu. ft, liters: 1.25, 35.4


• Max Rec Vented Box Vol [cu. ft, liters): 2.25, 63.7


• Min Rec Vented Box Vol [cu. ft, liters]: 1.75, 49.6
