Features:
1. Designed specifically for high-voltage applications, it can boost low voltage (3.6V or 7.4V) to 15KV, suitable for various applications requiring high-intensity electric or high-voltage discharges, such as control and high-voltage experiments.
2. Supports continuous operation for up to ten minutes, reliable performance in situations requiring stable high-voltage output over extended periods.
3. Employs advanced pulse control technology to generate a stable and powerful electric , resulting in higher energy conversion efficiency compared to continuous output, while reducing power consumption and heat generation.
4. Compact size facilitates transportation and installation on various equipment, saving space and meeting the needs of mobile operations or space-constrained applications.
5. Utilizes high-quality insulation materials and an improved for structural design to for ensure long-term stable operation, maintaining excellent performance even in harsh environments.
Specifications:

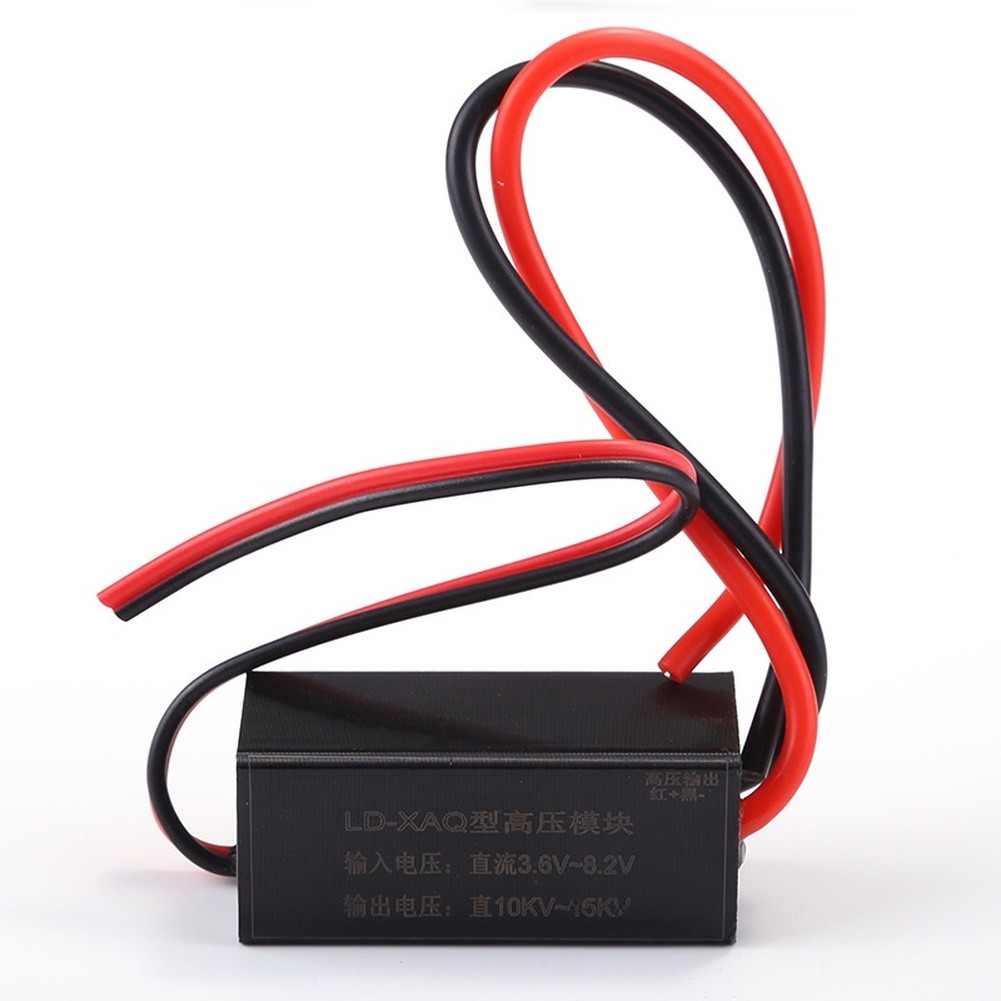

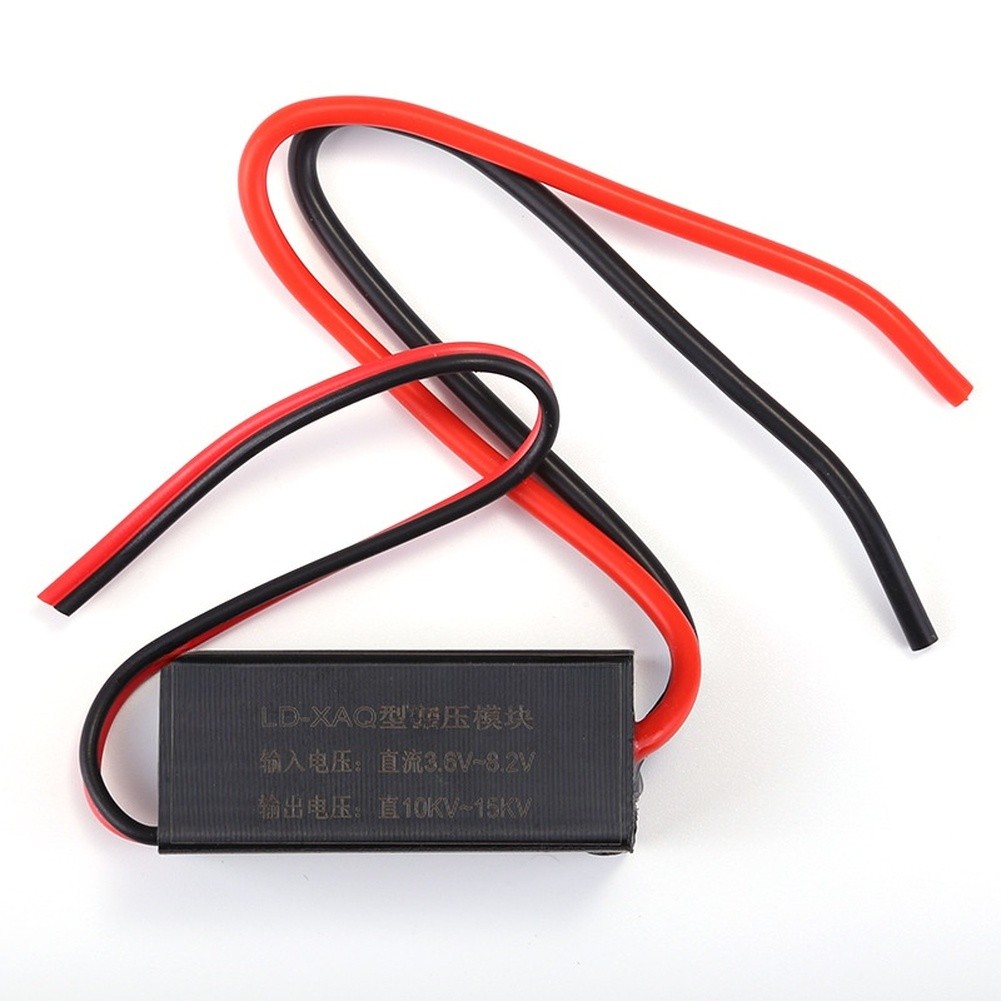

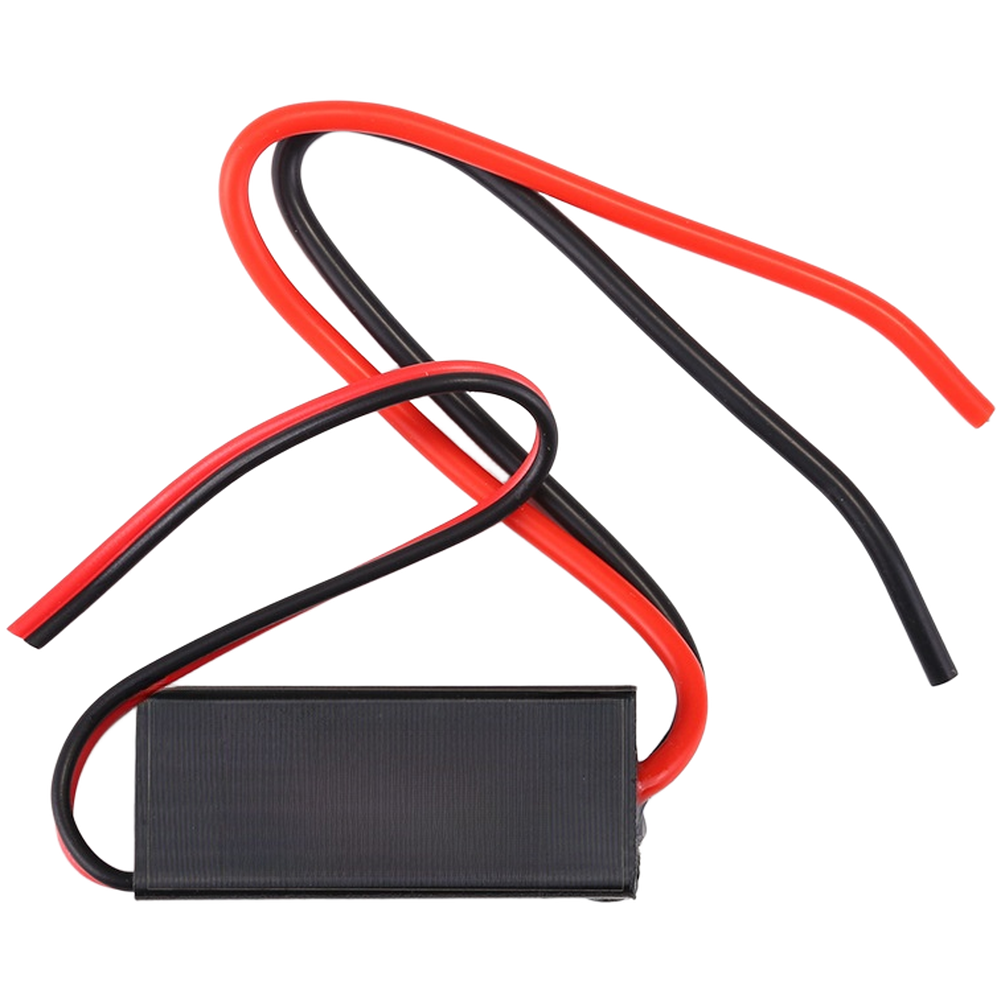

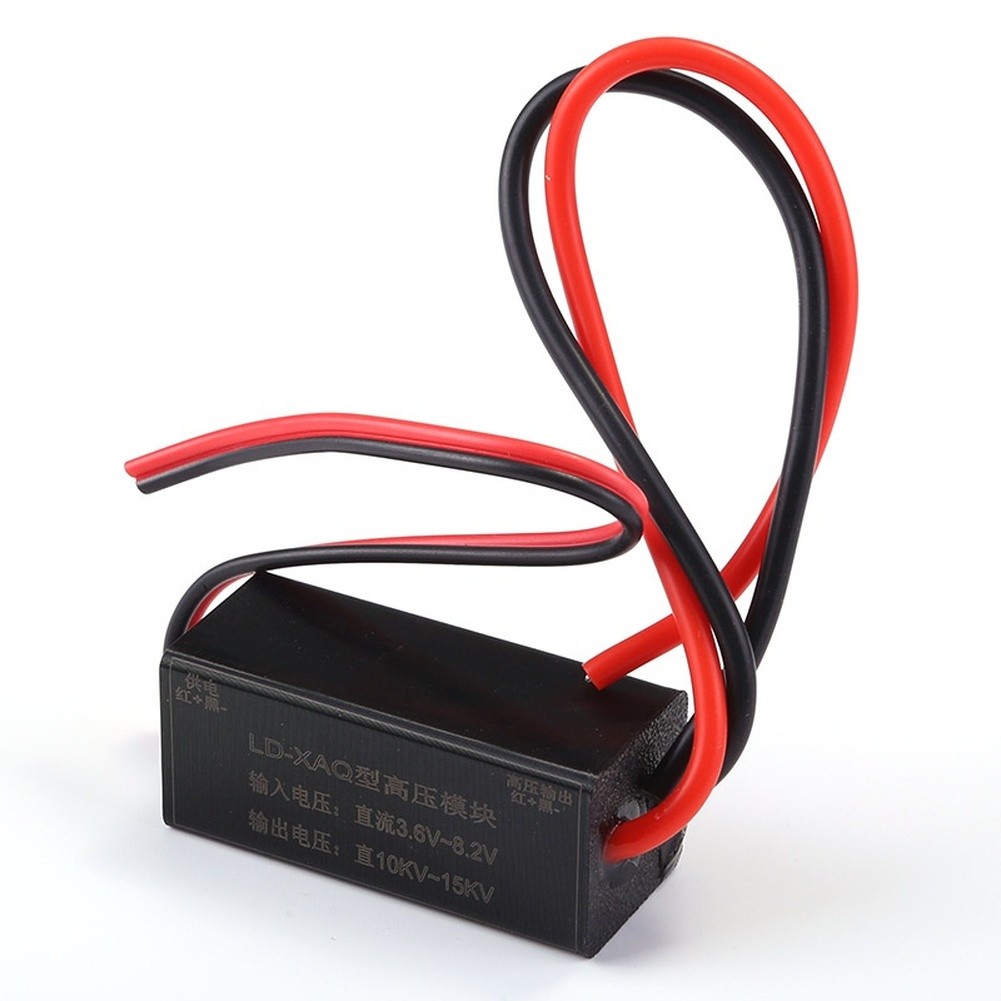

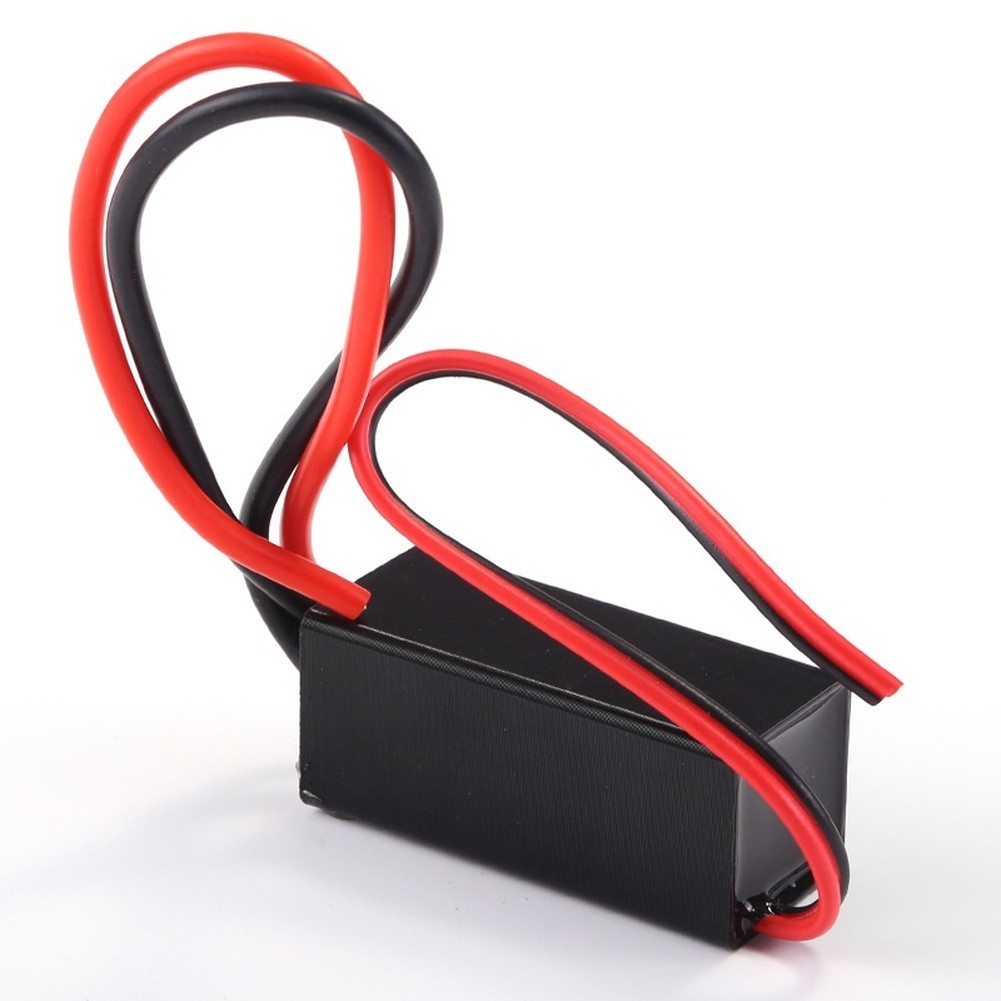

*Product Name:DC3-9V to 15KV High Voltage Module
*Material:abs
*Color:black
*Size:As shown
Input voltage limit: 3V～9V (higher input voltage results in greater discharge intensity).
Power supply recommendation: Two 8.4V lithium batteries in series; a single battery can also be used, but the effect is not as good as two batteries.
Input current: 0.3～1.5A (varies with input voltage and discharge distance).
Output voltage: 5KV～15KV (3V input corresponds to 5KV, 9V input corresponds to 15KV).
Built-in capacitor: 20KV/102/1000pF.
Pulse frequency: 3～20 times/second.
distance: 1cm～1.5cm (residual energy remains after shutdown; please be careful when discharging).
characteristics: White, pulse flashing, accompanied by a popping sound.
Can operate and discharge under no-load; do not short-circuit the output terminal directly.
High efficiency and durability; will not heat up within ten minutes of no-load or discharge.
Package Content:
1* DC3-9V to 15KV High Voltage Module
