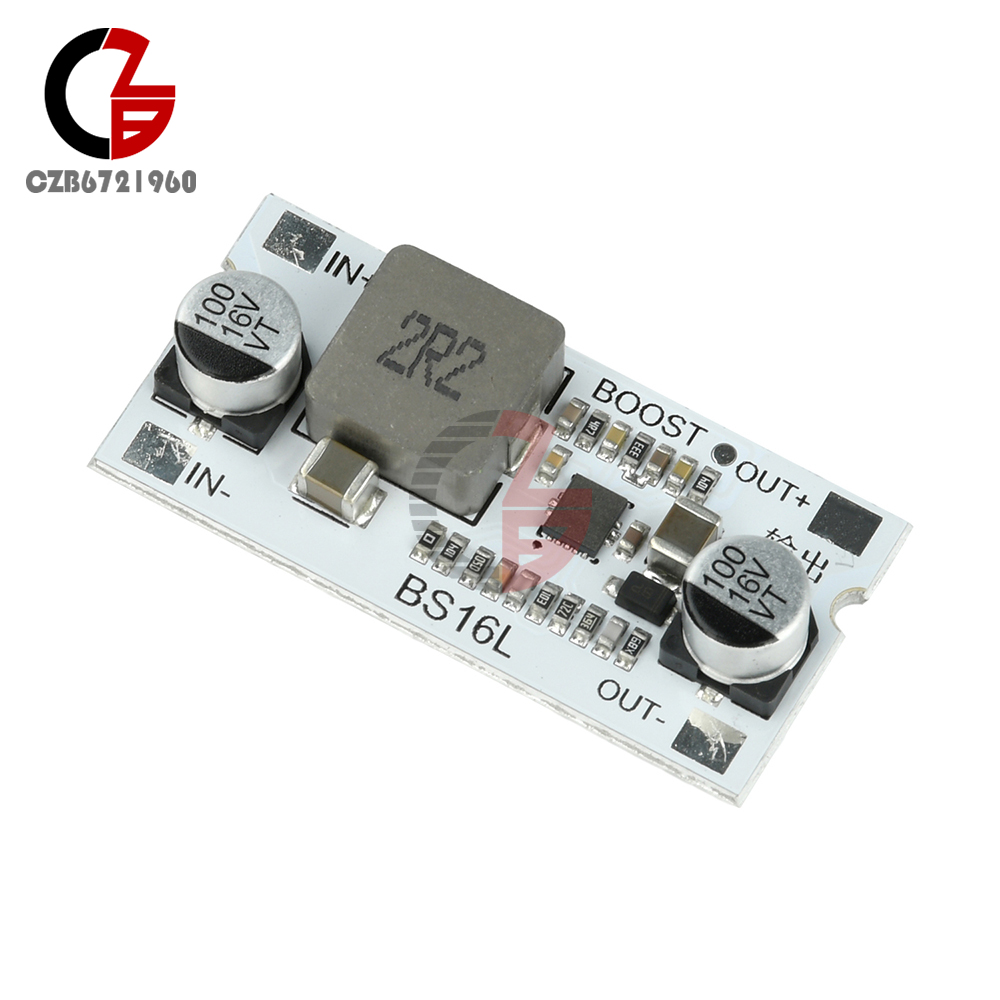

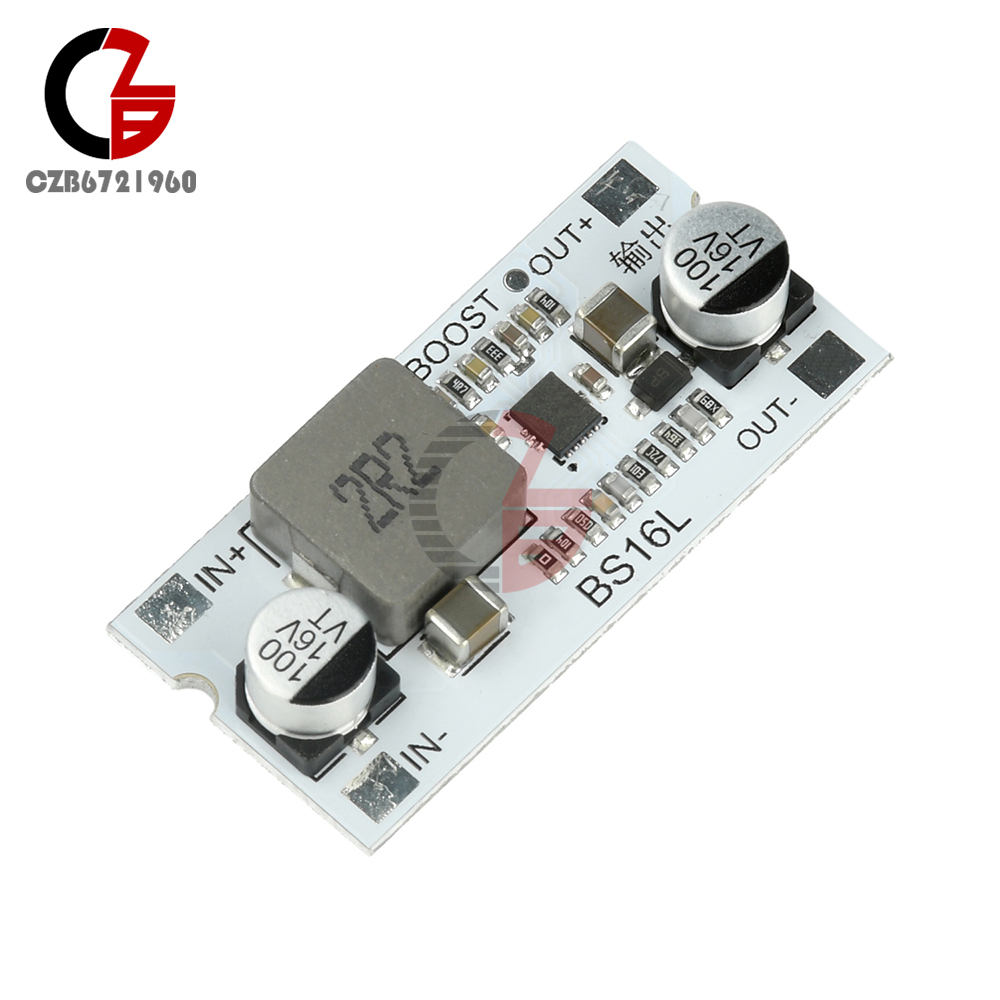

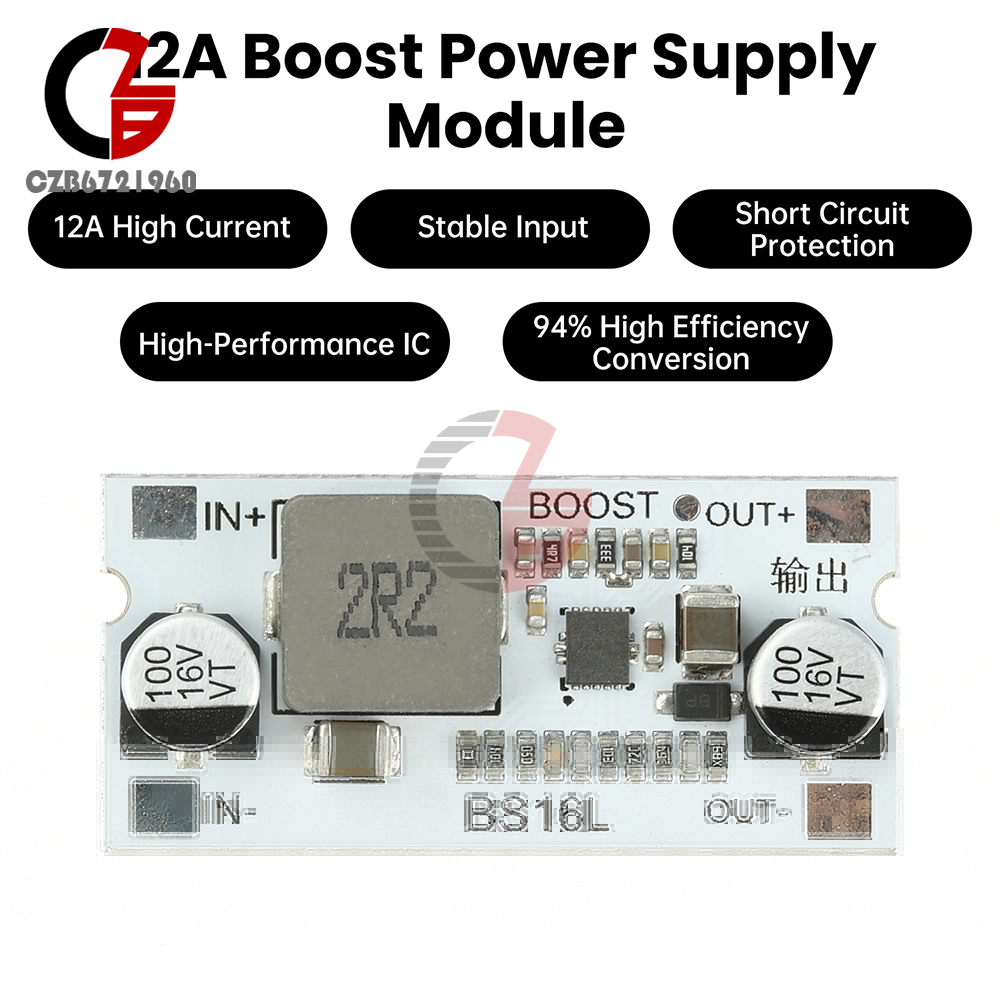

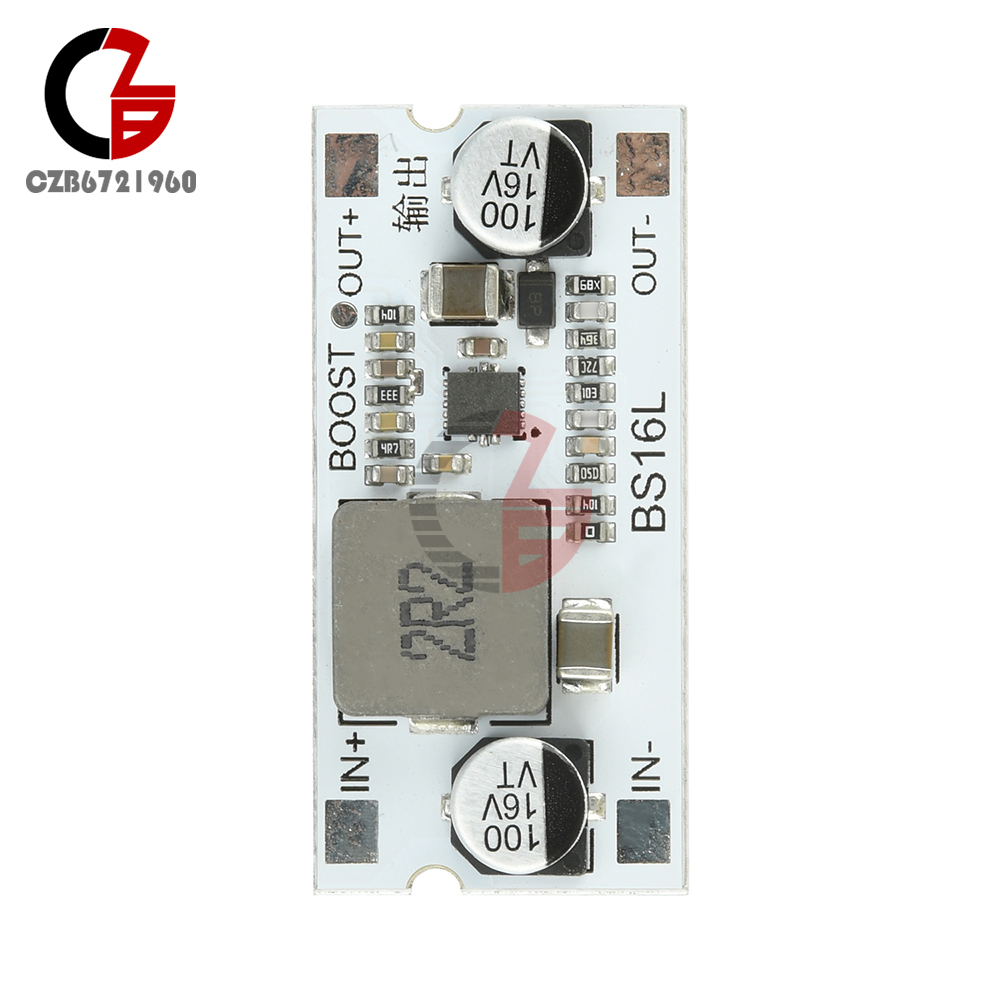

DC-DC High-Power Boost Module 2.7-15V to 5V 9V 12V 12A Short-Circuit Protection

Popular

    Product Introduction

    Features

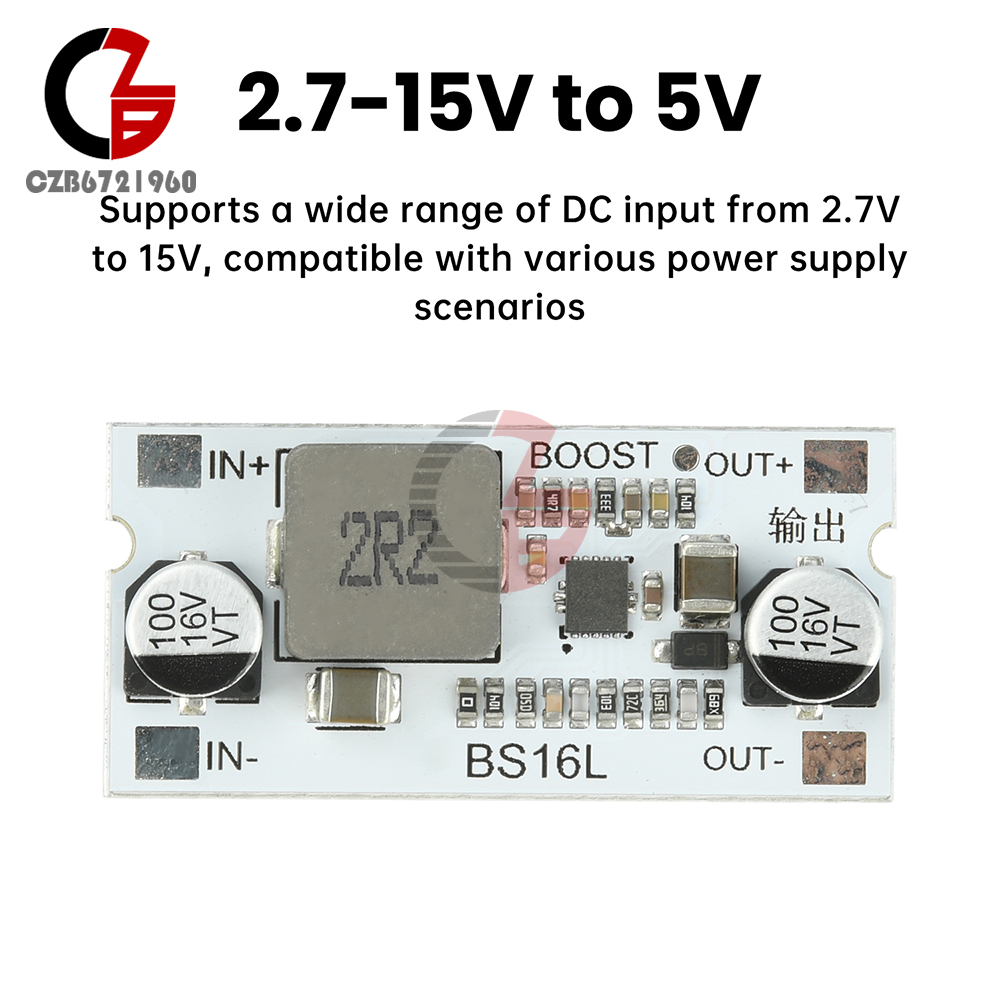

    1. Supports wide range DC input from 2.7V to 15V, compatible with multiple power supply scenarios
    2. Flexible selection of output 5V, 9V, 12V three commonly used voltages to meet the power supply needs of different devices

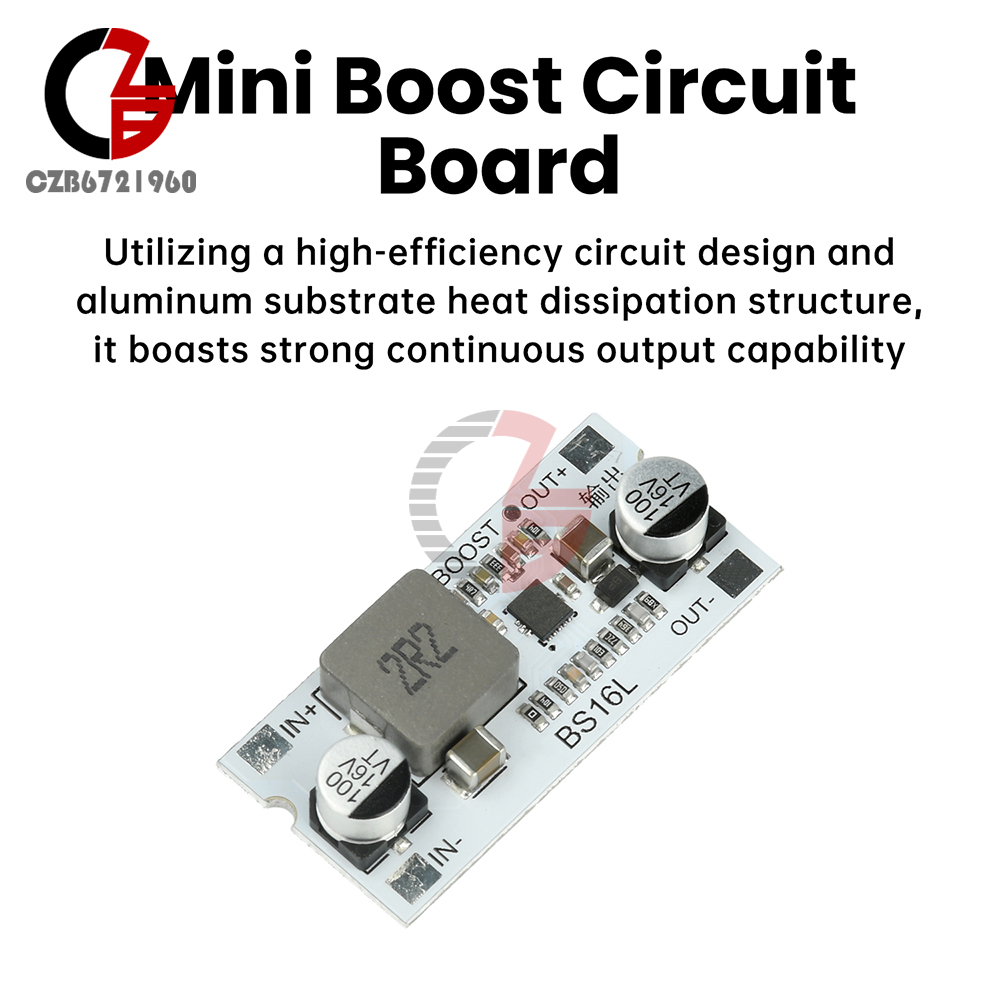

    3. Adopting efficient circuit design and aluminum substrate heat dissipation structure, with strong continuous output capability

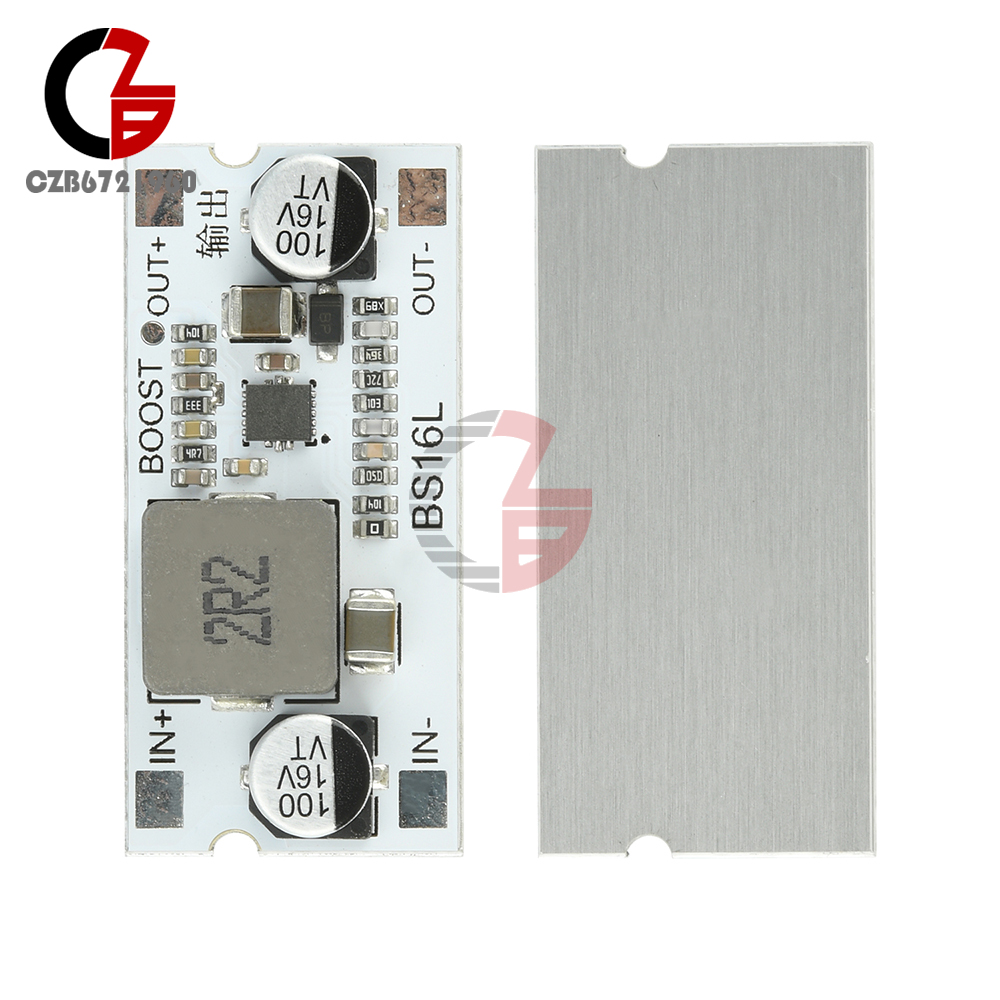

    4. Adopting an aluminum substrate design significantly improves thermal conductivity efficiency and effectively reduces operating temperature

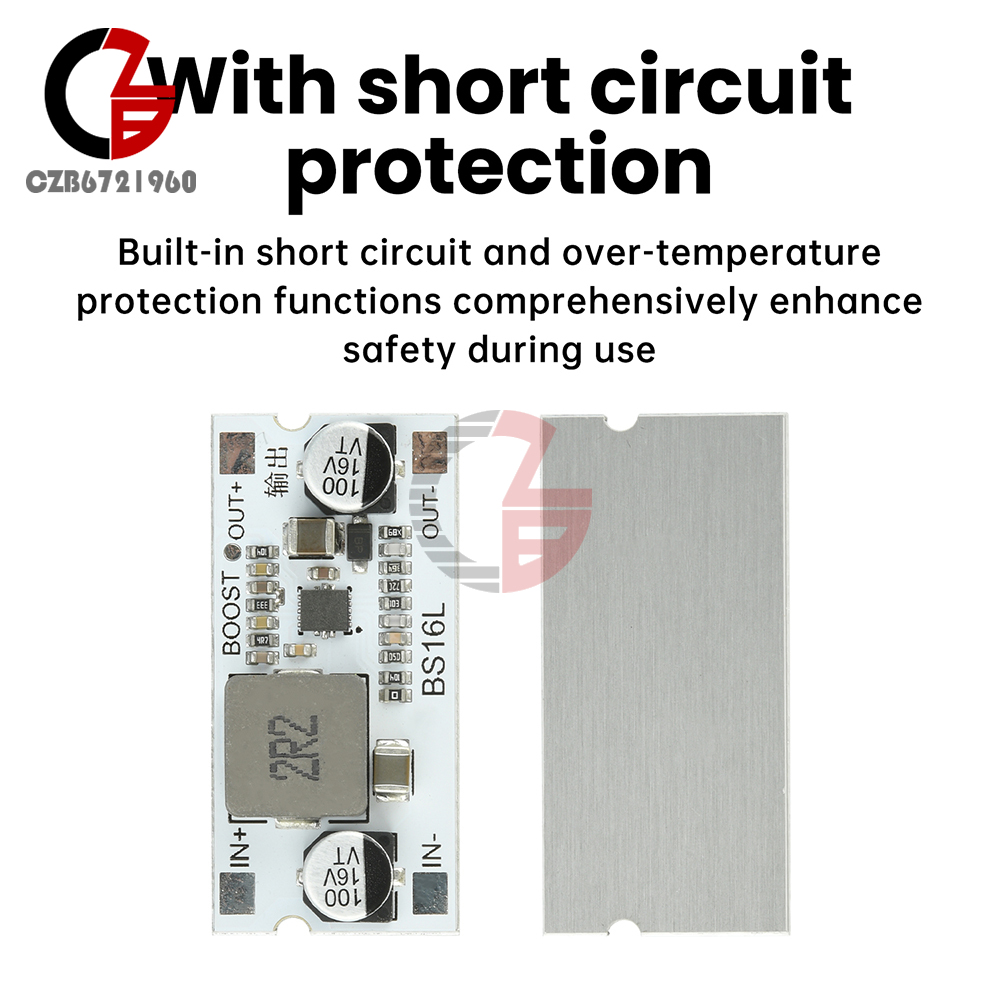

    5. Built in short-circuit protection and over temperature protection functions, comprehensively improving the safety of use
    Parameters
    Original imported high-performance IC
    Working voltage: 2.7-15V
    Output voltage: 5V/9V/12V (input is more than 1V lower than output)
    Input current: maximum 12A
    Frequency: 300K-1MHz
    Conversion efficiency: around 94%
    Input/output with TVS
    Output short circuit protection
    Built in over temperature protection
    Default PFM low power consumption

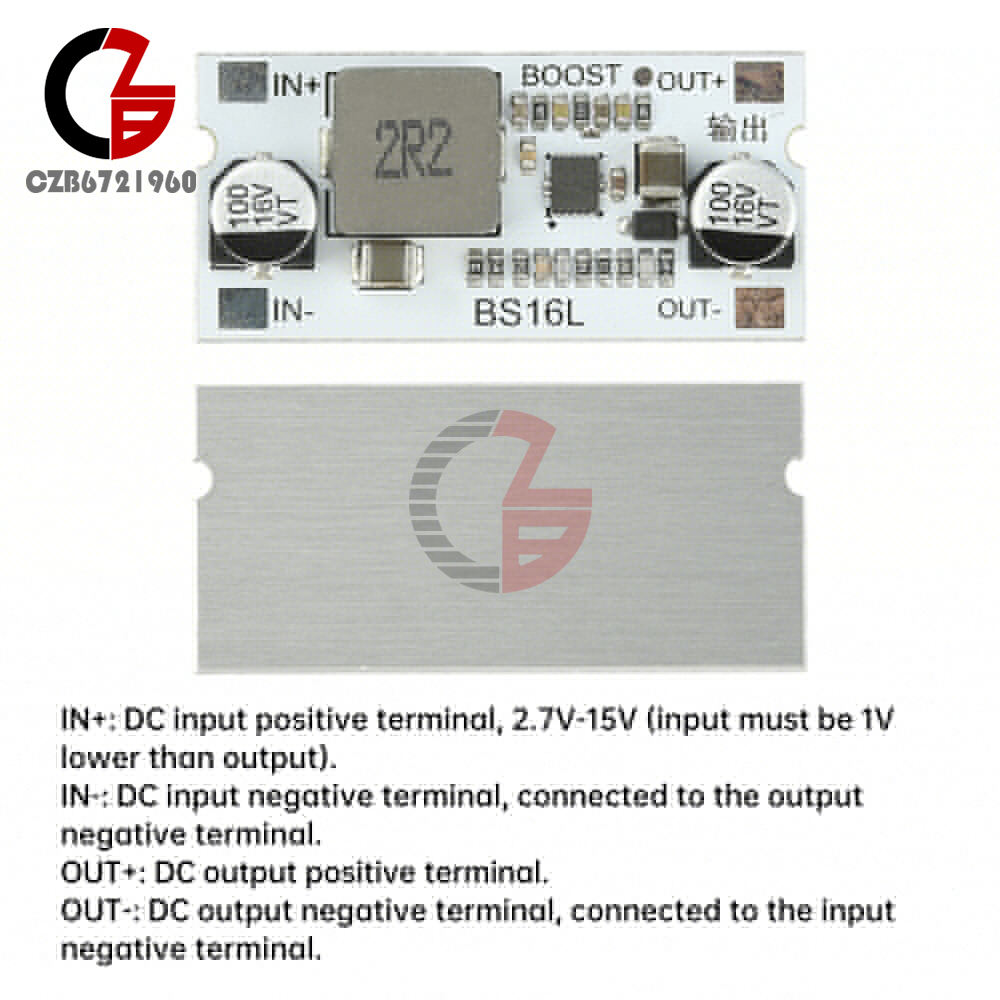

    Using aluminum substrate, it has good heat dissipation and is also convenient to add heat sinks

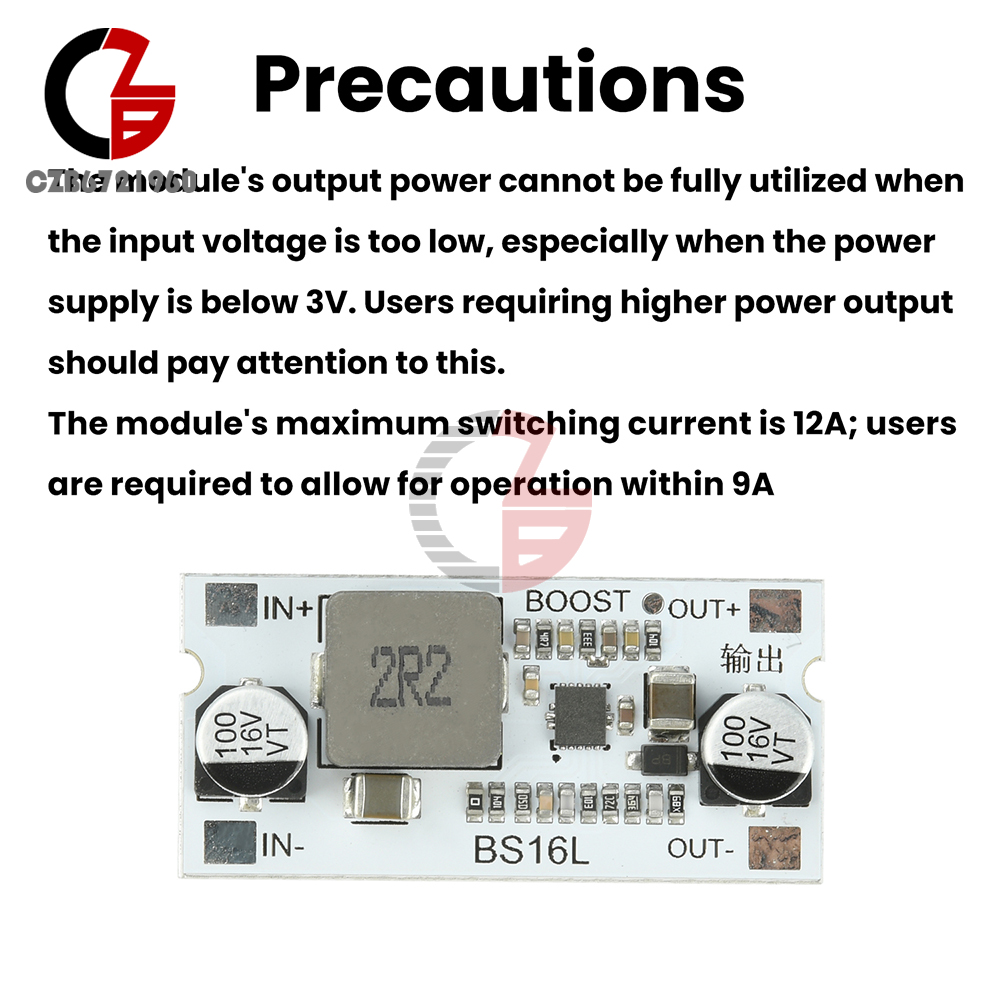

    Precautions
    The output power of the module cannot be fully utilized when the input voltage is too low, especially when powered below 3V. Users who require high power output should pay attention when using it
    The MAX switch current of the module is 12A, and users are required to leave room for use within 9A
