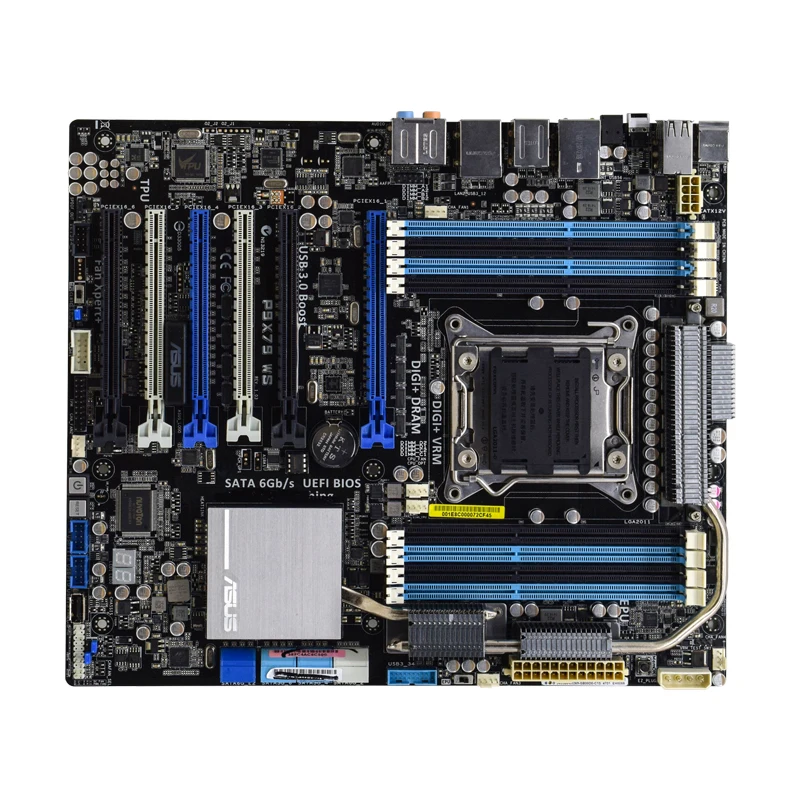

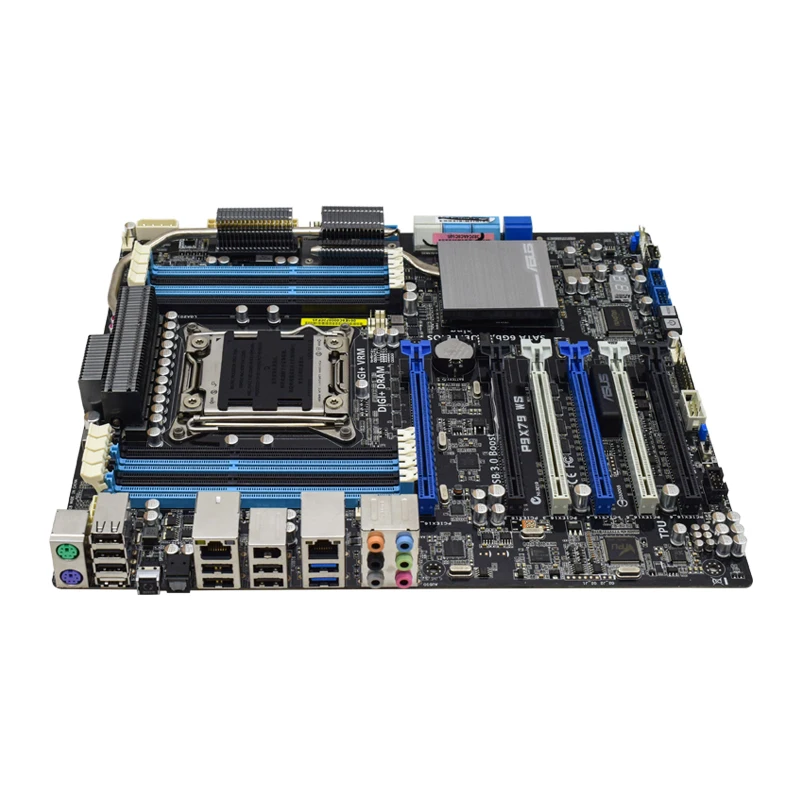

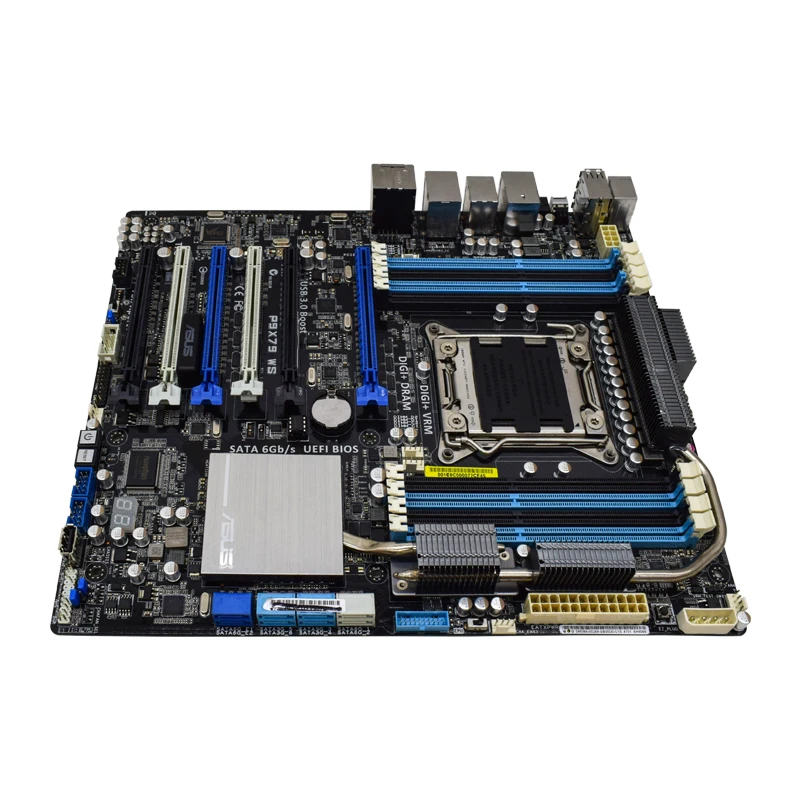

motherboard chip

Integrated chip sound card/network card

Main Chipset Intel X79

Chip maker Intel

Chipset Description Using Intel X79 Chipset

Audio chip Integrated Realtek ALC898 8-channel sound chip

Network chip Onboard Intel 82579V Gigabit LAN, Intel 82579V Gigabit LAN

CPU Specifications

Applicable platform Intel

CPU type Core i7

CPU description Support Intel 32nm processor

CPU socket LGA 2011

Number of CPUs supported 1

Memory Specifications

Memory type DDR3

Memory description 8×DDR3 DIMM

Support up to 64GB memory, support dual-channel DDR3 2400 (overclocking)/2133 (overclocking)/1600/1333/1866/1066MHz memory

Expansion slot

Graphics card slot 6×PCI-E X16 graphics card slot

SATA interface 4 x SATA II interface; 4 x SATA III interface

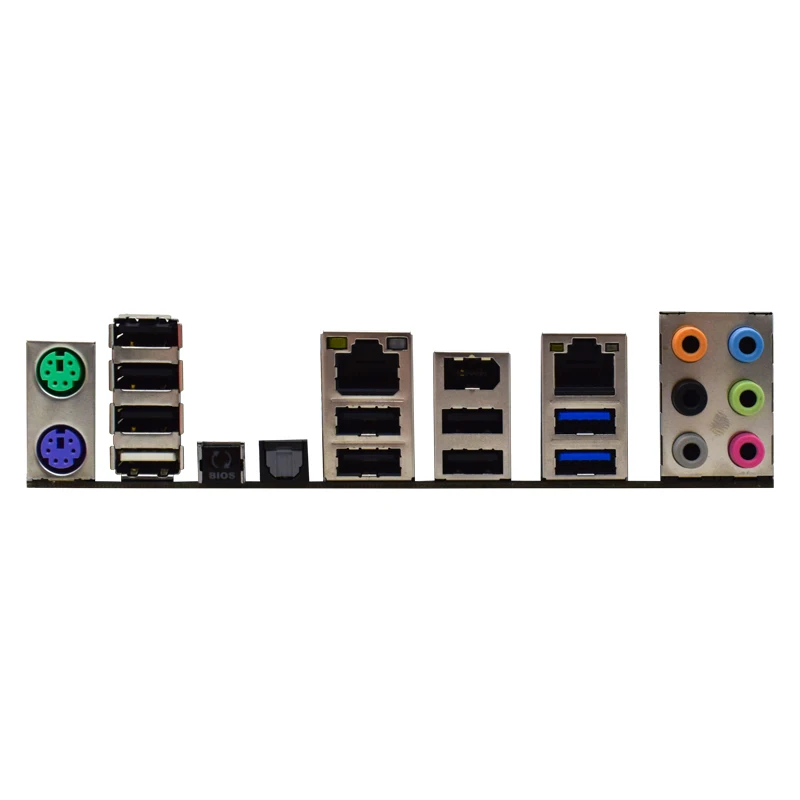

I/O interface

USB interface 12×USB2.0 interface; 4×USB3.0 interface

PS/2 interface PS/2 mouse, PS/2 keyboard interface

Other internal sockets 2×RJ45 network interface

1×1394 interface

1×Fiber interface

1×Clear CMOS data button

External port Audio interface

plate type

Dimensions 30.48×26.67cm
