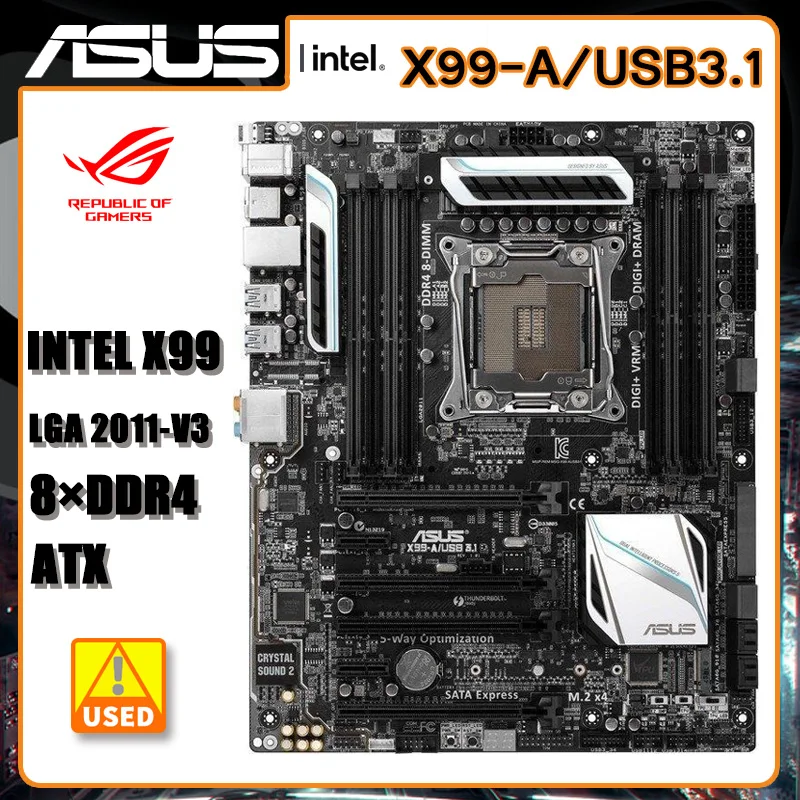

Motherboard chip

Integrated chip sound card/network card

Main chipset Intel X99

Chipset description Using Intel X99 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip integrated Realtek ALC1150 8-channel audio chip

Network card chip onboard Intel 1218V Gigabit network card

Processor specifications

CPU type Core i7

CPU socket LGA 2011-V3

Memory specifications

Memory type 8×DDR4 DIMM

Maximum memory capacity 128GB

Memory description: Support four-channel DDR4 3000 (overclocking)/3200(O.C.)/2800(overclocking)/2666(overclocking)/2400(overclocking)/2133MHz memory

Storage expansion

PCI-E standard PCI-E 3.0

PCI-E slot 7×PCI-E X16 graphics card slot, 2×PCI-E X1 slot

Storage interface 1×SATA Express interface, 8×SATA III interface

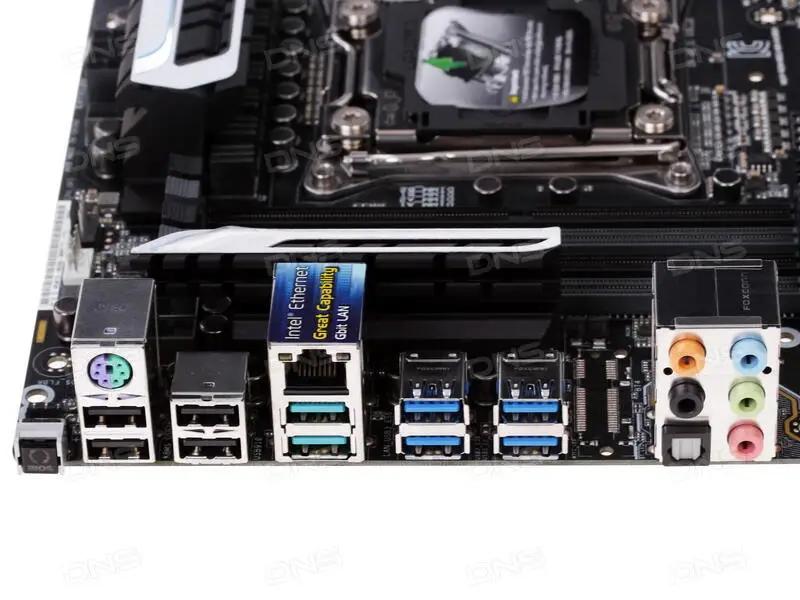

I/O interface

USB interface 2×USB3.1 interface (backplane), 6×USB3.0 interface (2 built-in+4 backplane), 6×USB2.0 interface (2 built-in+4 backplane)

Power interface One 8-pin, one 24-pin power interface

Other interfaces 1×RJ45 network interface, 5×audio interface, 1×optical S/PDIF digital audio output interface, 1×PS/2 keyboard and mouse universal interface

Board type

Motherboard board type ATX board type

Dimensions 30.5×24.4cm
