Motherboard chip
Integrated chip sound card/network card
Main chipset Intel X99
Chipset description Using Intel X99 chipset

Audio chip integrated Realtek ALC1150 8-channel audio chip
Network card chip onboard Intel I218V Gigabit Ethernet/Intel I211-AT Gigabit Ethernet


Processor specifications
CPU socket LGA 2011-3

Memory specifications
Memory type 8×DDR4 DIMM
Maximum memory capacity 64GB
Memory description: Support four-channel DDR4 3000 (overclocking)/3200(O.C.)/2800(overclocking)/2666(overclocking)/2400(overclocking)/2133MHz (OC) memory

Storage expansion
PCI-E standard PCI-E 3.0 standard
PCI-E slot 5×PCI-E X16 graphics card slot, 1×PCI-E X4 slot
Storage interface 10×SATA III interface; 1×SATA Express interface; 1×M.2 interface (10Gb/s)

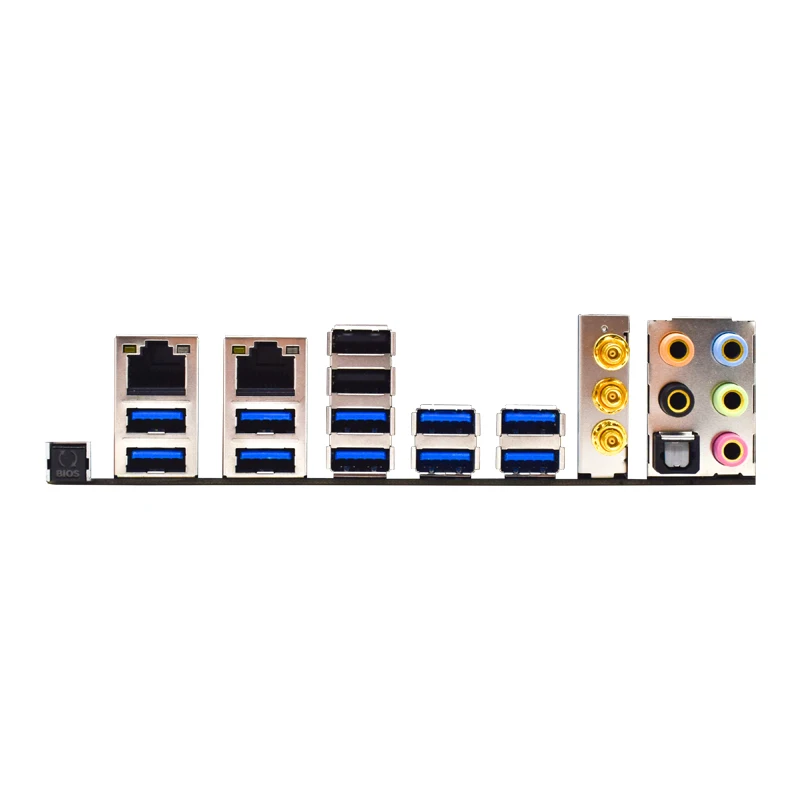

I/O interface

USB interface 14 × USB3.0 interface (10 backplane + 4 built-in); 6 × USB2.0 interface (2 backplane + 4 built-in)
Power connector One 8-pin, one 24-pin power connector
Other interfaces 2×RJ45 network interface
audio port


Plate type
Motherboard board type ATX board type

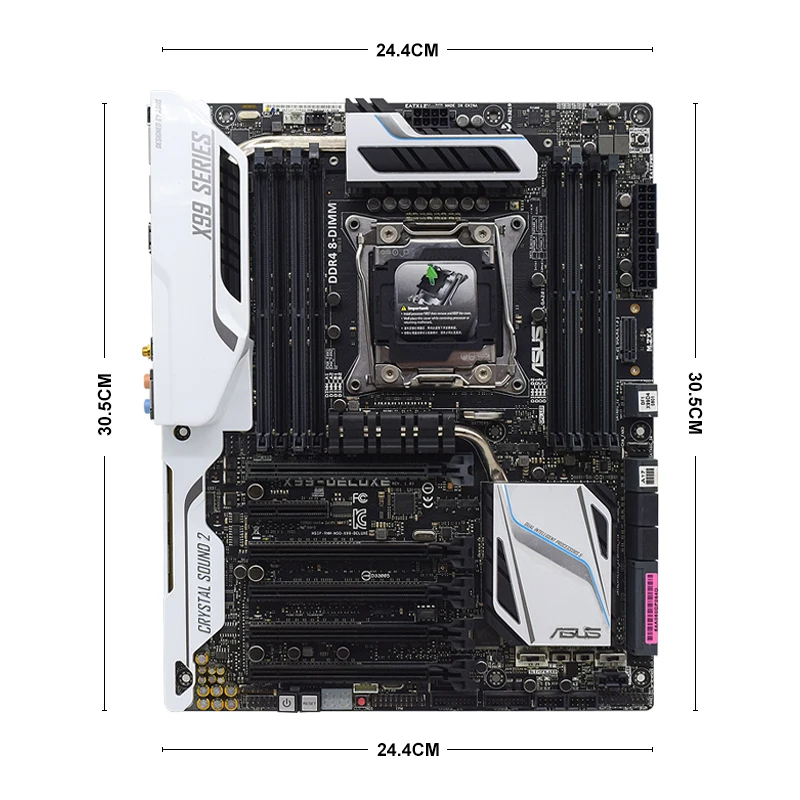

Dimensions 30.5×24.4cm
