Product Type: Starter; Condition: New; OE Manufacturer: Denso; Voltage: 12V; Rotation: CCW; Tooth Count: 9; Spline Count: 9; Mounting Hardware Included: No; Unit Finish: Same as OE; Number of Pieces: 1; Country of Origin: CN

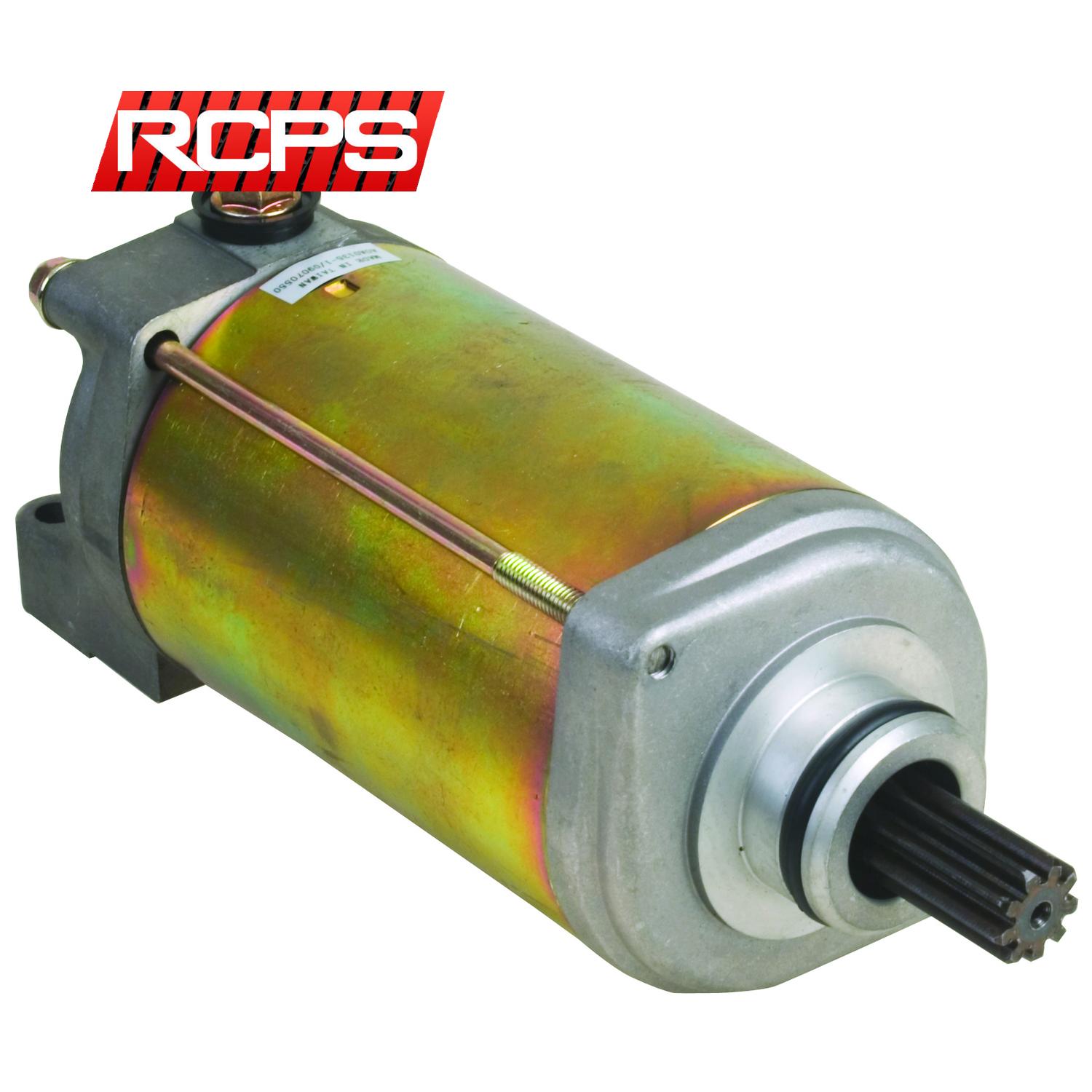

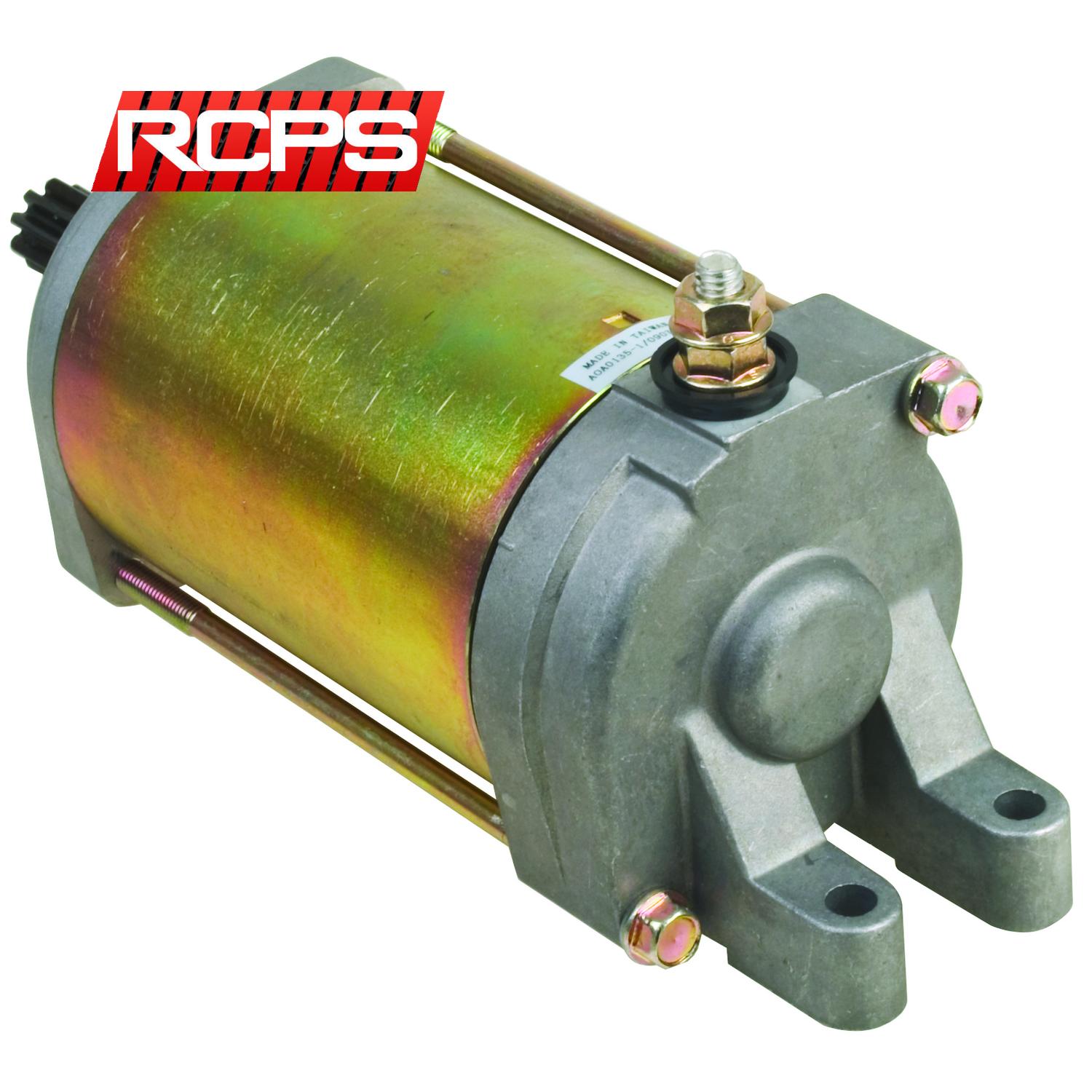

Title NEW STARTER REPLACEMENT FOR 1993-2008 BMW F650 & BOMBARDIER DS650 BAJA, DS650 X 420294351, 711294351, AP0294351, 2280006900, 11447709449, 12412343511, SND0478, 41052172

NEW STARTER REPLACEMENT FOR 1993-2008 BMW F650 & BOMBARDIER DS650 BAJA, DS650 X 420294351, 711294351, AP0294351, 2280006900, 11447709449, 12412343511, SND0478, 41052172

Item specifics
condition NEW
Manufacturer Part Number
Brand RCPS

100% SATISFACTION GUARANTEED

OE Manufacturer: DENSO
Product Type: Starter
Weight: 4.3500
Condition: NEW
Unit Source:
Design / Type:
Design / Type: PMDD
Design / Type:
Starter Series:
Location - General:
Location - Specific:
Design Type:
Voltage: 12
Amperage:
kW:
Rotation: CCW
Regulator/Fan:
Tooth Count: 9
Spline Count: 9
Polarity:
Shaft Type:
Duty Cycle:
Horsepower:
RPM:
V-Set:
Circuit Type:
Plug Code:
Plug Orientation:
Pulley Class:
Case OD (mm):
Overall Length (mm):
Gear OD (mm):
Pulley Belt Width (mm):
Pulley OD (mm):
Shaft Overall Length (mm):
Shaft OD (mm):
Clutch Type:
Operating Mode:
Pads Included:
Connection Type:
Piston Material:
Piston Outside Diameter (in):
Bleeder Port Measurment:
Inlet Port Measurement:
Ignition Type:
Housing Material:
Torque (ft. lbs):
Pulley OD (in):
Crankshaft OD (in):
Terminal Type:
Sensor Included:
Idle ACM Included:
Cage Wheel Included:
Wiring Harness Included:
Number of Pistons:
Caliper Pistion OD (mm):
Motor Overall Length (in):
Motor OD (in):
Wheel OD (in):
Bearing Inside Diameter (mm):
Bearing Outside Diameter (mm):
Bearing Width (mm):
Rotor Inside Diameter (mm):
Rotor Outside Diameter (mm):
Rotor Overall Length (mm):
Rotor Shaft Outside Diameter (mm):
Rotor Shaft Overall Length (mm):
Mounting Hardware Included: No
Installation Hardware Included:
Mounting Type:
Mounting Type:
Mounting Type:
Cap Design:
Plunger Type:
Includes:
Includes:
Number of Mounting Holes:
Number of Terminals:
Number of Wires:
ETB Inside Diameter (in):
Unit Finish: Same as OE
Unit Color:
Number of Pieces: 1
Country of Origin: CN
Country of Use:
Notes:
Other Part #: 18820, SND0478, SMU0288, 22-18820, 410-52172
Aprilia: AP0294351
BMW: 12-41-2-343-511, 11-44-7-709-449
Bombardier / Can-Am / Sea Doo: 420-294-351, 711-294-351
Denso: 228000-6900, 228000-8050
Lester: 18820
Arrowhead: SND0478
Arrowhead Old: SMU0288
BBB Ind: 22-18820
J & N Automotive: 410-52172
MES - Marine Electric Suppliers: ME3311-NA
MPA New: 453N, P453N
Wilson: 71-29-18820
Tucker Rocky: 49-5298
Andre Niermann: 016900
MakeModelYearEngineRemarks
ApriliaPegaso 6502001-2004649ccIE PMDD, OE# AP0294351
ApriliaPegaso 6501996-2002649ccPMDD, OE# AP0294351
ApriliaPegaso 6501992-1995All650cc PMDD, OE# AP0294351
BMWF6501993-2000652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650 Enduro1998-2001652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650 Funduro1993-1997652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650 SE1999-1999652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650CS2000-2006652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650CS ABS2003-2005652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650GS1999-2000652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650GS2008-2012798ccDenso PMDD
BMWF650GS ABS2001-2005652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650GS Dakar2001-2007652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650GS Dakar ABS2002-2005652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650GS Dakota2000-2007All652cc Denso PMDD, 12V / 9T, CCW
BMWF650ST1999-1999650ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF650ST1997-1998652ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF700GS2011-2018798ccDenso PMDD
BMWF800GS2008-2018798ccDenso PMDD
BMWF800GS Adventure2012-2018798ccDenso PMDD
BMWF800GT2011-2018798ccDenso PMDD
BMWF800R2005-2018798ccDenso PMDD
BMWF800S2006-2008798ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF800ST2006-2008798ccBombardier Engine Denso PMDD, 12V / 9T, CCW
BMWF800ST2009-2012798ccDenso PMDD
BombardierDS6502000-2007649ccDenso PMDD, 12V / 9T, CCW
BombardierDS650 Baja2001-2004649ccDenso PMDD, 12V / 9T, CCW
BombardierDS650 X2004-2007649ccDenso PMDD, 12V / 9T, CCW
Can-AmDS 650 X2007-2007649ccDenso PMDD, 12V / 9T, CCW


*NOTE: "M.T" Indicates Manual Transmission / "A.T" Indicates Automatic Transmission*
Please Reach Out To Customer Service To Confirm Fitment, If Necessary.
