Condition: Used
Dimensions: 20.00 x 20.00 x 20.00 inches (L x W x H)
Weight: 20.00 Lbs.

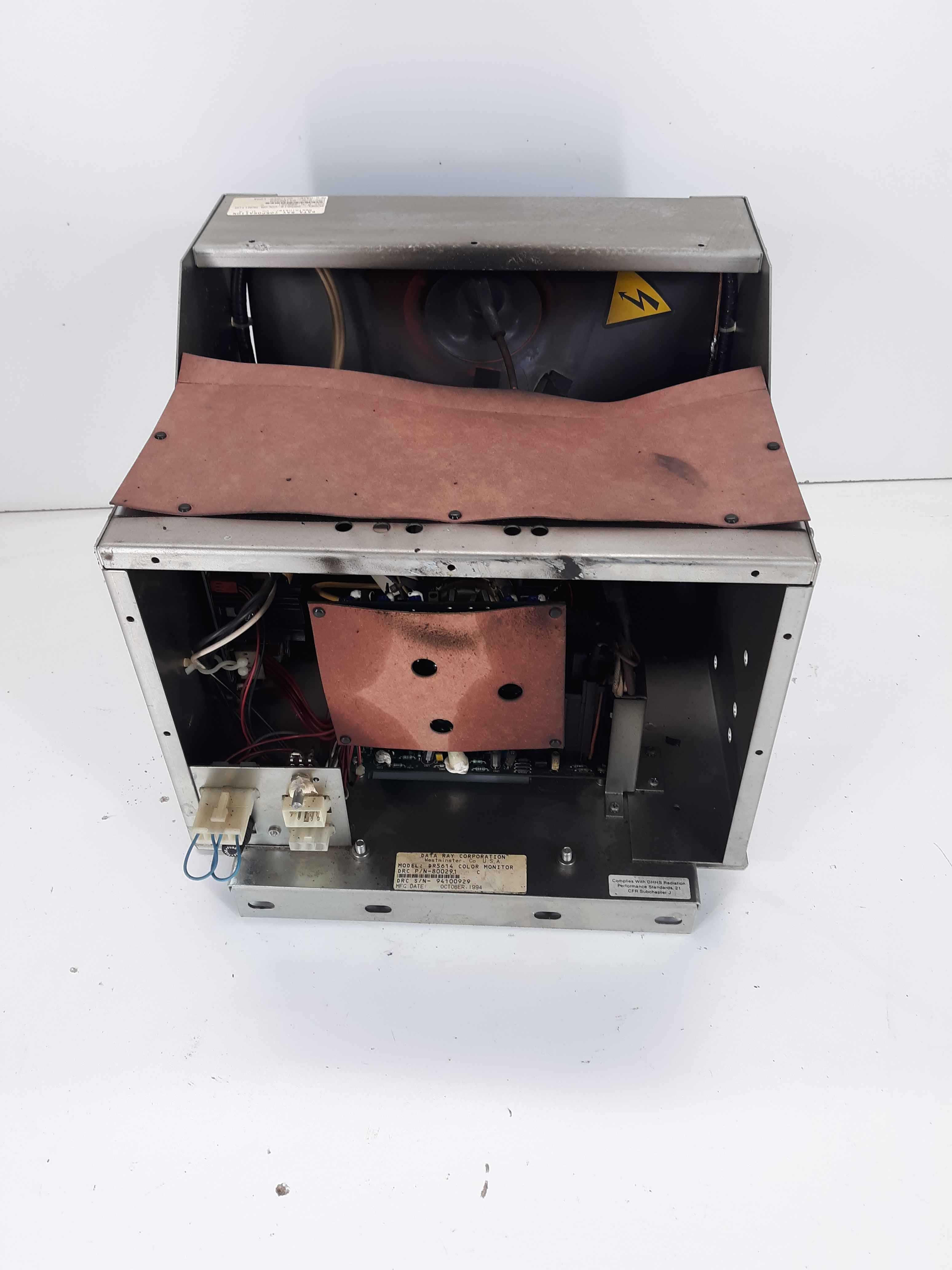

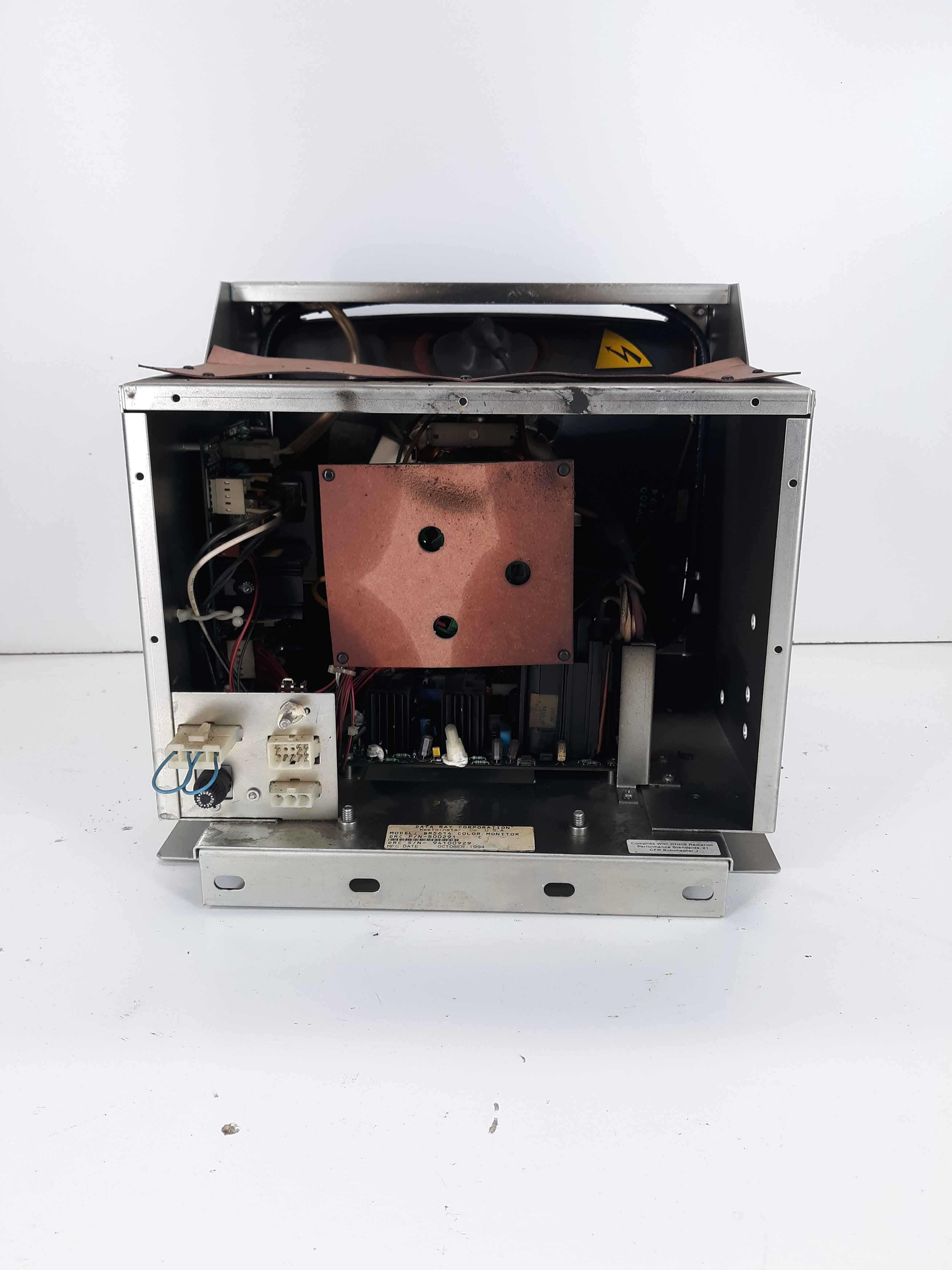

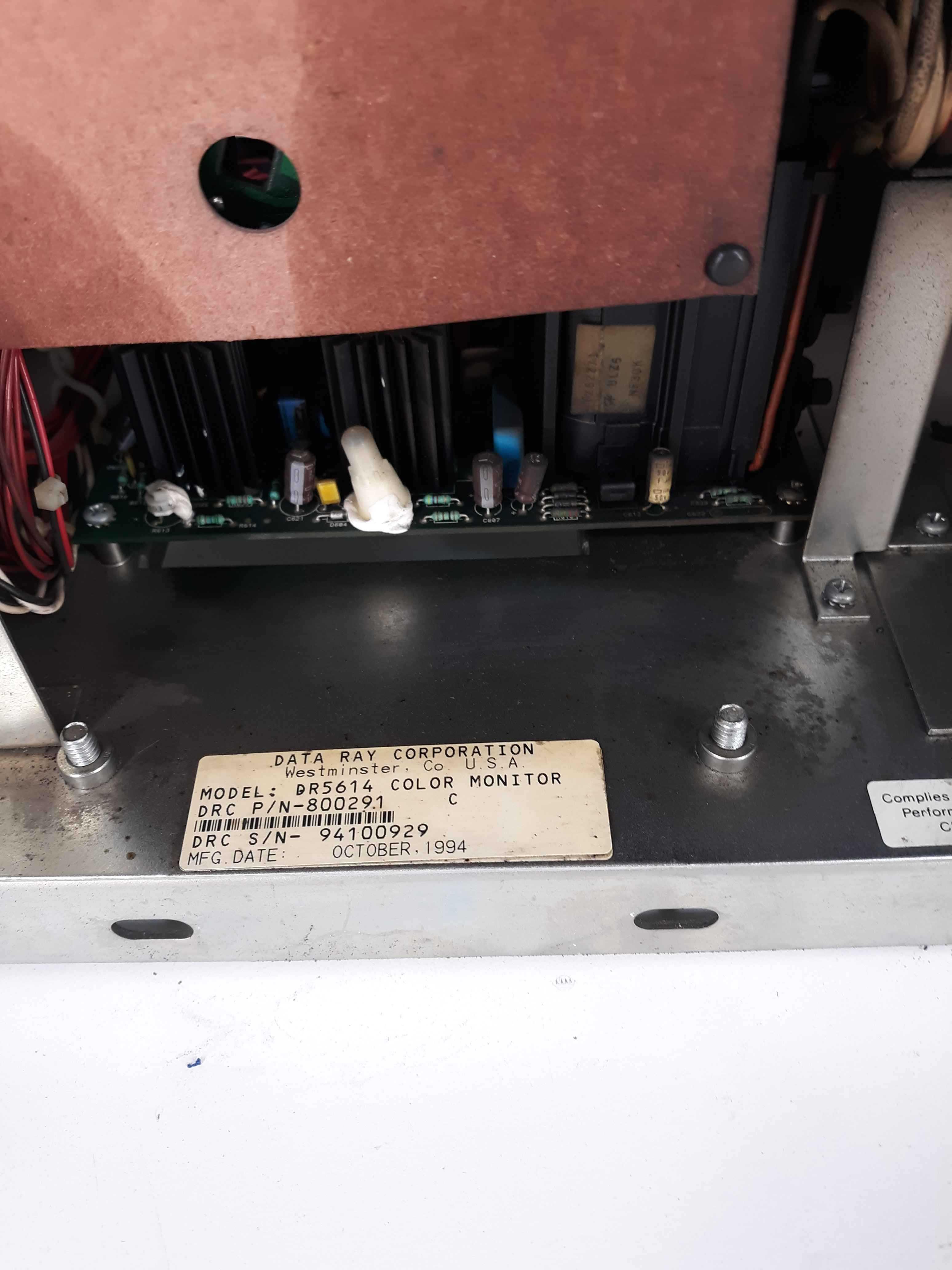

Data Rey Corp. DR5614 Color Monitor — 14-inch industrial-grade CRT display designed for CNC and process control visualization systems. Model: DR5614 Manufacturer: Data Ray Corporation (formerly Data Ray / Data Rey Displays) Country of Manufacture: USA Type: Industrial RGB CRT color monitor Screen Size: 14 inches (diagonal) Display Type: Color cathode ray tube (shadow mask CRT) Resolution: 640 × 480 (VGA equivalent) or 15.75 kHz horizontal scan frequency (CNC standard) Aspect Ratio: 4:3 Input Signal: Analog RGB (0.7 Vp-p, 75 Ω) with separate or composite sync (TTL level) Video Connector: 9-pin D-sub or modular industrial connector (varies by configuration) Power Supply: 100–240 VAC, 50/60 Hz auto-switching (or fixed 115 VAC depending on version) Power Consumption: ~70 W Chassis Type: Open-frame metal chassis (rear mount) with front mounting brackets Controls: Brightness, contrast, horizontal/vertical hold, focus, color bias/gain adjustments Display Colors: Up to 8 or 64 color tones (based on connected control system output) Operating Temperature: 0 °C to +50 °C Storage Temperature: −20 °C to +70 °C Cooling: Passive air-cooled with top ventilation slots Housing Material: Steel frame with coated anti-static CRT faceplate Typical Applications: • CNC machine controllers (Fanuc, Mitsubishi, Allen-Bradley, Siemens) • Industrial automation terminals • Process control display systems • Retrofit and replacement monitor assemblies for legacy CRT units Weight: Approx. 10–12 kg (22–26 lb) Compliance: FCC Class A industrial, UL recognized The Data Rey DR5614 14-inch color CRT monitor was widely used in 1980s–1990s CNC control consoles and factory automation systems, known for its rugged construction, high color fidelity, and long operational life in demanding industrial environments. Please review pictures carefully and let us know if you have any questions!
