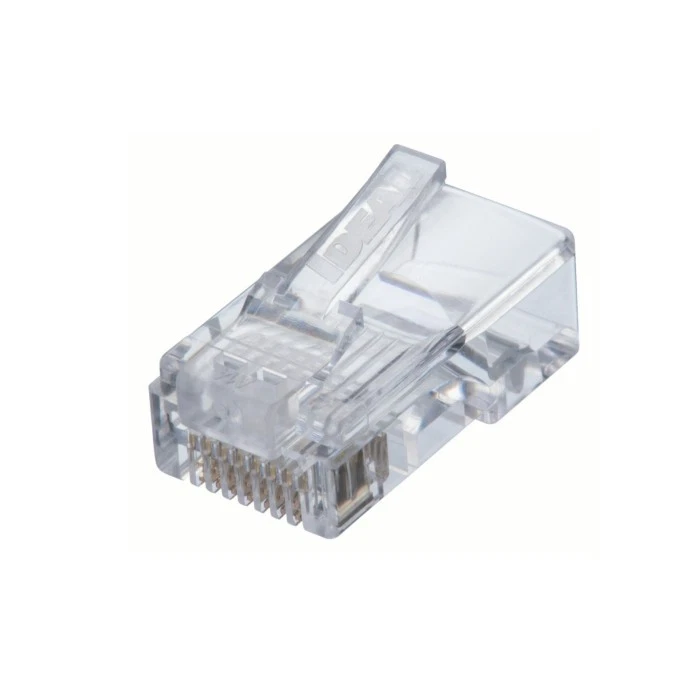

IDEAL 85-376 RJ45 CAT6 Feed-Thru Modular Plugs Clear Pack of 50
Click Thumbnails to Enlarge
DESCRIPTION
• IDEAL Feed-Thru RJ45 connectors simplify CAT6 cable assembly by enabling the user to quickly verify the conductors are in the correct order before crimping the connector. When used with the IDEAL FT-45 tool (30-495), the wire is precision cut flush with the modular plug’s face, thanks to its patented design that prevents accidental contact between adjacent conductors or with the mating jack. Trust IDEAL Feed-Thru RJ45 connectors for accurate and reliable performance in all PoE and data applications.
FEATURES
• Simplified assembly: The Feed-Thru design simplifies connector-to-cable assembly by allowing you to easily verify the wiring order before the final crimp.
• Designed for Cat6 cable: These plugs are engineered for 8-position, 8-contact (8P8C) Cat6 network cables.
• Flush cut compatible: Optimized for use with the IDEAL FT-45 crimp tool (model 30-495) to create a flush cut that eliminates excess conductor length.
• Reliable connections: Features 50-micron gold plating on the contact mating area for superior conductivity and long-term reliability.
• Durable design: The single-piece design helps maintain cable integrity and provides a robust termination.
PRODUCT SPECIFICATIONS
| Part Number | 85-376 |
|---|---|
| Product Type | Modular Plug / Connector |
| LAN Category | Cat6 |
| Number of Plugs | 50 |
| Connector Type | RJ45 (8P8C) |
| Compatibility | Solid or Stranded 23-24 AWG Conductors |
| Color | Clear |
