Part Number:
EZ-DCSD8012-15
Product Features:
Red Wire: 80V, 72V, 60V, 48V, 36V & 30VDC Input
Yellow Wire: 12VDC Output
Black Wire: Common Ground
Shipping:
We ship worldwide. Please contact us and confirm international shipping & handling fee for shipping out of USA before you place an order with us.
Warranty:
We warrant our PRODUCTS against manufacturer defects in materials, workmanship and finish under normal use and service for three (3) months from the original date of purchase. Please retain the dated invoice as evidence of the date of purchase. You will need it for any warranty service.
Return:
If you are not satisfied with our items and want to return to us, please contact us for a Return Material Authorization (RMA) number within 30 days of receipt before you arrange for return. We DO NOT accept any return without EMA number. Non-authorized returns will be refused and sent back to YOU at your cost.
EZ-DCSD8012-15
Product Features:
- Water and Vibration Proof.
- High Efficiency Pulse-Width Modulation Output.
- Low Input Voltage, Over Input Voltage & Short Circuit Protection.
- Input Reverse, Overheating & Overloading Protection.

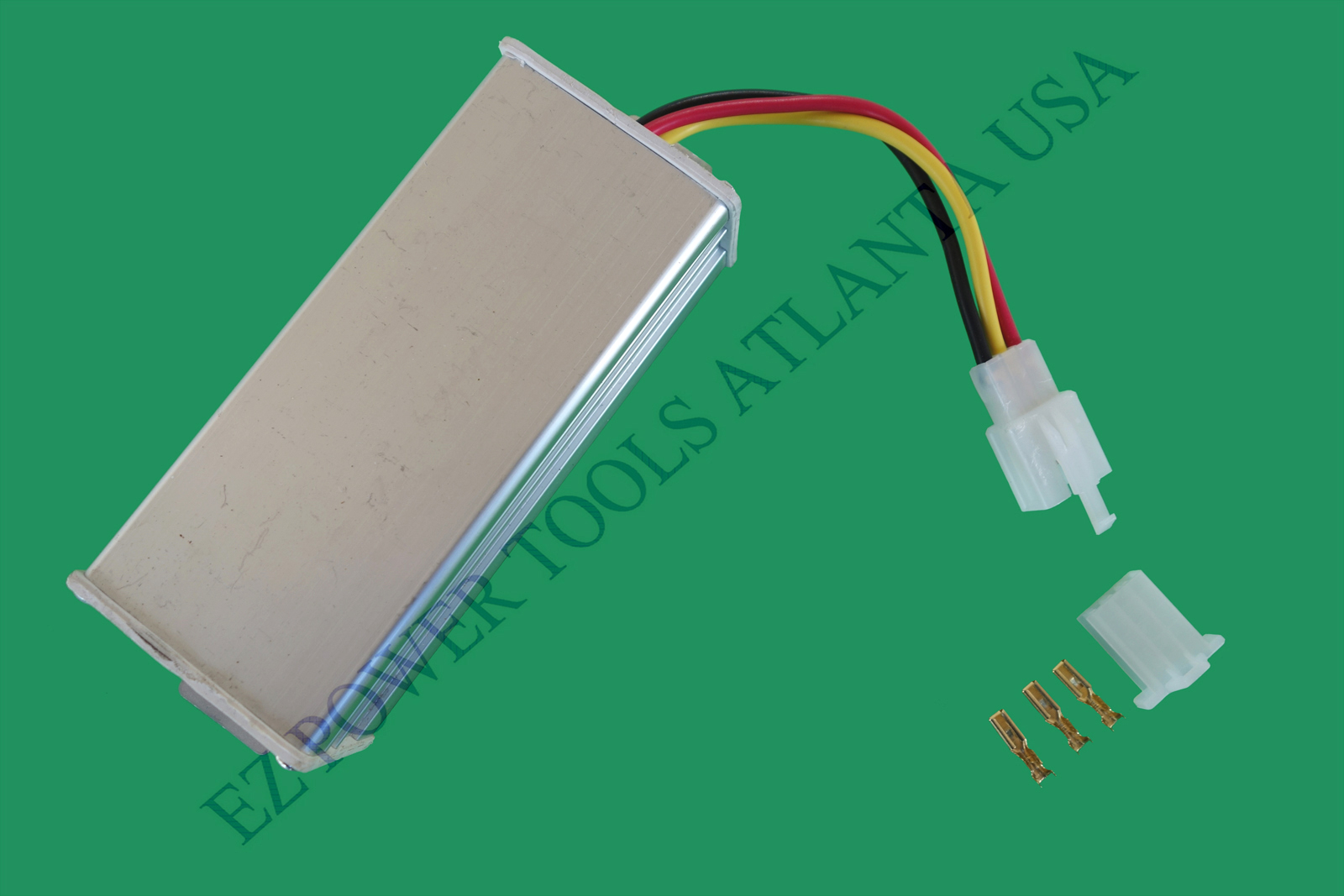

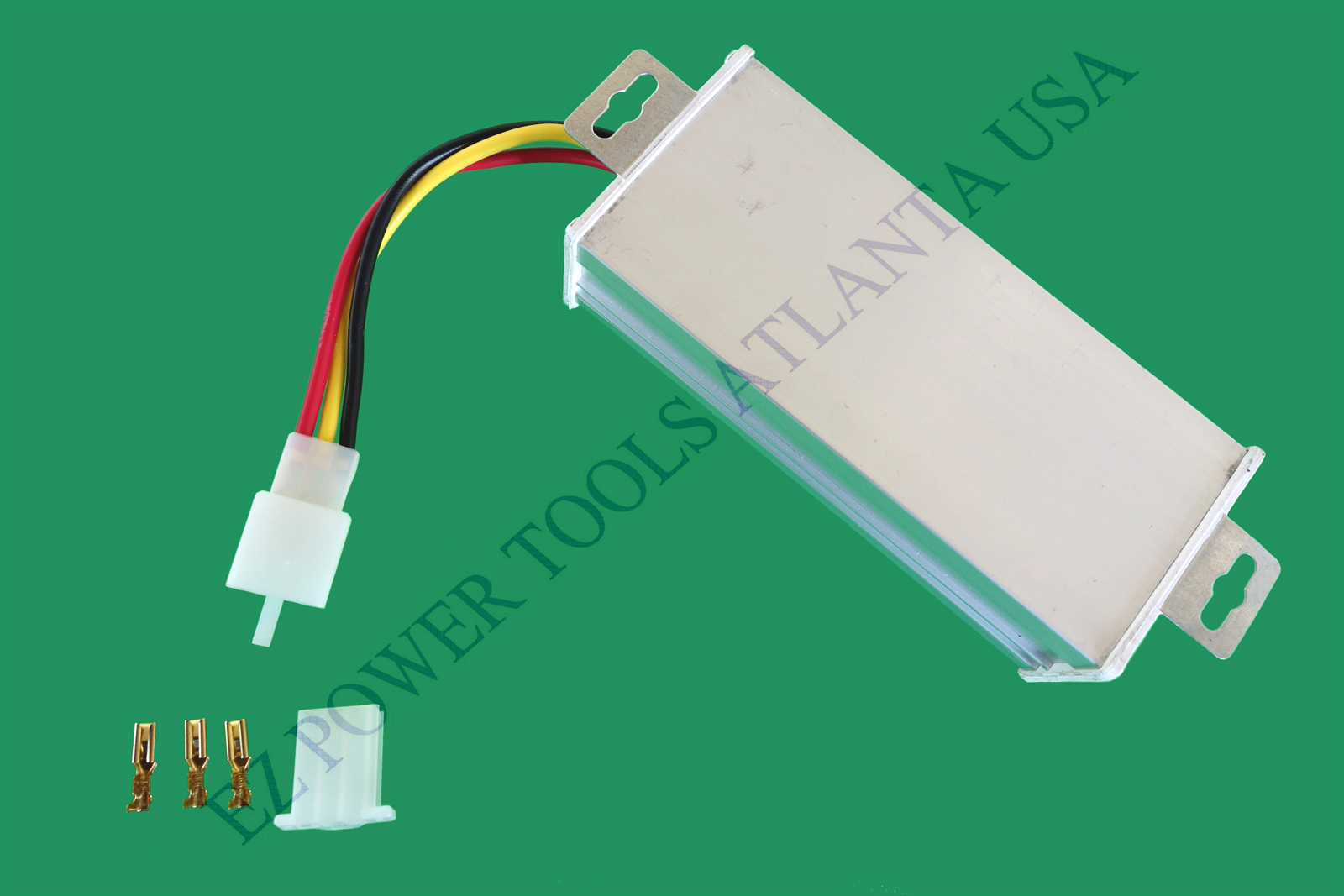

- Name: DC~DC Step Down Voltage Converter
- Model: EZ-DCSD8012-15
- Input Voltage: 30V ~ 80V DC
- Idle Output Voltage: 14V ± 5% V DC
- Load Output Voltage: 12V ± 0.5 V DC
- Overvoltage Output Protection: 17 V DC
- Rated Output Current: 15A
- Rated Power: 180W
- Operating Temperature: -40°C ~ 85°C
- Idle Working Current: < 60mA
- Power Conversion Efficiency: > 90%
- Overall Outline Size: (115 ± 1.0) mm * (50 ± 0.5) mm * (33 ± 0.50) mm
- Size of 2 Mounting Holes: 14mm * 4.0mm
- Distance of the Center of 2 Mounting Holes: 130 ± 1.0 mm
- Net Weight: 8.0 Oz
Red Wire: 80V, 72V, 60V, 48V, 36V & 30VDC Input
Yellow Wire: 12VDC Output
Black Wire: Common Ground
