Connectors In The Range

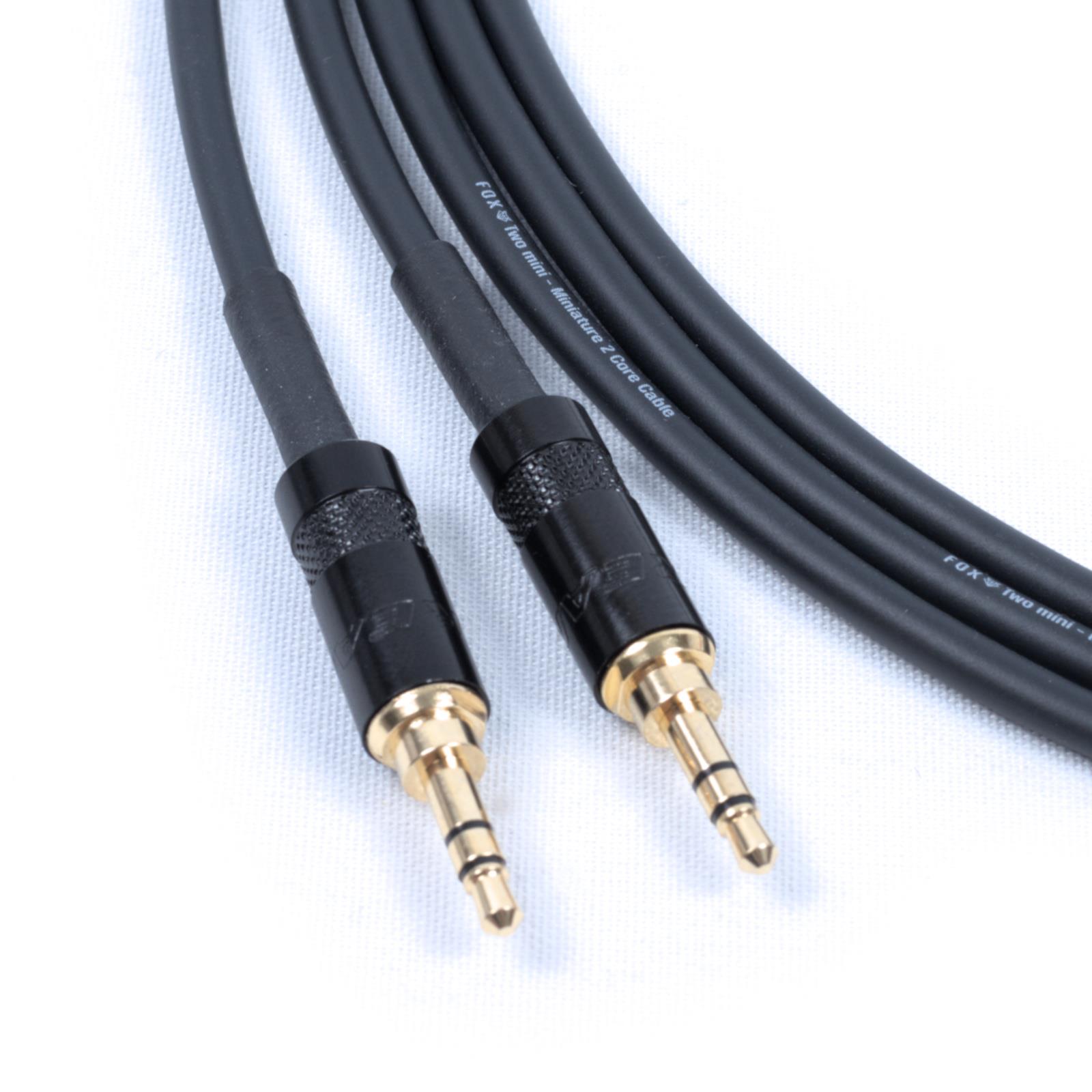

Rean NYS231BG Mini Jack

3.5mm Mini Jack, 3 Pole, Male Plug, Gold Contacts, Black Chromium Housing.

Tech Specs

• Contact resistance - < 10 mΩ
• Dielectric strength - 0,5 kVdc
• Contact plating - 0.2 µm Au
• Contacts - Brass (CuZn39Pb3)
• Insert - Polyamide (PA 6.6 30 % GR)
• Shell - CuZn39Pb3 Black

Rean NYS240BG Mini Jack Socket

3.5mm Mini Jack, 3 Pole, Female Socket, Gold Contacts, Black Chromium Housing.

Tech Specs

• Dielectric strength - 0.5 kVdc
• Insulation resistance - ≥ 1 GΩ
• Cable O.D. - 4 mm
• Insertion force - ≤ 20 N
• Withdrawal force - ≥ 10 N
• Lifetime - 1000 mating cycles
• Contact plating - Au
• Contacts - Brass (CuZn39Pb3)
• Shell - Brass (CuZn39Pb3)
• Shell plating - Black

DAC.35TRS.RA Right Angle Mini Jack

3.5mm Right Angle Mini Jack, 3 Pole, Male Plug, Gold Contacts, Black Chromium Housing.

• 3.5mm 3 Pole Audio Plug
• Angled
• Black Anodised Metal Shell
• Plug Finger: Gold Plated Copper
• Will accept cable diameter up to 4.5mm

Neutrik NP3X-B

3 pole 1/4" professional phone plug, gold contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

Cable

FOX Two.mini is a thin, tough, and highly flexible cable. This cable has silver plated conductors for excellent signal transmission and is available in 5 colours.

Construction

The two inner conductors are tightly wound along with fiber-fillers. This evenly induces interference and limits microphonics that are caused by static build up when the conductors are allowed to move. A braided copper shield is then applied before a PVC over-jacket is extruded to hold the internals in place.

Technical Specification

• 2 Core & Screen Cable
• Flexible PVC Jacket. Black, Blue, Red, Yellow, Pink
• 4.1mm Overall Diameter
• Silver Plated Copper Conductors
• Conductor Diameter (28awg)
• Fiber fillers to reduce microphonics
• Braided 'Tin Plated Copper' Shield
• Capacitance per meter - 157pf (Core to Shield)
• Capacitance per meter - 49pf (core to core)
• Resistance per meter - 0.25Ω (Conductors)
• Resistance per meter - 0.13Ω (Shield)
• Discreet printed branding
