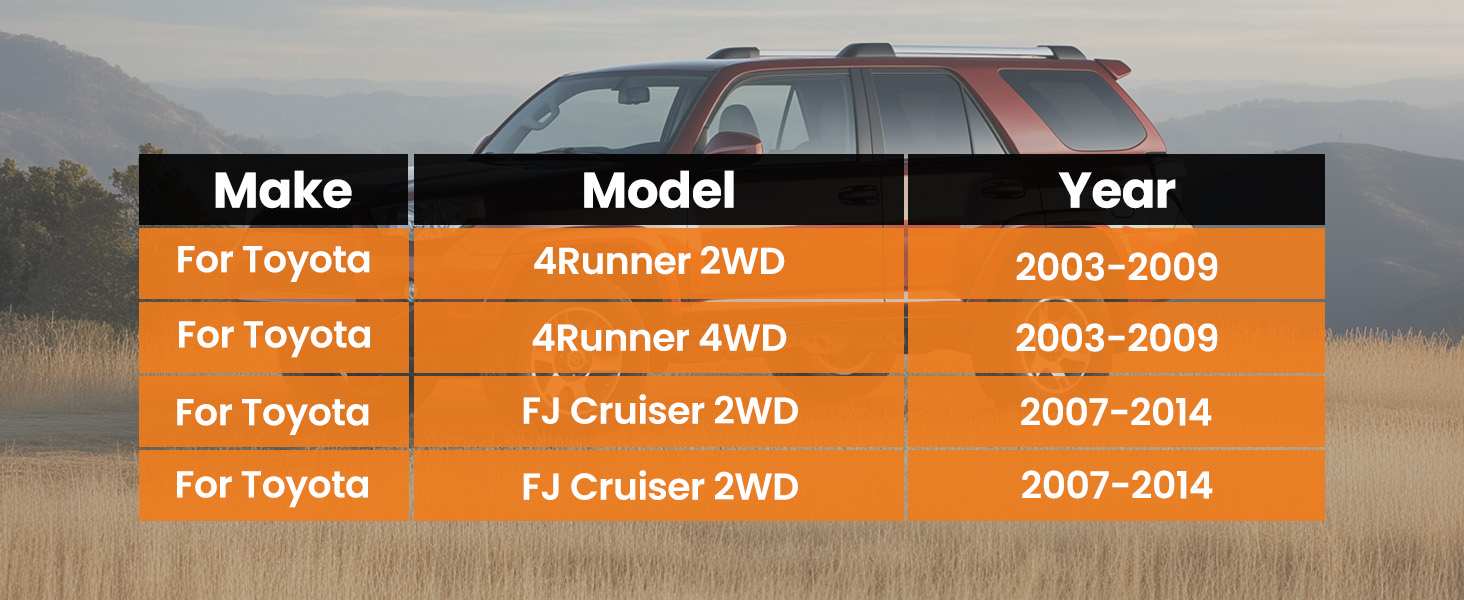

maXpeedingrods 3" Lift Kit W/ Shocks For Toyota 4-Runner 03-09 FJ Cruiser 07-14




Feature

Feature

* Easy bolt-on installation

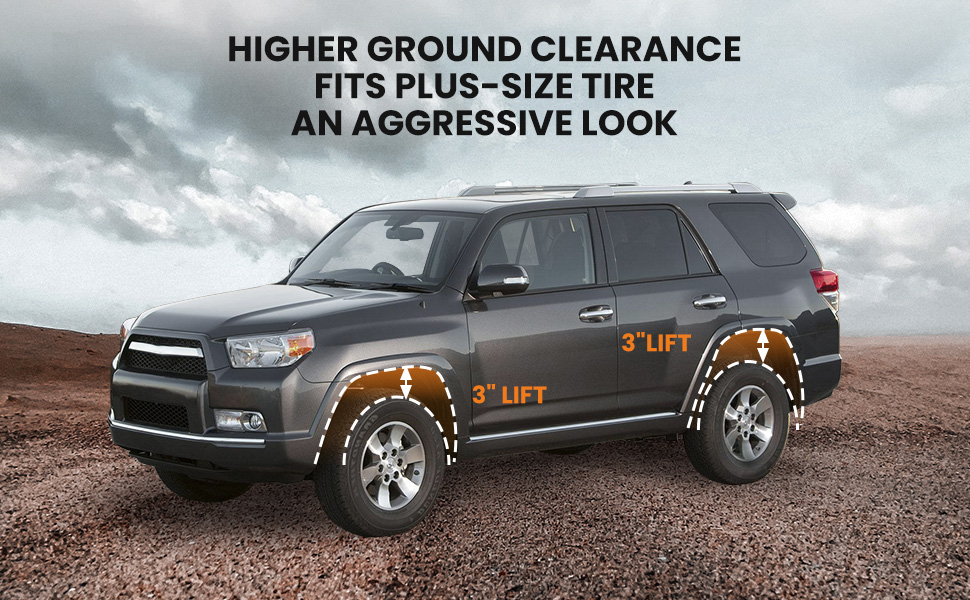

* Increased ground clearance

* Maintains factory ride quality

* Allows for larger tires to be mounted

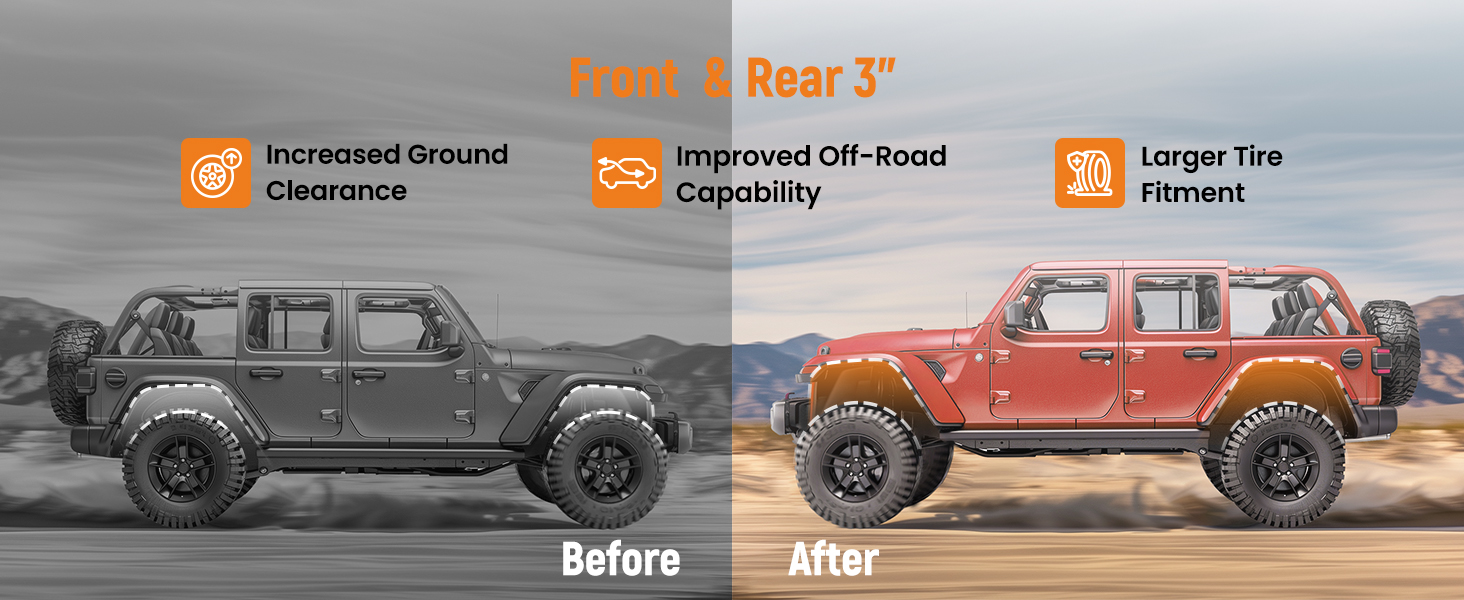

* Enhances vehicle off-road performance

Specification

Specification

  • Type: suspension lift kit
  • Lift Size: 3"
  • Finish: Powder coated
  • Bushing material: Rubber
  • Diameter of piston rod: F&R 18mm/0.70"
  • Piston diameter：F&R 32mm/1.25"
  • Outer cylinder diameter: F&R 50mm/1.95"
  • Travel: F:  150mm   R:  225mm
  • Rear Extended Length (in): 26.77
  • Rear Collapsed Length (in): 17.9
  • Spring Rate: F 10.5kg/mm(587.97lbs/inch)

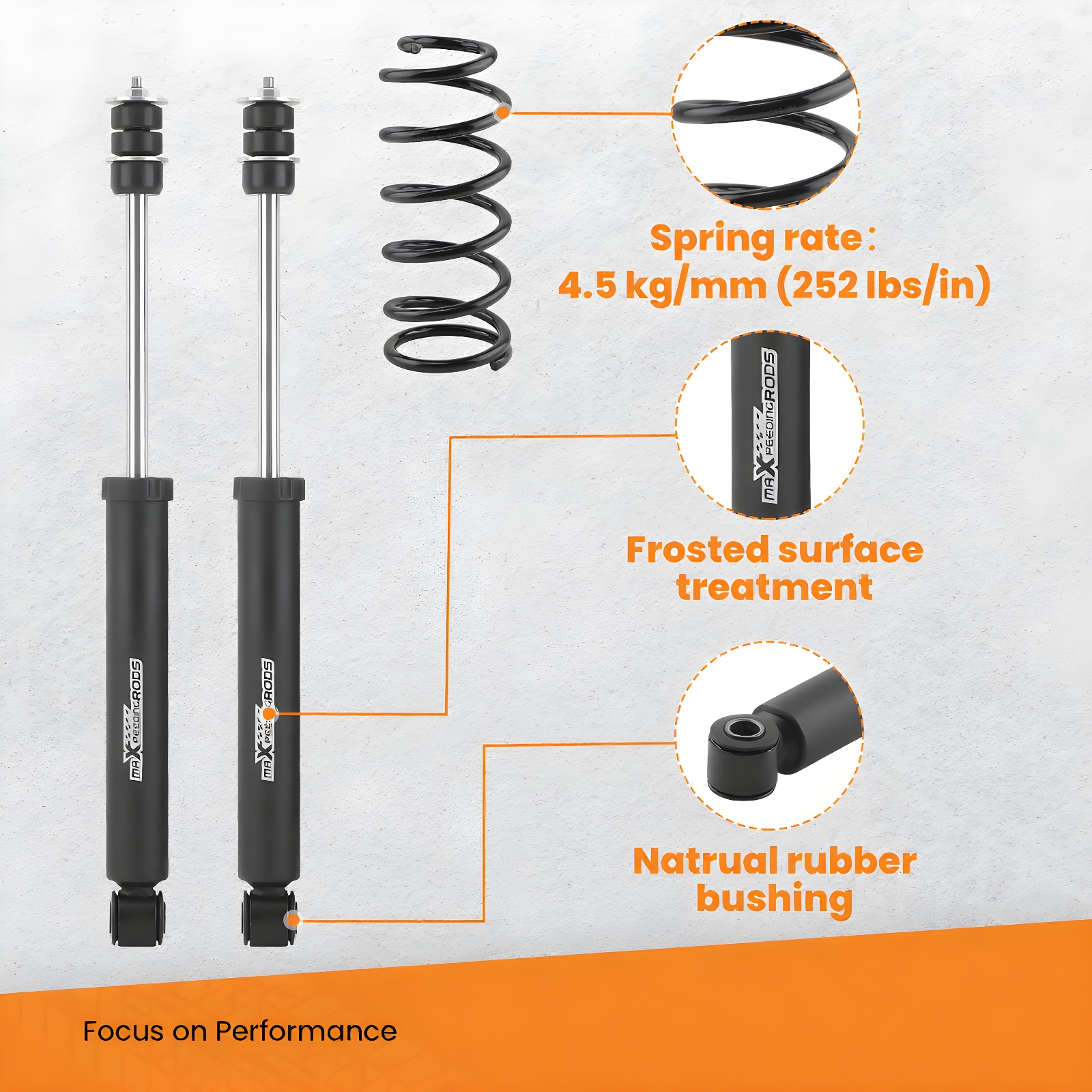

  • R 4.5kg/mm(251.98lbs/inch)
  • Spring Length: F 370mm/14.56"
  •  R 410mm/16.14"

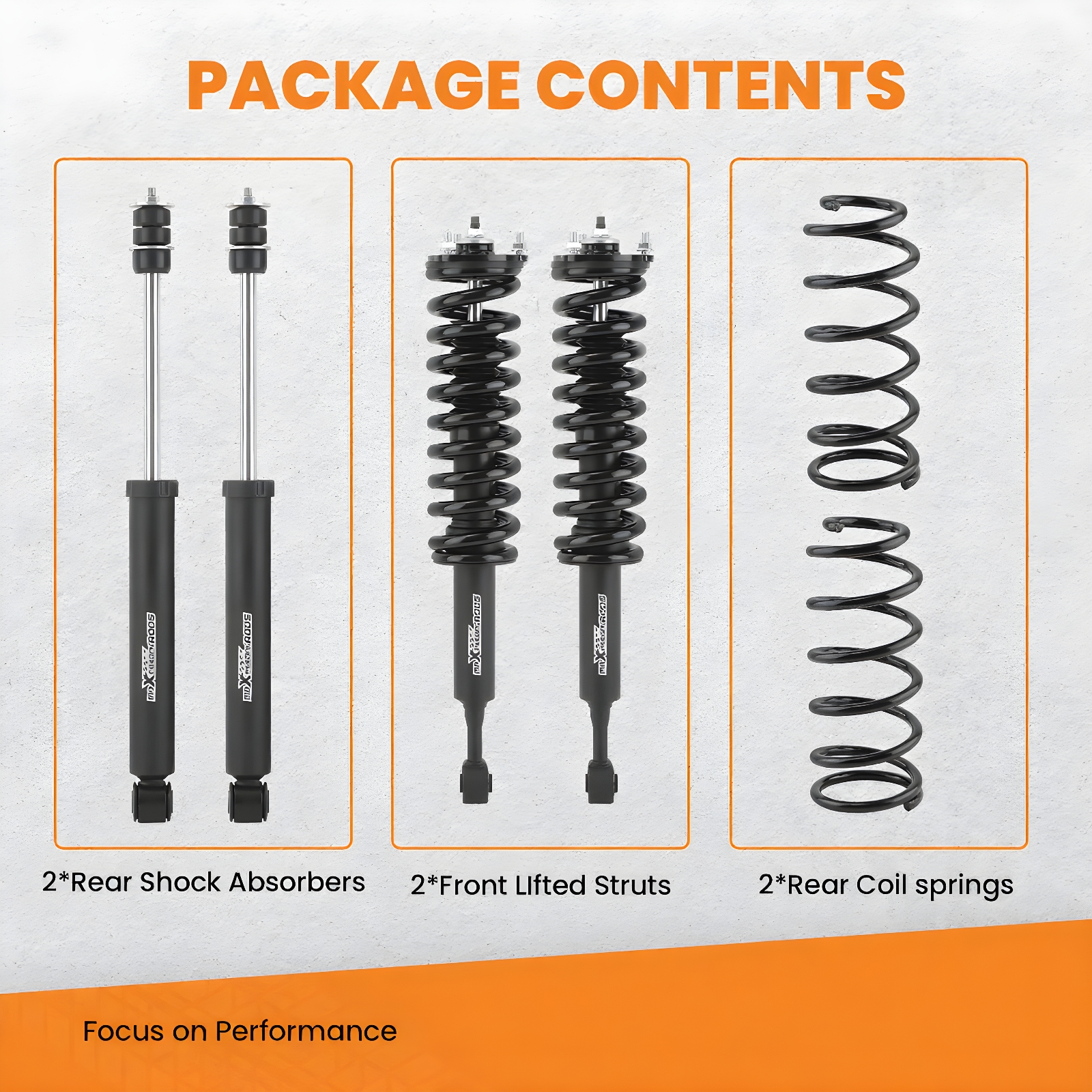

Package included

Package included

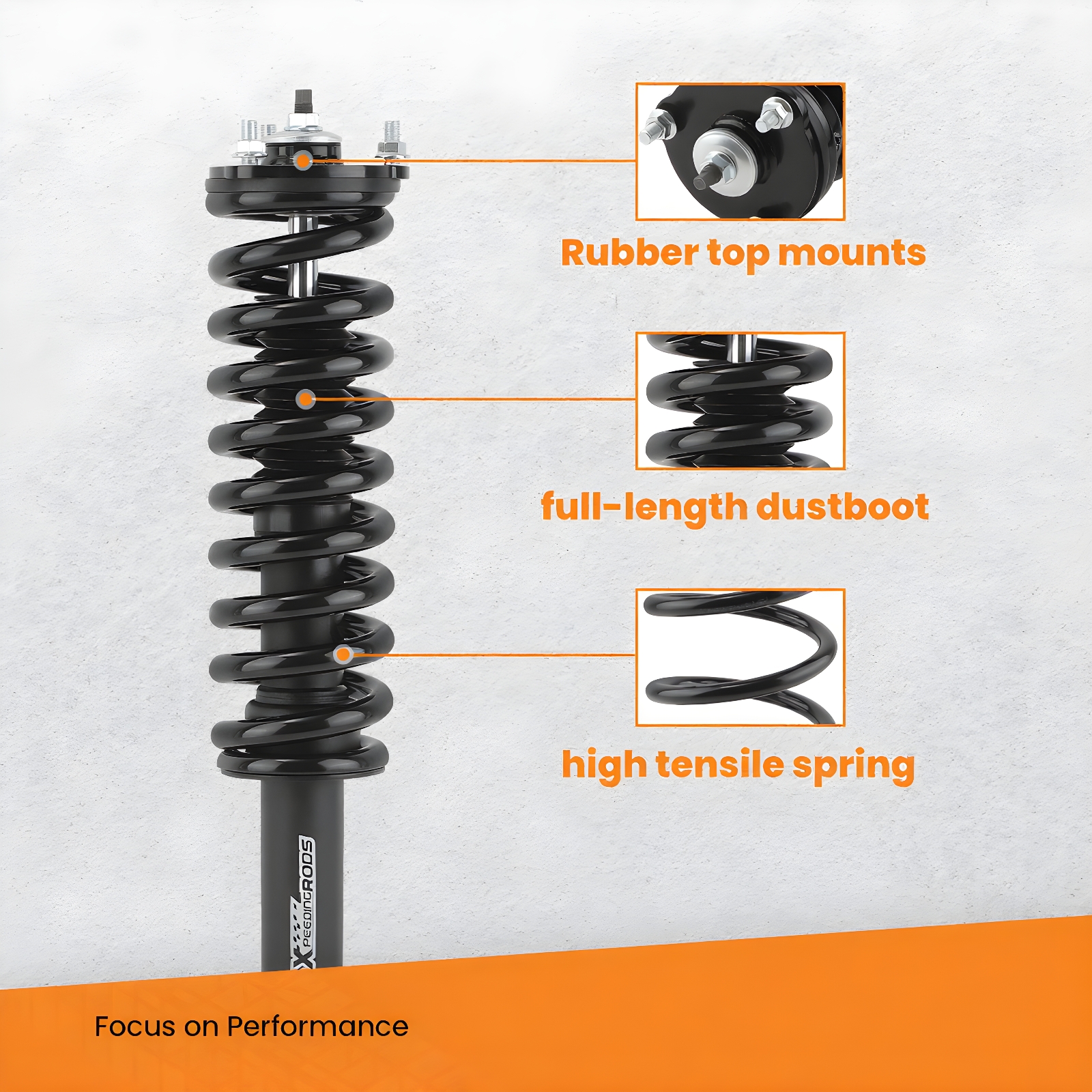

  • 2*Front LIfted Struts
  • 2*Rear Coil springs
  • 2*Rear Shock Absorbers
