Product Applications:
● This high performance and high requirements, safe and reliable operation, suitable for all kinds of laboratory sample mixing, easy to operate; using DC brushless motor, can run for a long time, greatly improving the efficiency of laboratory work.
Main features:
● LED screen display, the speed can be adjusted coarsely and finely, the speed can also be adjusted during the operation of the instrument;
● Motor soft start, running smoothly, effectively prevent the sample from overflowing;
● Closed shell effectively prevents liquid from spilling into the instrument, ensuring safe operation of the experiment;
● Configuration of stirring paddle penetration holes, the user does not need to adjust the installation height of the instrument, only need to adjust the installation position of the stirring rod;

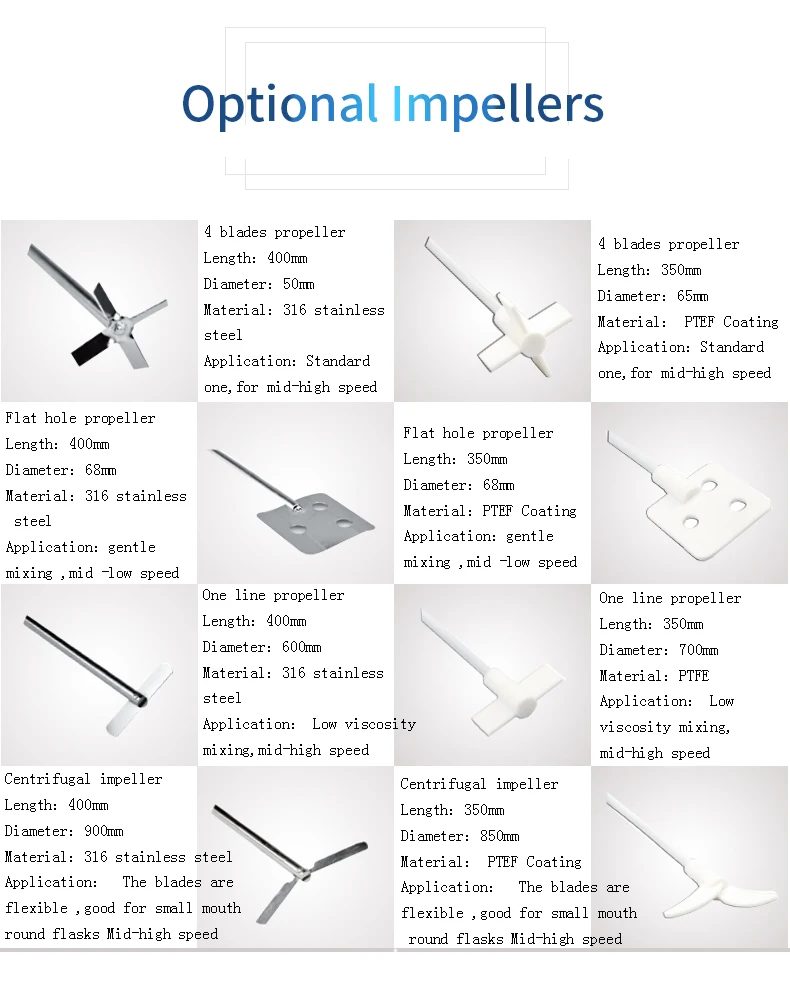

● Various stirring paddles and brackets are available.
Specification:
Stirring amount | 40L (HO) |
range of rotation | 30-2200pm |
Speed display | LED |
Speed display resolution | ± 1rpm |
Timing function | 1 ~ 9999min |
Torque | 60N.cm |
Overload protection | Voice reminder, stop automatically |
Motor protection | Voice reminder, stop automatically |
Viscosity | 50000mPas |
Drill chuck clamping diameter range | 0.5-10mm |
Dimensions (DxWxH) | 160x80x180mm |
weight | 8kg |
DinEn660529 protection method | IP42 |
Allowable ambient temperature | 5-40 ℃ |
Allowable ambient humidity | 80% |
RS232 interface | Yes |
Motor input power | 120W |
Motor output power | 100W |
Voltage | 100-240va |
frequency | 50 / 60H |
power | 130W |
safety protection | Collet protective sleeve safety buckle non-slip pad |
Mixing time setting | Have |
Speed mode | Coarse and fine tuning |
Speed memory | Have |
Stirring paddle fixing method | Self-locking chuc |
