Hydrogen Chloride Detector HCL Gas Monitor with Bulti-in Pump Range 0-50ppm



Introduction:

Gas detector with built-in pump is a new intelligent gas detector, which adopts an advanced integrated circuit, with standard intelligent level design technology, and proprietary digital analog hybrid communication technology. The detector is of excellent sensitivity and repeatability, which makes it very easy to use and maintain. Thus greatly meets the safety requirements of industrial sites with high reliability. The detector is made of high-strength engineering plastics, compound non-slip rubber, which is of high strength and good hand feeling. what's more, the detector is water-proof, dust-proof and explosion-proof. It is widely used in petroleum, chemical, environmental, metallurgy, refining, gas transmission and distribution, biochemical medicine, agricultural and other industries.

Features:

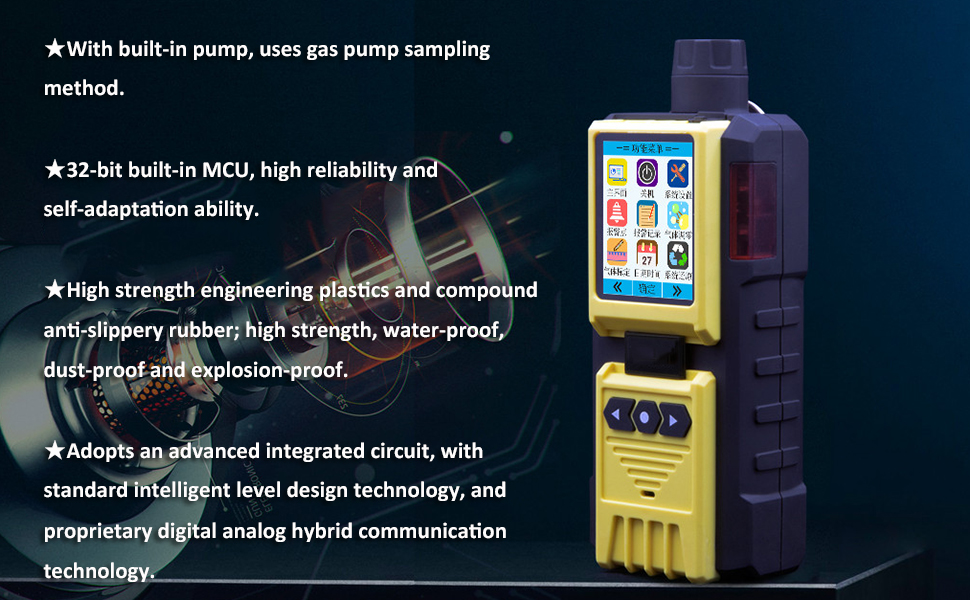

* Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.

* 32-bit built-in MCU, high reliability and self-adaptation ability.

* Full functions, easy operation.

* CSTN colorful LCD, more intuitionistic, abundant and clear indication.

* Compact design, easy carrying.

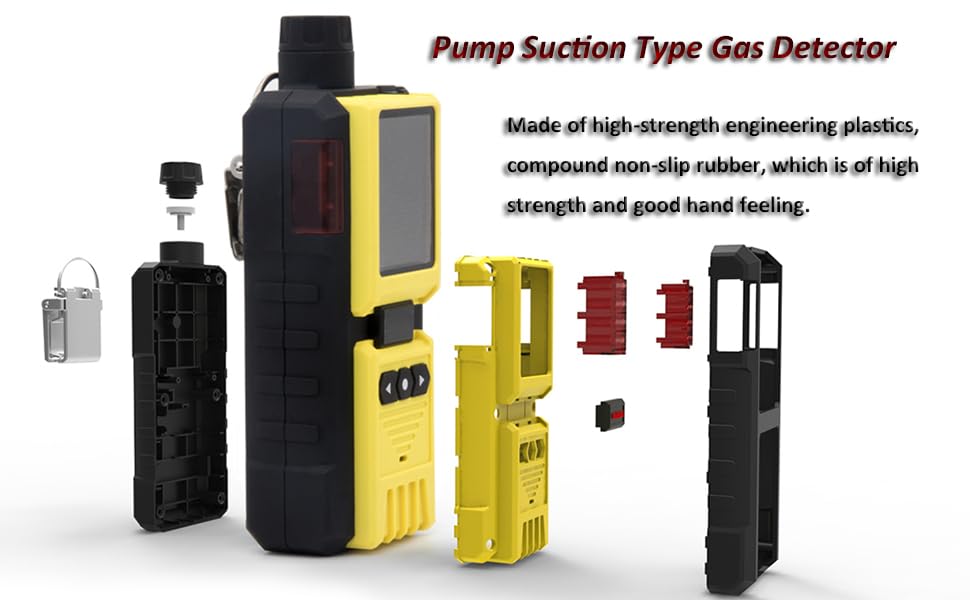

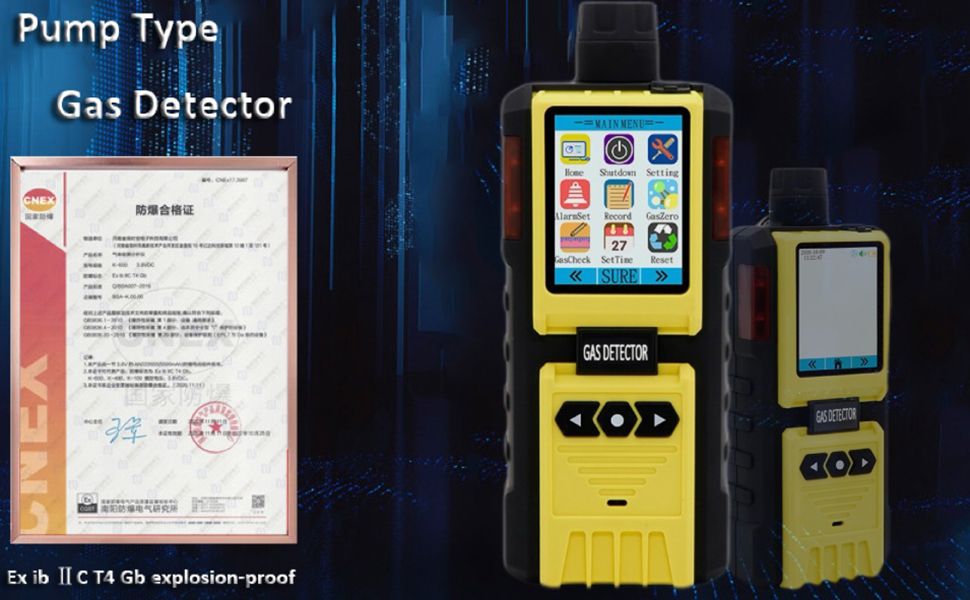

* High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

*1200pcs data records, can be contacted with computer via software. Can print the data records, can store data records, can make the data analysis.

*Gas curve display.



Model	HCL
Range	0-50ppm
Resolution	0.1ppm
L-alarm	5ppm
H-alarm	10ppm
Accuracy	≦±5% F.S.
Response Time	≦30s
Working environment	-20℃～50℃, ＜95%RH (no dew)
Power Source	DC3.7V Li-on battery, 3200mAh
Charging time	6h~8h
Working time	≧8h continuously (without alarming)
Gas Sensor Life	2 years
Weight Appr.	400g (with battery)
Dimensions	130mm×67mm×30mm(L × W × H)
