Attention:

The BaFang Display can only be matched with the BaFang mid mounted motor, for example, these models: BBS M400 G330 G510 G340 M615 BBSHD

Please ensure that your controller matches my monitor before purchasing.

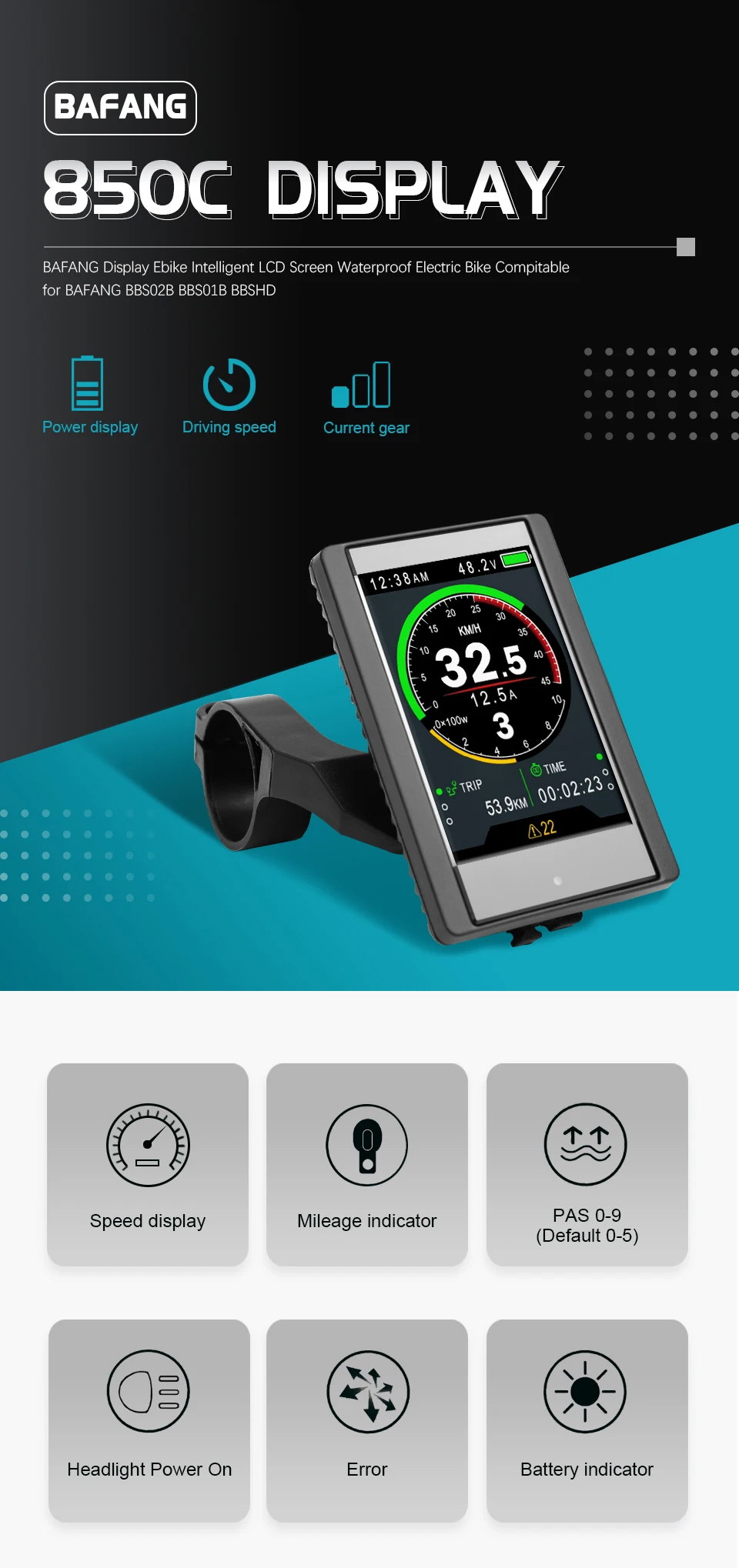

  850C display

Bafang 850C Display LCD Colour Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit

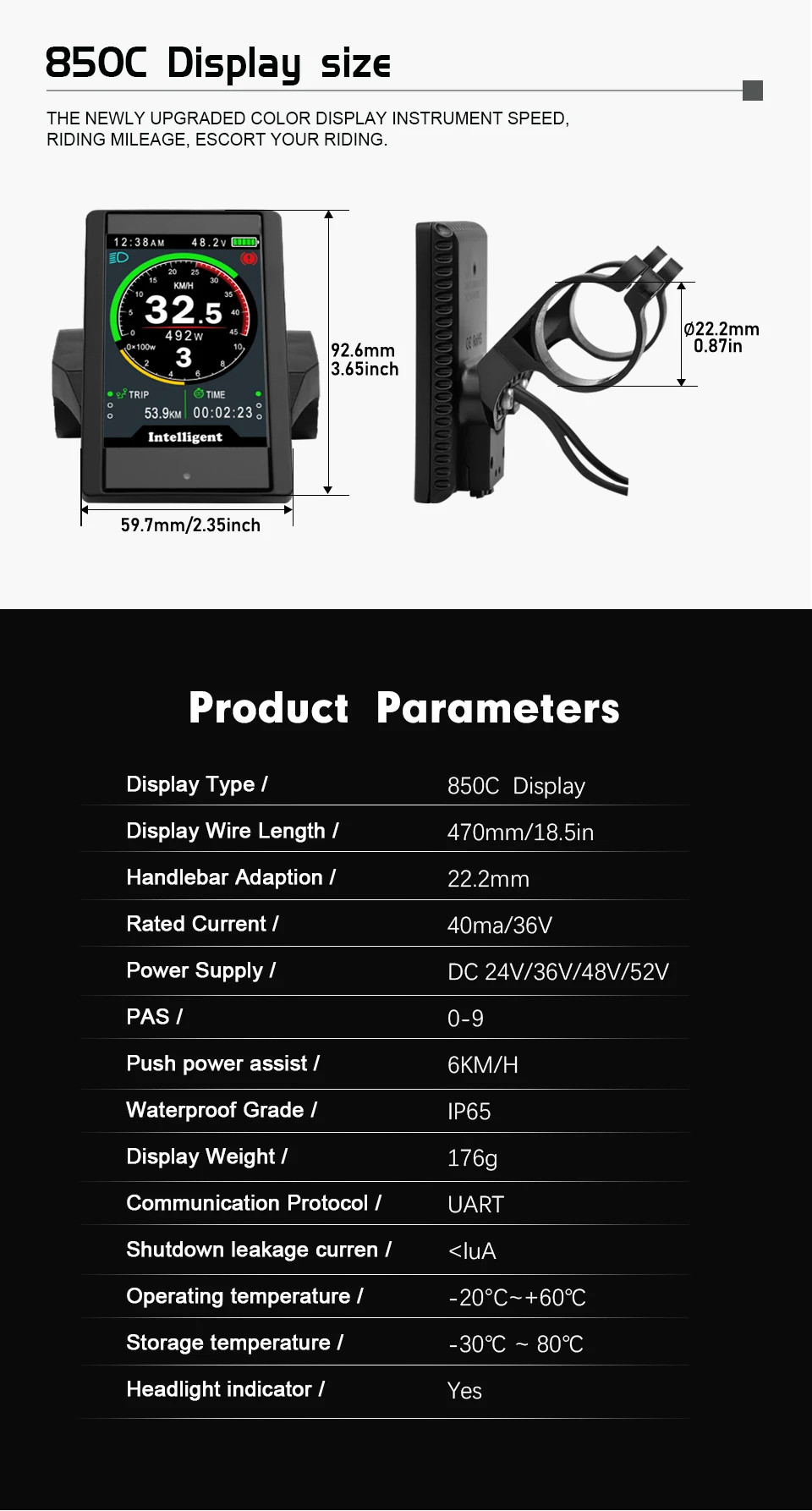

Specification parameters

•3.2-inch TFT color screen

•24V/36V/48V power supply

•The rated working current of the instrument is 40mA

•The maximum working current of the instrument is 100mA (36V battery, external mobile phone charging status)

•USB charging DC 5V 500mA

•Shutdown leakage current<1uA

•Supply the controller with a working current of 100mA

•Operating temperature -20~70 ℃

•Storage temperature -30~80 ℃

  Product Introduction

•Suitable for low temperature，Max -20℃.

•High-contrast 3.2inch IPS colorful matrix screen.

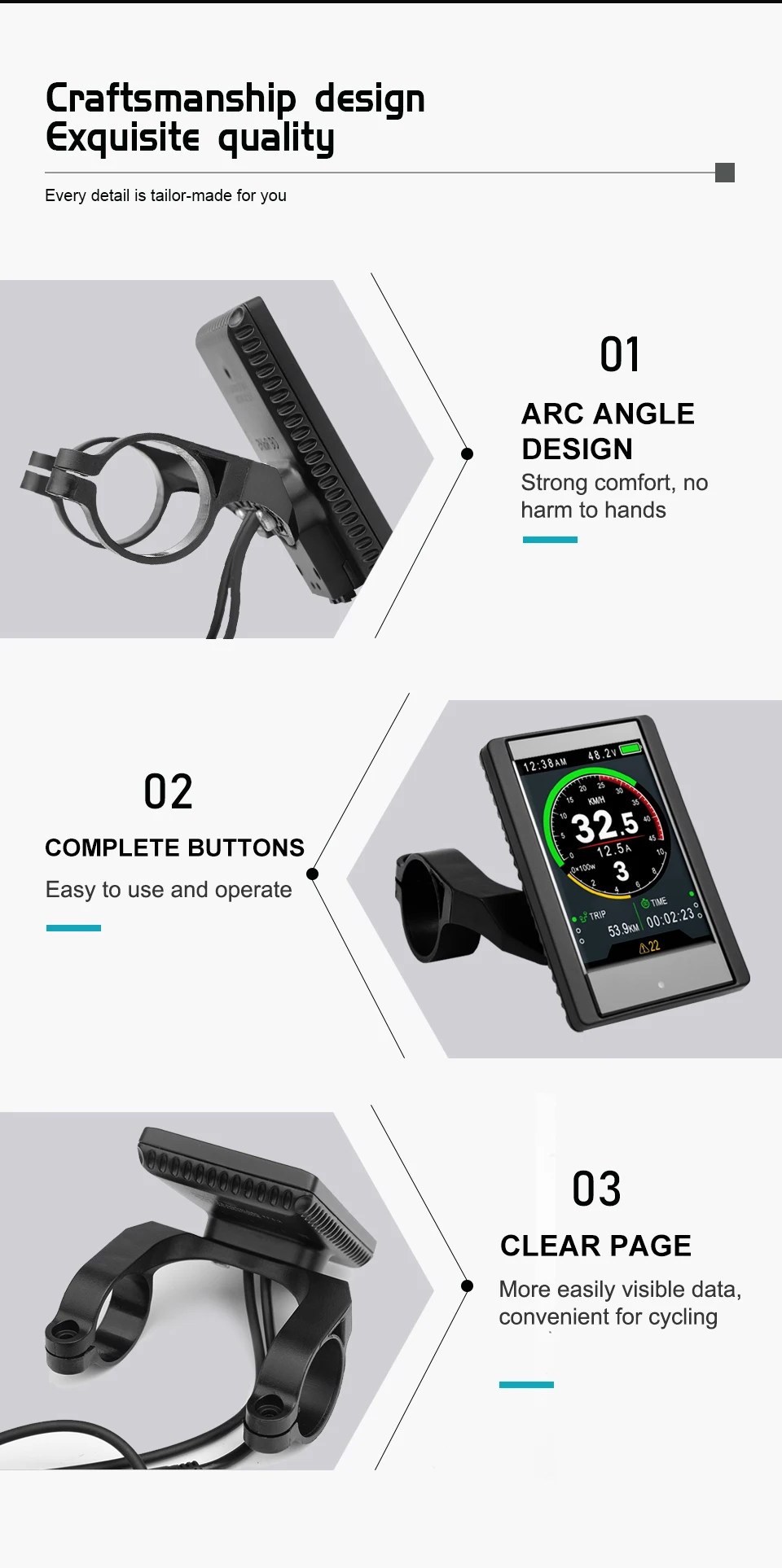

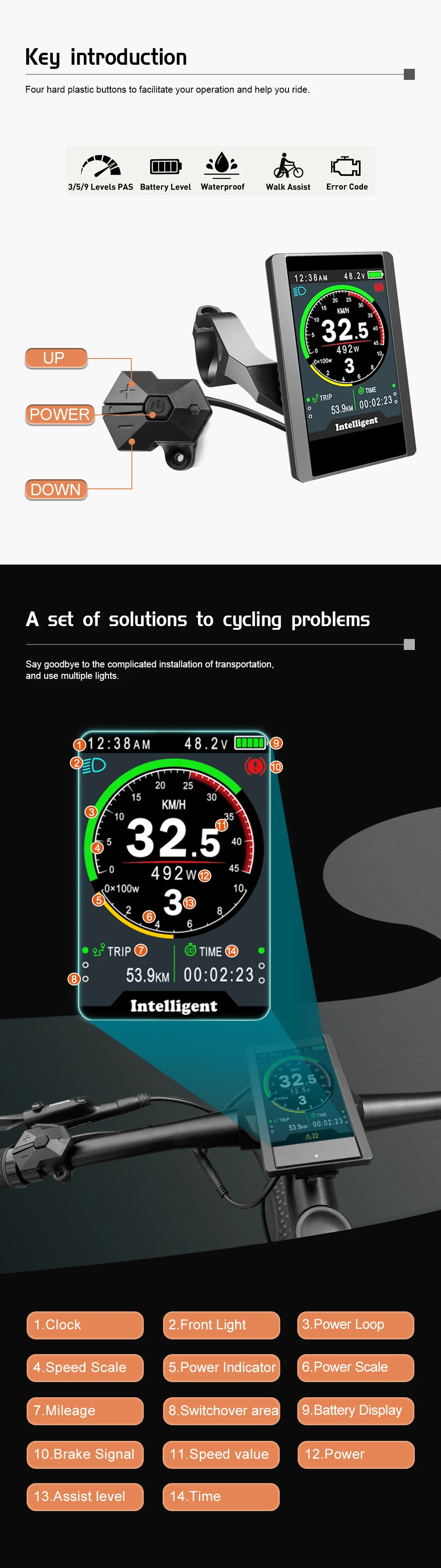

•Ergonomic external button design, easy to operate.

•Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).

•USB charging port : 5V/500mA

•6km assistance promotion function.

•9-level Assist : 3-level/5-level/9-level optional.

•Mileage indicator : Odometer/Trip distance/ Clock/ Riding time.

•Power/Current indicator : real time power indicator, digital or analog or Current.

•Error code indicator.

•Light sensor（Optional ）.

•Software upgraded : Software can be upgraded through UART.

  PACKING LIST

1.Bafang LCD display

2.Display holder and gaskets
