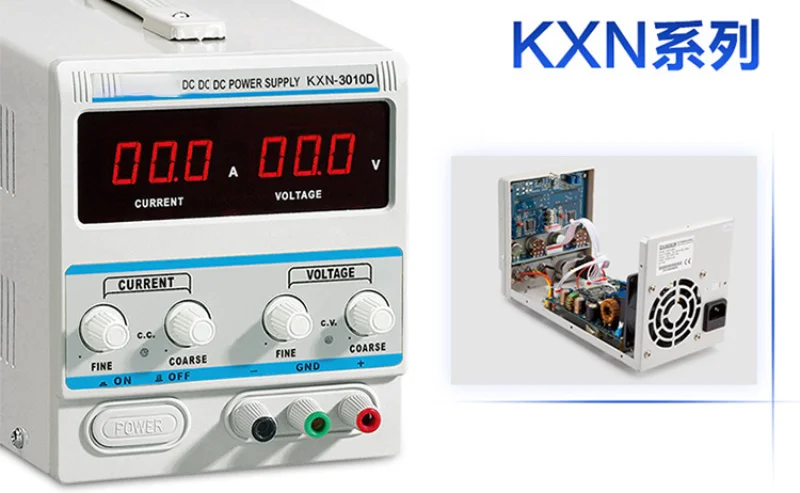

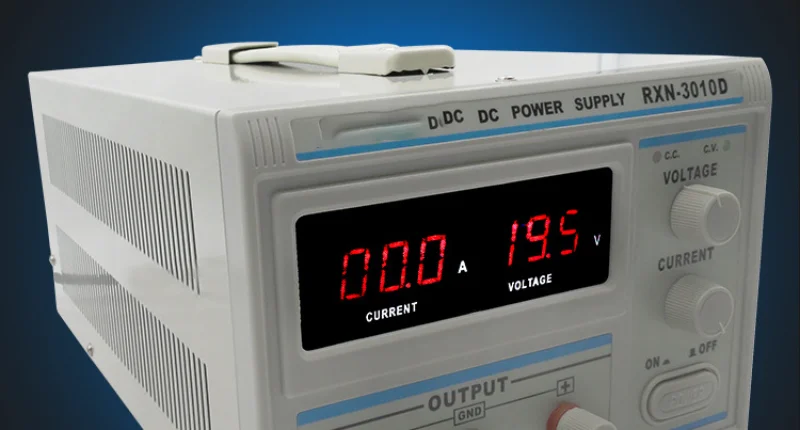

KXN-3010D DC Power Supply / 0-30V 0-10A Electroplating Power Constant Current Source

Specifications:
Input voltage: 220V ± 10%
Frequency: 50 / 60Hz
Output voltage: continuously adjustable DC: 0-30V
Output Current: continuously adjustable DC 0-10A
Protection: Current limit protection and short circuit protection
Power effect: ≤0.01% + 2mV
Load effect: ≤0.01% + 2mV
Ripple and noise: CV ≤1MVRMS (rms)
Ambient temperature: -10 -40
Relative humidity: <90%

Economical and practical single-output DC power supply

Output 0-30V 0-10A continuous adjustable overcurrent and polarity reverse protection function, KXN series power supply, known as high efficiency constant voltage, constant current type high-frequency switching power supply is characterized by load

Strong ability, low barrier rate of continuous work. With over pressure p, over temperature and over current care function, (work efficiency ≥86%)
