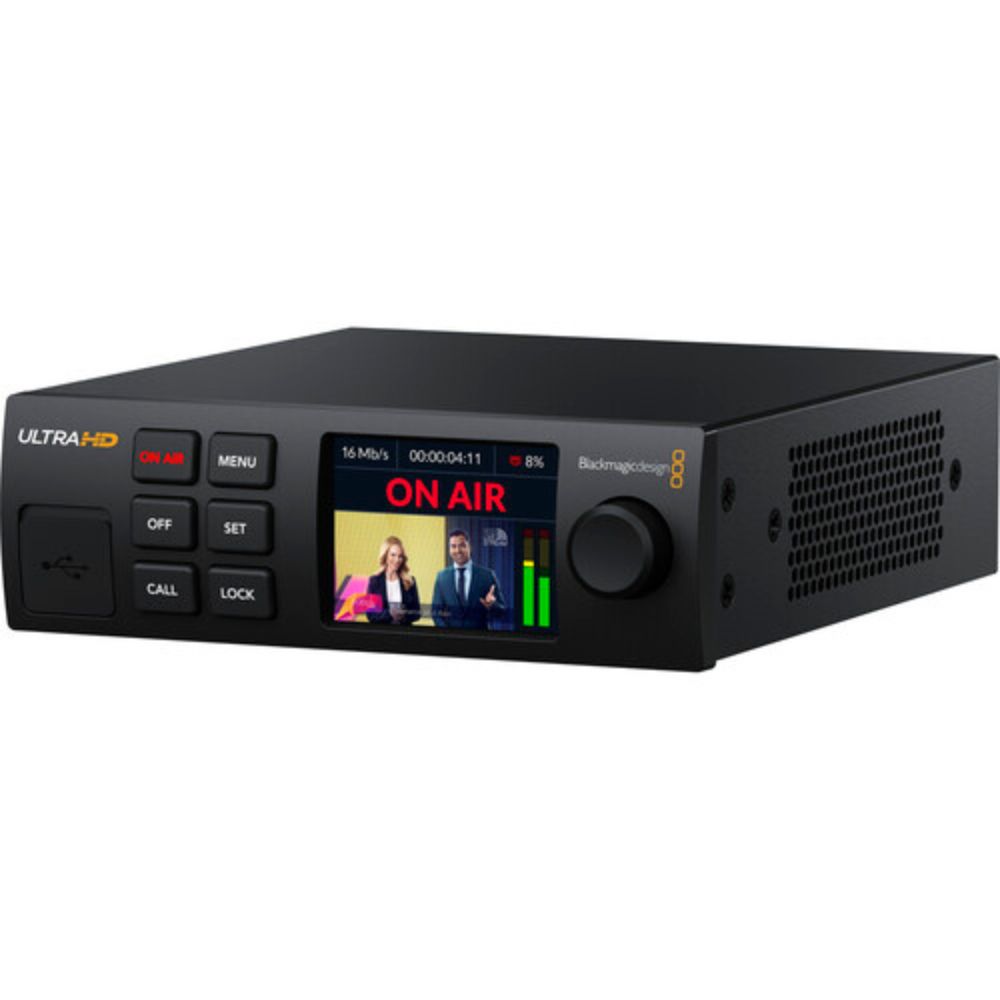

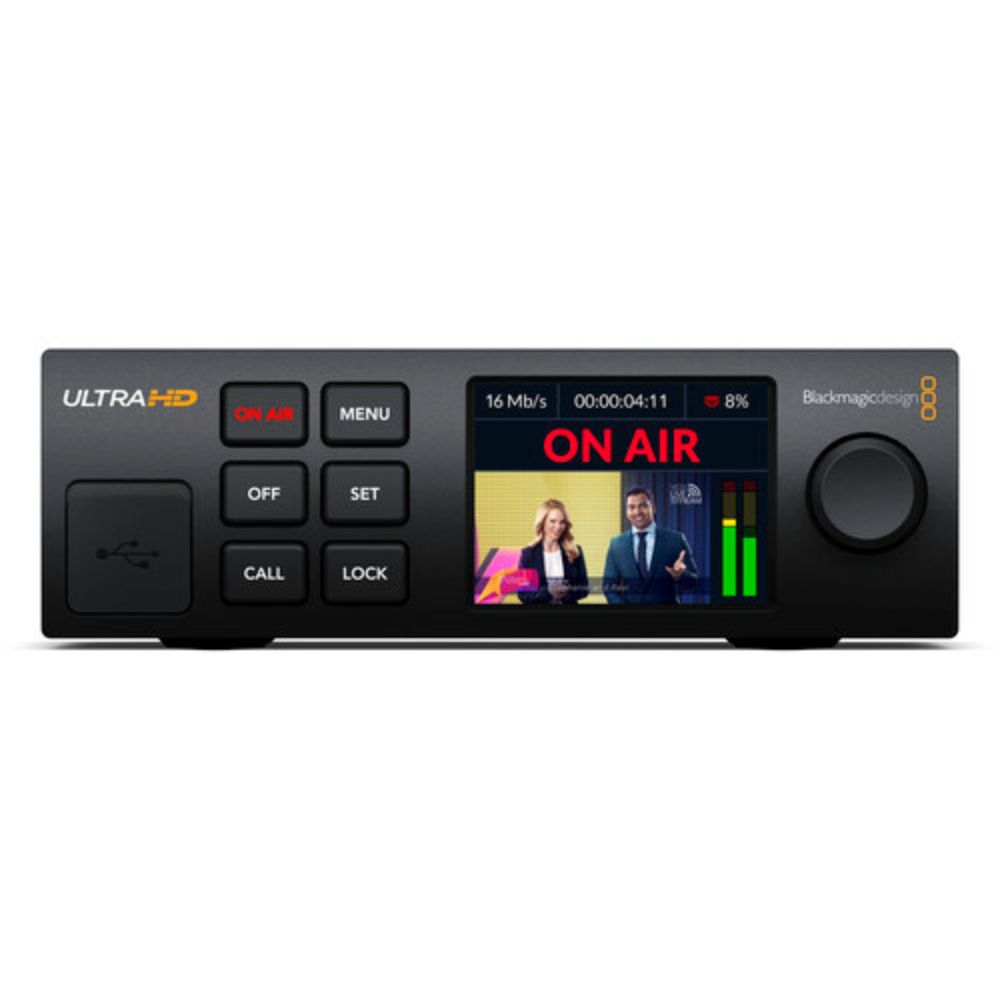

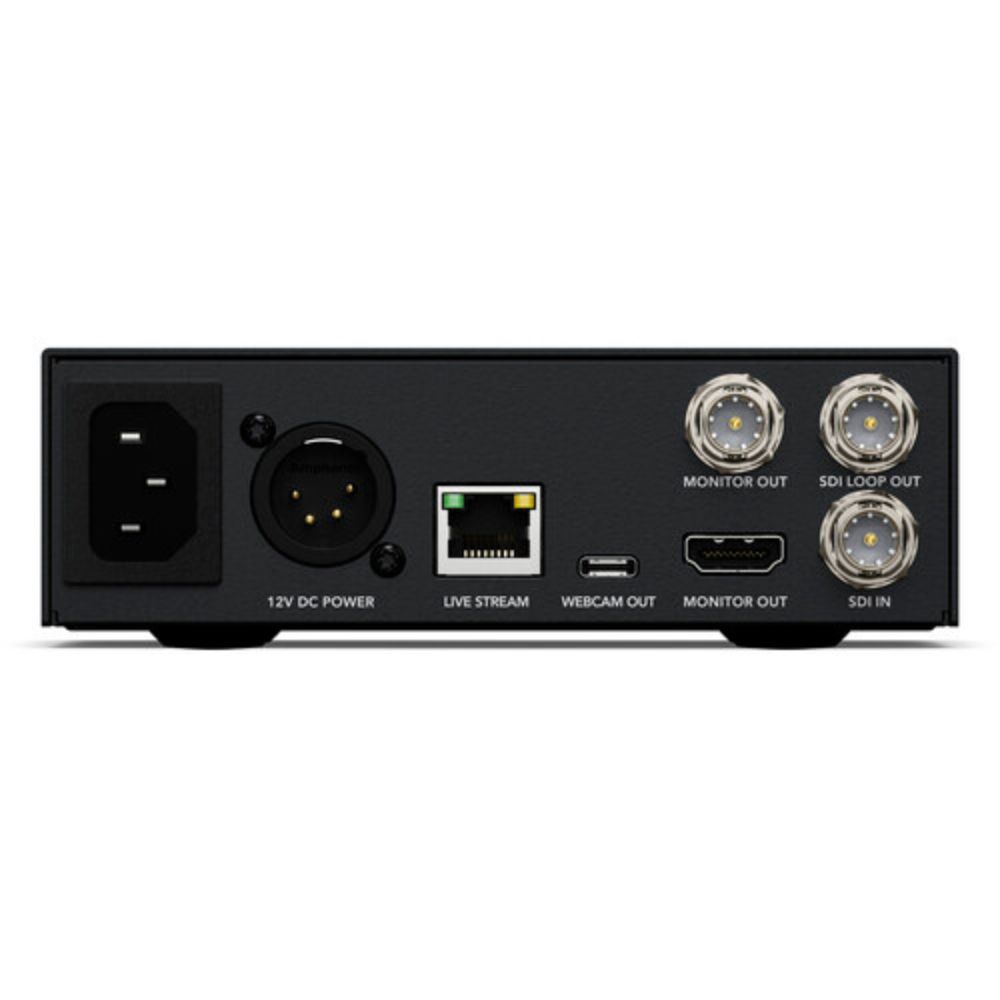

The encoder is equipped with 12G-SDI connectivity, supporting resolutions up to DCI 4K60 via an SDI input and an SDI loop output. The unit also features SDI and HDMI monitor outputs. Video, audio, status, and menu settings may be monitored via the integrated 2.2" LCD screen. There is also an option to connect the device as a webcam to a computer via its rear-panel USB-C port. The front panel features six buttons and a spin knob for tactile control, and the unit may be powered via its rear 100-240 VAC and 12 VDC 4-pin XLR ports.
What's in the Box
- Blackmagic Design Streaming Encoder 4K
- 1 x Welcome Wallet with QR Code for Software Download
- Blackmagic Design Streaming Encoder 4K
- 1 x Welcome Wallet with QR Code for Software Download
| Brand | Blackmagic Design |
| Model | Blackmagic Design BDLKWEB/D/SED4K |
| MPN | BMD-BDLKWEB/D/SED4K |
| Type | Pro Video Streaming |
| IP Video | H.264/H.265: 4096 x 2160 Encoding |
| Video I/O | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop O |
| Embedded Audio | SDI Input: 16-Channel SDI Output: 16-Channel HDMI Output: 2-Channel LAN (RJ45)/USB Output |
| Power Consumption | (25 W) |
| Transport Protocols | RTMP, SRT |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Cellular Support | 5G NR / 4G LTE via Unspecified SIM Type |
| Other I/O | 1x RJ45 Fast Ethernet Input/Output 1x USB-C Output 1x USB-C Input/Output |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Power I/O | 1x IEC C14 Input 1x XLR 4-Pin Input |
| Storage Conditions | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Display | LCD |
| Rackmount Size | 1 U |
| Dimensions | 6.9 x 5.5 x 1.75 / 17.5 x 14 x 4.45 cm |
| Weight | 1.66 lb / 753 g |
