Condition: Used
Dimensions: 7.00 x 7.00 x 4.00 inches (L x W x H)
Weight: 0.10 Lbs.

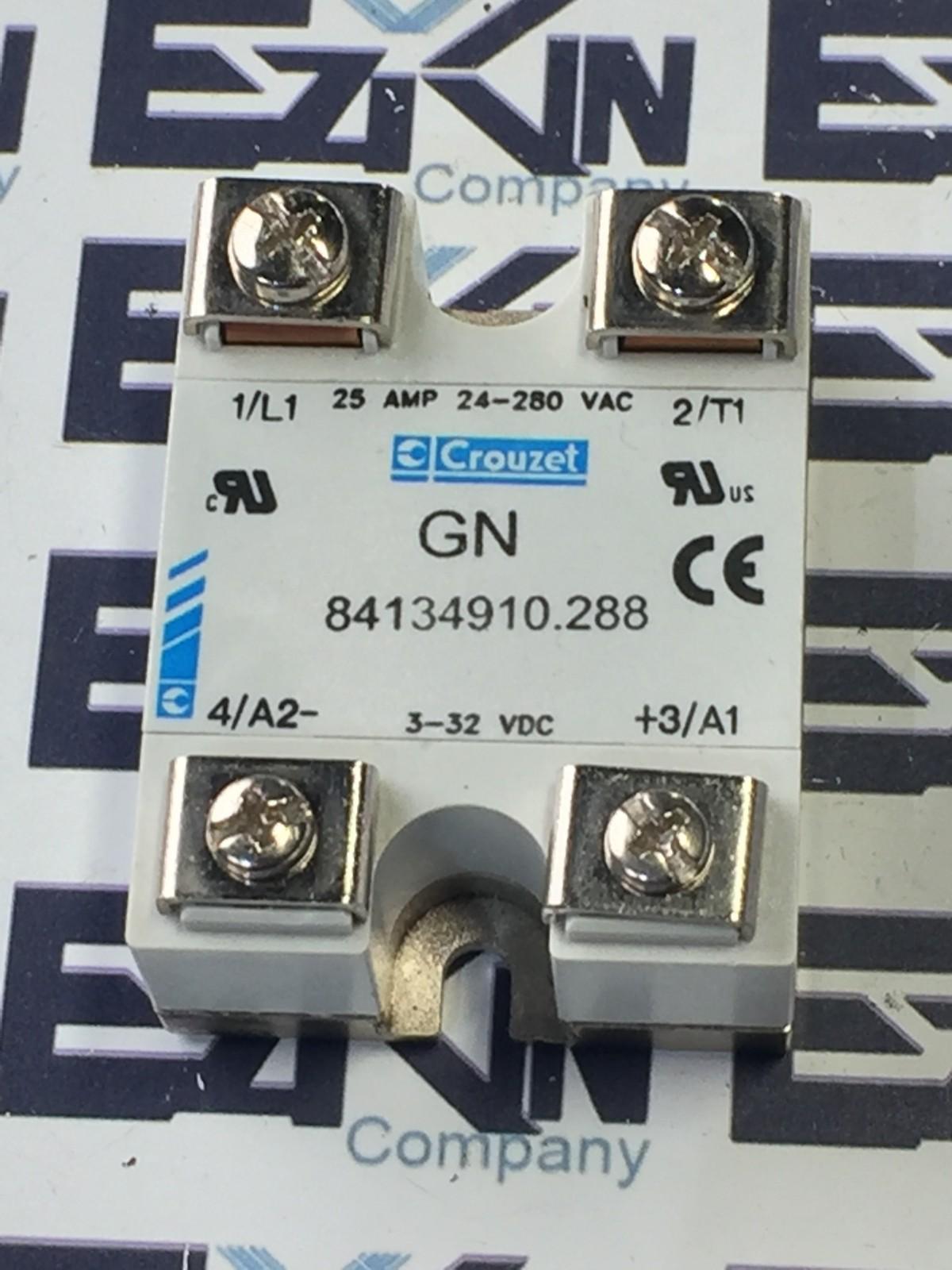

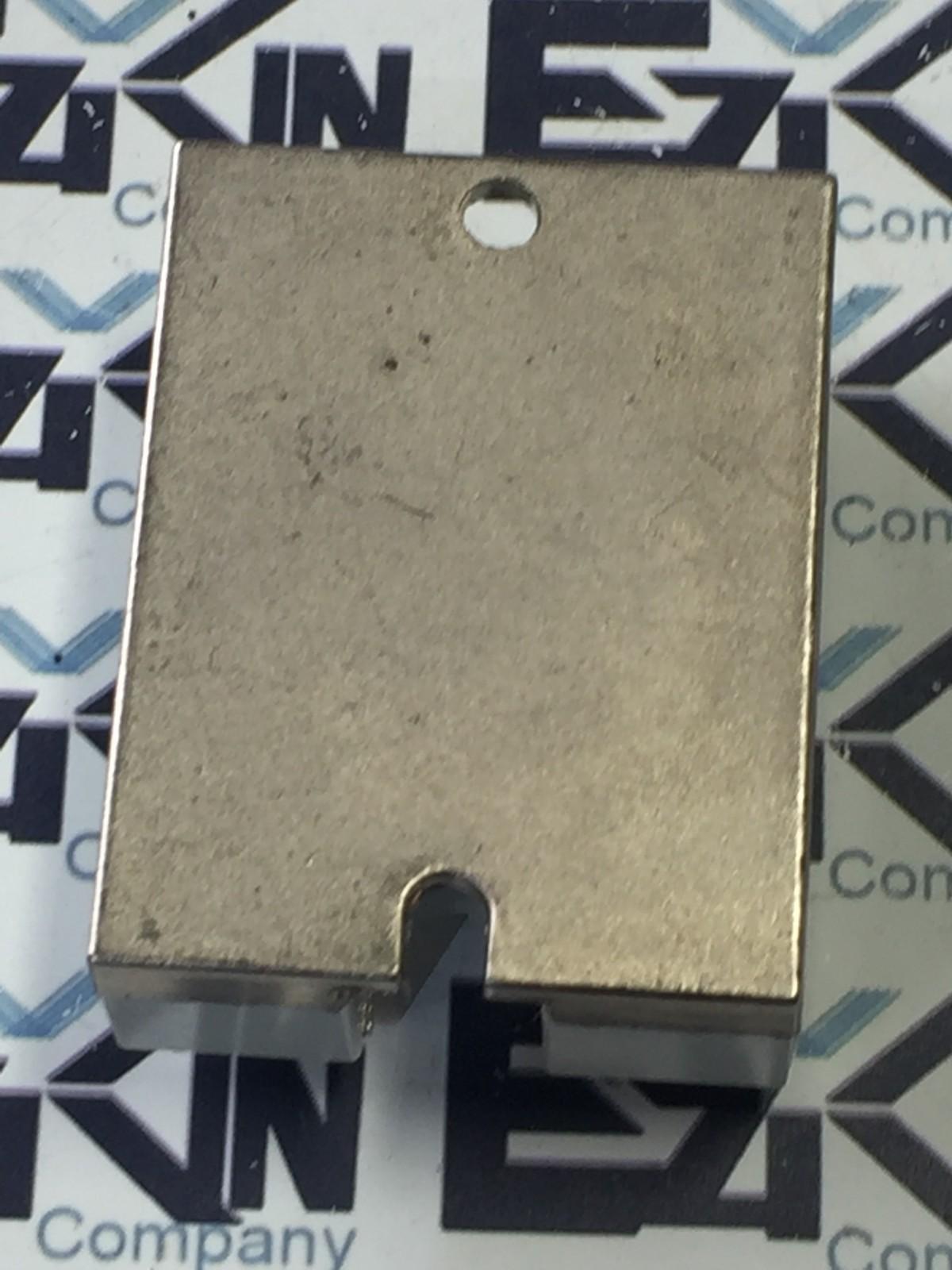

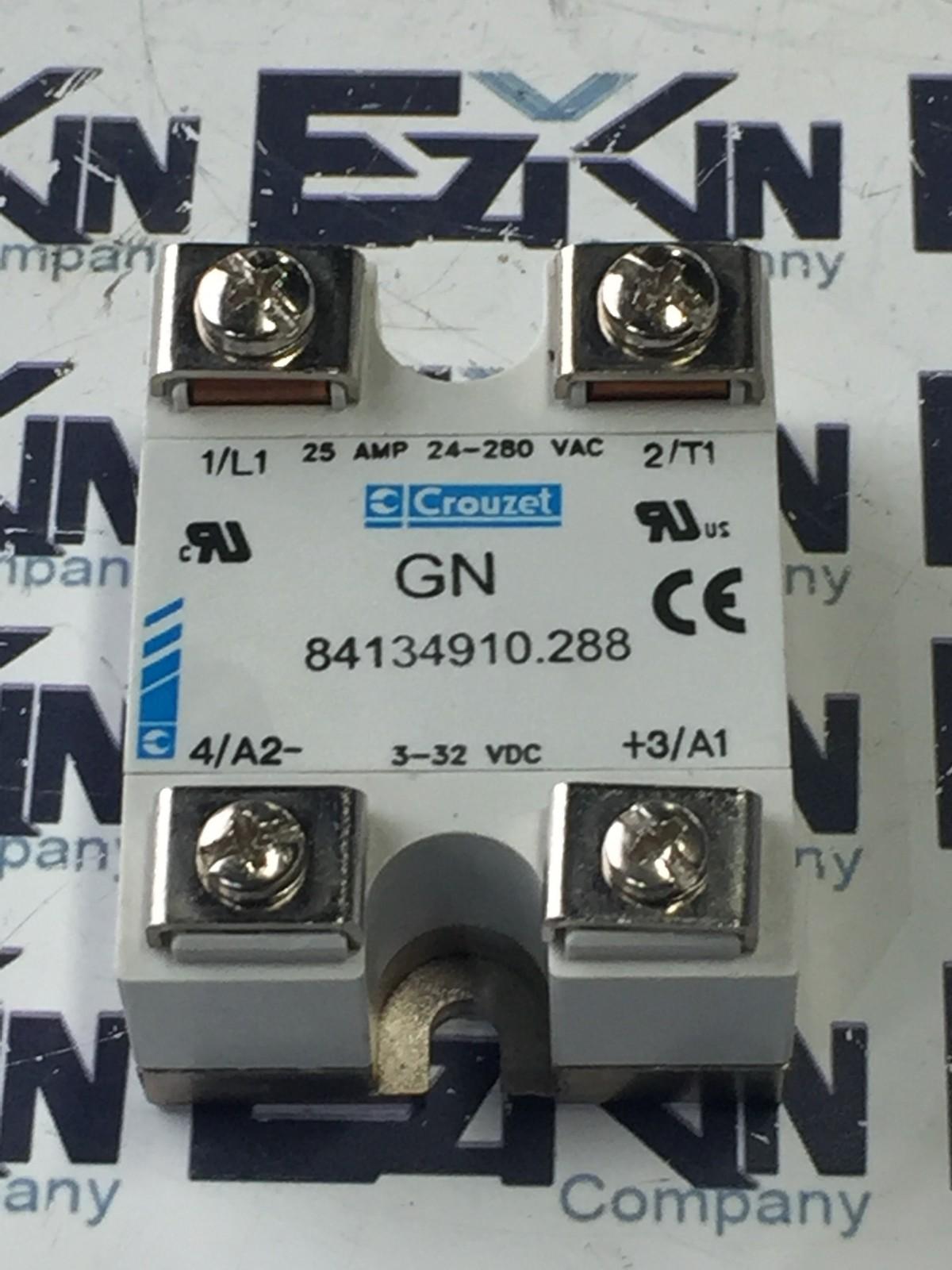

Crouzet 84134910.288 is a solid-state relay (SSR) from the GN series, designed for reliable switching of AC loads using a low-voltage DC control signal. It is ideal for industrial automation, heating, lighting, and motor control applications. Description: This SSR provides silent, fast, and wear-free switching with optical isolation between the control and load sides. It is panel-mountable with screw terminals for quick installation. Technical Specifications: Manufacturer: Crouzet Part number: 84134910.288 Series: GN Type: Solid State Relay Load voltage range: 24–280 VAC Load current rating: 25 A Control voltage range: 3–32 VDC Input terminals: A1 (+) / A2 (−) Output terminals: L1 / T1 Isolation: Optical Mounting: Panel mount (with center screw hole) Certifications: UL, cURus, CE Application: Resistive loads, inductive loads (with proper snubbing), industrial control systems, HVAC, lighting, and heaters Please review pictures carefully and let us know if you have any questions!
