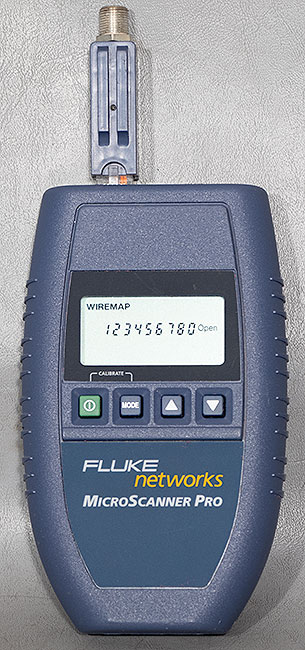

Fluke Networks PN: 2465438 MicroScanner Pro Network Tester
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Fluke and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE IF THIS IS THE CASE. ALSO, EBAY TENDS TO QUOTE INTERNATIONAL SHIPPING AT A VERY HIGH COST. PLEASE CONTACT US FOR BETTER RATES. WE ALSO SHIP VIA FEDEX INTERNATIONALLY. NOT UPS!
This unit is guaranteed to work. It comes with 1 coax adapter but I do not have the wiremap adapter. Please keep in mind that some specifications may be included below but cannot be performed without the missing module(s).

The Unit's Serial Number Tag Reads:
Part Number: 2465438
Serial Number: 47D05F01386
CE Marked: Yes

Features:

  • Tests unshielded twisted pair (UTP), shielded twisted pair (SSTP) and coaxial cable
  • Pinpoints opens, shorts, crossed and split pairs
  • Measures cable length via TDR
  • Checks and verifies wiremap
  • Generates four different tracing tones to help identify users
  • Identifies active networking 10/100 hubs, switches and PCs

    • Description:
    The MicroScanner Pro is an all-in-one network tester that you can use to verify twisted pair and coaxial cables, measure length and distance to faults via TDR, and identify active networks and hubs.

    Specifications:
    MicroScanner Pro Dimensions: 13.97 cm x 8.25 cm x 2.54 cm (5.5" x 3.25" x 1")
    Coax Adapter Dimensions: 7.62 cm x 1.60 cm x 1.47 cm (3" x 0.63" x 0.58")
    MicroScanner Pro Weight: 171.54 g (0.38 lbs)
    Ground Pin Receptacle Size: 2.03 mm (0.08")
    Power Source: 9 V Alkaline battery (NEDA-1604, IEC 6LR61)
    User Interface:
      Display: Custom LCD - 4.42 cm x 2.15 cm (1.75" x 0.85")
      Keypad: Four momentary contact keys
    Operating Temperature: 0°C to +50°C (32°F to +122°F)
    Storage Temperature: -10°C to +55°C (14°F to +131°F)
    Humidity: 10% to 90%, non-condensing
    Applications: Shielded and unshielded twisted pair cable, 75 or 50 ohm coaxial cable, 10 or 10/100 BASE-T Networks
    Test Interface:
      Main: Modular 8 connector for length, 10/100 link identification, wiremap, office identifier/room identifier, trace
      Loopback: Modular 8 connector for patch cable wiremap
    Calibration: User selectable NVP, NVP calculation based on known cable length
      Minimum Length: 15 meters (50 feet)
    TDR Accuracy: ±4% or ±2 feet, whichever is greater. Any NVP uncertainity is an additional error.
    Length: Maximum length of 450 meters (1500 feet)
    Office Identifier Length: Maximum length of 150 meters (500 feet)
