Feature：

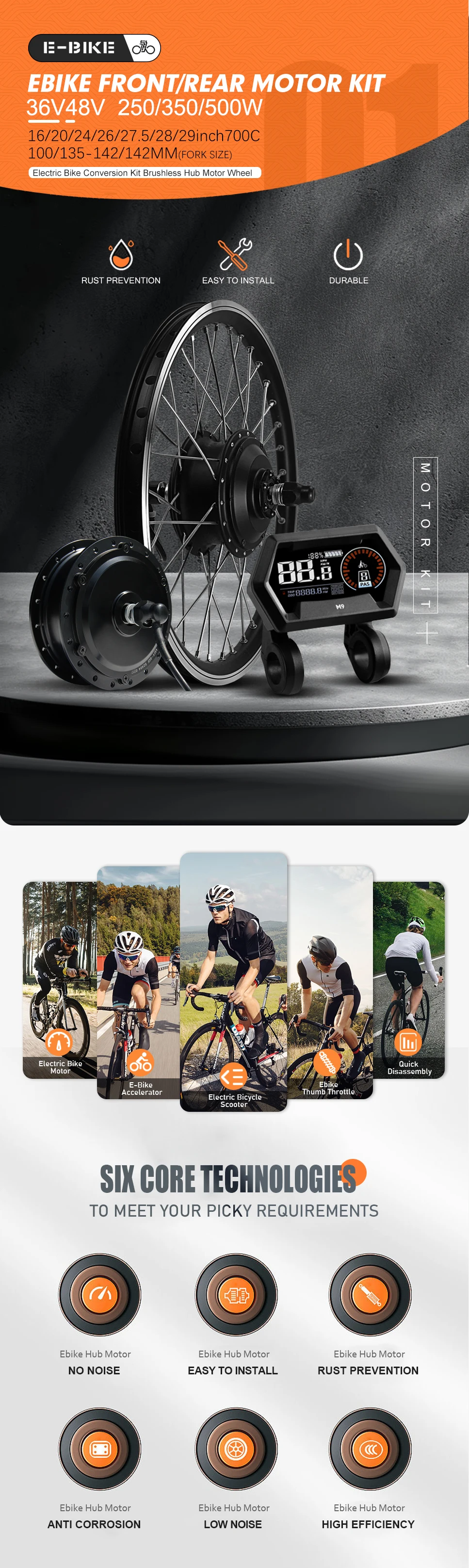

◆Electric bicycle front/rear wheel conversion kit features 36V48V 250W/350W/500W brushless and gear hub motor for efficient and noiseless running; can easily convert your bicycle to electric bike and reach the maximum riding speed of 25-35KM/H, suitable for regular bicycles and mountain bikes that are used on commuting and short journey

◆Ebike Conversion Kit includes all necessary components for installation; Motor/Wheel, battery, controller, LCD display, throttle, brake levers, pedal assist sensor, torque arm, and cable ties. Tire is not included.

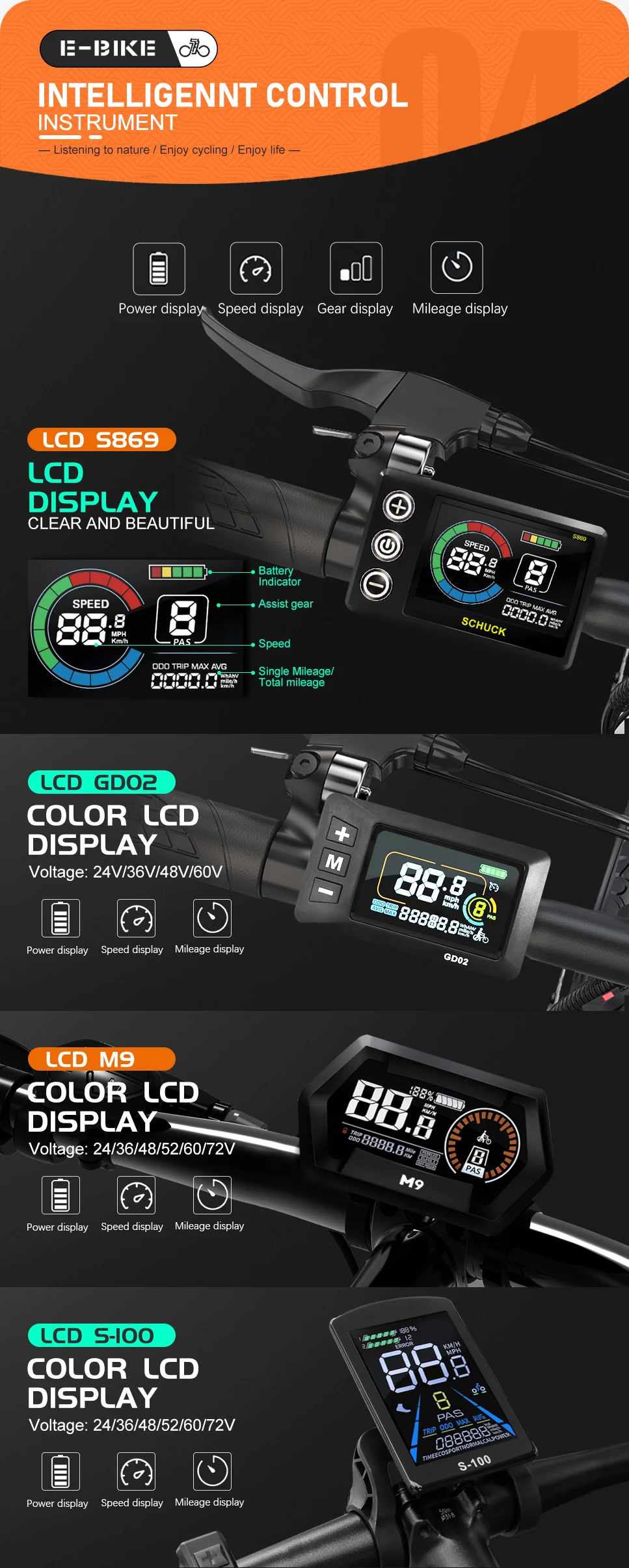

◆Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction; HD LCD display shows all the essential information such as battery percentage, speed, total and single trip distance, wattage, PAS levels, and error codes for easier troubleshooting.

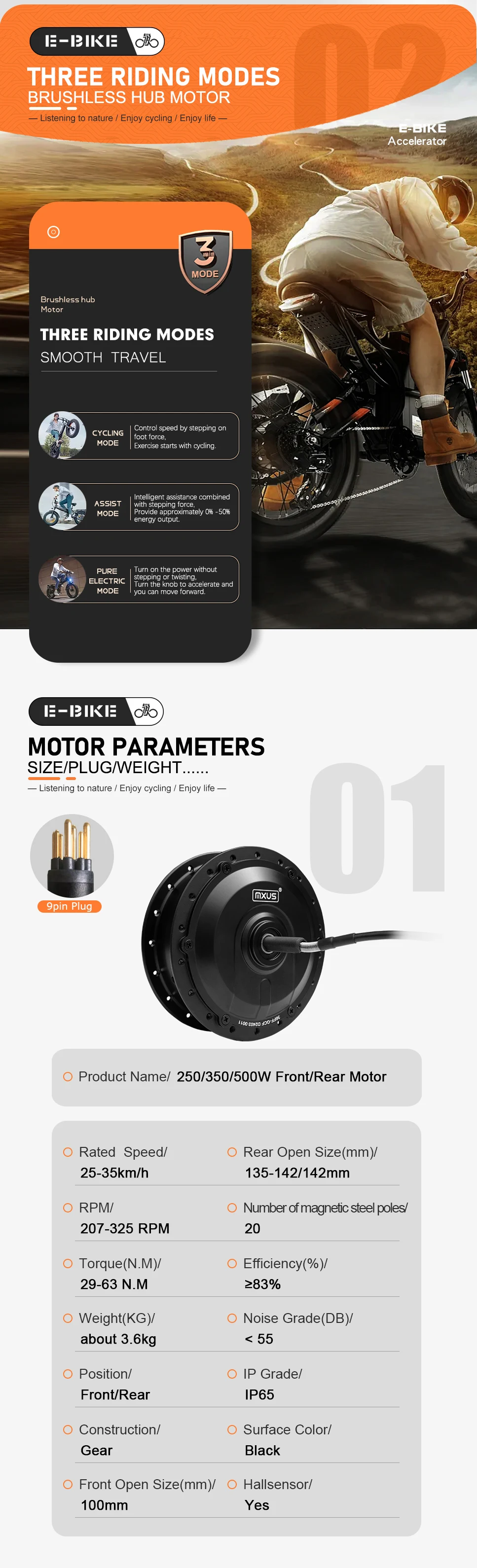

  36V 48V 250W Front/Rear Hub Motor

◆Construction:Gear drive

◆Rated Speed(KM/H): 25-28km/h

◆Rated Speed(rpm): 207-270RPM

◆Torque(N.m): 29-31.2N.M

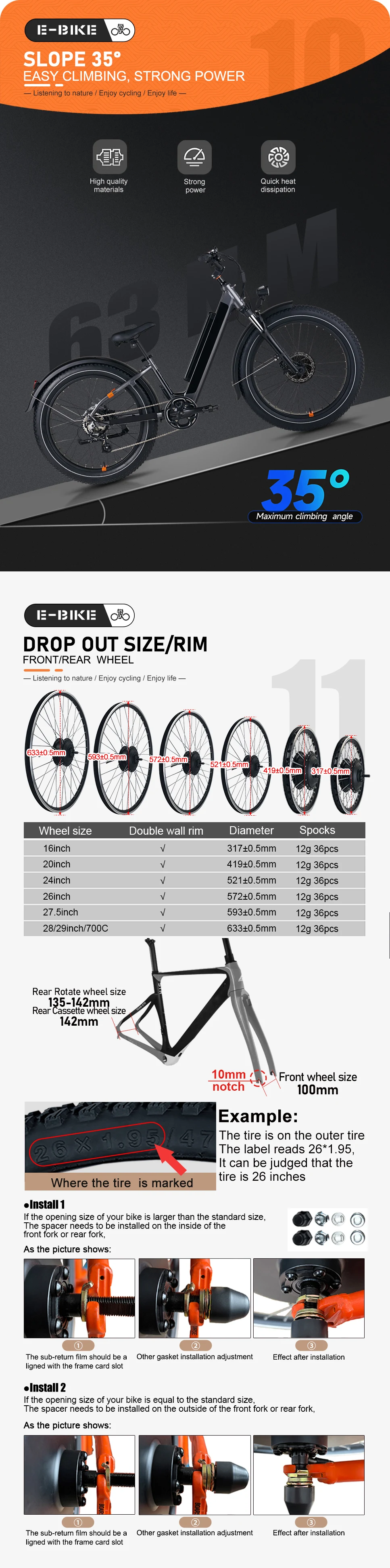

◆Fork size(mm):135-142(rear)/100mm(front)

◆Installation: Front/Rear

  36V 48V 350W Front/Rear Hub Motor

◆Construction:Gear drive

◆Rated Speed(KM/H): 28-30km/h

◆Rated Speed(rpm): 231-270RPM

◆Torque(N.m): 31.8-33N.M

◆Fork size(mm):135-142(rear)/100mm(front)

◆Installation: Front/Rear

  36V 48V 500W Front/Rear Hub Motor

◆Construction:Gear drive

◆Rated Speed(KM/H): 32-35km/h

◆Rated Speed(rpm): 265-325RPM

◆Torque(N.m): 60-63N.M

◆Fork size(mm):135-142(rear)/100mm(front)

◆Installation: Front/Rear

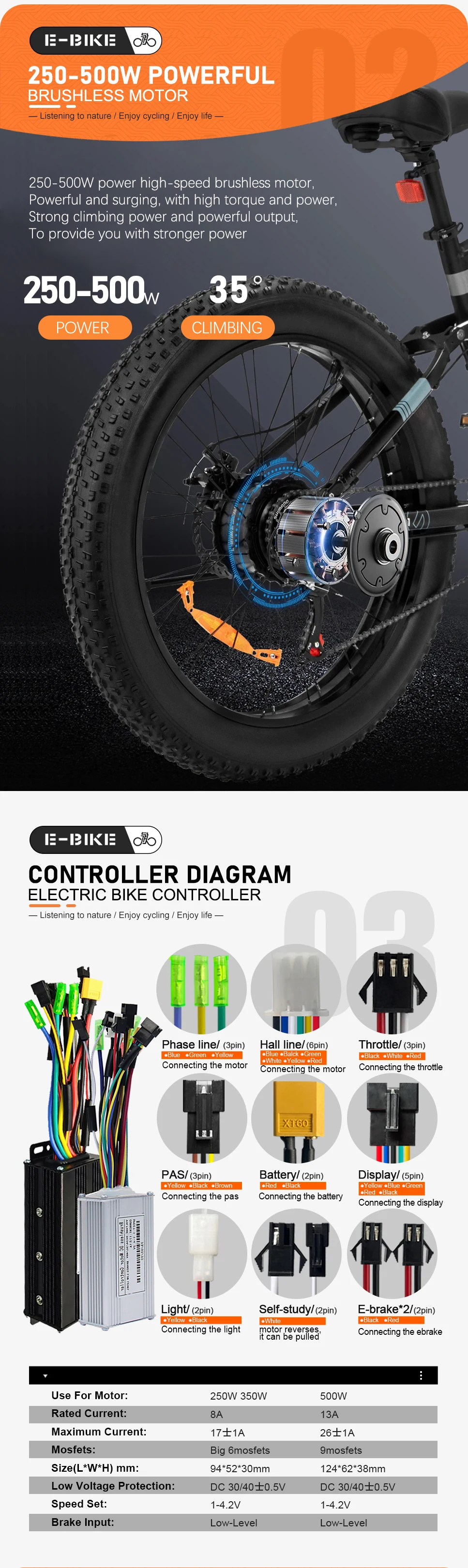

  17A controller detail:

  Use for 250/350W motor

◆Size:95*53*30 mm

◆Weight:198g

◆Mosfets:6 mosfets

◆Maximum current:17±1A

◆Rated voltage:DC36V/48V

◆Rated current:8A

  26A controller detail:

  Use for 500W motor

◆Size:124*62*38 mm

◆Weight:348g

◆Mosfets:9 mosfets

◆Maximum current:26±1A

◆Rated voltage:DC24V/36V/48V

◆Rated current:13A

  Packaging List

Noted:Conversion Kit not include Battery

●1 PCS * Hub Motor with Rim and Spokes

●1 PCS * Motor Controller

●1 PCS * Display(option)

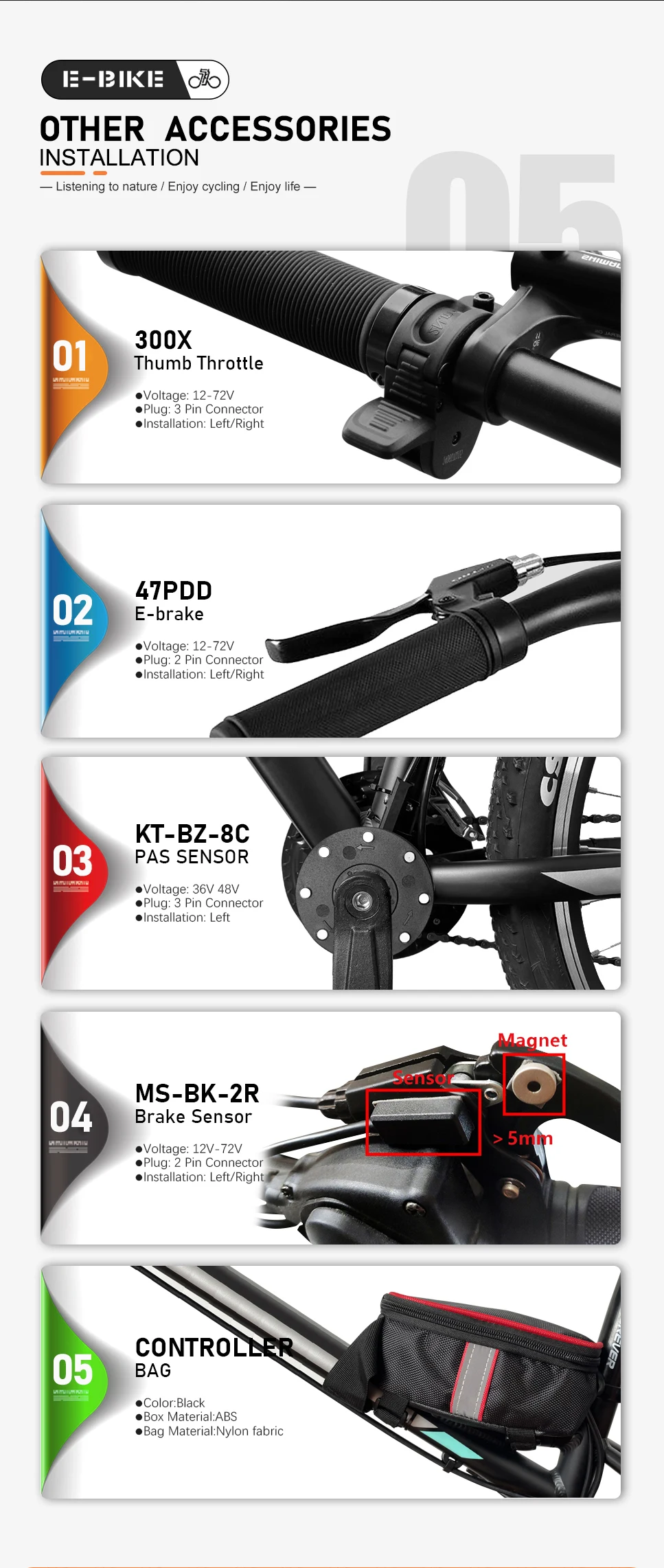

●1 PCS * Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)

●1 PCS * PAS Sensor

●1 Pair * Brake Lever Cut Off Power

●1 Pair * Brake Sensor

Gifts: 1 * Controller Bag+1*Install cable ties and stretch film+1*Installation Manual+1*gloves+1*glasses+1*masks
