PER FOOT Belden 9841 24 AWG 1 Pair RS-485 Low Capacitance Computer Cable 300V
Click Thumbnails to Enlarge
DESCRIPTION
• Belden 9841 24 AWG 1 Pair Tinned Copper PE Insulation Overall Beldfoil Shield RS-485 Computer Cable
APPLICATION
• RS-485, POS; Computer Communications
• Low Voltage Analog Signals
• Low Voltage Digital Control
• Line Level Audio; Panel Wiring
• Serial Communication (RS-485 standard) Comprising of PLCs, VFDs, HMIs, Motors, RTU, SCADA
CONDUCTOR
• Tinned Copper
INSULATION
• Polyethylene (PE)
OUTER SHIELD
• Material: Bi-Laminate (Alum+Poly)
OUTER JACKET
• Polyvinyl Chloride (PVC)
STANDARDS
• Environmental Suitability: Indoor
• Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
• CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
• NEC / UL Compliance: Article 800, CM
• AWM Compliance: AWM 2919
• CEC / C(UL) Compliance: CM
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
PRODUCT SPECIFICATIONS
| Size AWG | 24 |
|---|---|
| Number of Pairs | 1 |
| Number of Strands | 7 |
| Drainwire Size | 24 AWG |
| Insulation Thickness (inch) | 0.023 |
| Insulation Diameter (inch) | 0.068 |
| Jacket Thickness (inch) | 0.035 |
| Overall Diameter (inch) | 0.232 |
| Weight (lbs/1000ft) | 36 |
HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE.
Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
About Nassau National Cable

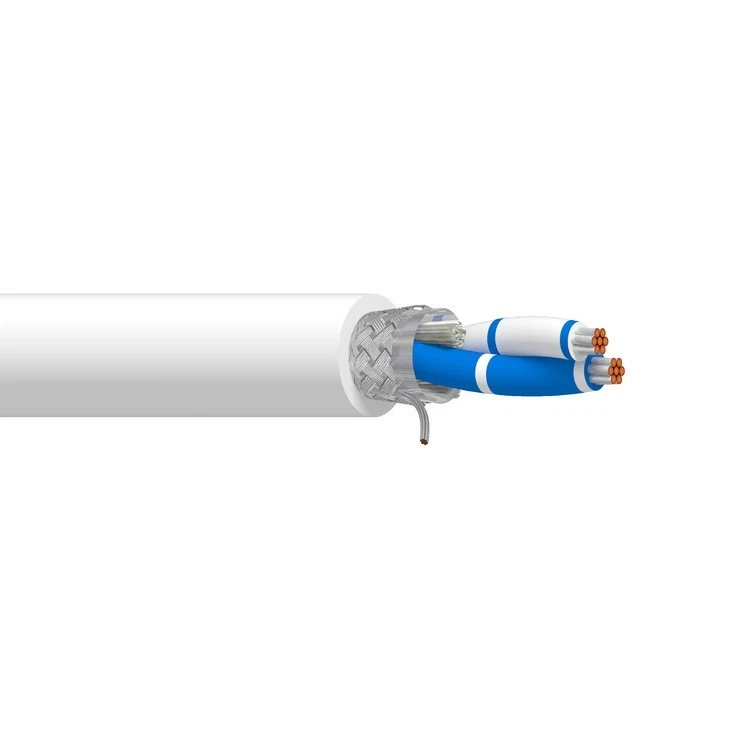

(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)
