Package Include:

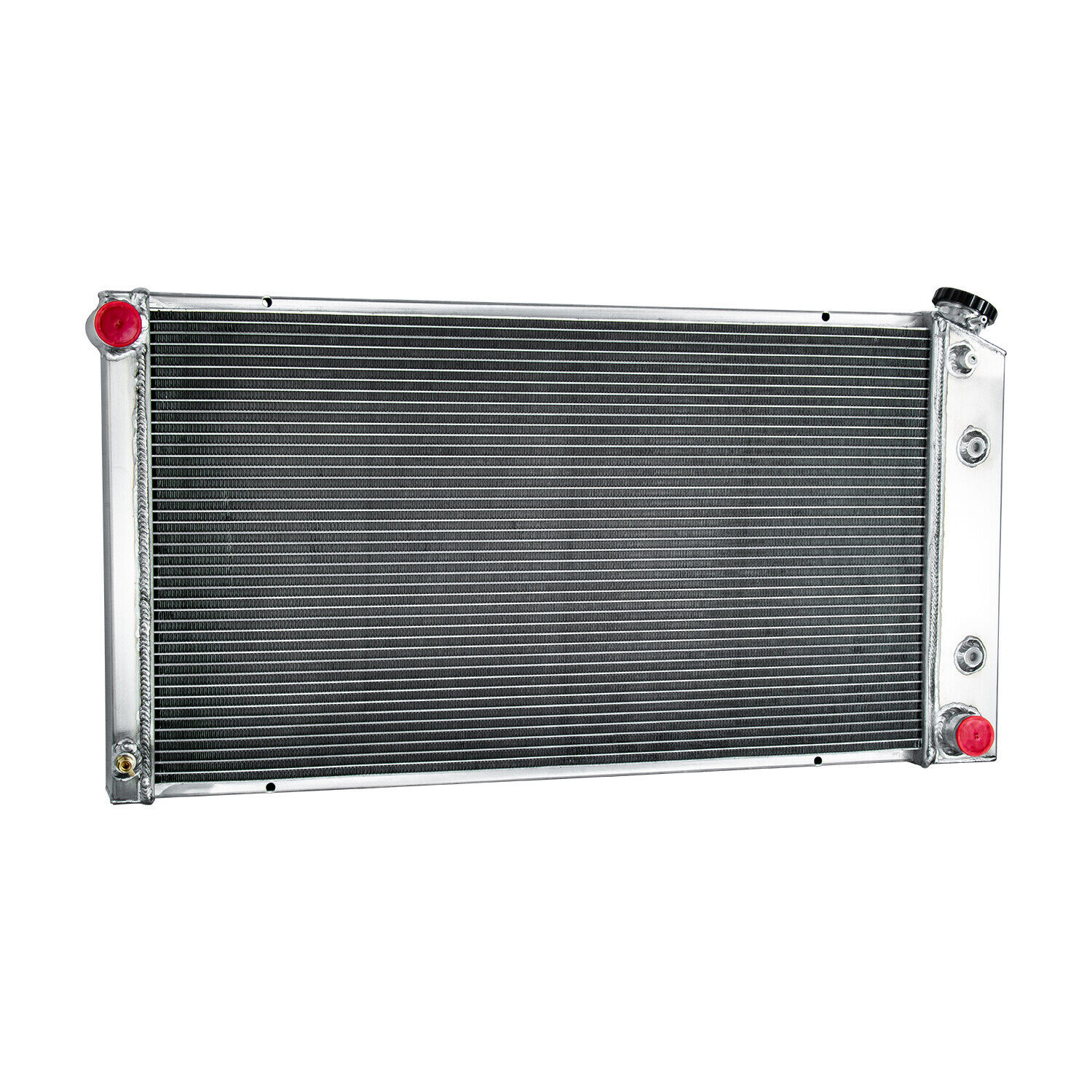

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 14" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Application:

1977-1992 Cadillac Fleetwood/Brougham/DeVille/Commercial Chassis
Pontiac Catalina/Bonneville
Buick LeSabre/Riviera/Electra/ Estate Wagon
Oldsmobile 98/Custom Cruiser
30 1/2''Wide CORE
Manufacturer Part Number:232,CC232,CU232 MC232,AE232
Please Notice：Being in Compatibilities Does NOT Guarantee Fitment.
We are NOT responsible for Wrong Orders. Please verify your fitment before ordering.

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Overall Height: 18 1/2"
Overall Width: 35 1/4"
Core Height: 17"
Core Width: 30 1/2"
Inlet Location: Driver
Inlet Diameter: 1 1/2"
Outlet Location: Passenger
Outlet Diameter: 1 1/2"
Transmission Oil Cooler: Yes
Please Check the Size Before You Buy!

Application:
1979 Pontiac Bonneville
1979 Pontiac Catalina
1978 Pontiac Bonneville
1978 Pontiac Catalina
1977 Pontiac Bonneville
1977 Pontiac Catalina
1977 Pontiac Grand Safari
1979 Oldsmobile 98
1979 Oldsmobile Custom Cruiser
1979 Oldsmobile Delta 88
1978 Oldsmobile 98
1978 Oldsmobile Custom Cruiser
1978 Oldsmobile Delta 88
1977 Oldsmobile 98
1977 Oldsmobile Custom Cruiser
1977 Oldsmobile Delta 88
1992 Cadillac Brougham
1992 Cadillac DeVille
1992 Cadillac Fleetwood
1991 Cadillac Brougham
1991 Cadillac DeVille
1991 Cadillac Fleetwood
1990 Cadillac Brougham
1990 Cadillac DeVille
1990 Cadillac Fleetwood
1989 Cadillac Brougham
1989 Cadillac DeVille
1989 Cadillac Fleetwood
1988 Cadillac Brougham
1988 Cadillac DeVille
1988 Cadillac Fleetwood
1987 Cadillac Brougham
1987 Cadillac DeVille
1987 Cadillac Fleetwood
1986 Cadillac DeVille
1986 Cadillac Fleetwood
1985 Cadillac DeVille
1985 Cadillac Fleetwood
1984 Cadillac Commercial Chassis
1984 Cadillac DeVille
1984 Cadillac Fleetwood
1983 Cadillac Commercial Chassis
1983 Cadillac DeVille
1983 Cadillac Fleetwood
1982 Cadillac Commercial Chassis
1982 Cadillac DeVille
1982 Cadillac Fleetwood
1981 Cadillac DeVille
1981 Cadillac Fleetwood
1980 Cadillac DeVille
1980 Cadillac Fleetwood
1979 Cadillac DeVille
1979 Cadillac Fleetwood
1978 Cadillac DeVille
1978 Cadillac Fleetwood
1977 Cadillac DeVille
1977 Cadillac Fleetwood
1979 Buick Electra
1979 Buick Estate Wagon
1979 Buick LeSabre
1978 Buick Estate Wagon
1978 Buick LeSabre
1978 Buick Riviera
1977 Buick Estate Wagon
1977 Buick LeSabre
1977 Buick Riviera

FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050"
Thickness (in): 2.500"
Number of Blades: 8 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed.

Thermostat Kit:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

About "AA5052" upgrading aluminum materials:

Our Radiator is made of AA5052 aircraft aluminum. It’s different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
