Ebike 500W Waterproof Brushless Gear Font Rear Drive Motor Conversion Kit with 16-29 Inch 700c Wheel Fork Size 100mm 135-142mm

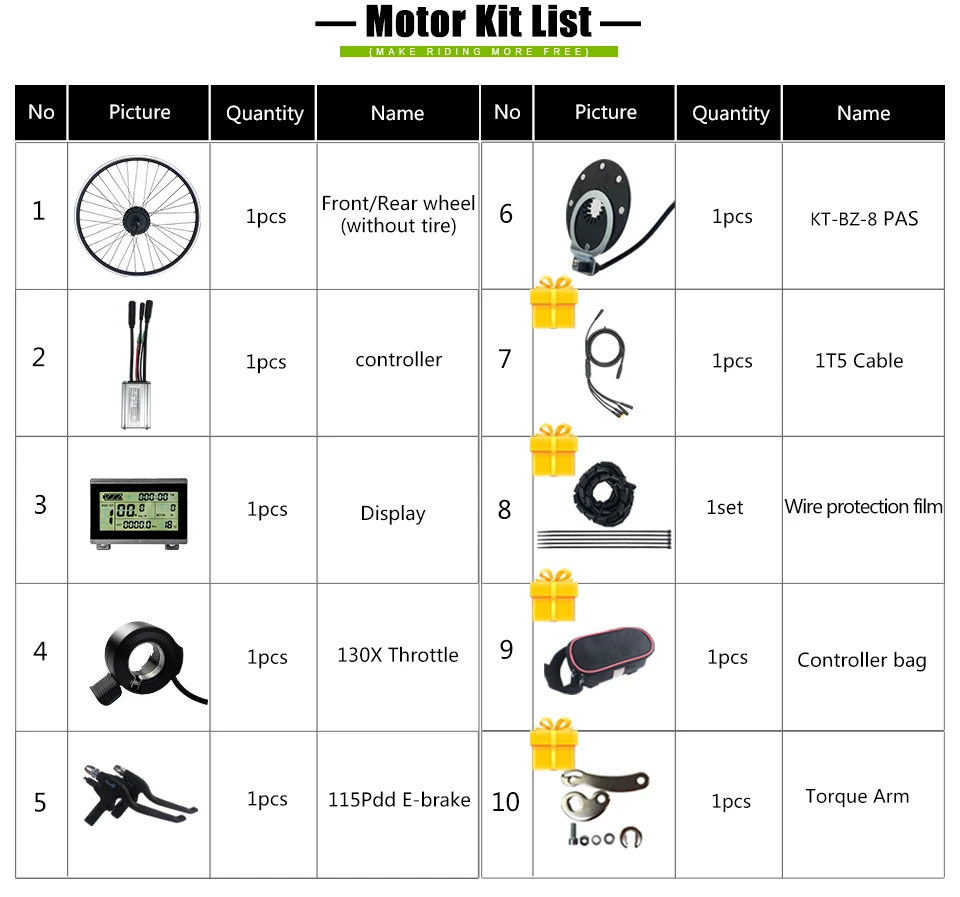

Packing List:

1. 500W Front/Rear Rotate Motor

2. 16/20/24/26/27.5/28/29inch 700c Wheel

3. KT 36V/48V 22A Square Wave Controller WP

4. KT LED880/LCD3 Display WP

5. 130X Thumb Throttle WP

6. KT-BZ-8 PAS WP

7. 115 Pdd E-brake WP

8. Wire Protection Film

9. Controller Bag

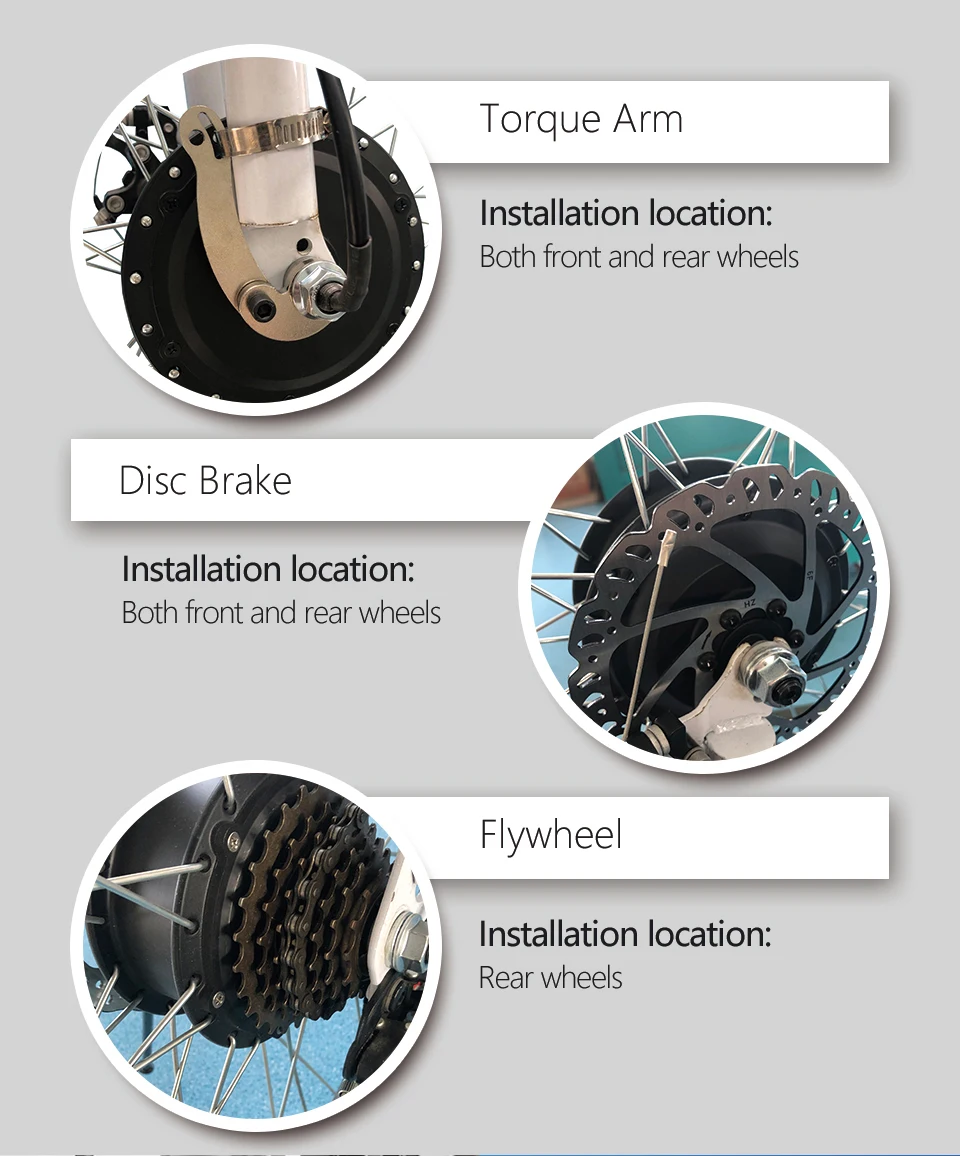

10.Torque Arm

11.1T5 Cable

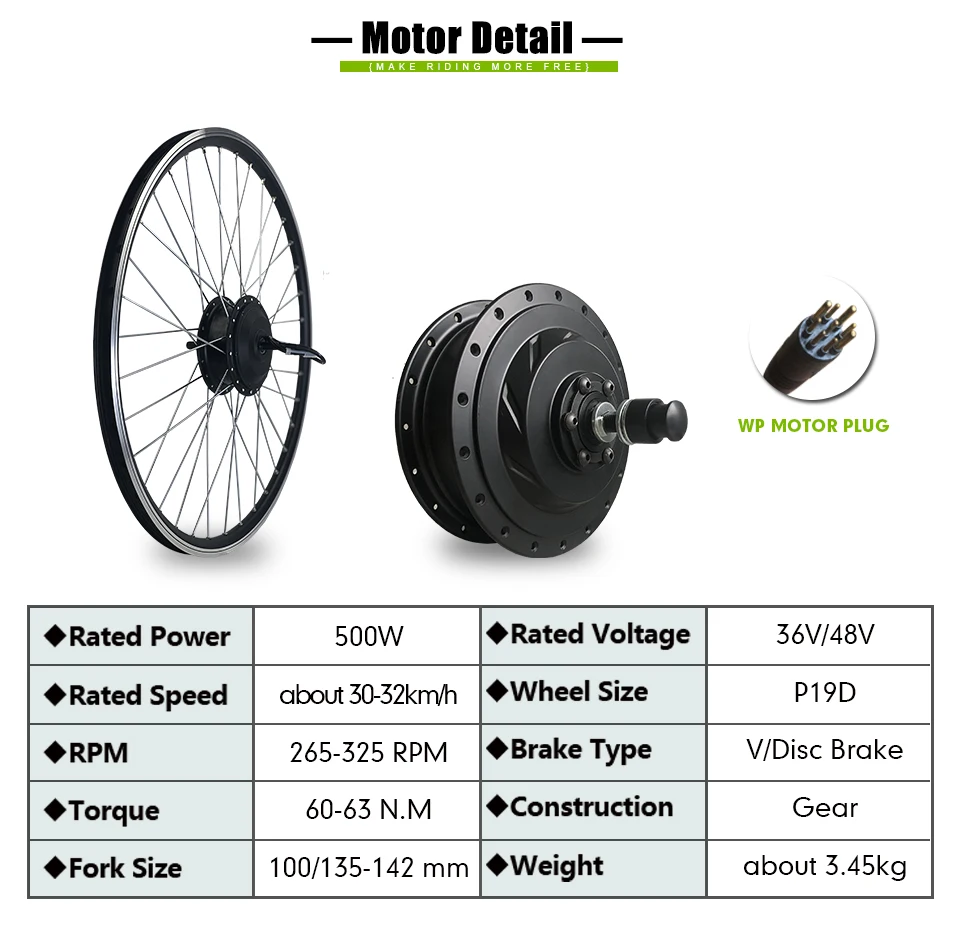

Motor Detail

Rated Power: 500W

Rated Voltage: 36V/48V

Rated Speed: about 30-32 Km/h

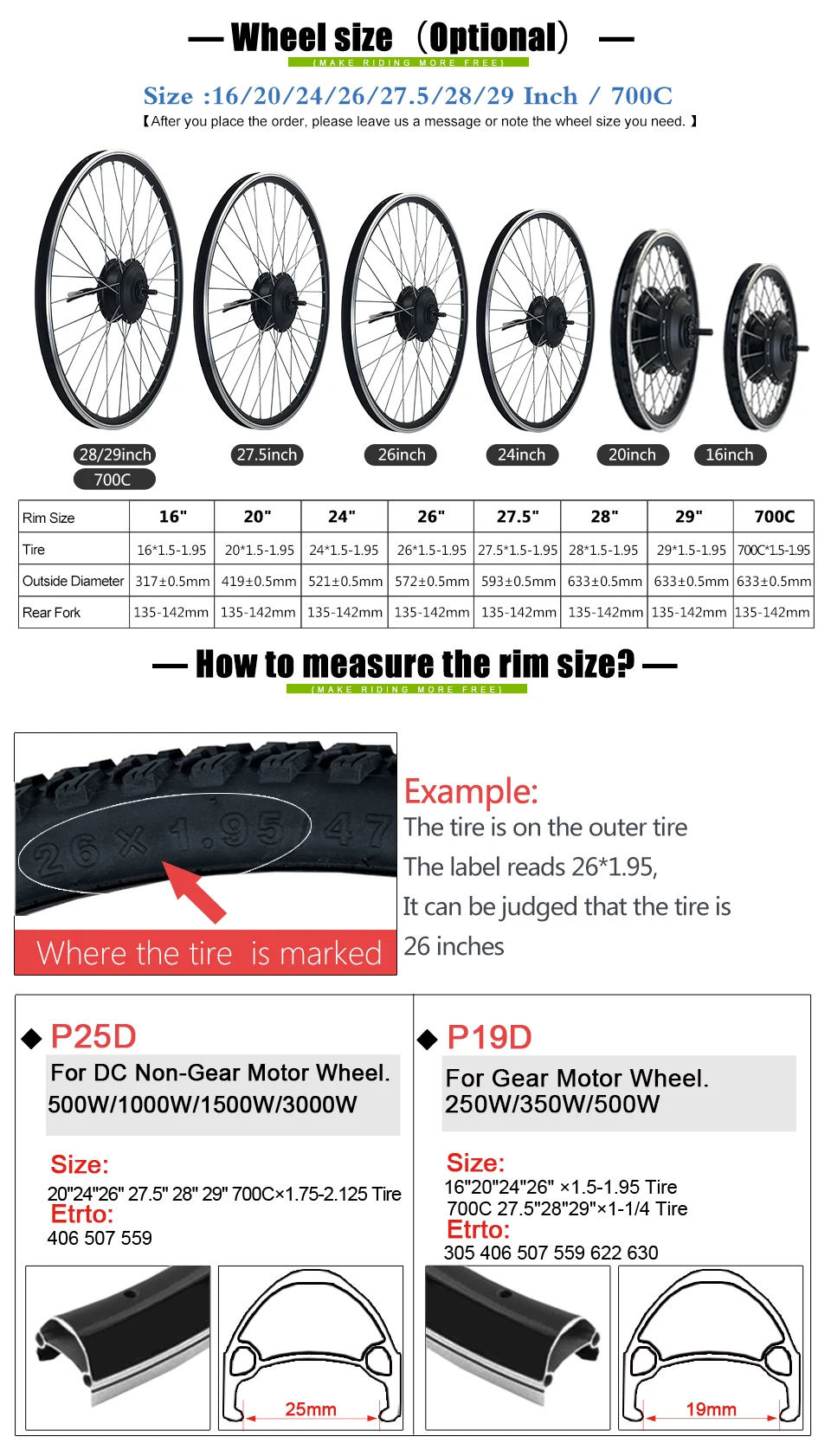

Wheel Size: P19D

RPM: 265-325 PRM

Brake Type: V/Disc Brake

Torque: 60-63 N.M

Construction: Gear

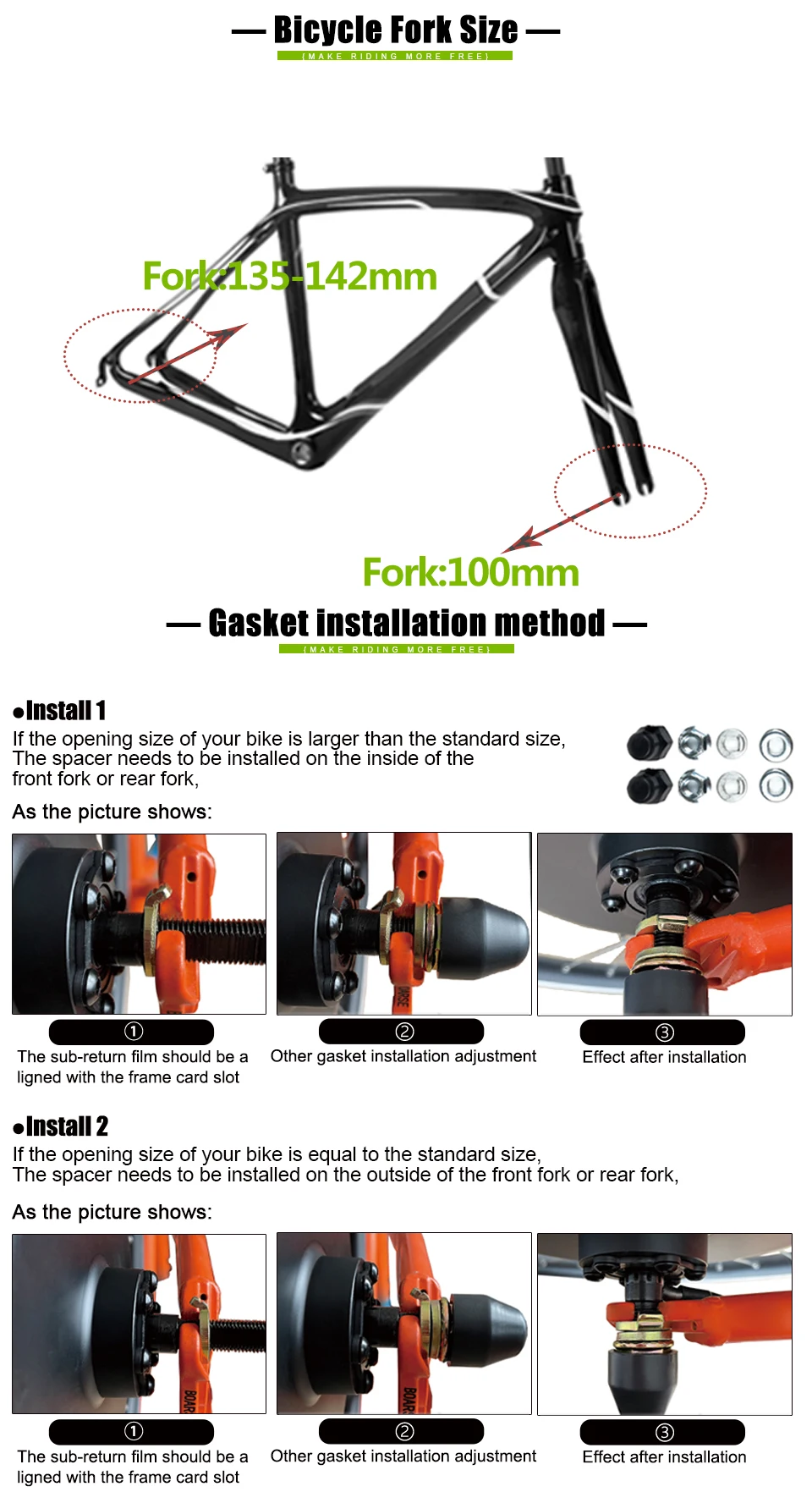

Fork Size: 100/135-142mm

Weight: about 3.45kg

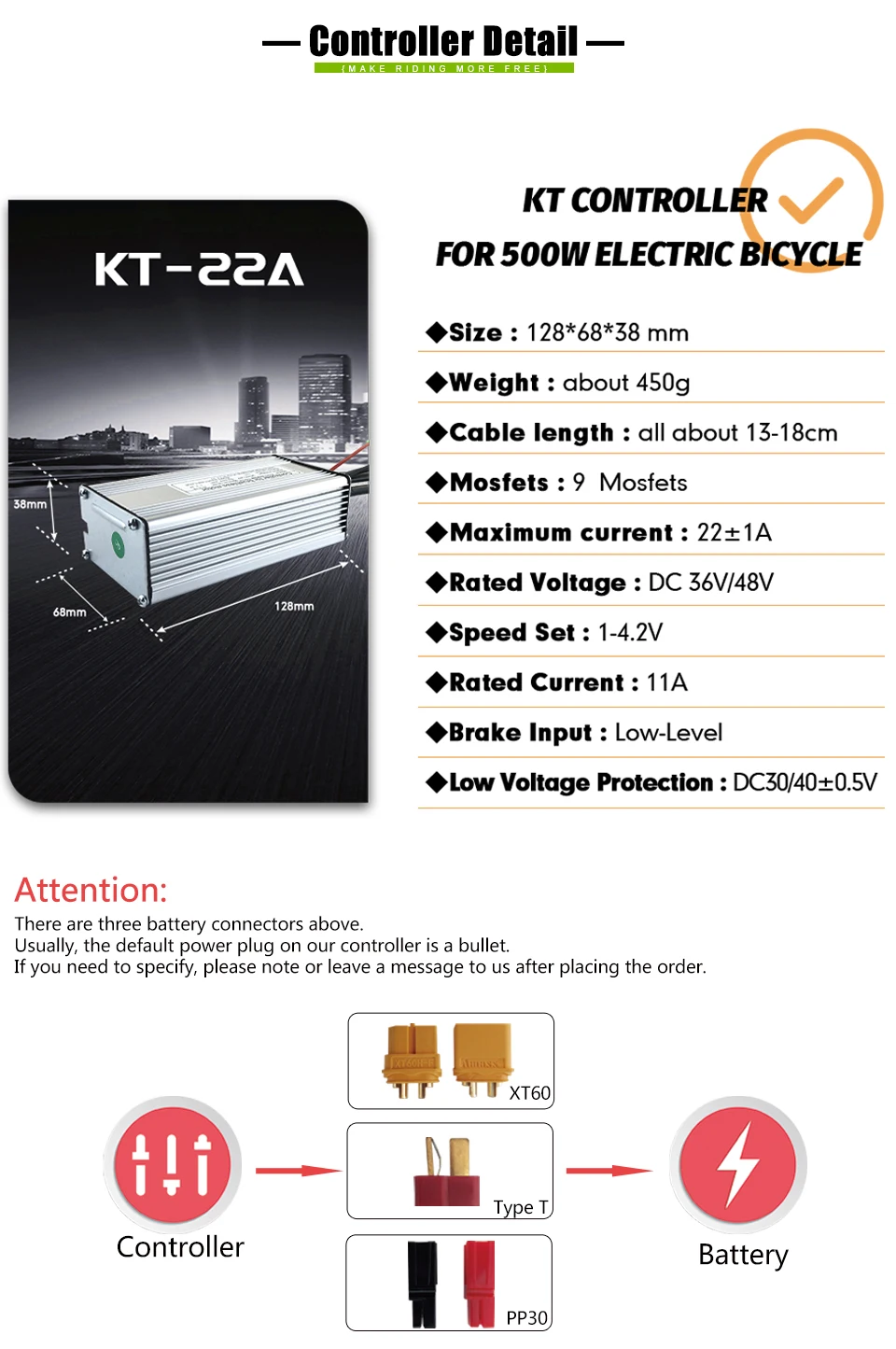

Controller:

Dimension :128 * 68 * 38 mm

Weight :450

Cable length :all about 13-18cm

Mosfets:9 mosfets

Maximum current :22±1A

Rated voltage :DC36V/48V

Speed set :1-4.2V

Rated current :11A

Brake input :Low-Level

Low voltage protection :DC30/40±0.5V

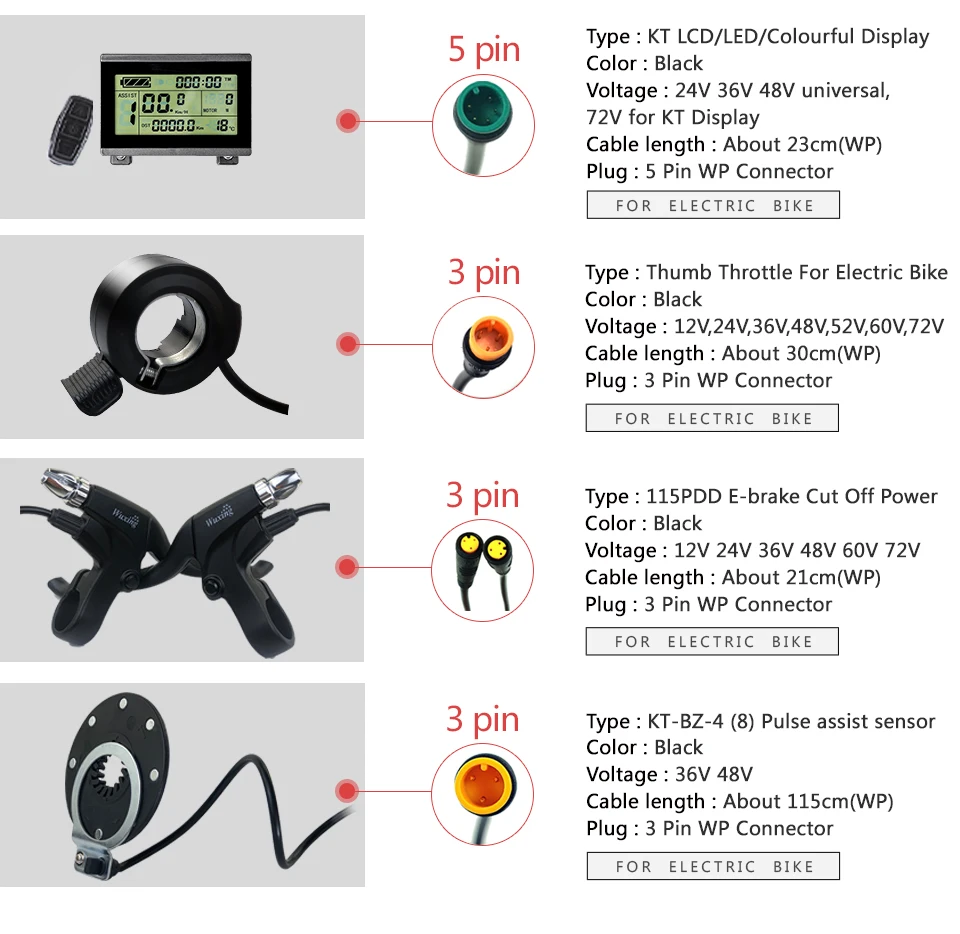

KT Display:

Voltage:24V/36V/48V

Color:Black

Weight:◆Weight:about 250g

Handlebar size for holding:Φ22.2mm/25.4mm/31.8mm

Display Cable Length:WP connector ,about 23cm

115PDD E-break:

Type:115PDD E-brake Cut Off Power

Voltage:12V 24V 36V 48V 60V 72V

Cable Length: 21cm (WP)

Weight :300g

Waterproof :IP76

Material:Aluminum Alloy

Installation:Left/Right

Size:L156mm W105mm H34mm

Plug :3 pin WP plug

130X Thumb Throttle:

Type: 130X Thumb Throttle

Voltage :12V,24V,36V,48V,52V,60V,72V

Wire length :30cm (WP)

Plug :3 Pin Connector

Installation :Left/Right

Weight :100g

KT-BZ-4（8）PAS:

Type: KT-BZ-4(8) Pedal Assistant Sensor

Material: Plastic

Color: Black

Weight: 60g

Installation: Left

Cable Length: 115cm WP Plug

Voltage: 12V/24V/36V/48V/60V/72V
