【2 Riding Ways】E-Bike Mode: You can ride the E-bike to enjoy a long-time travel. The wear resistant wheel with high grip is ideal for sand, lawn and other terrain. Pedal Assistance System: It allows you to ride without throttle response.
【Complete Accessories】The E-bike conversion kit includes all necessary components for installation: motor wheel, controller, display, thumb/twist throttle, brake lever/sensor, PAS, controller box. Battery is NOT included.
【2 times cross】Compared with one sigle cross, two times cross method increased force points. Spokes are not easy to break after long time use. Attention 20inch motor, 1000W and 1500W motor can't do 2 times cross.
【Safety & Security】Built to the highest international standards CE and 100% testing before shipment. We offer a 12 months warranty on the motor.
Note:
If you buy a 72V3000W motor, the maximum current after your battery is fully charged should not exceed 50A. It is recommended to use the power-assisted mode during the uphill process. Do not use the pure electric mode, otherwise the controller will easily burn out. Thank you very much for your cooperation.

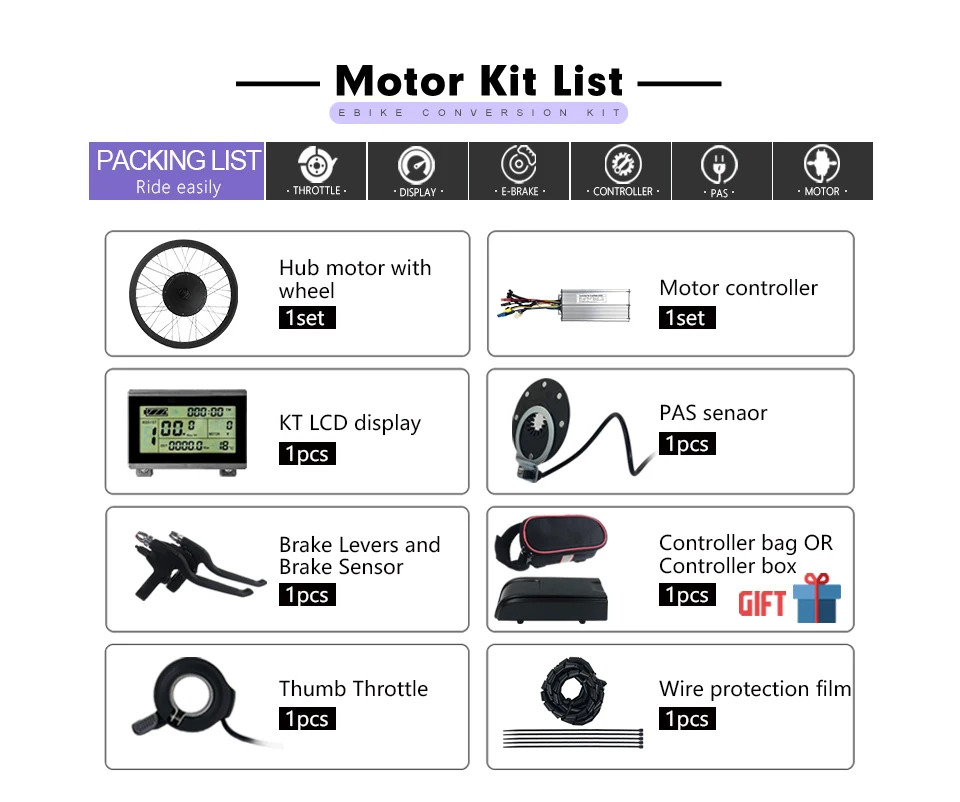

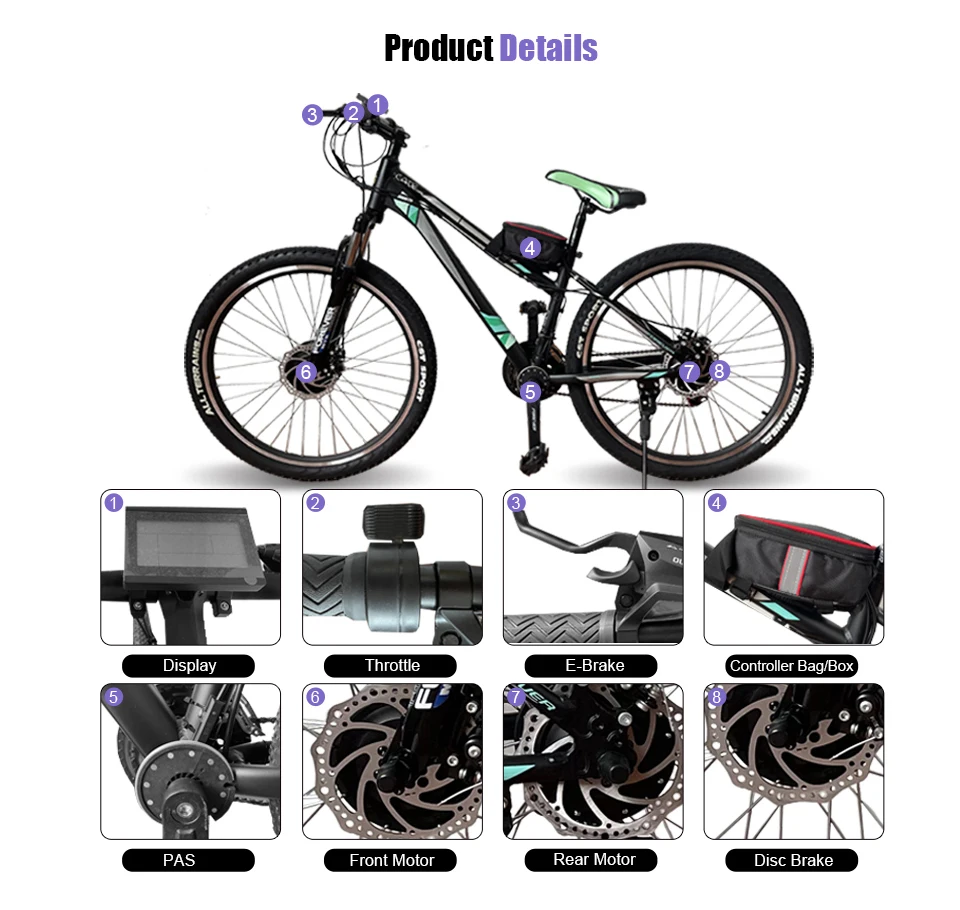

Packing List :
Noted:Conversion Kit not include Battery, tire, tirque arm,disc brake.( If you need a Battery, tire, tirque arm, disc brake, Please contact us for an additional fee )

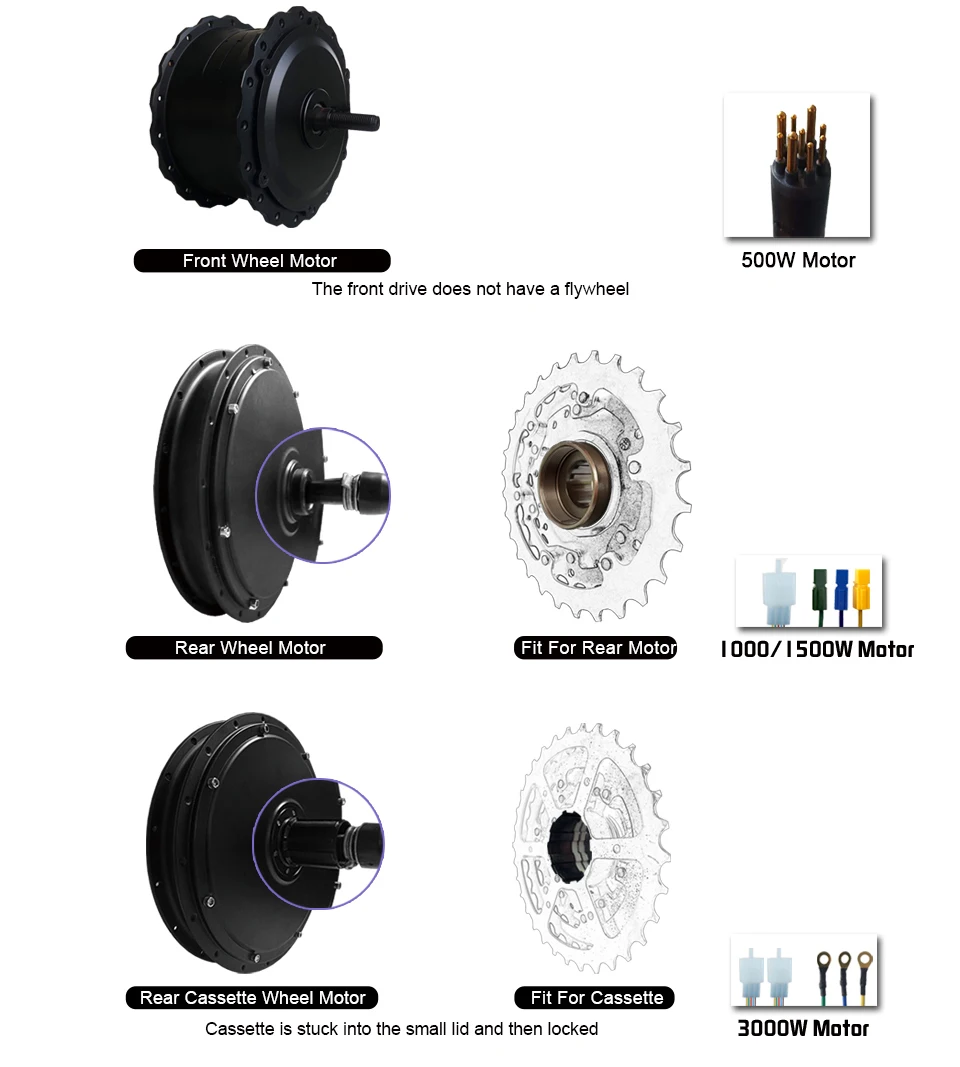

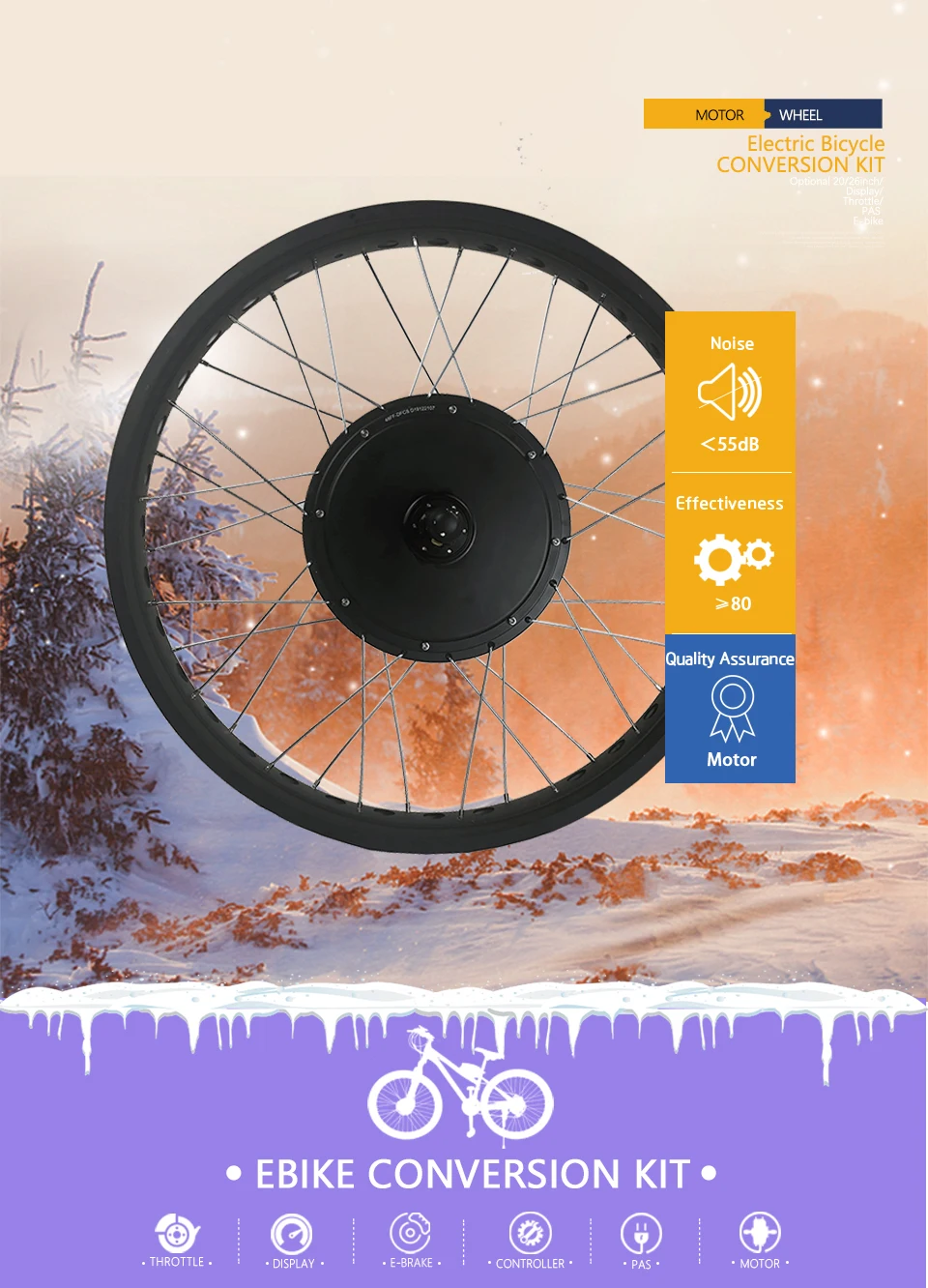

●●● Front / Rear Motor wheel
●●● Controller
●●● pair * Power cut-off Brake lever
●●● pair * Brake sensor

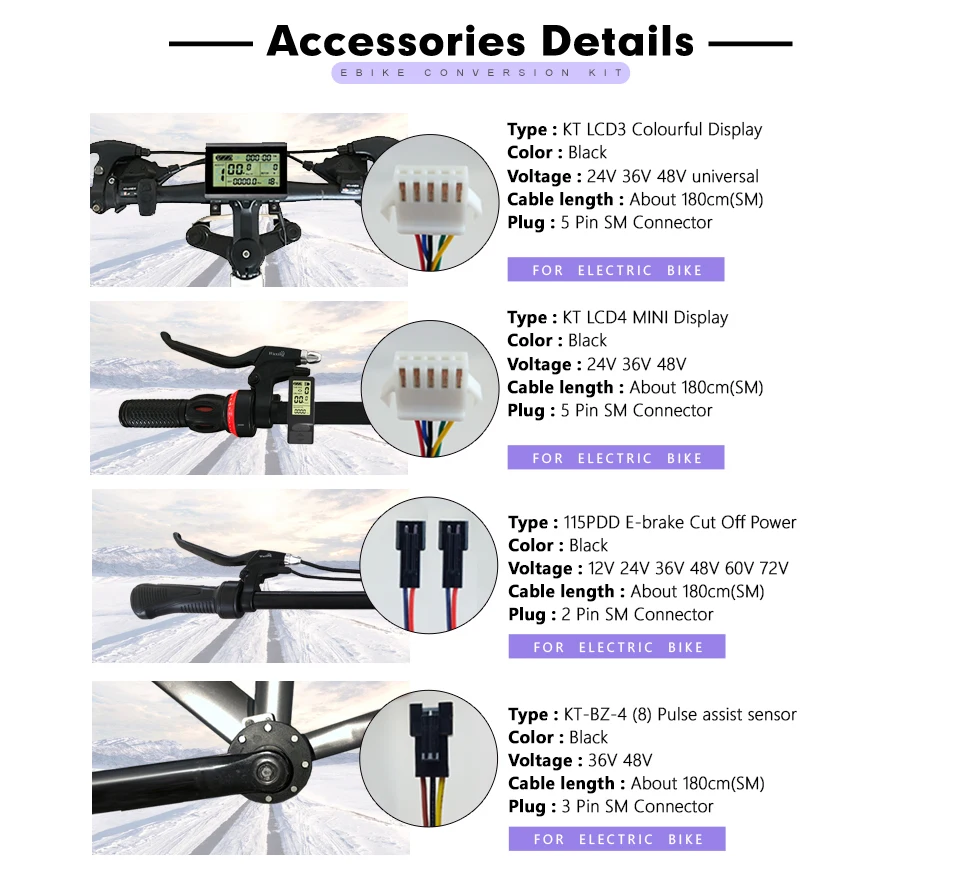

●●● Display LCD3
●●● 8 Magnet Pedal Assistant Sensor
●●● 130X Throttle
●●● Controller Bag/Controller Box ( not battery) （Gifts）
●●● Install cable ties and stretch film（Gifts）
●●● Installation Manual（Gifts）

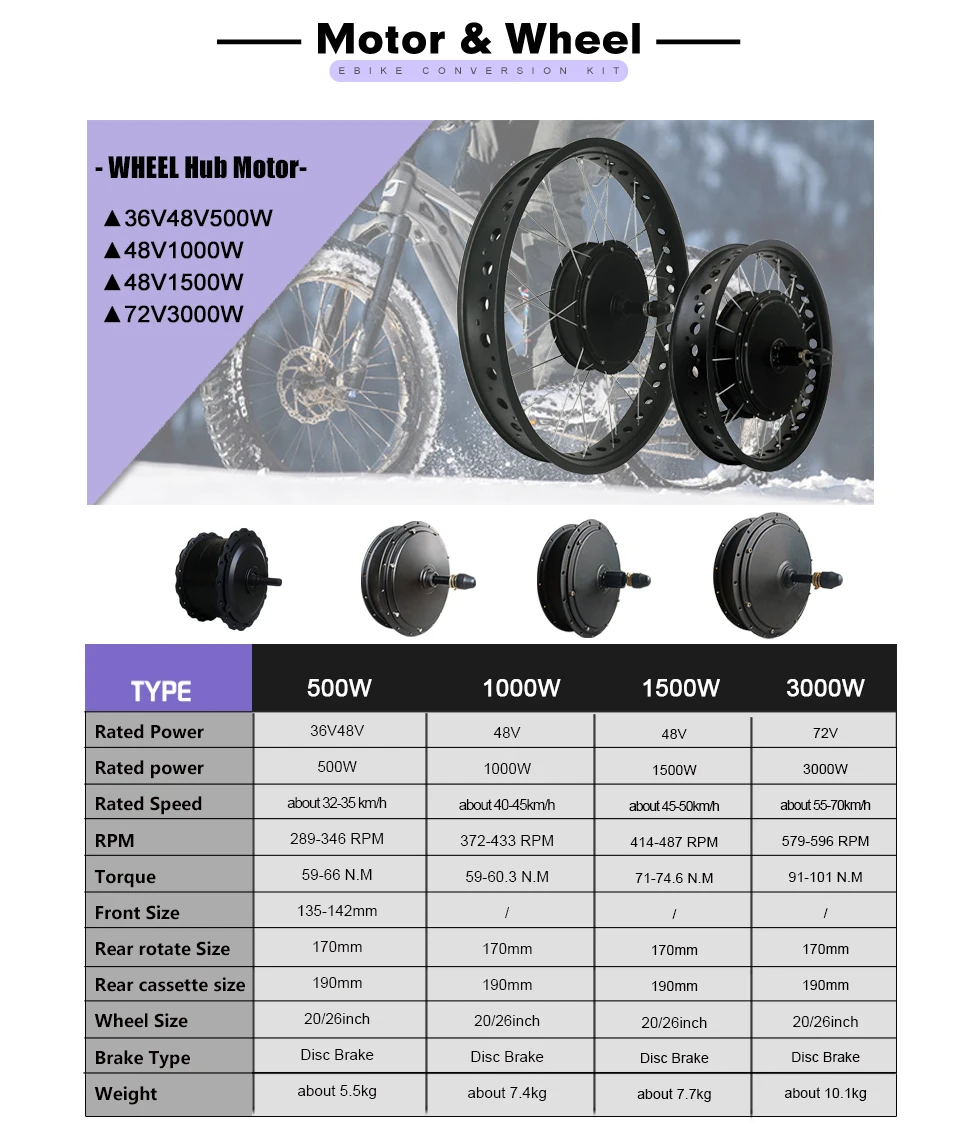

Motor Features:
●500W 【Gearless】about 32-35km/h; 289-346 RPM; 59-66N.M
●1000W 【Gearless】about 40-45km/h; 372-433 RPM; 59-60.3N.M
●1500W 【Gearless】about 45-50km/h; 414-487 RPM; 71-74.6N.M
●3000W 【Gearless】about 55-70km/h; 579-596 RPM; 91-101 N.M
(different wheel size, road&weather condition and rider's weight will have different speed)

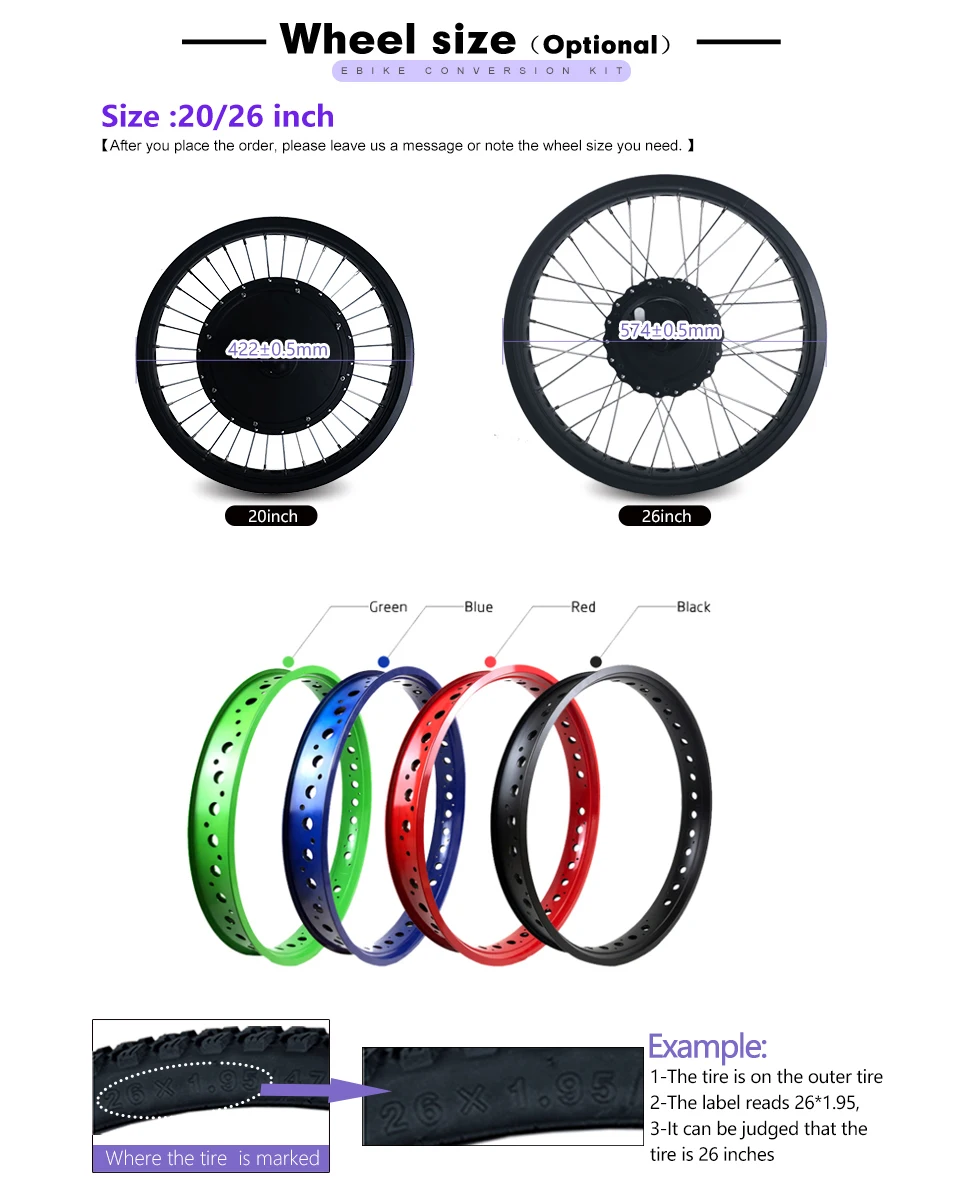

About Rim size:
● motor wheel default P73D Rim ( Fit 26*1.95 Bike Tire)
The wheels have 4 colors, (red, green, blue, black) ，Our electric bike conversion kit is black by default, if you want other colors, please contact us or remarks
If you have special requirements, please contact us.

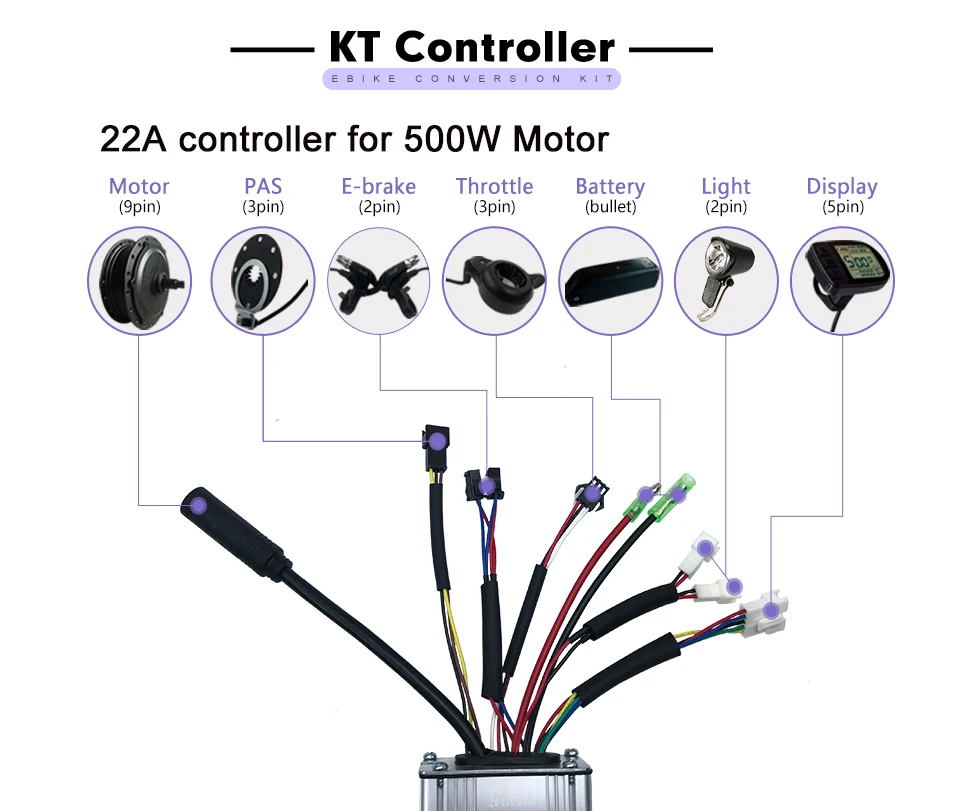

About Controller:
Controller Type: Brushless Motor Controller
●500W with 48V KT-22A controller

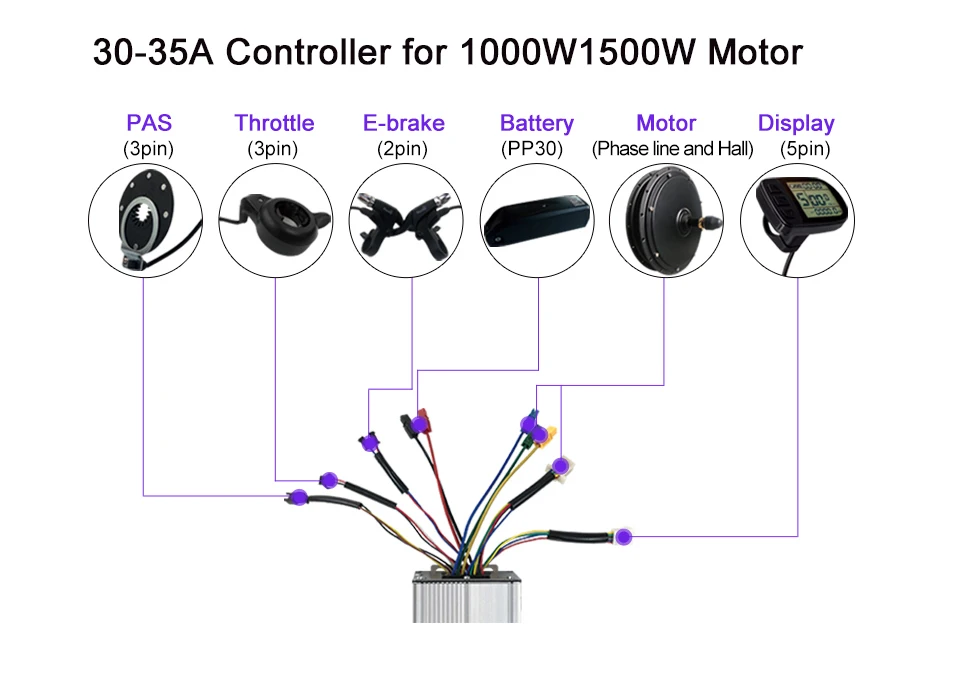

●1000W with 48V KT-30A controller
●1500W with 48V KT-35A controller

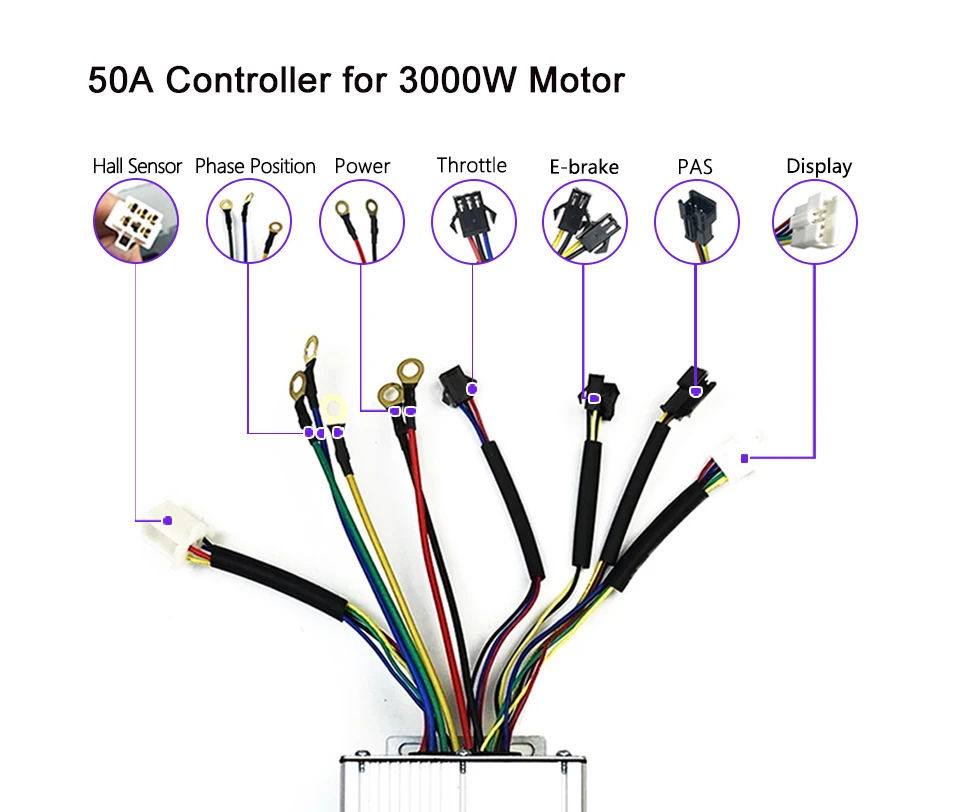

●3000W with 72V KT-50A controller
