Features:
PD60 fuel injection ignition simulator is a comprehensive car computer maintenance and testing tool. It can not only simulate and diesel fuel injectors, but also simulate ignition coils, which is very suitable for car computer maintenance and testing. It is a very practical car computer maintenance and testing tool that can significantly improve the efficiency of car repair shops.
Injector simulation function: supports 12-24V electromagnetic diesel injector simulation and 12V injector simulation
Ignition coil simulation function: supports positive trigger ignition coil simulation and negative trigger ignition coil simulation.
Display function: built-in real-time display computer module, with voltmeter and ammeter functions, real-time monitoring of voltage and current during fuel injection and ignition, helping maintenance personnel to judge problems more accurately.
Rich functions: with overcurrent for protection circuit, with on-board diagnostic socket, with high-power resistor (for fuel metering valve simulation), with 120Ω terminal resistor.
With CAN data acquisition socket: PD60 is equipped with CAN analyzer socket and connecting wire, which can easily collect, analyze, store and replay CAN bus data (messages), which is very convenient to use.
Note: This product does not have a signal generator and cannot simulate sensor signals.
This instrument cannot simulate sensor signals such as crankshaft, camshaft, temperature, pressure, throttle position, accelerator pedal, etc.
Specifications:
Part name: PD60 ignition simulator
Material: abs
Size: 180*130*45.5mm
Color: black

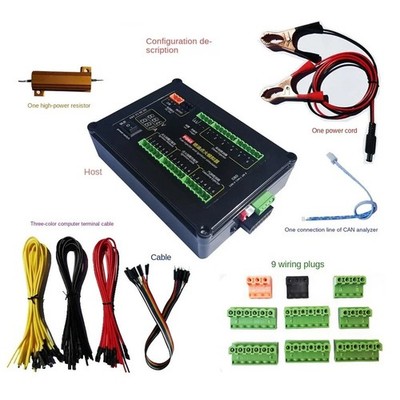

Package content:
1 * Ignition simulator
1 * Power cord
1 * High power resistor
1 * CAN cable
3 * Computer connection cable
1 * Flat cable
9 * Wiring
Usage tips:
1. The instrument needs an external 12-24V power supply to work properly.
2. The resistance of the diesel injector coil is very small, generally 0.3-0.5Ω.
3. PD60 can simulate 12V-24V electromagnetic diesel injectors, but cannot simulate piezoelectric for crystal injectors.
4. The instrument has overcurrent for protection inside. If the power output is short-circuited or the current is too large, the instrument will automatically power off.
5. PD60 is a special device for auto repair technicians. Non-professionals should use it under the guidance of auto repair technicians.
Note:
For the computer to work properly, it is also necessary to input sensor signals such as crankshaft, camshaft,
accelerator pedal, rail pressure, oil pressure, etc.!
PD60 does not have sensor signal simulation function!
This product does not include a signal generator and cannot simulate sensor signals.
