DC3.7-5V Digital Bluetooth Audio Amplifier Board 2*5W MP3 Decoder Board with Amp

Product Introduction

Features:

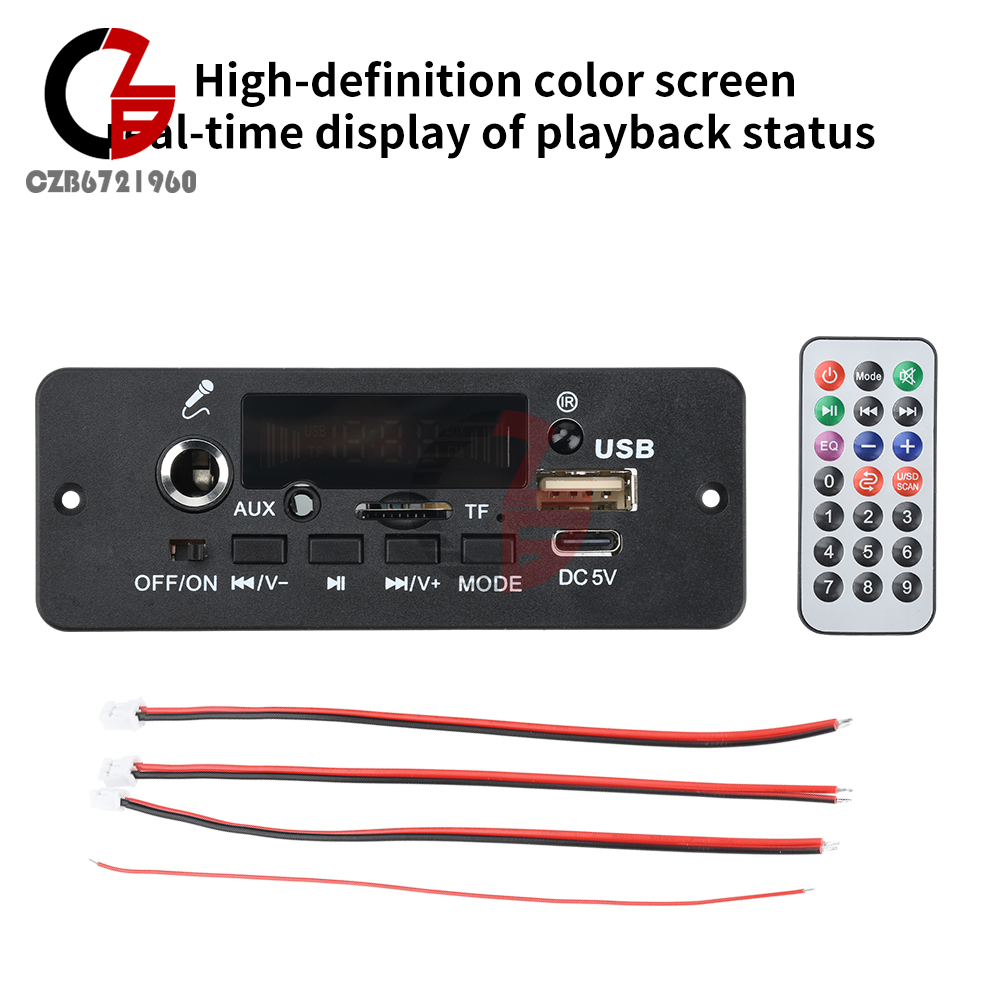

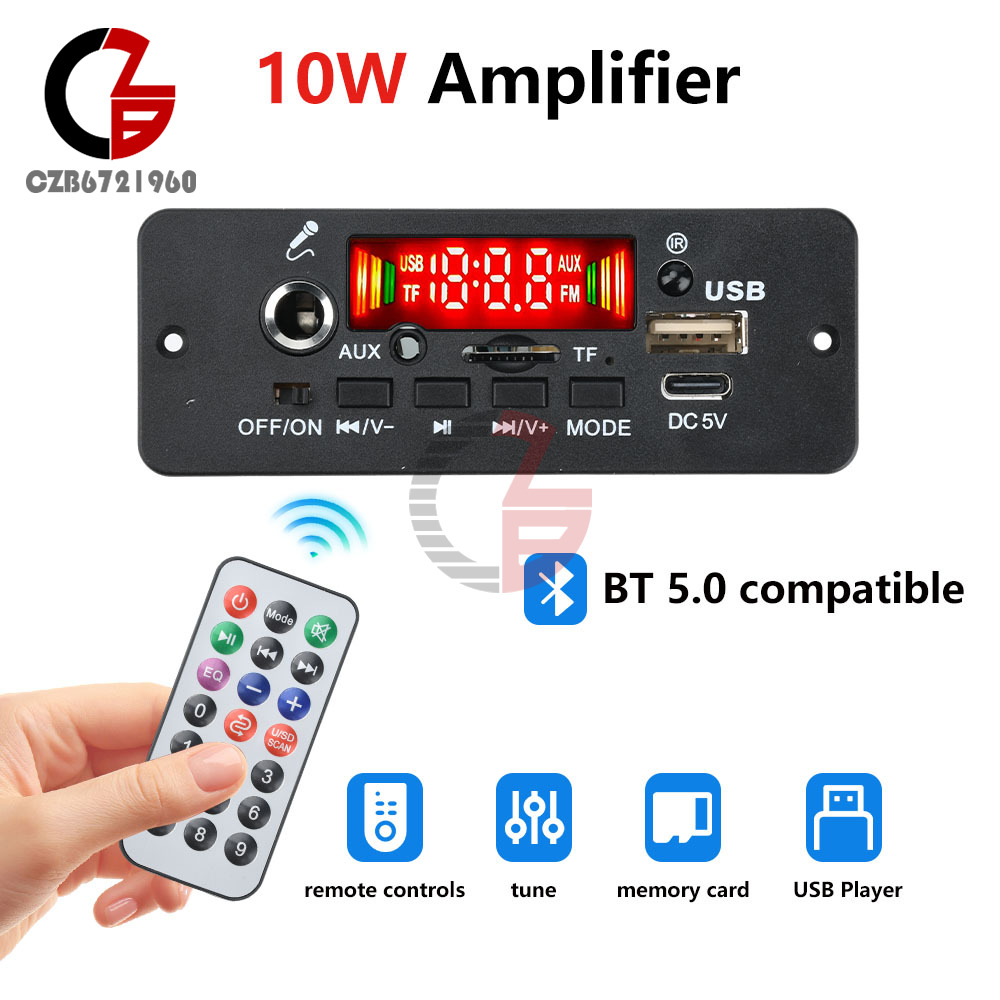

1. Digital color screen display: equipped with high-definition color screen, real-time display of playback status, song information and function settings, easy to operate at a glance

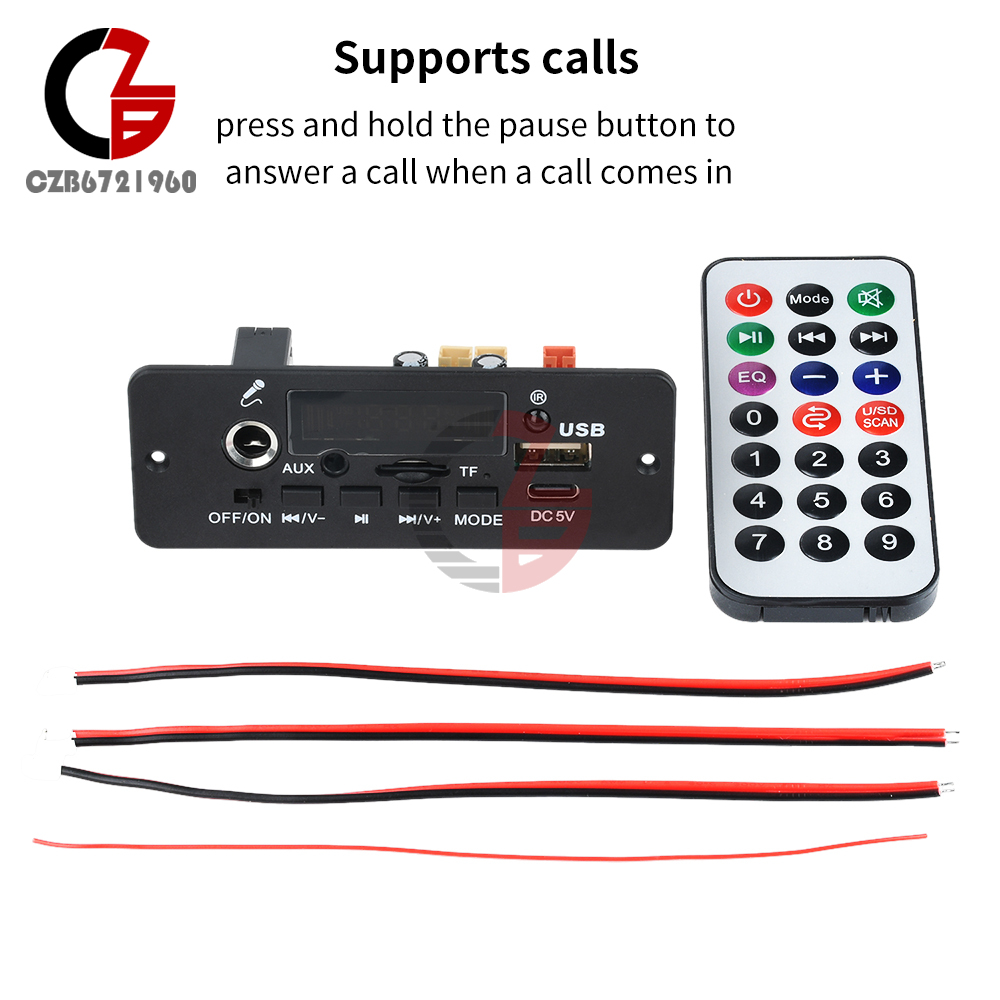

2. Convenient call function: Press and hold the pause button when an incoming call is made to answer, achieving seamless switching between audio playback and call

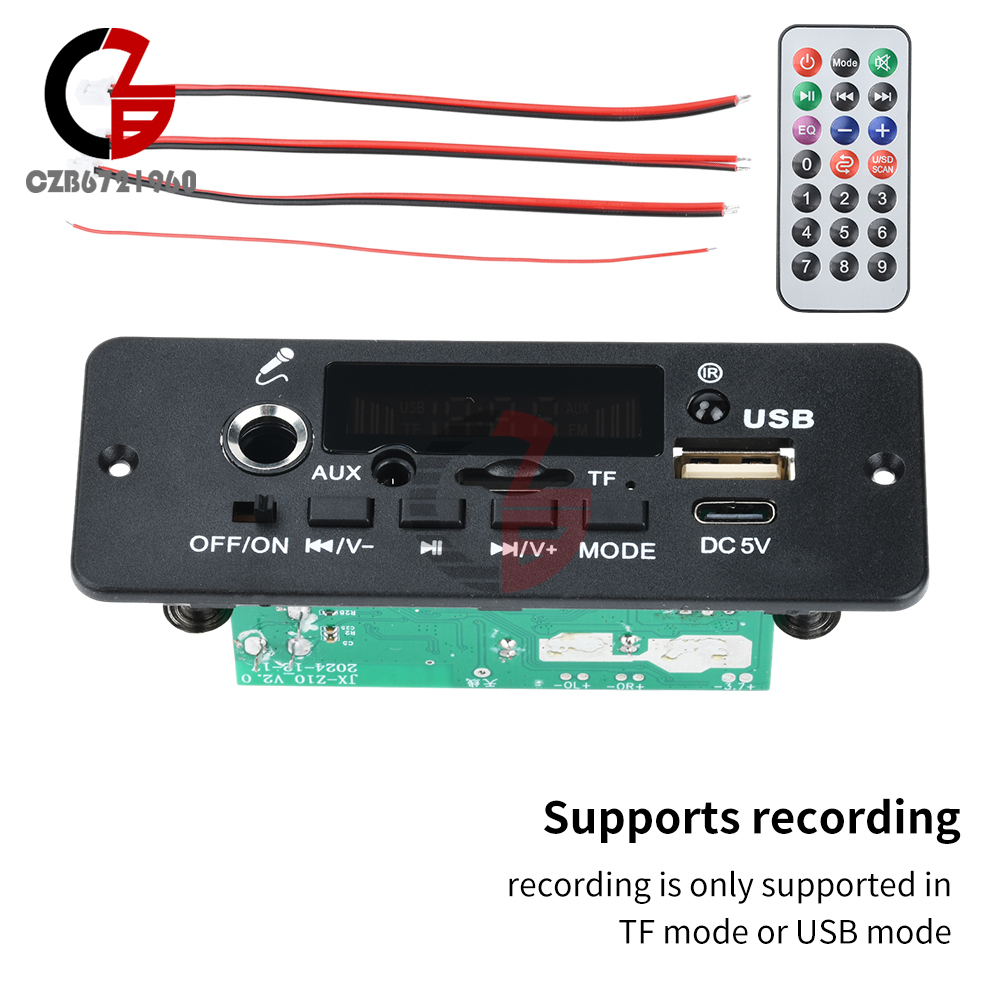

3. Flexible recording mode: supports recording operations in TF card or USB mode, meeting diverse recording needs
4. Power off memory technology: Equipped with power off memory function, the device can automatically restore to the last playback position after restarting, making it more user-friendly

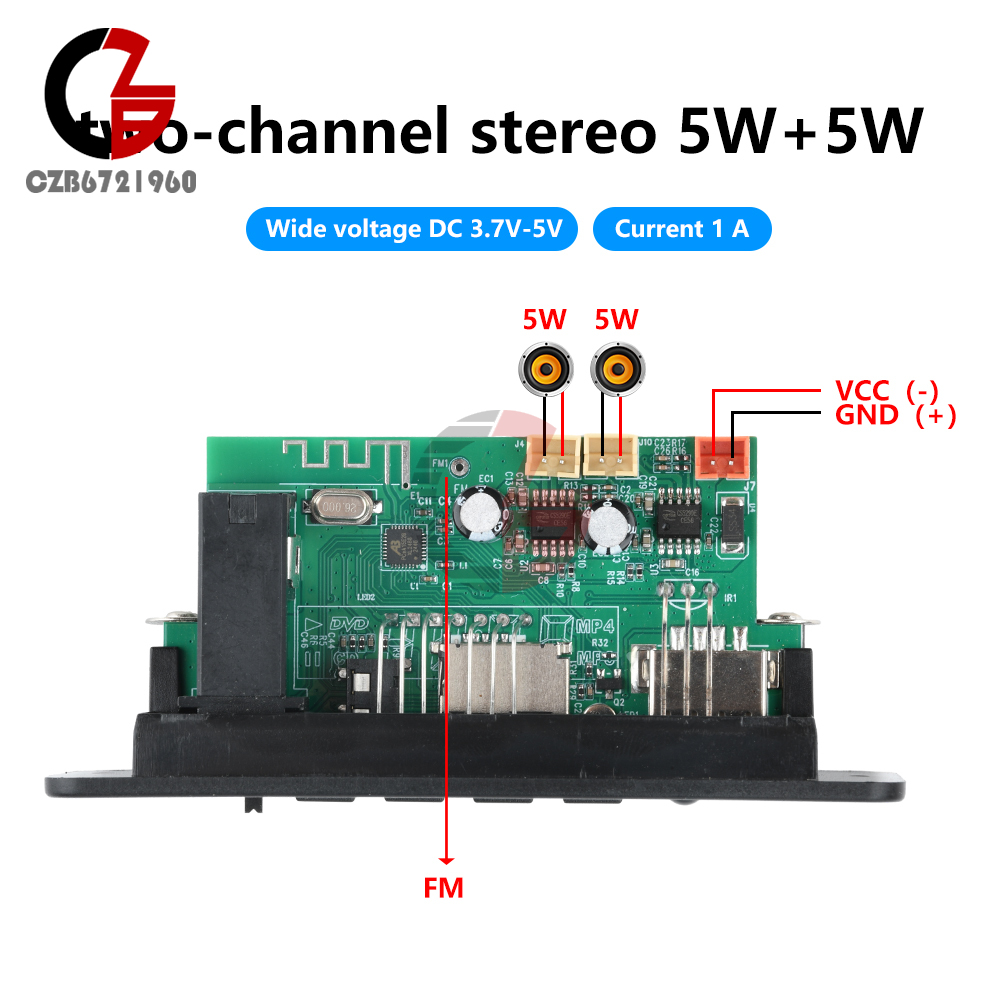

5. Powerful built-in amplifier: can be directly connected to speakers, built-in 2 × 5W high-efficiency amplifier module, full and clear sound quality
6. Multi functional audio support: integrates MP3, USB, TF card, LINE IN, FM radio, Bluetooth, 6.5mm microphone input to meet various audio needs
7. Humanized button design: The layout of the four buttons (VOL -/AUTO/VOL+/MODE) is reasonable, supporting multi-directional control, and the operation is simple and intuitive


Specifications:
Bluetooth version: 5.0
Supply voltage: DC 3.7-5V
Current: around 1A
Power: 10W stereo 2 * 5W
Support song format: MP3
Main functions: MP3/USB/TF/LINE IN/FM/BLUETOTH/6.5MM microphone

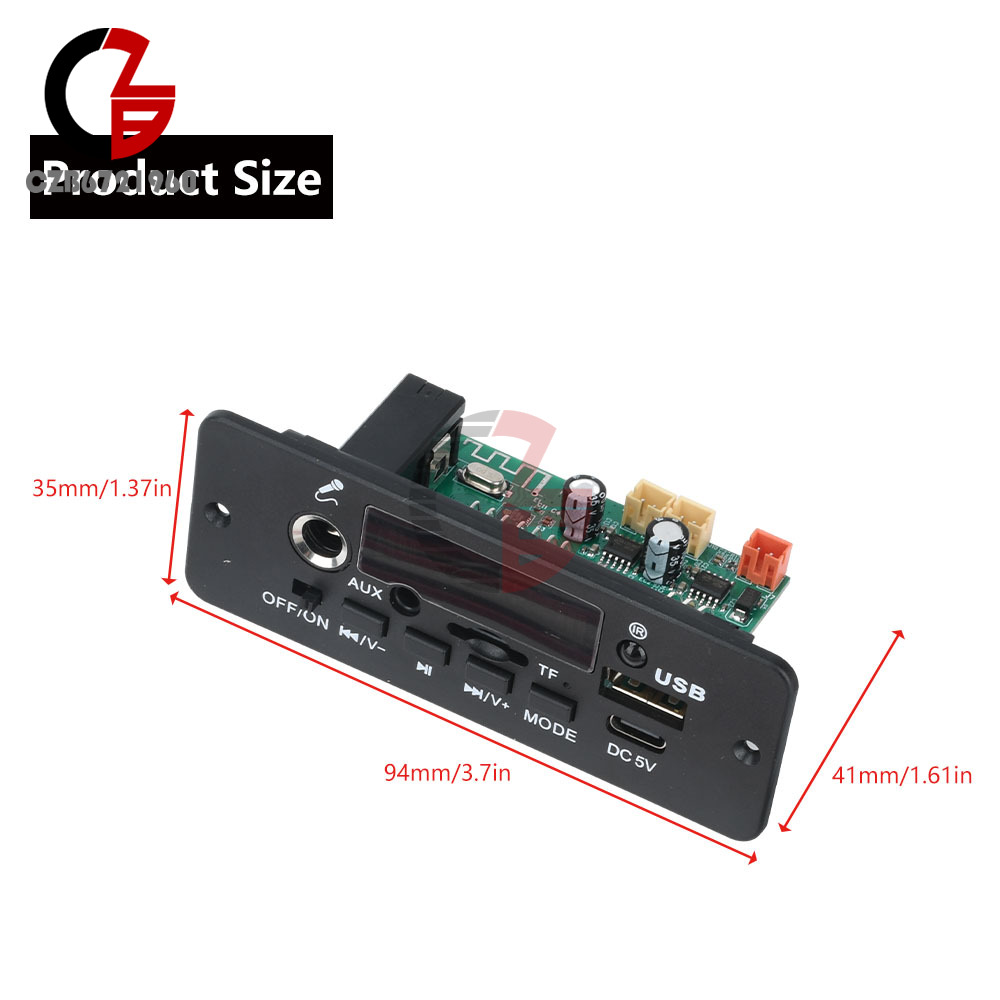

Product size: 94 * 35 * 41mm

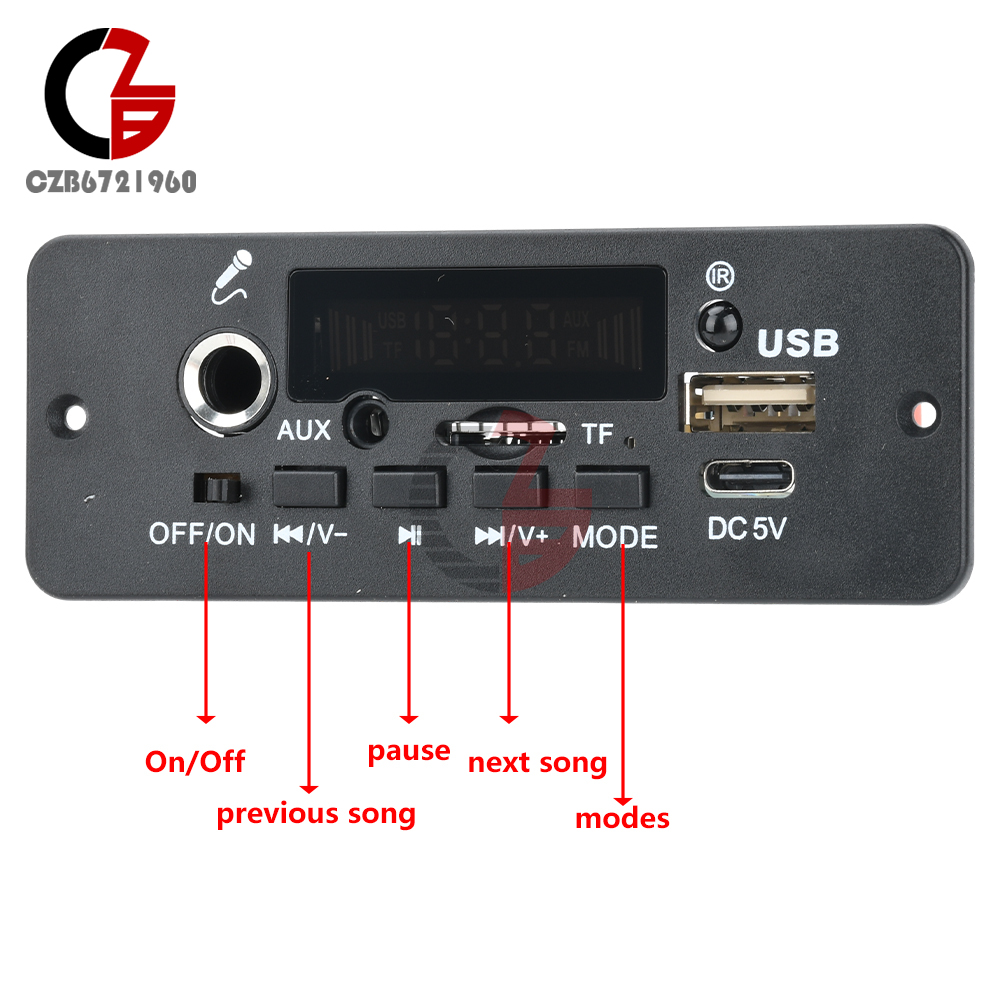

Detailed button operation:
1. VOL button (previous track/volume decrease): In MP3 mode, short press VOL button for previous track, long press button for volume decrease; Short press in FM mode to move up one station number; Short press to play the previous song on Bluetooth, long press to decrease the volume.
2. AUTO button (play/pause): Short press AUTO in MP3 mode to play/pause; Short press to play/pause in FM mode, long press to automatically receive and coexist channels; Short press to play/pause under Bluetooth function.
3. VOL+button (next track/volume up): In MP3 mode, short press VOL+button for next track, long press button for volume up; Short press in FM mode to downgrade one station number; Under Bluetooth function, short press for Bluetooth next track, long press for volume reduction.
4. MODE button: Switch between USB/TF/FM/audio input LINE IN/Bluetooth functions in sequence; Long press is the recording microphone, long press again is to stop recording and play the recorded text;

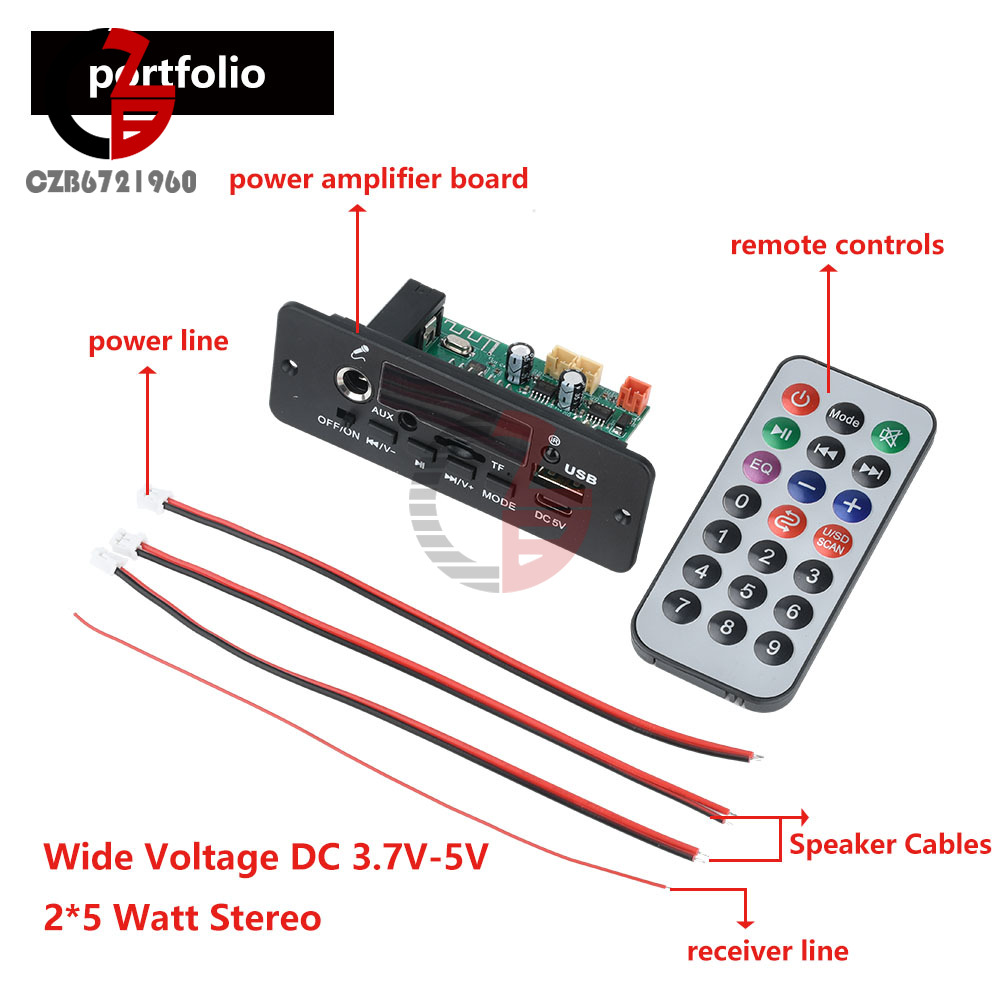

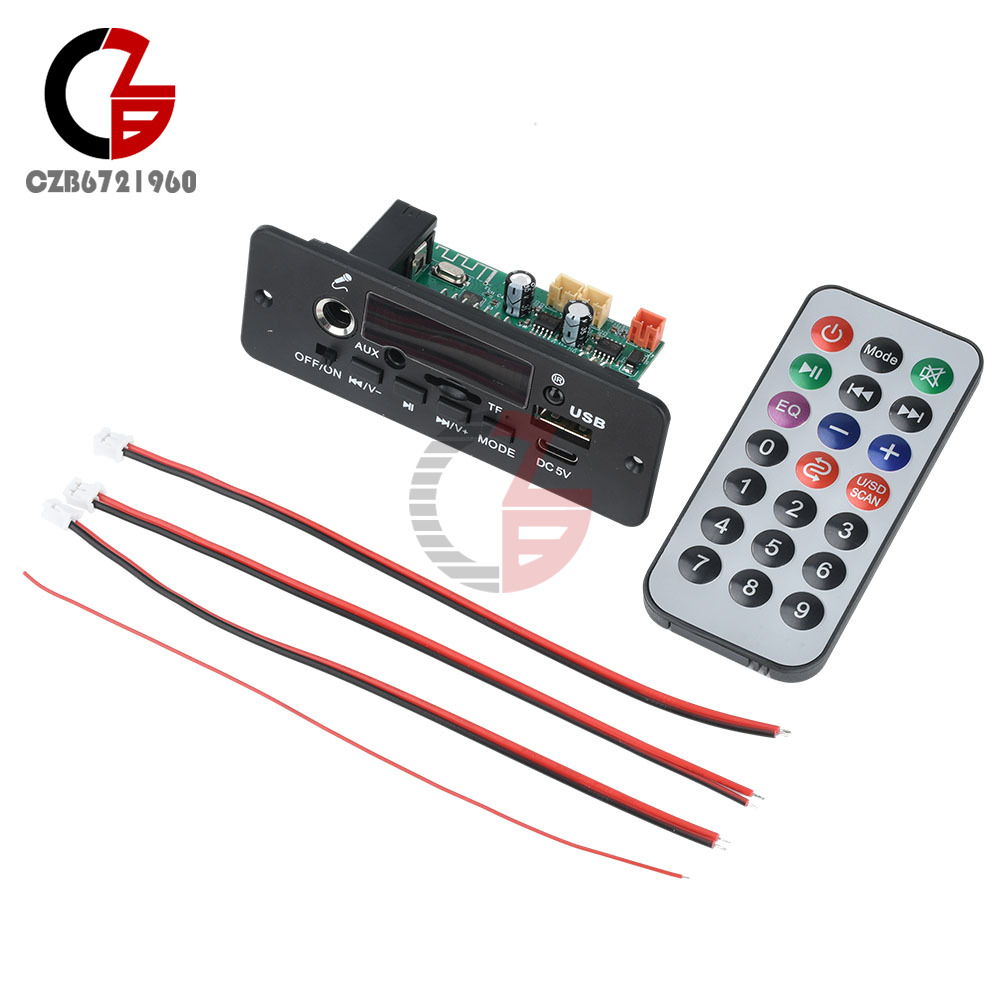

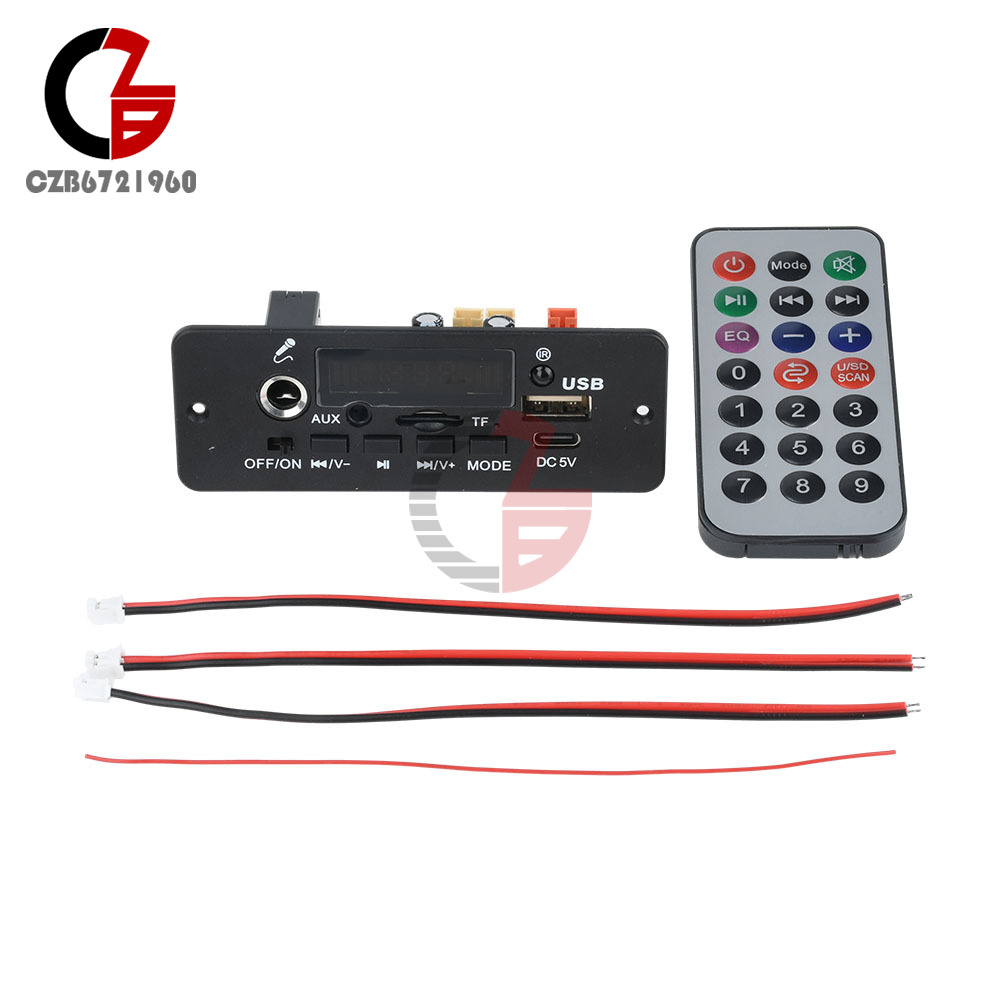

Packing list:
Decoding board * 1

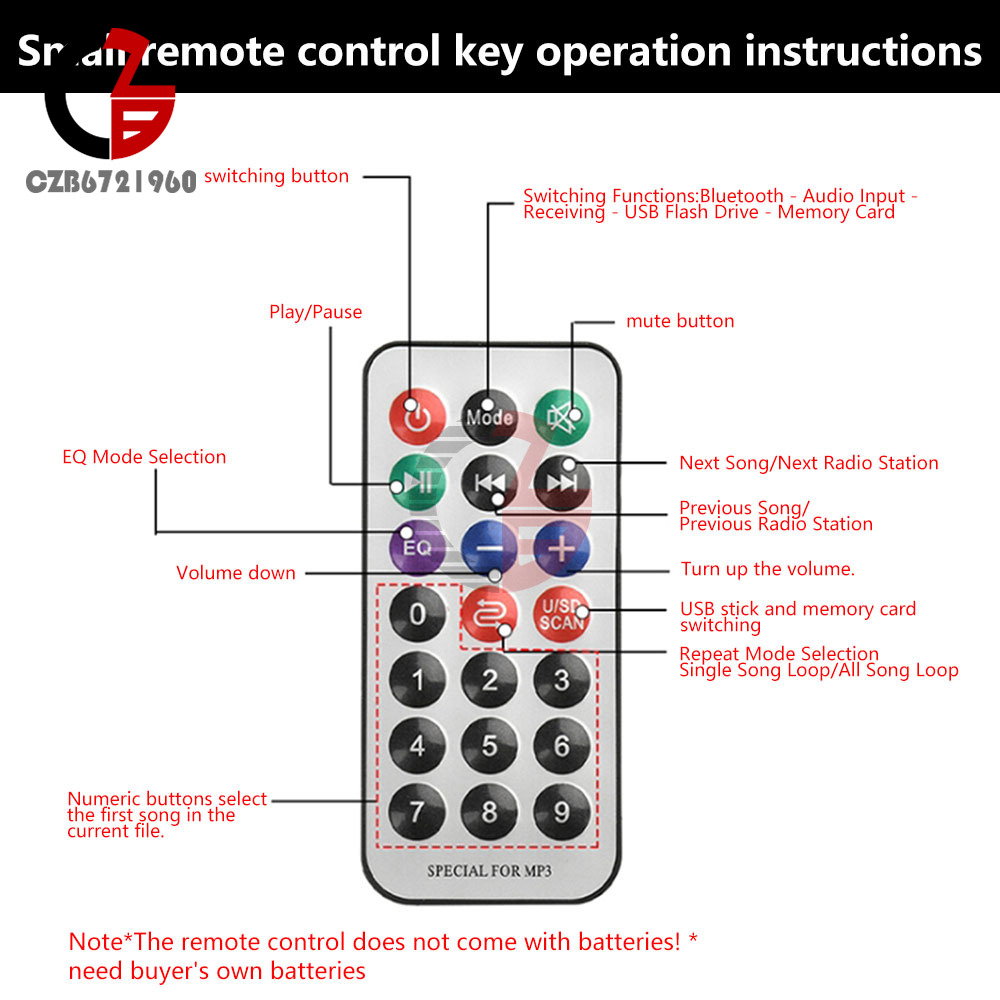

Remote control * 1
2P line * 3
Single line * 1
