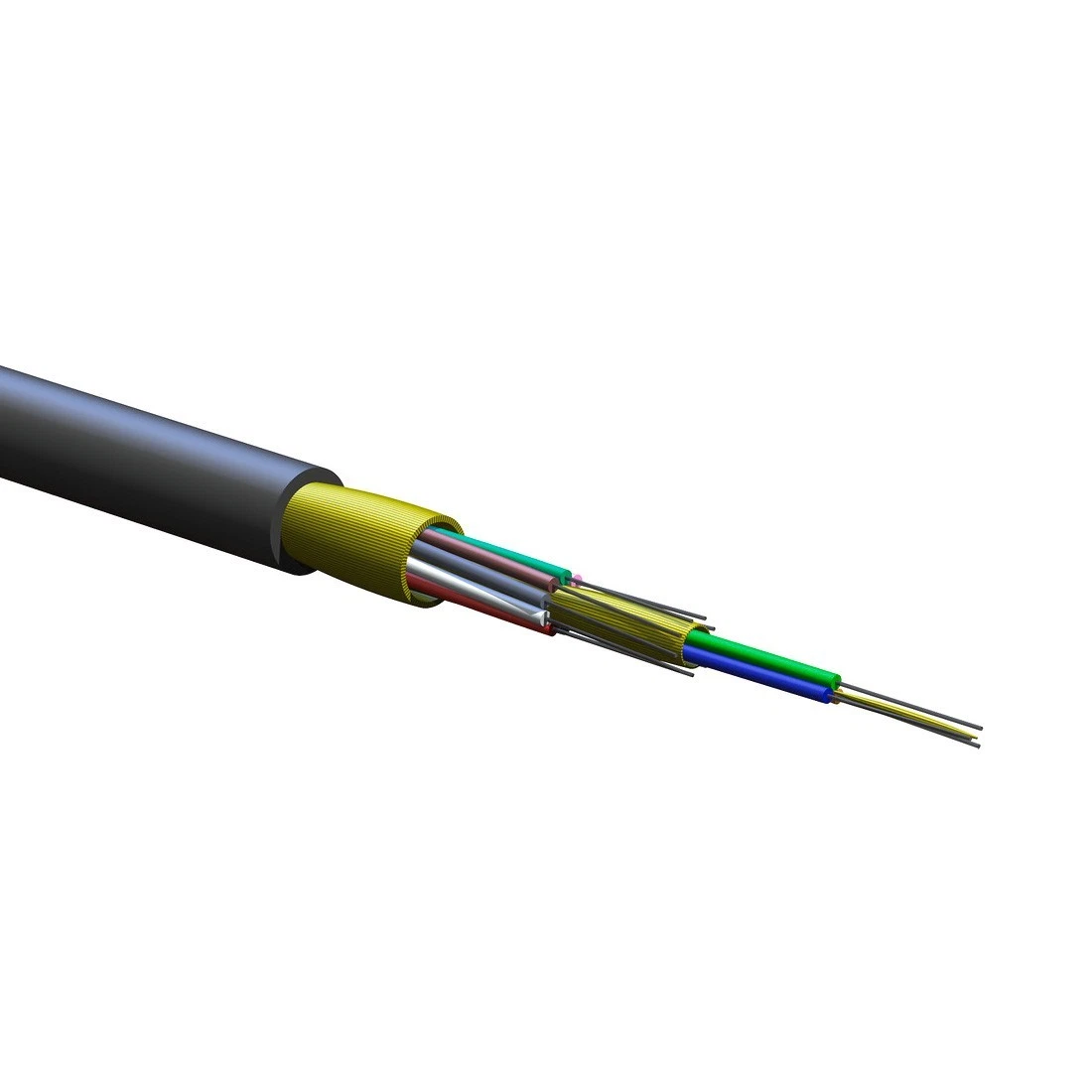

1000' Corning 012E8P-31131-29 12F Plenum Single-mode (OS2) Tight-Buffered Cable
Click Thumbnails to Enlarge
APPLICATION
• Aerial, Duct, General purpose, Horizontal, Vertical Riser, Plenum
CABLE DESIGN
• Central Element: Dielectric
• Fiber Count: 12
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Plenum (OFNP)
MECHANICAL SPECIFICATIONS
• Maximum Tensile Strength, Long-Term: 200 N (44.96 lbf)
• Maximum Tensile Strength, Short-Term: 675 N (151.75 lbf)
• Minimum Bend Radius Installation: 94.5 mm (3.72 in)
• Minimum Bend Radius Operation: 63 mm (2.48 in)
• Nominal Outer Diameter: 6.3 mm (0.25 in)
OPTICAL CHARACTERISTICS
• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D
STANDARDS
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Design and Test Criteria: ICEA S-104-696
PRODUCT SPECIFICATIONS
| Part Number | 012E8P-31131-29 |
|---|---|
| Cable Type | Tight-Buffered |
| Environment | Indoor/Outdoor |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Cable Geometry | Round |
| Weight (lbs/1000ft) | 24.80 |
