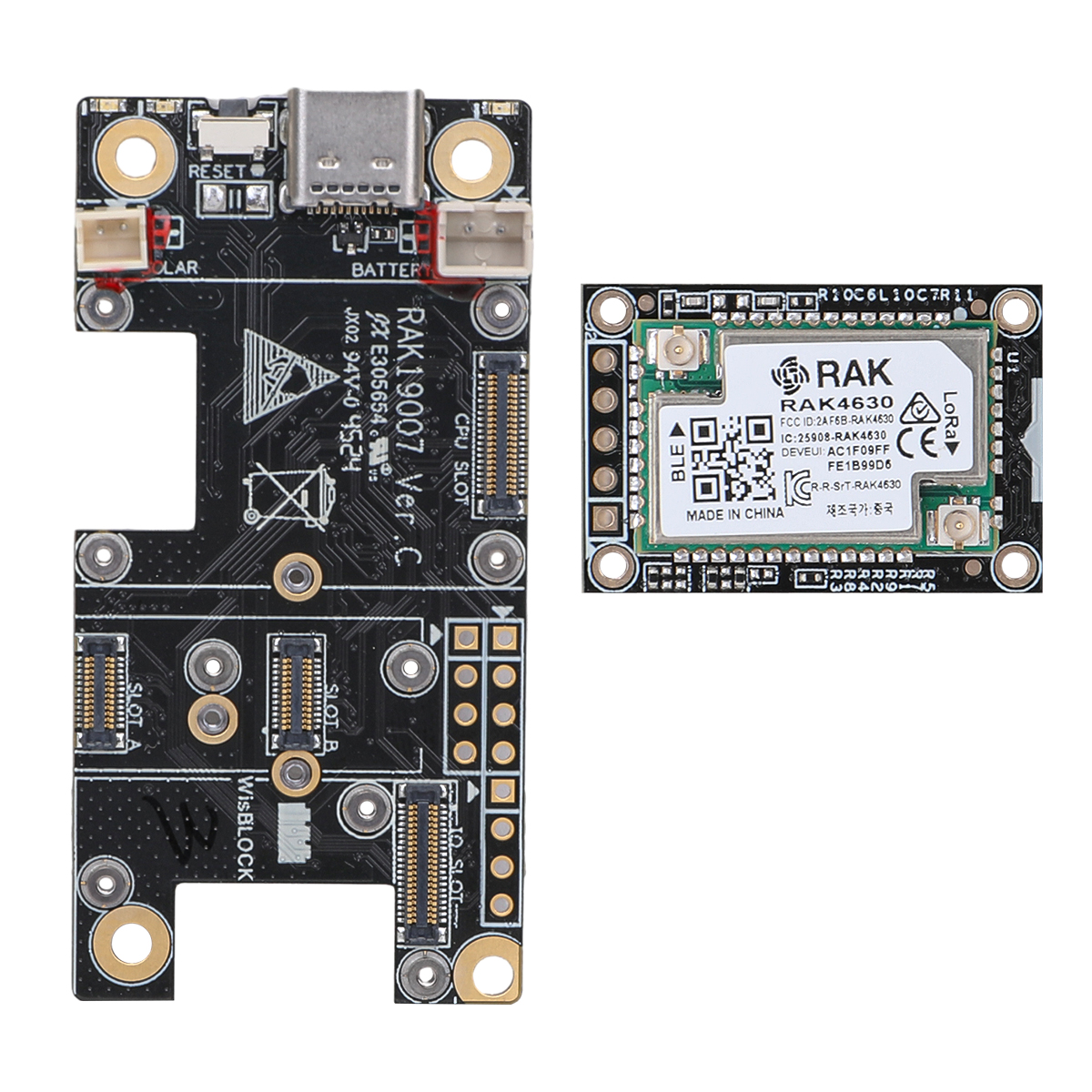

RAK LoRa Wireless WisBlock Meshtastic Starter Kit US915 Base RAK19007 + RAK4631

Description:
●Supports multiple IDEs for easy integration and development
The RAK4631 can be easily programmed through the Arduino IDE or other IDE extensions. It also has a version RAK4631-R configured with the low-code development platform RUI3, which allows users to develop customized firmware via RUIAPI and also send AT commands via USB, UART or Bluetooth.

●Multiple Connection Methods, Multiple Scenario Applications
With communication features such as LoRa® and Bluetooth, the RAK4631 module is suitable for a variety of applications in the IoT field, such as smart home, building automation, and personal health monitoring.

●LoRa® point-to-point communication with low power consumption and high transmission efficiency
The module is compliant with LoRaWAN®1.0.2 protocol and supports LoRa® point-to-point communication. In sleep mode, power consumption is as low as 2.0 uA; in transmission mode, LoRa® output power is up to 22 dBm, and Bluetooth output power is up to 4 dBm, making it a cost-effective communication solution.

Specification
Processor
NordicnRF52840 Ultra Low Power MCU
32-bit ARM Cortex™-M4 CPU
Semtech SX1262
64 MHZ CPU Clock

LoRa® Features
Compliant with LoRaWAN ''1.0.2 protocol
LoRa®PA booster mode with 22 dBm output power; 7.8KHz to 500KHz
7.8KHz to 500KHz bandwidth low power wireless system
Operating bands:EU868, CN470, US915, AS923, AU915, KR920, IN865

Temperature range:-40°C~+85°C

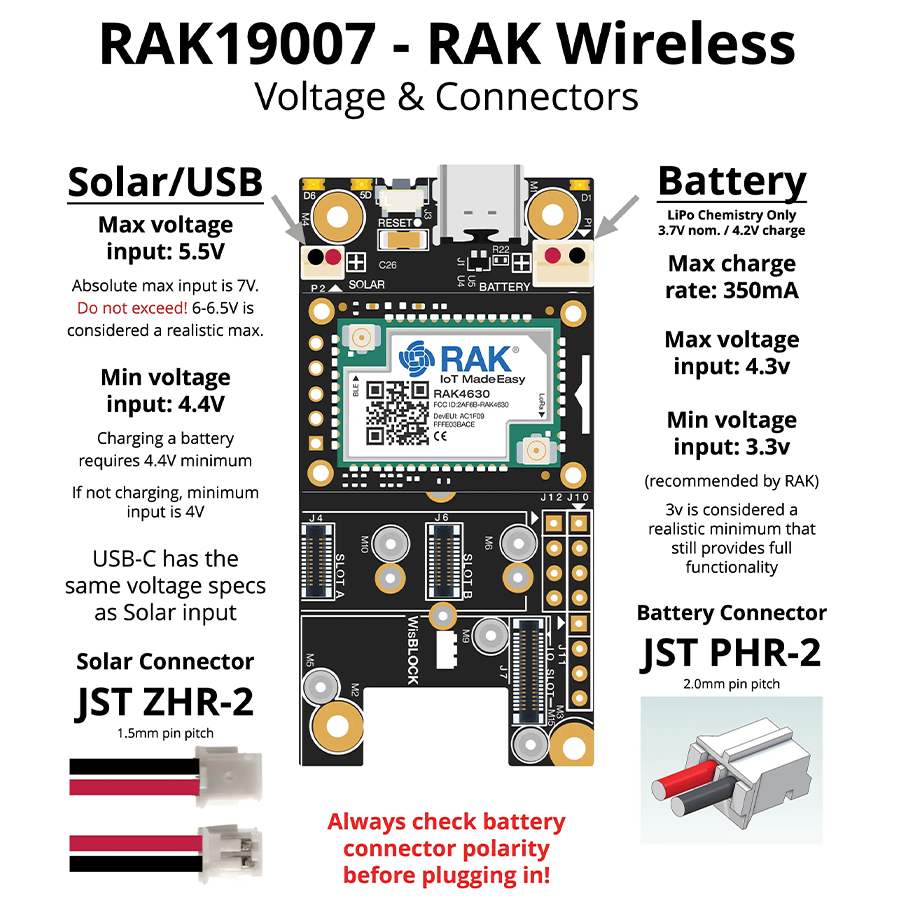

Supply voltage: 2.0~3.6 V

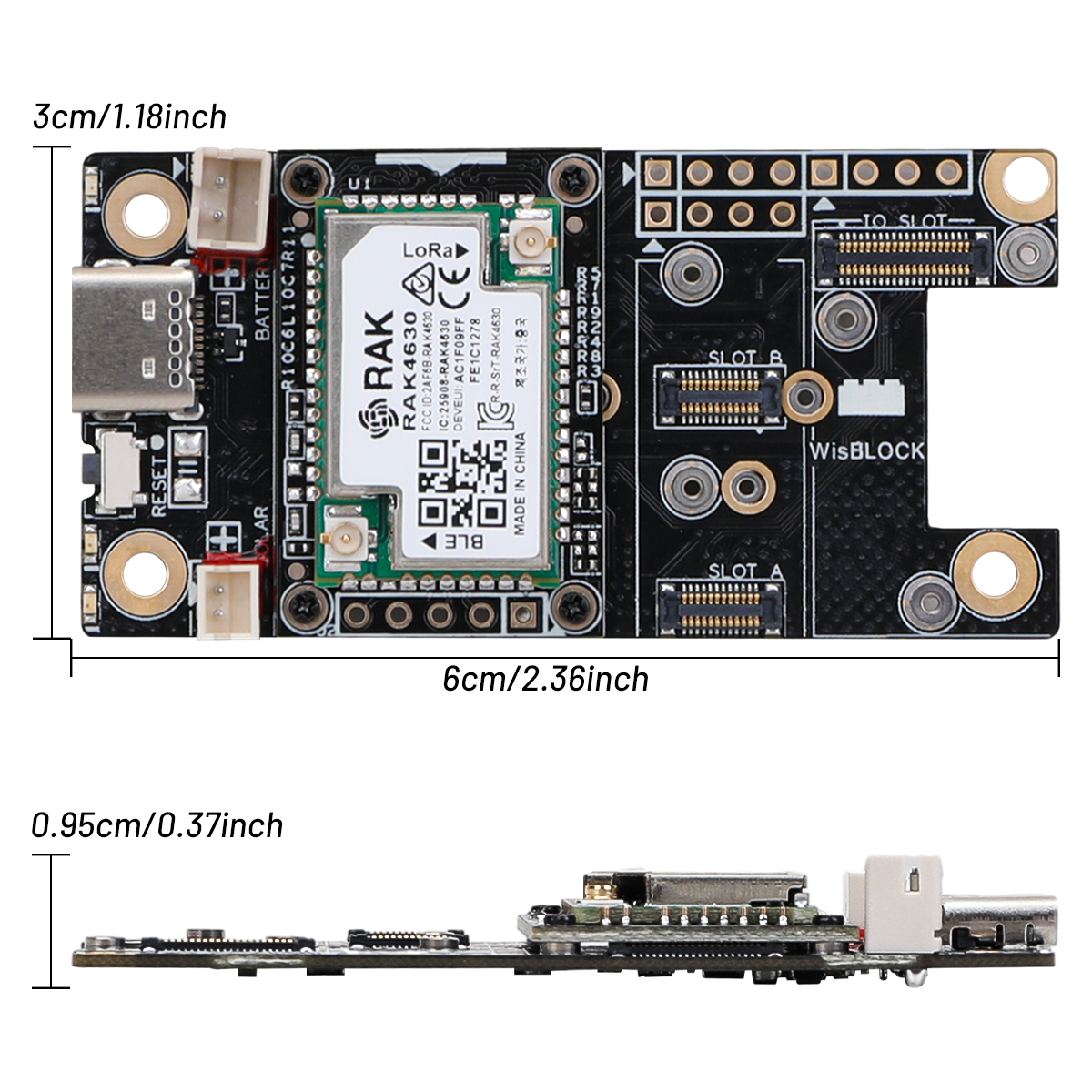

Dimensions: 20 mm x 30 mm

Electrical Characteristics
Item / Power Consumption / Conditions
Tx Mode LoRa®@20 dBm / 125 mA / LoRa® @ PA BOOST&BT Sleep
Tx Mode LoRa®@17 dBm / 92 mA / LoRa®@ PA BOOST&BT Sleep
Tx mode BT@4 dBm / -9 mA / BT Tx mode &LoRa® sleep
Rx mode LoRa®@37.5 Kbps / 17 mA / LoRa®@ Rx mode &BT sleep
Rx Mode BT@2 Mbps / 11.5 mA / BT Rx Mode &LoRa® Sleep
Sleep Mode / 2.0uA / LoRa®& BT Sleep
