Condition: Used
Dimensions: 24.00 x 16.00 x 10.00 inches (L x W x H)
Weight: 8.07 Lbs.

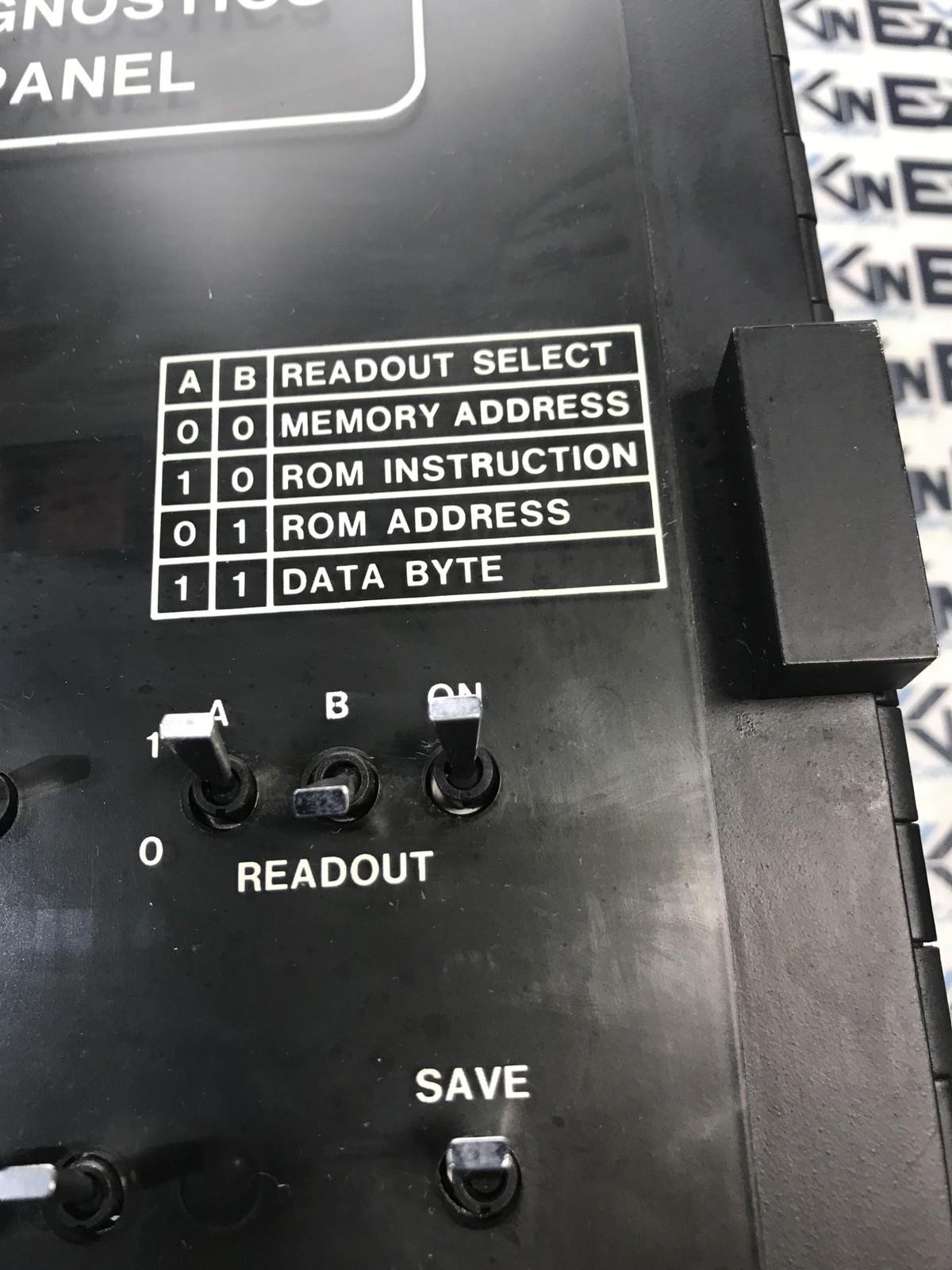

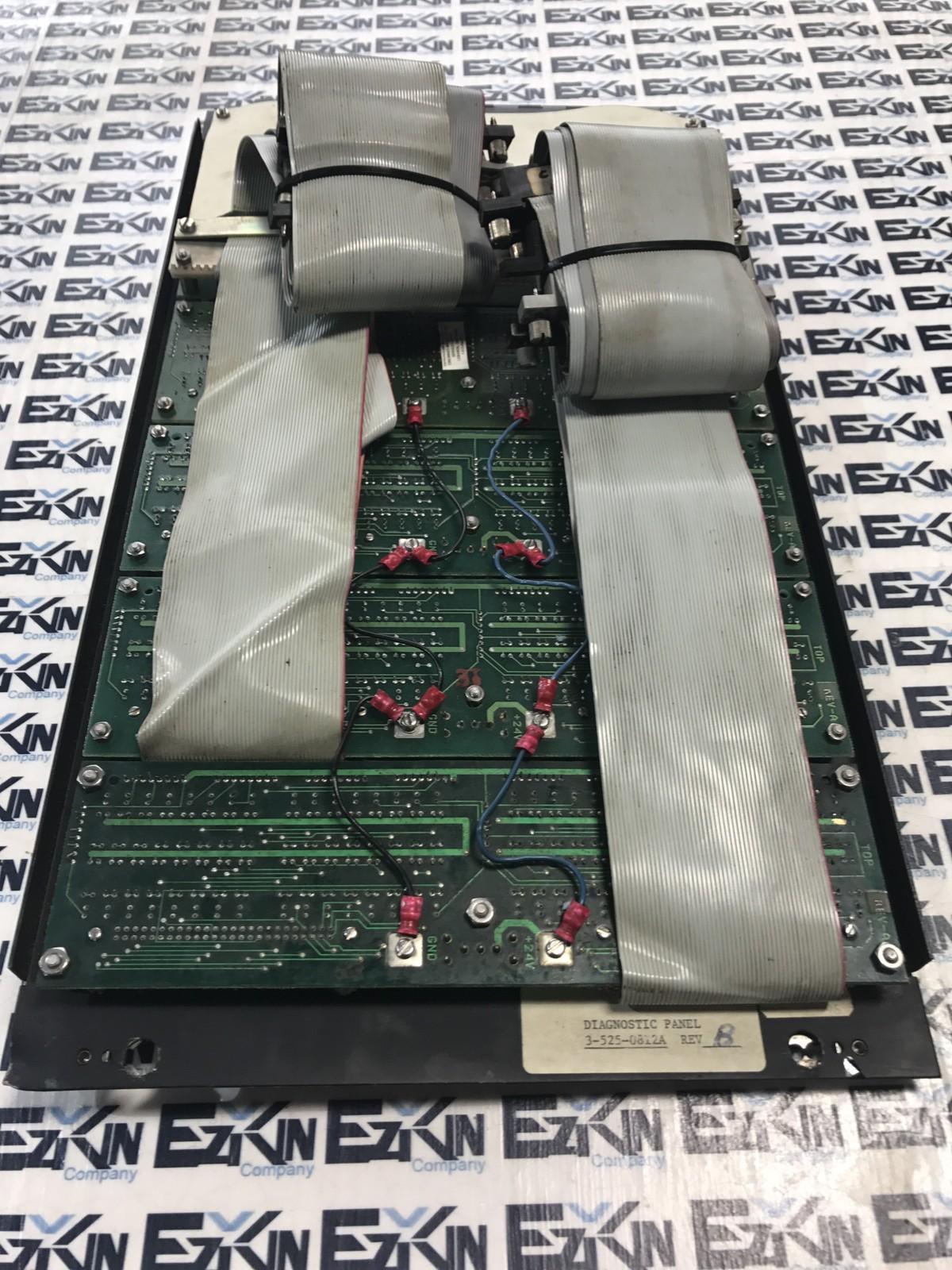

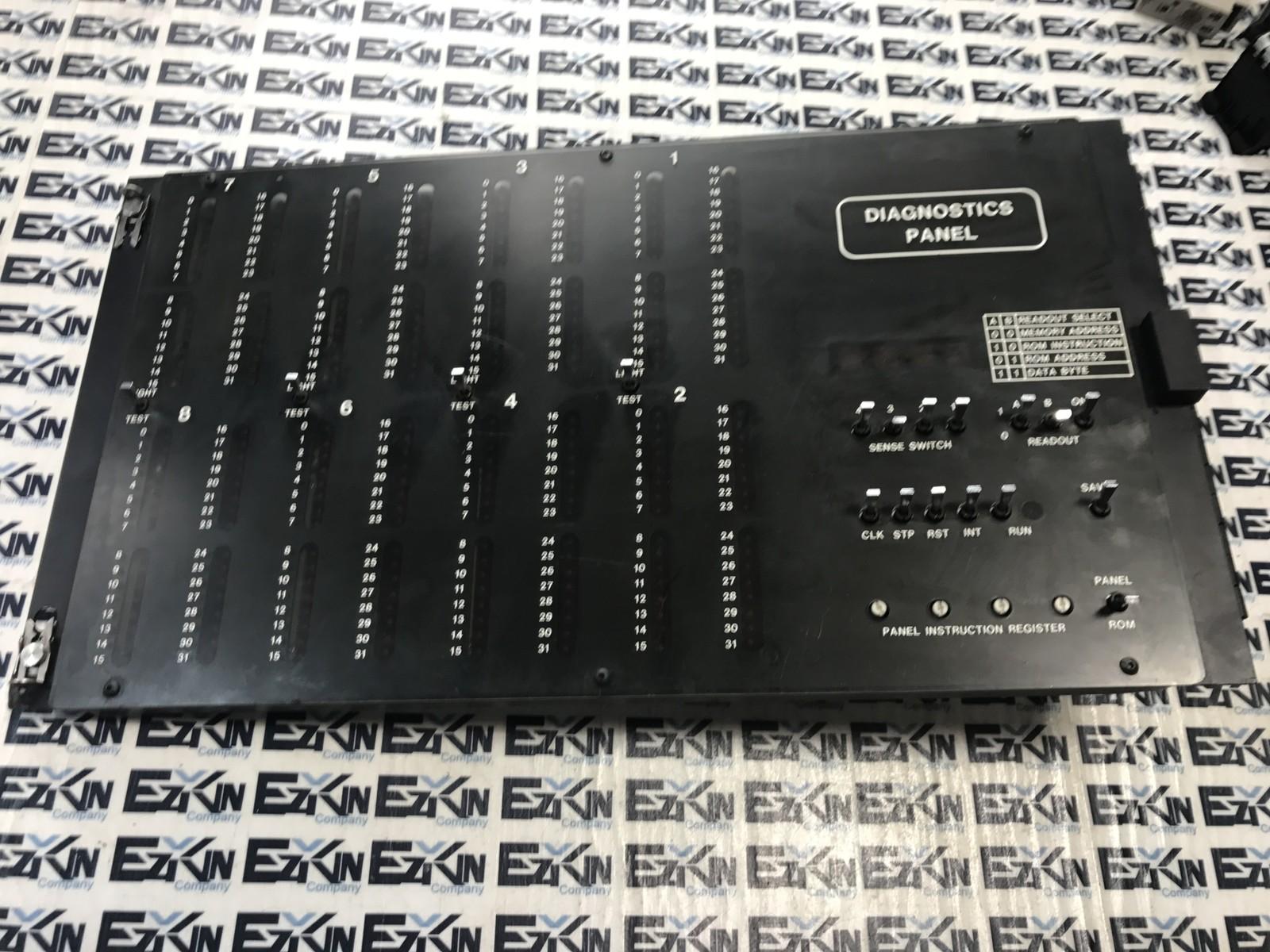

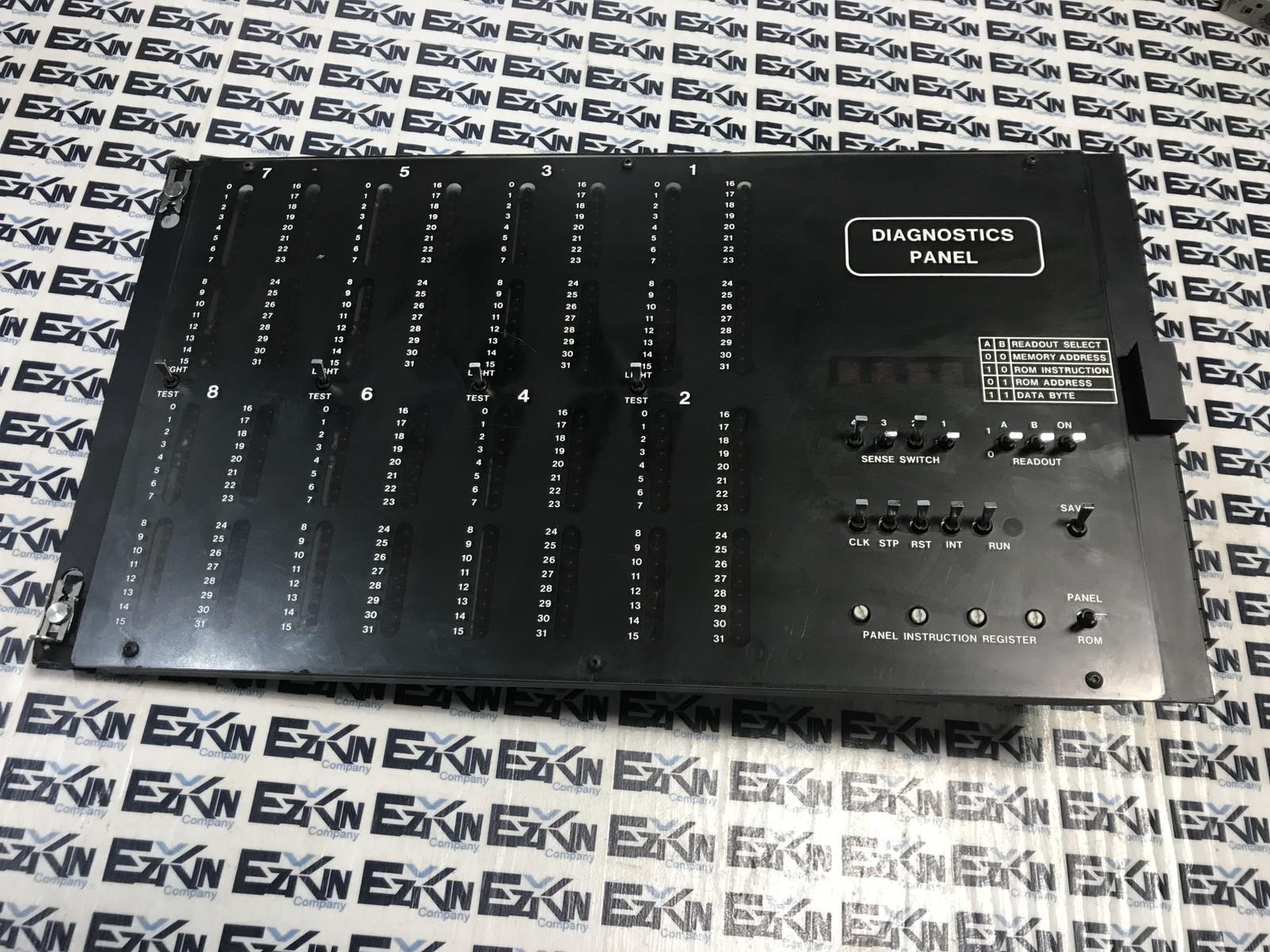

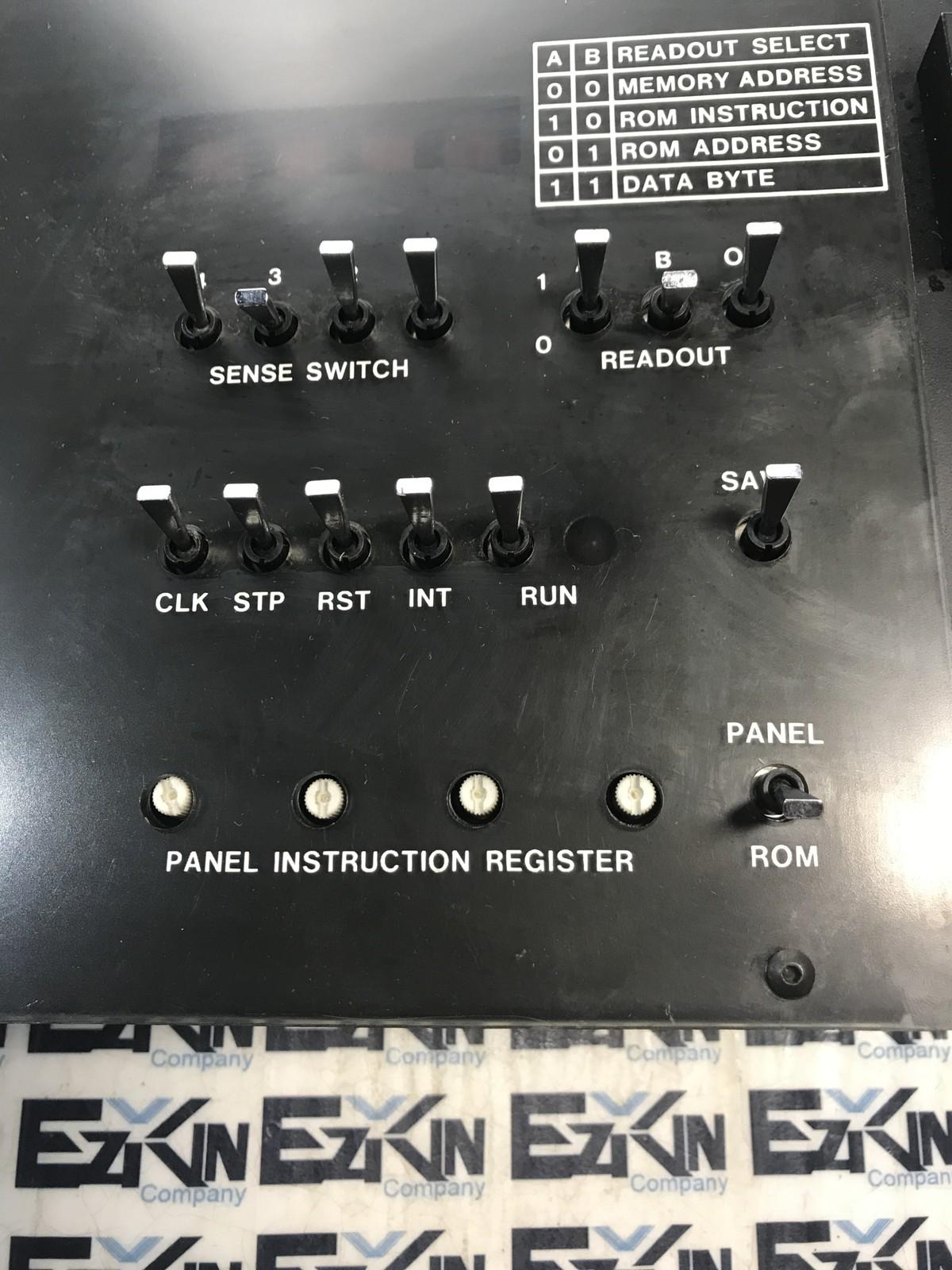

Electronic diagnostic interface board used in CNC machine control systems, designed to provide status monitoring, fault indication, and interface functions within Cincinnati Milacron equipment. Part Number: 3-525-0812A Manufacturer: Cincinnati Milacron Board Type: Diagnostic Panel Board Function: Fault indication, status monitoring, and diagnostic signaling Indicators: LED status indicators for various system conditions Voltage Requirements: Typically 5V or 24V DC (system dependent) Mounting Type: Rack/Panel Mount (via edge connector or hardware) Interface: Edge card connector for system integration Application: CNC control cabinets, diagnostic subsystems, machine tool automation Compatibility: Designed for use with Cincinnati Milacron control systems (Acramatic family and similar platforms) Construction: Multi-layer PCB with conformal coating for industrial use Notes: Intended for internal use in legacy CNC control environments—verify compatibility with specific control revision or machine series Please review pictures carefully and let us know if you have any questions!
