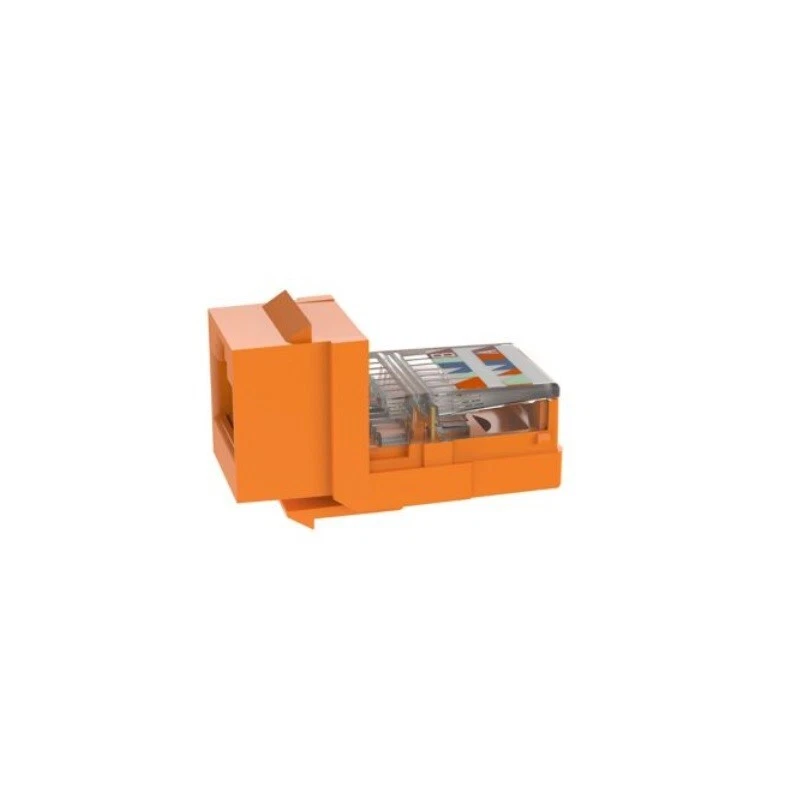

Panduit NK5E88MORY Cat-5e Leadframe Keystone Jack Module UTP RJ45 Orange
Click Thumbnails to Enlarge
DESCRIPTION
• The NetKey Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is orange.
STANDARDS
• Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
PRODUCT SPECIFICATIONS
| Product Type | Jack Module |
|---|---|
| Performance Level | Category 5e |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS/Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Keystone |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Color | Orange |
| Overall Length (inch) | 1.37 |
| Overall Width (inch) | 0.65 |
| Overall Depth (inch) | 1.37 |
| Overall Height (inch) | 0.87 |
