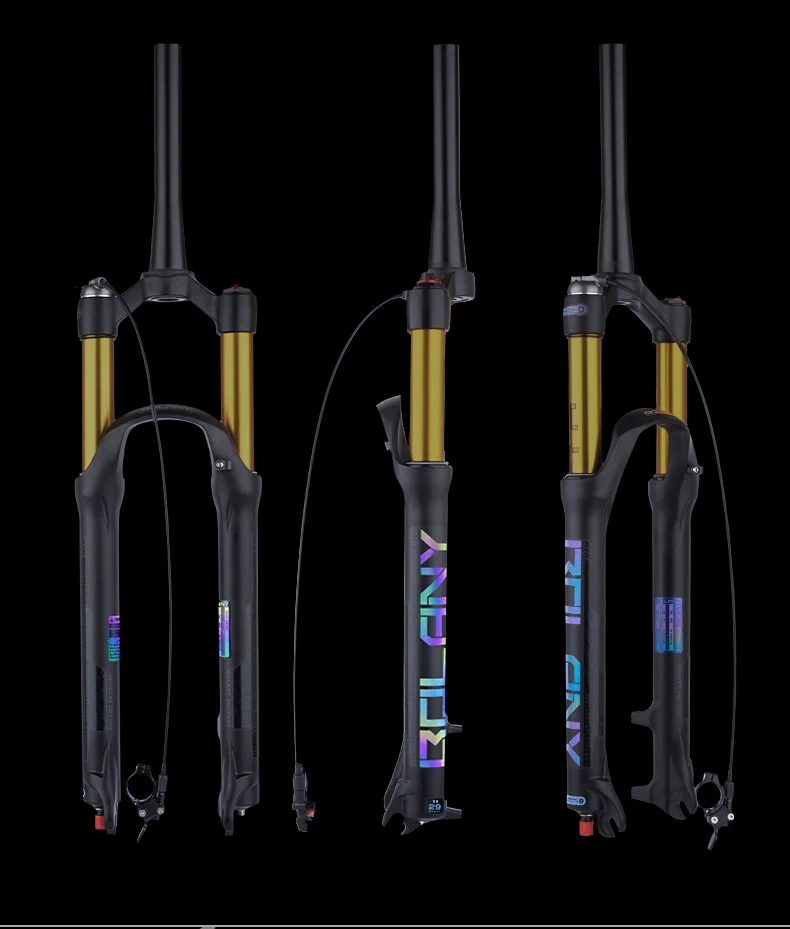

MTB Bicycle Supension Fork Rebound Adjustment Air Fork 26/27.5/29Inch Travel 120mm Straight/Tapered Bicycle Accessories


If You Couldn't Find The One You Want, Please Feel Free To Contact Us.

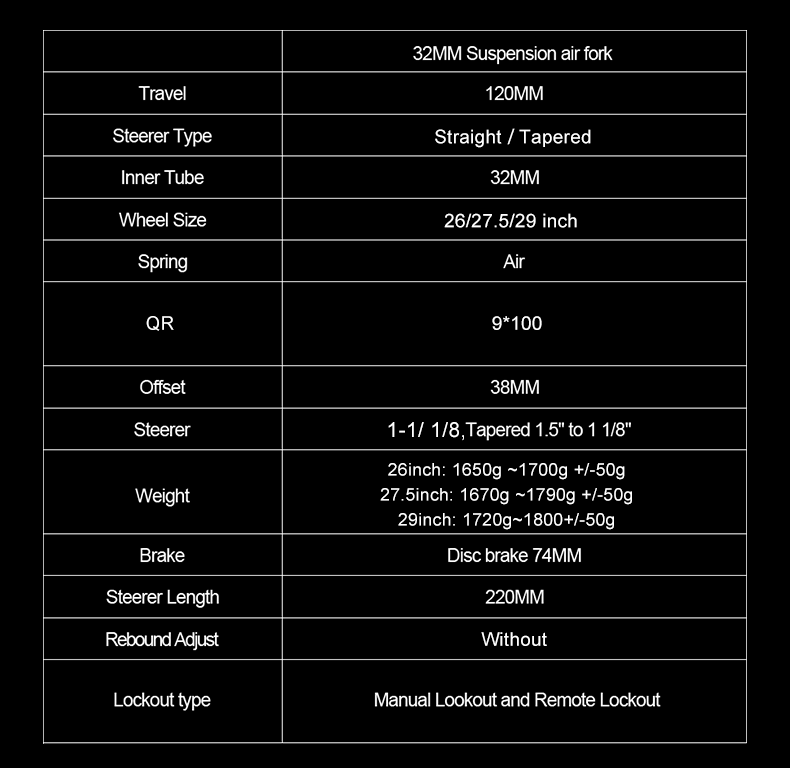

Name：AIR SUSPENSION FORK

Brand：BOLANY

Spring Type: Solo Air

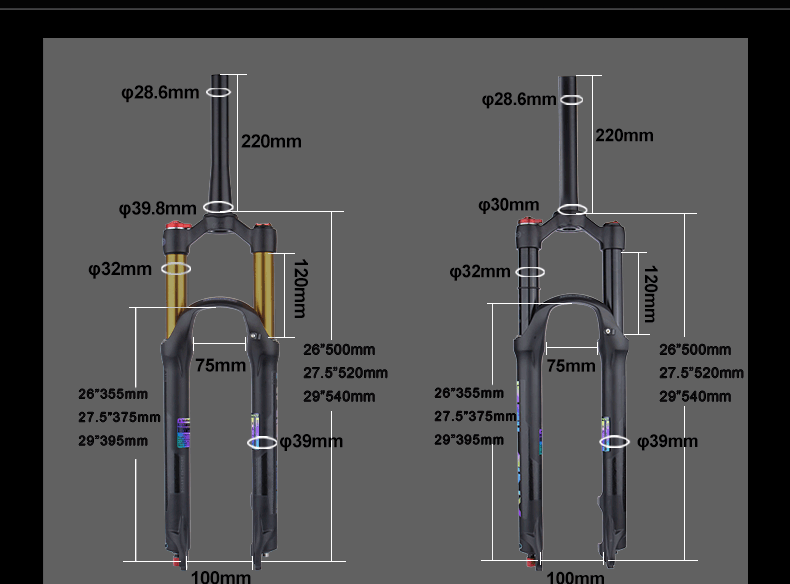

Steerer Diameter: 1.1/8" - 1.1/2" Tapered 39.8mm; 1.1/8" Straight 30mm

Steerer:28.6*250mm

Stanchions:Aluminum 32mm

Size：26 inch、27.5 inch 、29 inch

Look Out：Manual Lockout(LO) / Remote Lockout(RL)

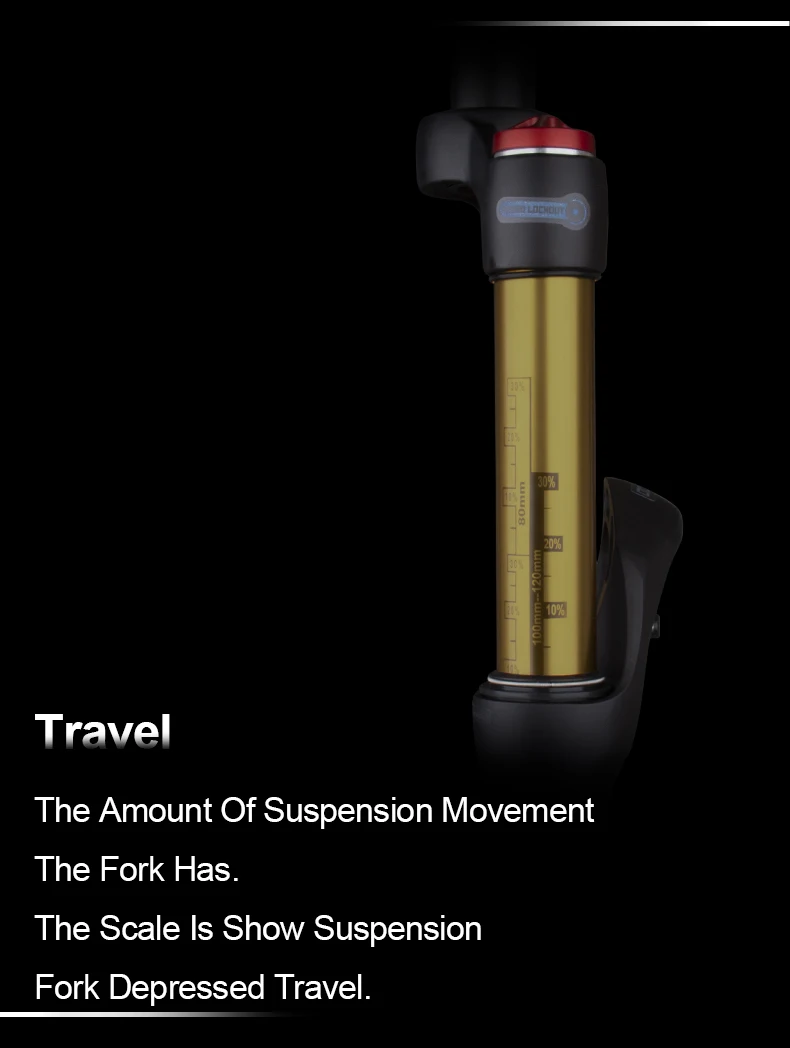

Travel:120mm （120mm Refers To The Exposed Stroke And 100mm Is The Actual Active Stroke）

Axle:9*100mm

Crown:Forged Alloy

Upper Tube Material: Aluminium, Low Friction Anodized, 32mm

Lower Tube Material: Magnesium

Brake: Disc Brake

With Damping Rebound Adjustment (+ -)

Colour：Black / Gold

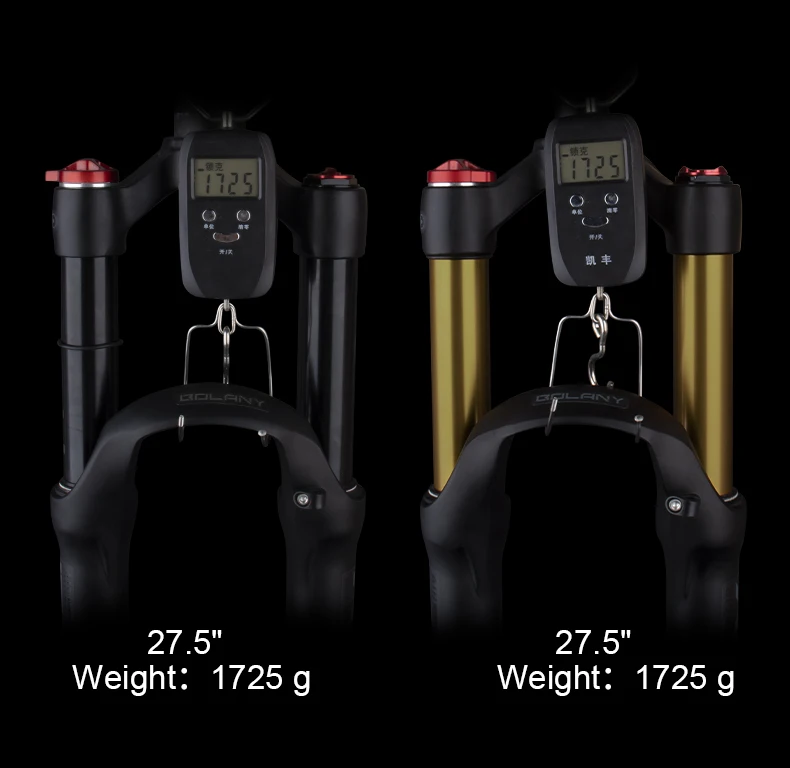

Weight:

26incn :Manual 1670g ~Remote 1720g +/-50g (For Reference Only)

27.5inch: Manual 1690g ~Remote 1810g +/-50g (For Reference Only)

29inch：Manual 1740g~Remote 1820+/-50g (For Reference Only)

Be Applicable:MTB Bike


Warranty Period: 1 Year Warranty In The Case Of Non-Human Damage.

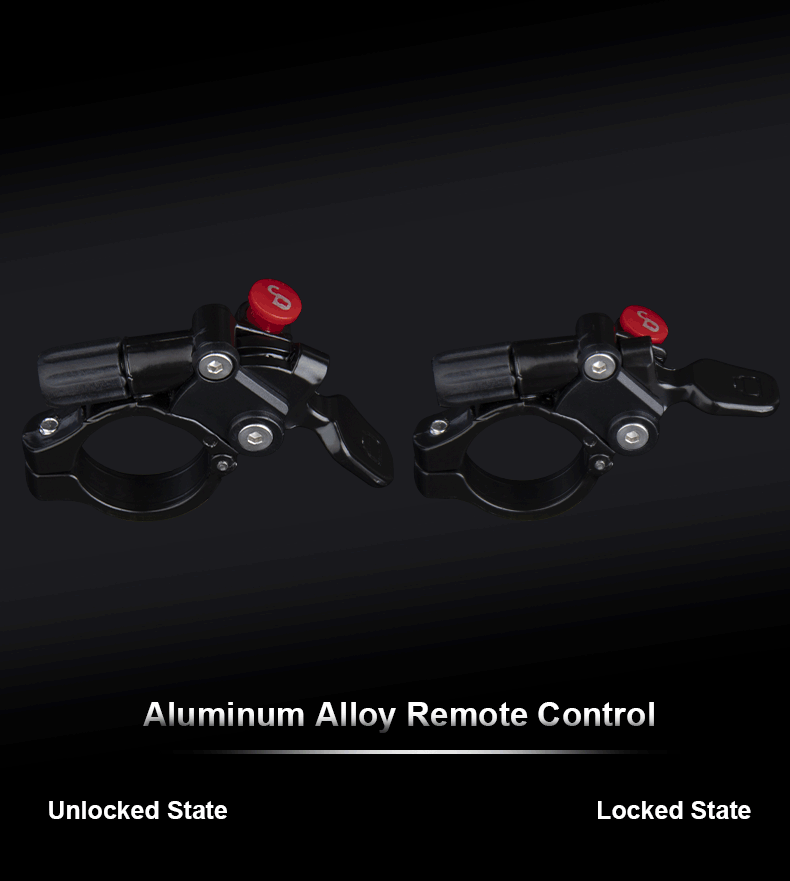

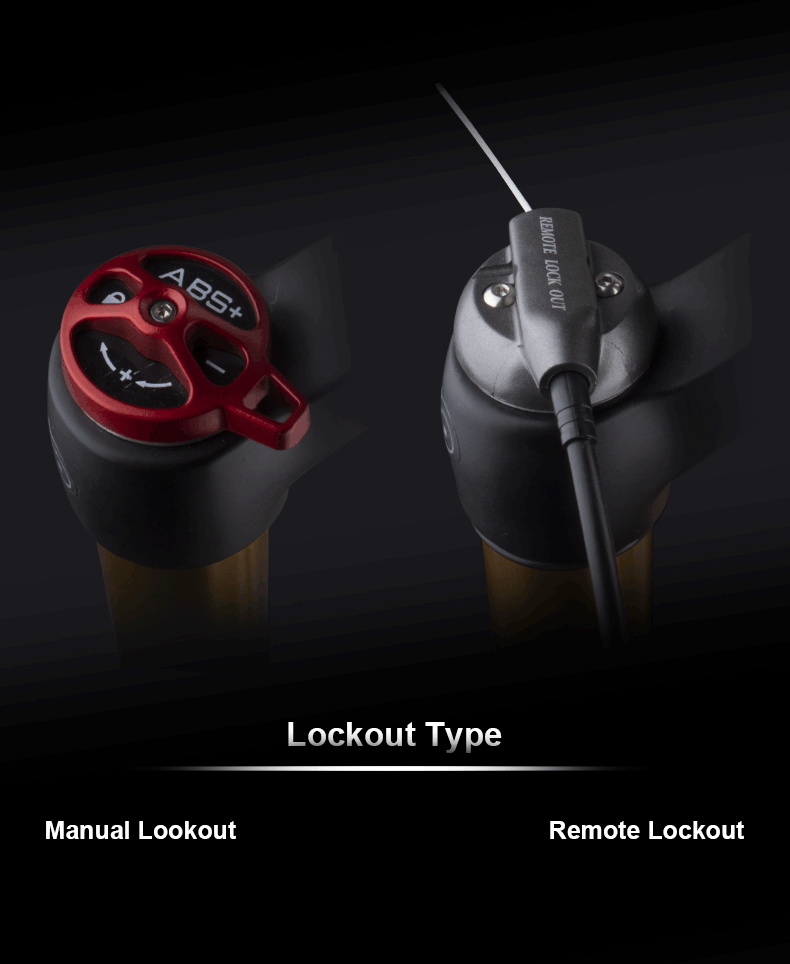

Manual lockout/ Remote Lockout


The Suspension Function Can Be Turned Off Or On According To Different Road Sections.


The Suspension Function Can Be Turned Off Or On According To Different Road Sections.

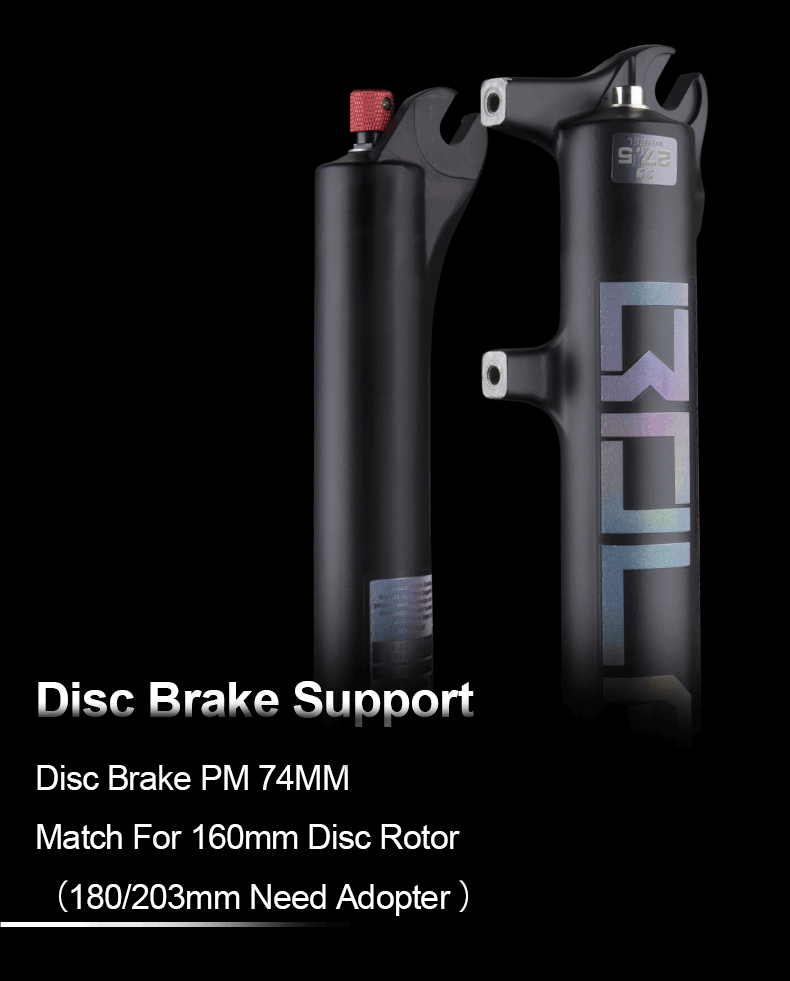

Dise Brake PM74mm


160mm Disc Rotor Can Be Installed Directly(180/203mm Need Adapter).

Easy Installation And Adjustment.



Rebound Speed, Damping Can Be Adjusted.

What Does Rebound Damping Mean?

Rebound Damping Regulates The Speed At Which Your Fork Or Shock Recovers, Or Bounces Back, From An Impact And Returns To Its Full Travel. Much Like A Compression Circuit, Rebound Damping Relies On Oil Moving Through A Circuit To Regulate The Speed At Which The Suspension Extends After Being Compressed.

Rebound Damping Helps The Suspension Return To The Proper Position, After A Bump Or Other Irregularity Causes The Fork To Compress, In A Smooth And Controlled Motion. Too Rapid Of A Movement Or Too Slow Of A Reaction Will Cause The Bike To Handle Poorly.
The Lockout Absorbs Any Bumps Immediately And Gives You Optimal Efficiency When Needed.
Apered Tube Provides You Reliable And Sturdy Handling.
This Helps With Large Rolling Bumps, Braking, And Accele.
The Strengthened Arch Design Provides More Balanced And Stability.
It Is Applied To All Riders, And Makes It Easier For Riders To Go Faster With More Control And Comfort.


Brake cable fixing buckle

Fix The Brake Line, Make The Brake Line Smooth And Beautiful.

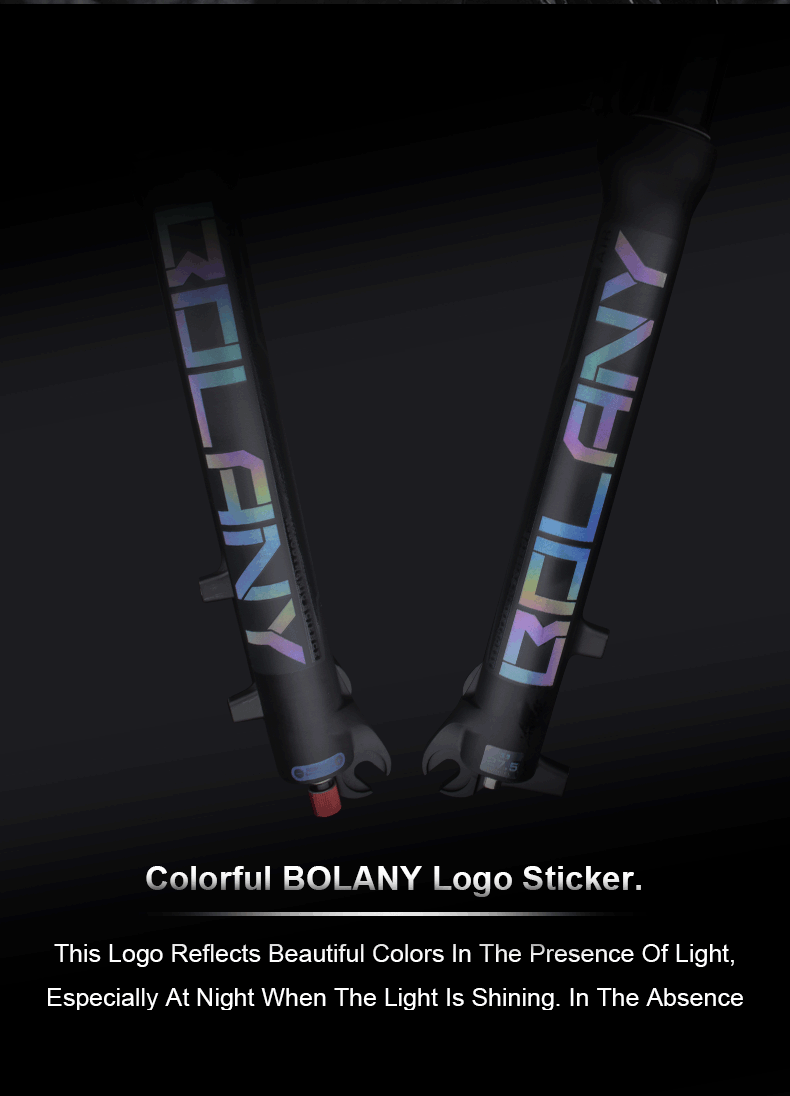

Laser Colorful reflective cursor:


Gives A Radiant Glow At Night That Firmly Catches Your Eye.

Reflective Cursors Cannot Reflect Light During The Day.
