Package included

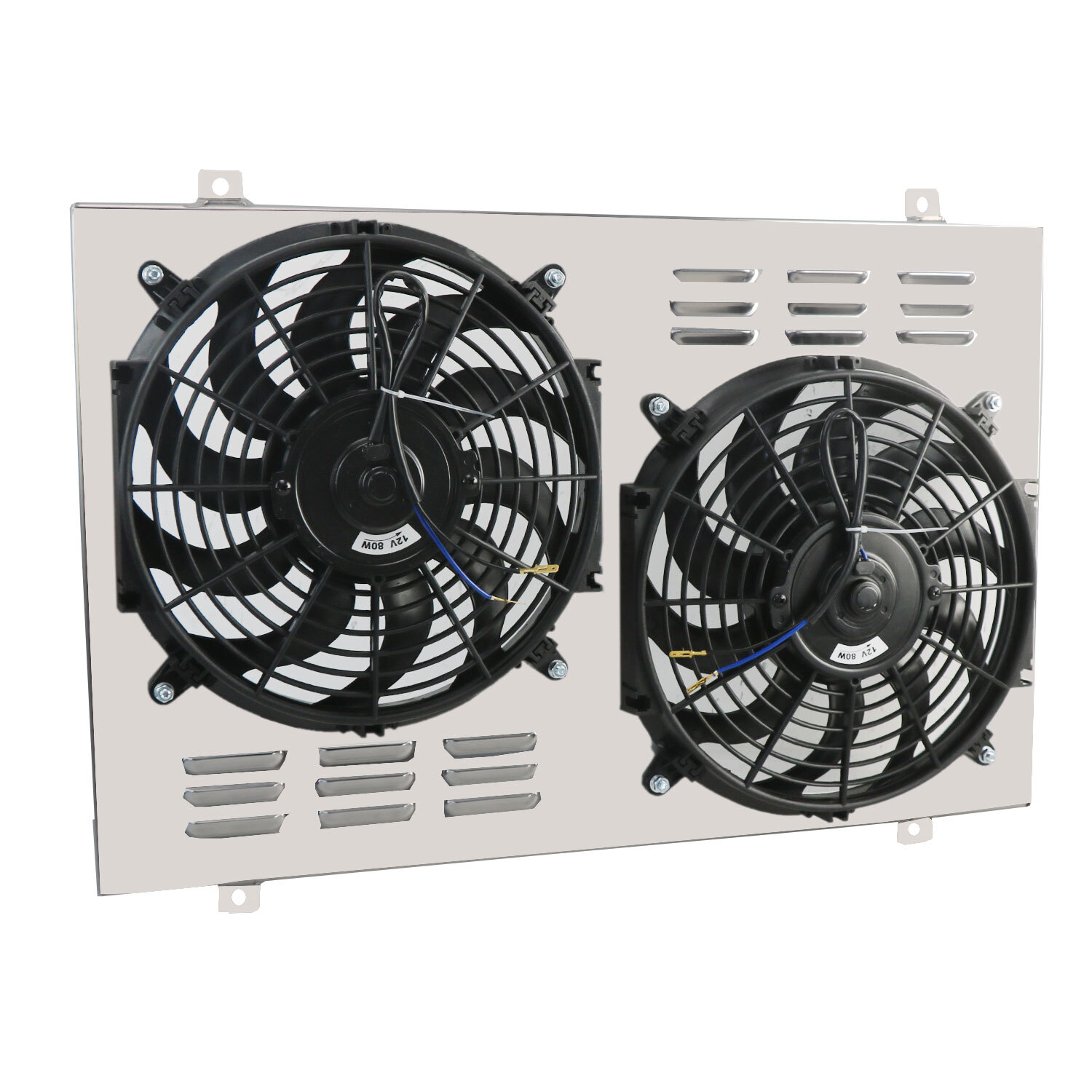

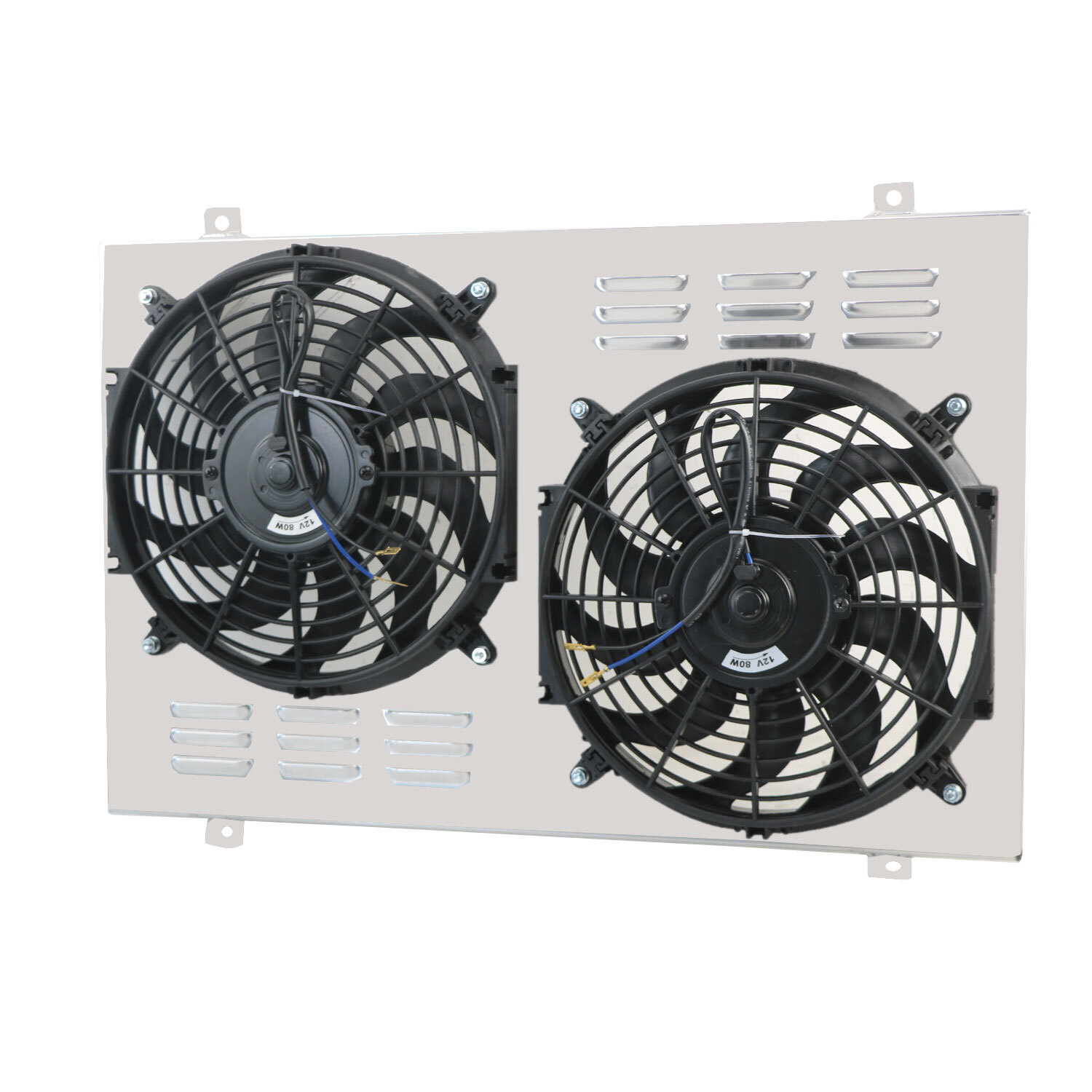

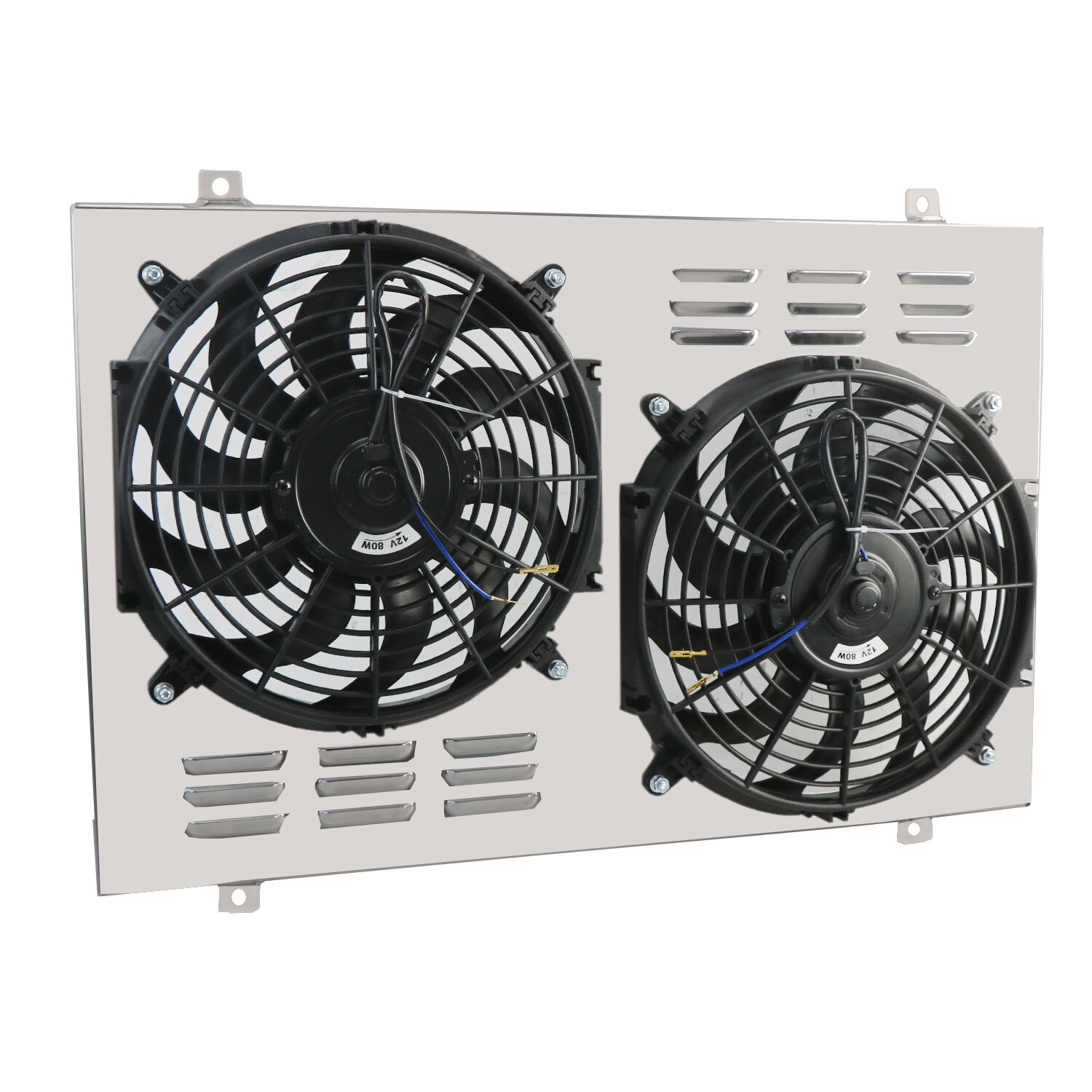

1 X AA5052 Aluminum Shroud

2 X 12"Fan (Includes mounting kits)

1 X Thermostat Temperature Switch Relay Kit

Application

1982-1984 CHEVROLET CAMARO 2.5L - 5.0L (26" WIDE CORE ONLY)

1985-1986 CHEVROLET CAMARO 5.0L (26" WIDE CORE ONLY)

1987-1992 CHEVROLET CAMARO 5.0L - 5.7L

1982-1984 PONTIAC FIREBIRD/TRANSAM 2.5L - 5.0L

1985-1986 PONTIAC FIREBIRD/TRANSAMN 5.0L

1987-1988 PONTIAC FIREBIRD/TRANSAM 5.0L - 5.7L

1989-1992 PONTIAC FIREBIRD/TRANSAM 3.1L - 5.0L - 5.7L

Shroud Configuration

Material: AA5052 Aluminium

Core Dimensions: 26 1/4" W x 16 4/9" H

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Fan Specification:

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 80W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 80 watt motor will keep your engine cool.

AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed
