2" 320W 8-Ohm Throat Bolt-On Compression Driver With Phenolic Voice Coil DS18

Amplifiers Batteries Tweeter SubWoofers Marine Loud Speakers

Description

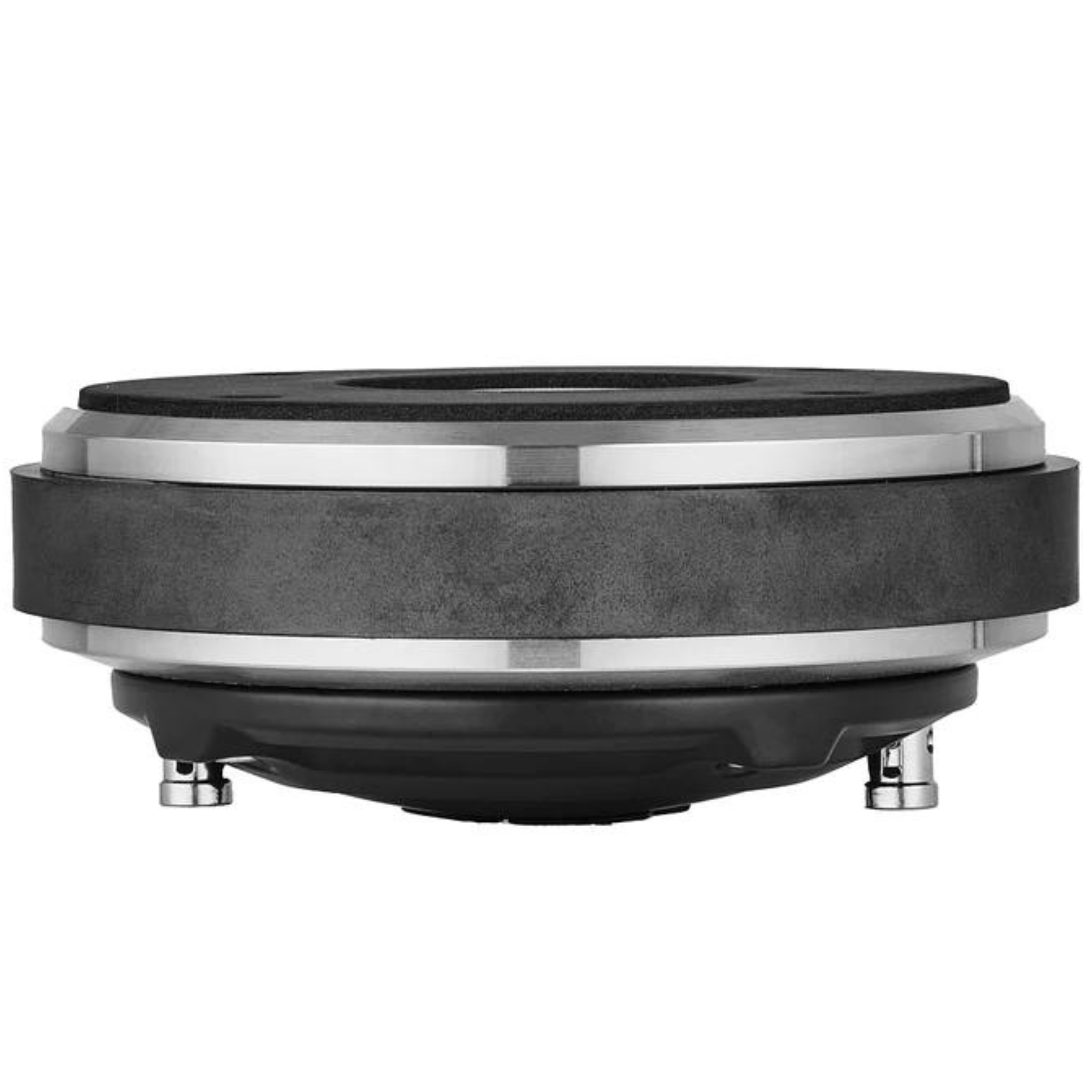

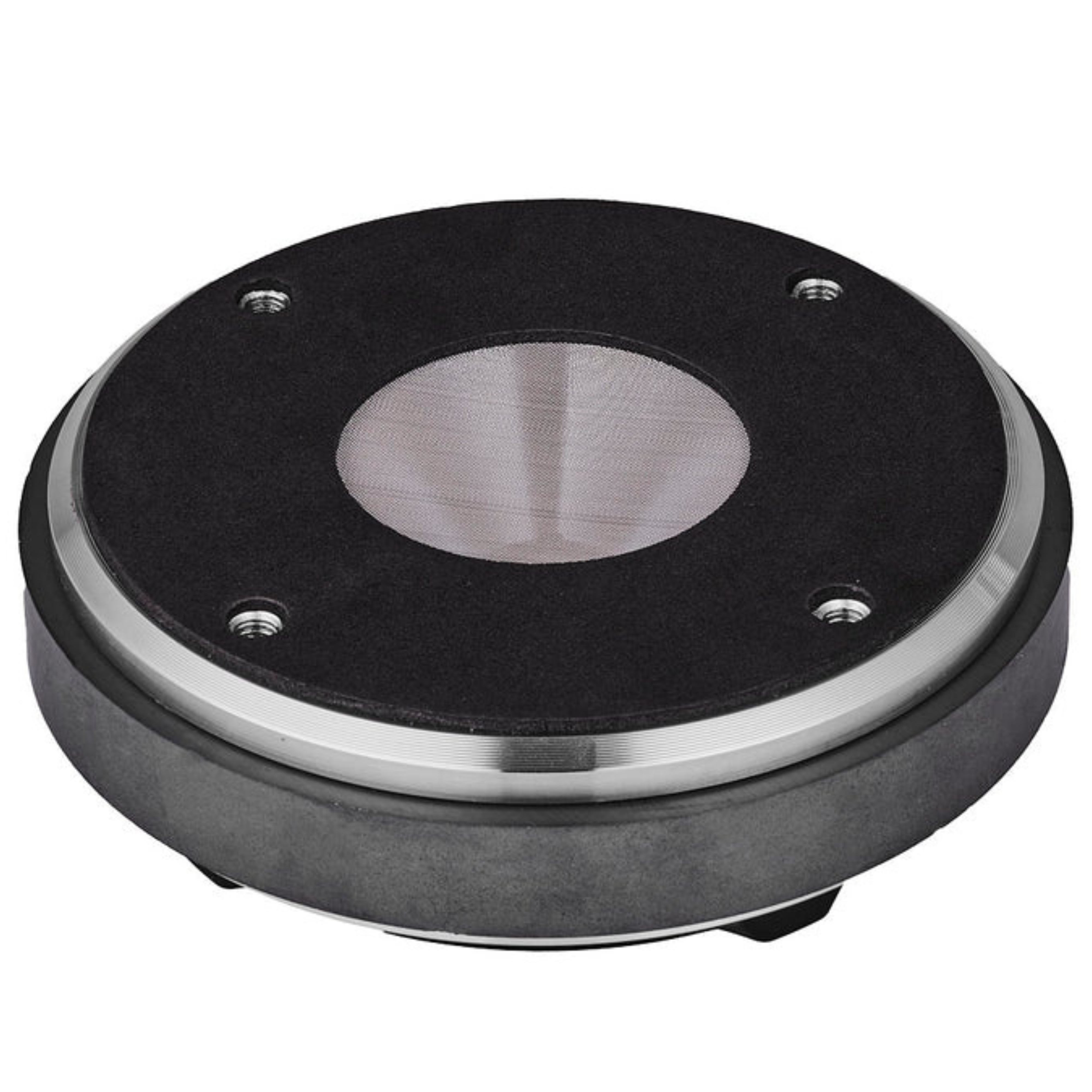

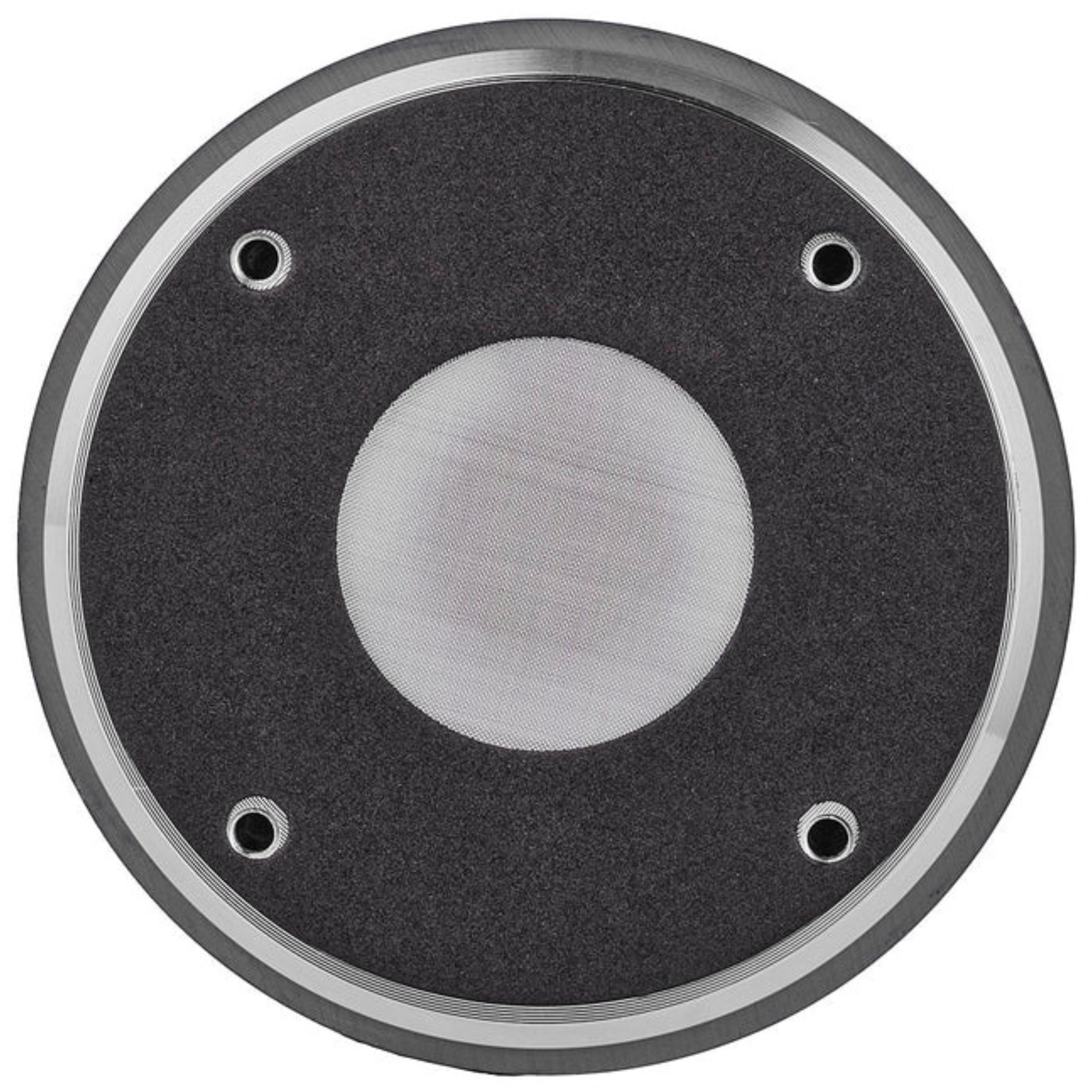

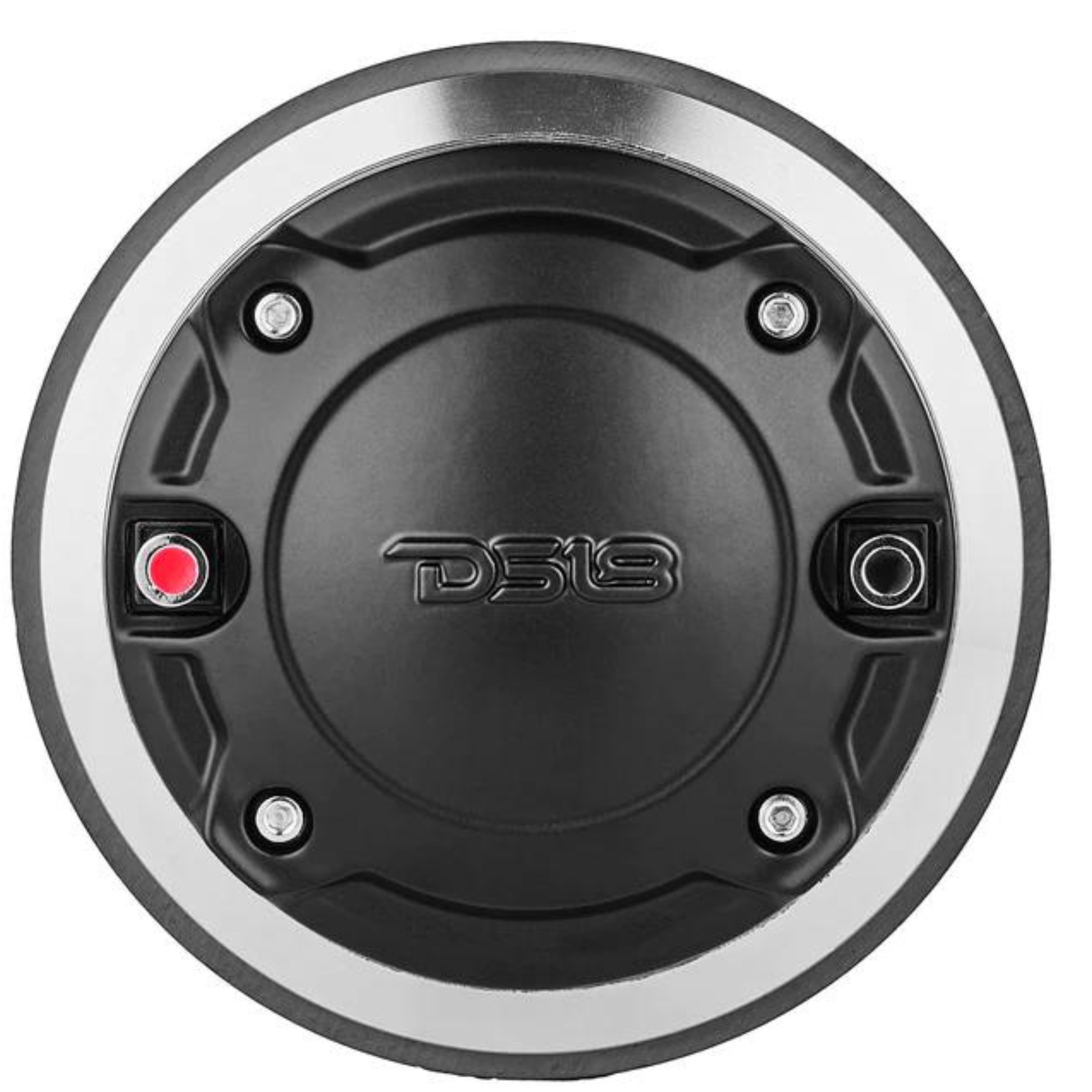

DS18 2" Throat Bolt-On Compression Driver 320W With Phenolic Voice Coil 8-OhmThis Listing Includes:



  • (1) Phenolic Voice Coil Compression Driver

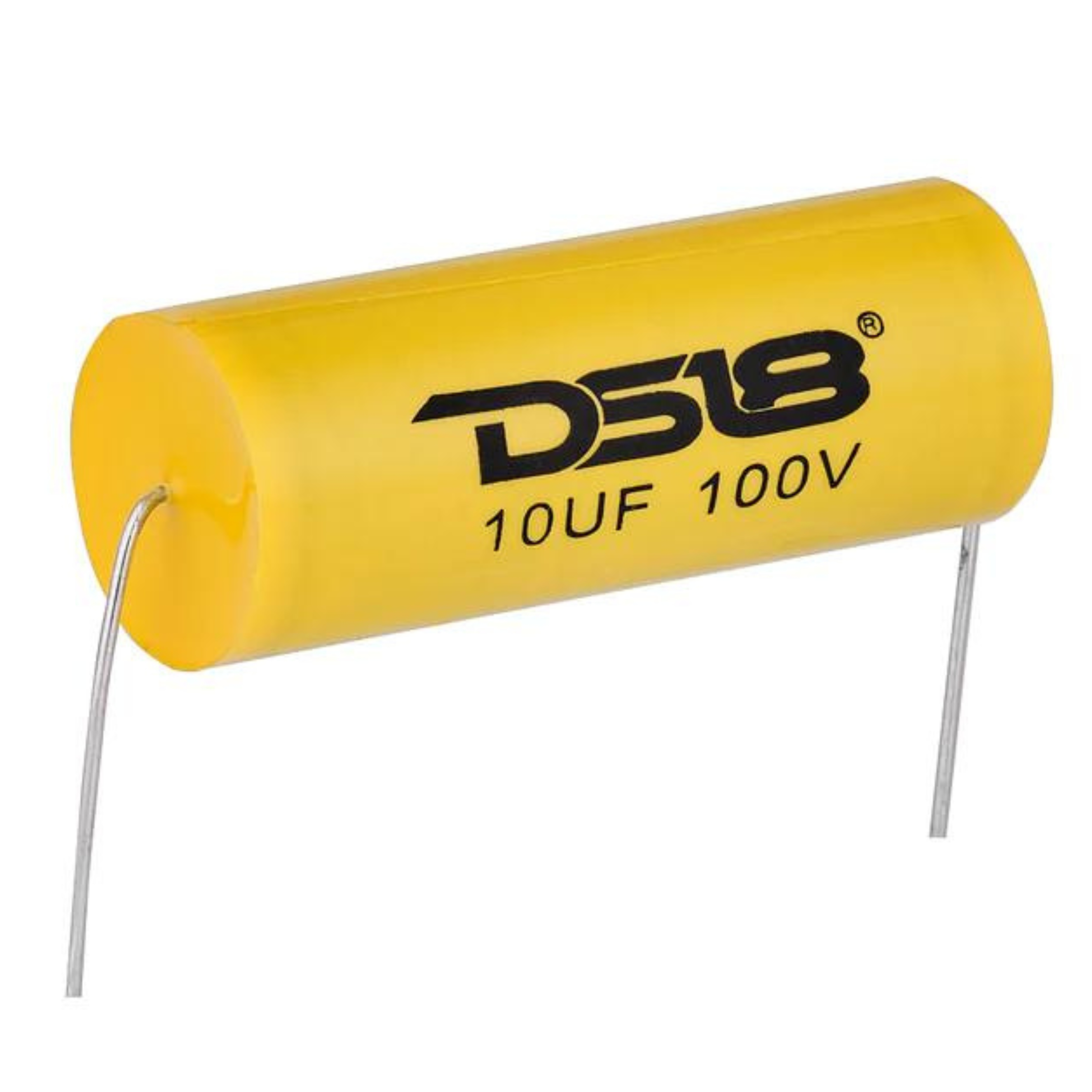

  • (1) 10UF 100V Bass blocker


Elevate Your Audio System with DS18 PRO-D22PH.8


Enhancing your audio system is a breeze with DS18's PRO-D22PH.8. Crafted to impress even the most discerning audiophiles, this powerful driver features a 2" phenolic voice coil that delivers exceptional sound quality and clarity.


Versatile Compatibility and Power Handling


With an 8-ohm nominal impedance, the PRO-D22PH.8 ensures compatibility with a wide range of audio setups. Its impressive power handling capabilities of 160W AES, 320W program, and 640W peak guarantee a dynamic sound performance. The high sensitivity of 110dB (1w/1m) ensures clear and powerful sound even at high volumes.


Durable Design for Optimal Performance


The 2" voice coil diameter, made from high-quality Kapton material, ensures durability and optimal performance. The phenolic diaphragm material enhances sound reproduction, providing crisp highs and smooth mid-range frequencies. The ferrite magnet contributes to the overall power and efficiency of this state-of-the-art driver.


Precision Craftsmanship in a Sleek Design


Crafted with precision, DS18’s PRO-D22PH.8 features an aluminum body in a sleek black finish. The bolt pattern and type of 4xM6 - 4" ensure a quick integration into any existing audio setup.


Body/Features:



  • Filter (Bass Blocker): 10Uf/100V

  • Body Material: Aluminum

  • Body Color/Finish: Black/Machined


Motor:



  • Voice Coil Diameter: 2" / 50.8mm

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW (Copper-Clad Aluminum Wire)

  • Diaphragm Material: Phenolic

  • Magnet Material: Ferrite

  • Magnet Weight: 35 oz


Speaker Specifications (PRO-D22PH.8):



  • SKU: PRO-D22PH.8

  • Throat Diameter: 2" / 50.8mm

  • Installation Type: Bolt-On

  • Nominal Impedance: 8 Ohms

  • AES Power Handling: 160W

  • Program Power Handling: 320W

  • Peak Power Handling: 640W

  • Sensitivity (1w/1m): 110dB

  • Frequency Response: 630Hz-8KHz

  • Recommended Hi Pass Crossover: 800Hz

  • Sold in Pair or Single: Single

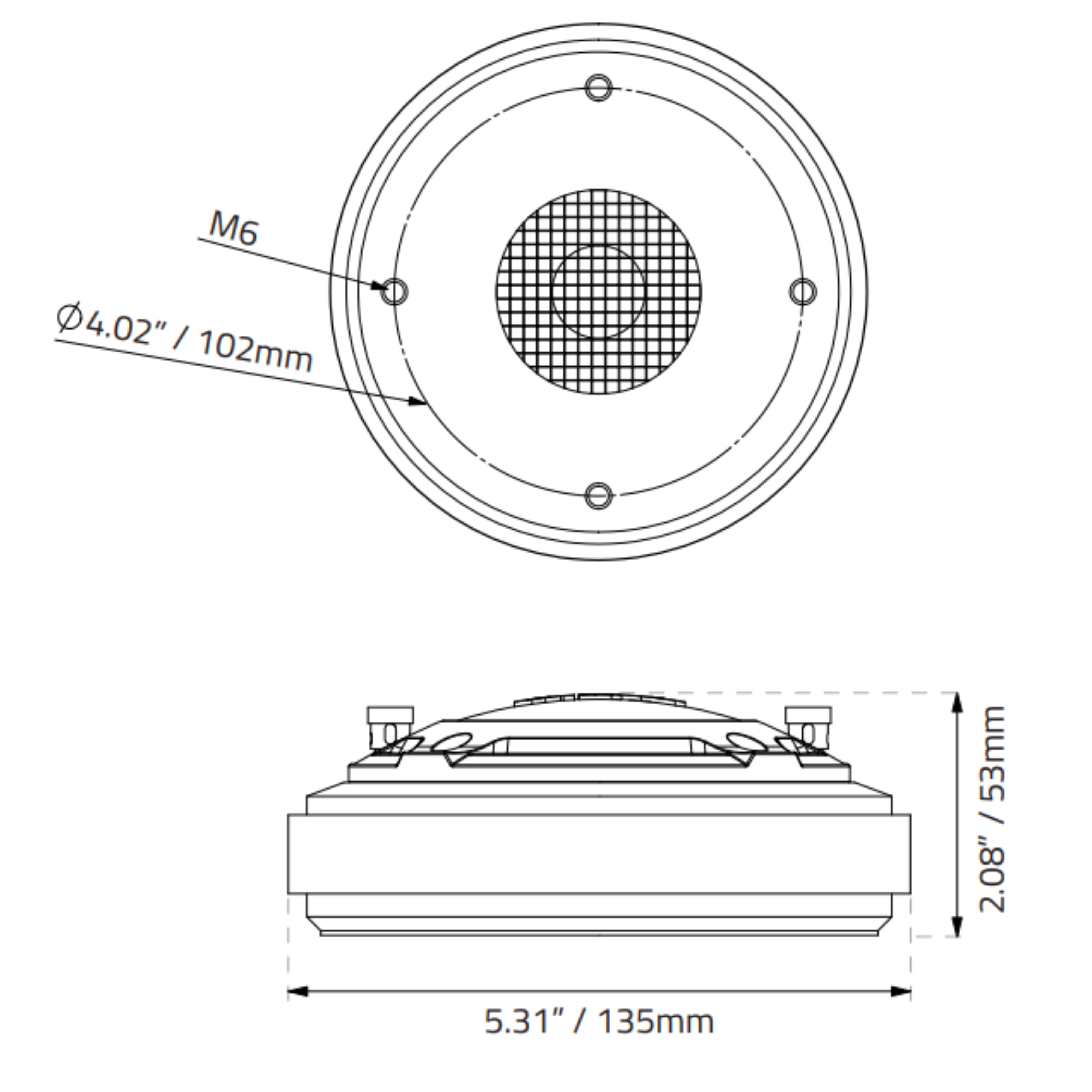

Measurement:



  • Overall Diameter: 5.31" / 135mm

  • Overall Depth: 2.08" / 53mm

  • Bolt Pattern/Type: 4xM6 - 4" / 102mm
