This air-cooled charger 18S 7200W dual-channel smart charger is suitable for 18S 30000mAh battery 50L 50kg agricultural drone



Specifications:

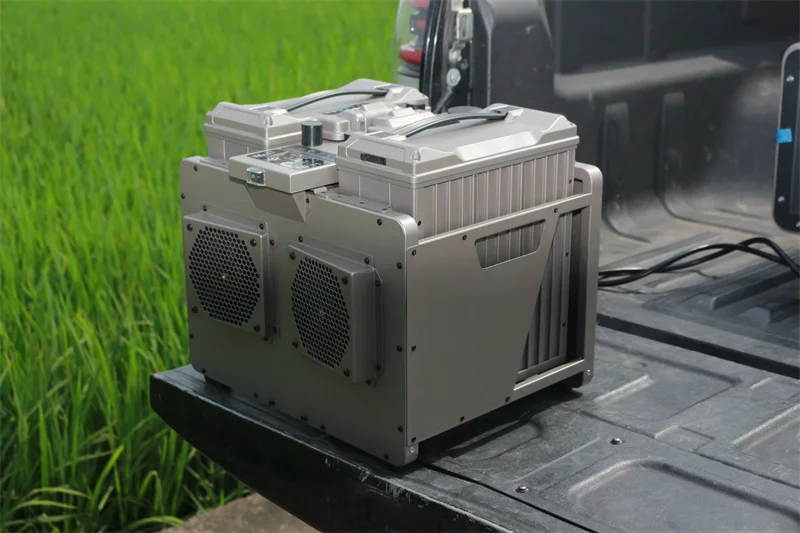

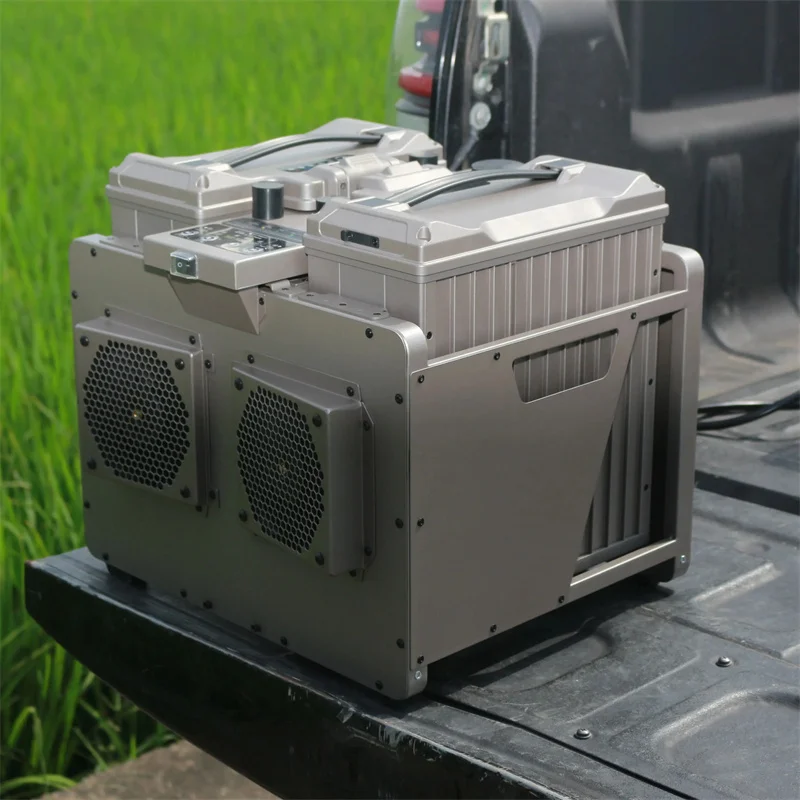

This 18S-7200W dual-channel smart air-cooled charger is compatible with our smart battery. The smart charger can automatically identify Smart battery. The specially developed smart charging mode can dynamically adjust the best charging strategy according to the health status of our smart battery to achieve The best charging effect of safe and fast charging, and make the battery reach the best working and storage state, extending the battery life.


 This smart charger features:


1.Charging power: maximum output is 7.2kw.

2.The maximum charging current is 100A (the charging request current of the adaptive smart battery, the maximum does not exceed 100A).

3.Can intelligently identify special smart batteries.

4.Intelligent fast charging mode for dedicated smart batteries.

5.Supports intelligent charging management of single or multiple batteries.

6.With CAN external communication interface.

7.With Bluetooth upgrade function.

8.With data logging function.

9.Rechargeable batteries can be air-cooled to dissipate heat.






The serial number of the Test Item parameter

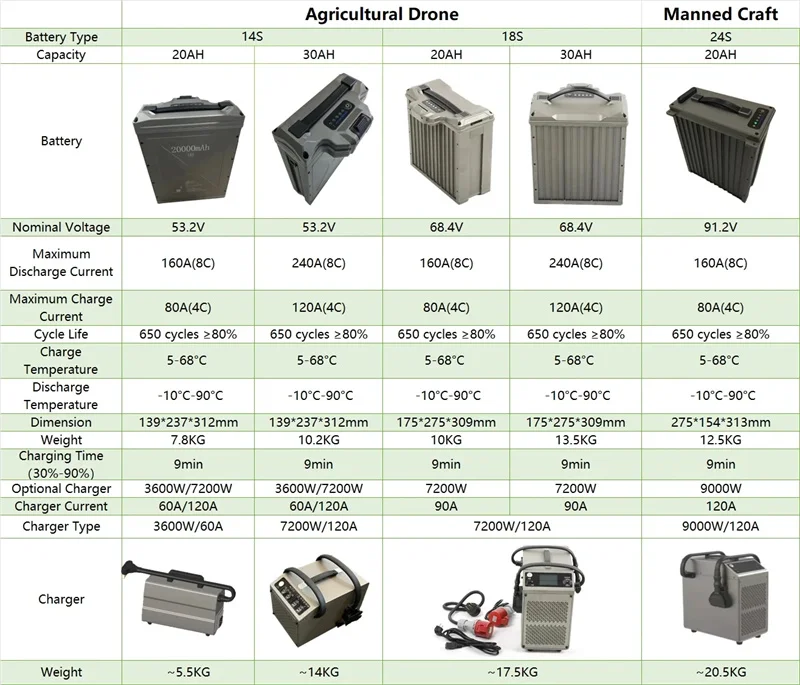

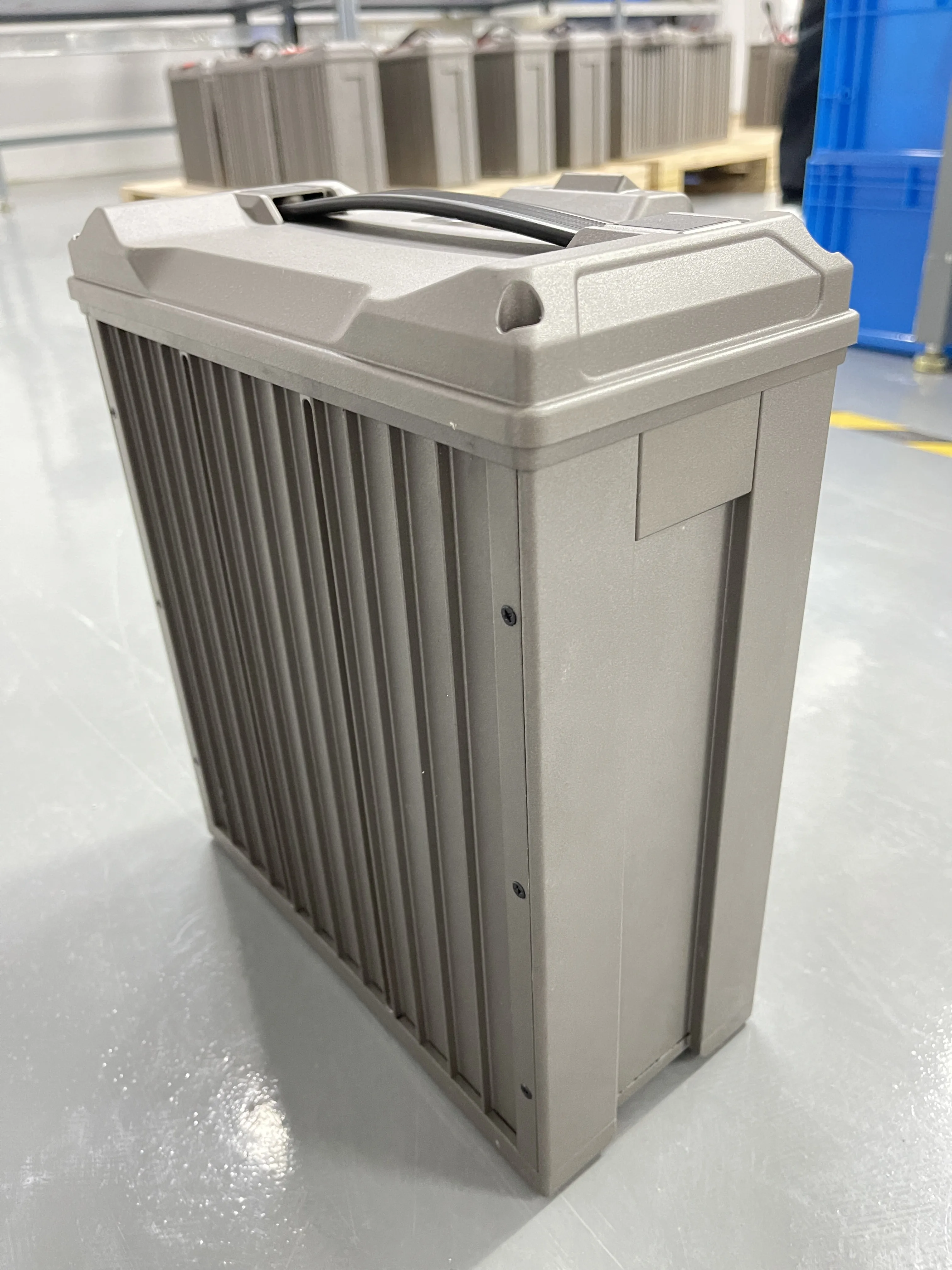

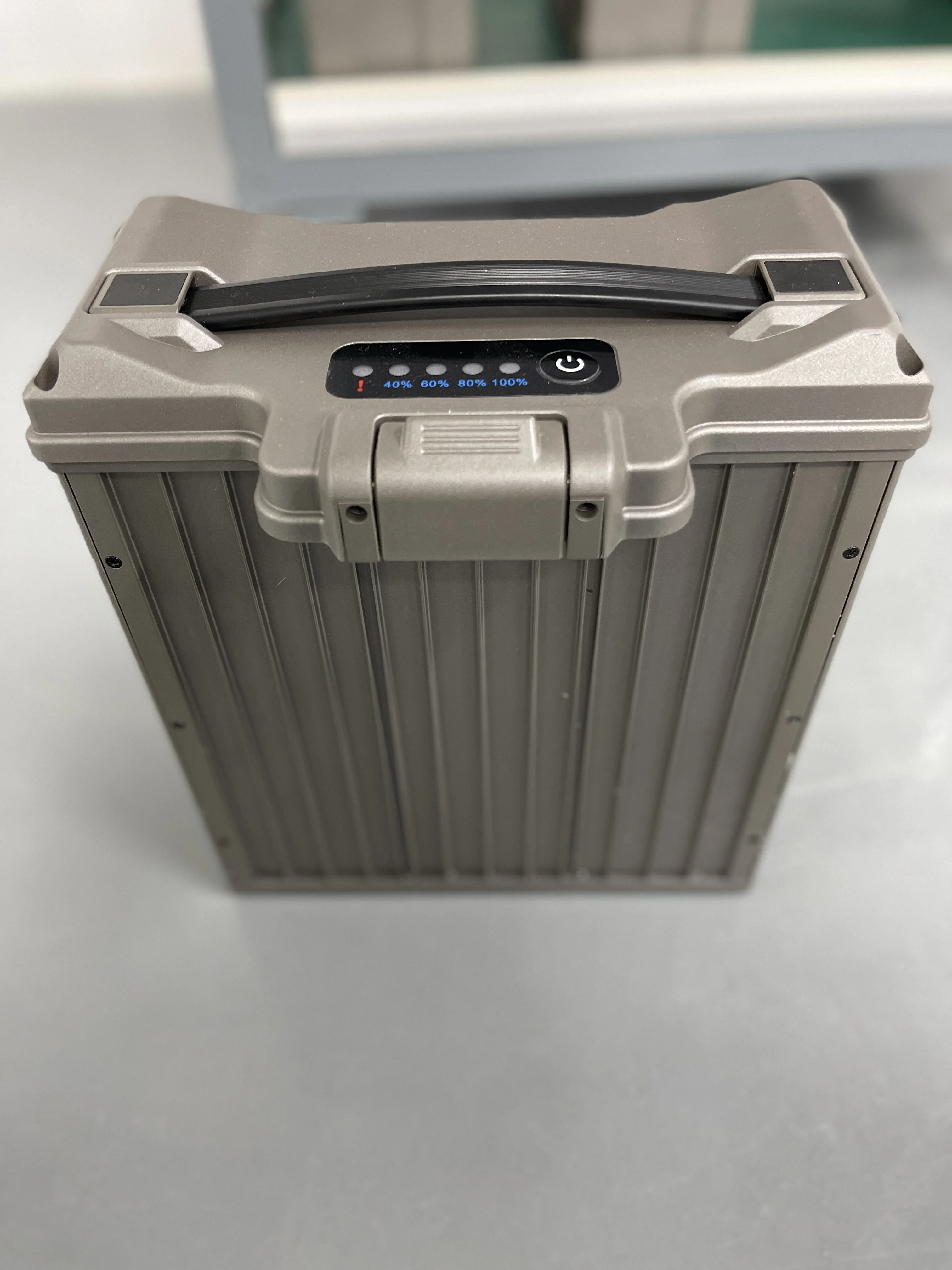

1 Cell assembly specification (3.8V30Ah) 18S1P T12105212-30Ah

2 Nominal voltage 68.4V

3 Nominal capacity 30000mAh @0.5C Discharge typical

4 Minimum capacity 29500mAH

5 Energy 2018Wh

6 Battery weight approx: 13.5KG

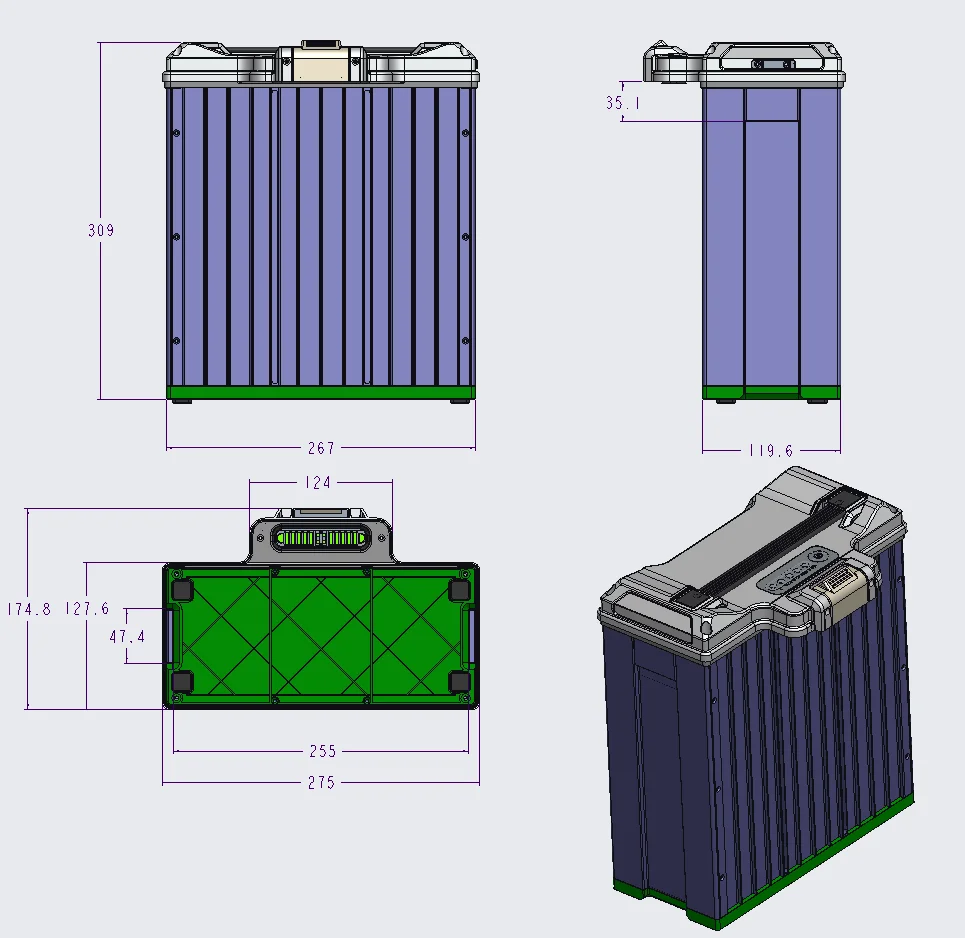

7 Battery size with shell size: 175*275*309mm

8 Battery shipment voltage 64.8V~68.4V (capacity 50%)

9 Charging voltage DC 78.3V

10 Charging Current Standard charge: 0.5C Approx 2.5Hour (approx. 2.5 hours)

Rapid charge: 3C Approx 20min (about 20 minutes)

11 Standard charging method 0.5C CC (constant current) charging to 78.3V, and then CV (constant voltage 78.3V) charging until the charging current ≤0.05C.

12 Fast charging Slow charge: 78.3V 0.05C cut-off

Fast charge: 78.3V 0.4C cut-off

13 Maximum charging current 120A

14 Maximum discharge current 240A

17 Operating temperature Charging temperature: 5-65°C (battery temperature) / Discharge temperature: 0~60°C (0°C~-5°C, 7C battery discharge capacity attenuation 10%)

18 Storage temperature -10°C ~ + 30°C
