Carbon fiber composite fuselage
More than 4h Battery Life 260km Cruising Range
3.5h Battery Life
Quick-Detachable Fuselage, Portable for Operation and Transportation
AutoCenter Motor Reduce Wind Resistance
2kg Payload
Self-Developed Flight Controller

VTOL Specifications

• Body Material: Carbon fiber + Kevlar composite material
• Size: 2438 x 1300 x 376mm
• Max Flying Speed: 30m/s
• Economical Cruising: 18m/s (65km/h)
• Stall Speed: 14.5m/s @ 13kg
• Max Cruising Range: 310km
• Max Payload: 2kg
• Wind Resistance: Level 5
• Take-off and Landing Mode: VTOL
• Power: Electric
• Positioning Accuracy: Single point positioning: 1.5M; RTK: 1CM+IPPM
• Flight Controller: Standard CUAV Autopilot (optional)
• Communication Distance: Subject to link data

Pro VTOL UAV

This drone is an electric Vertical Takeoff and Landing (VTOL) Unmanned Aerial Vehicle (UAV) designed for mapping, surveying, and inspection applications. Crafted with precision, this drone boasts cutting-edge features and a robust construction to meet the demands of diverse scenarios.

Key Features:

1. Carbon Fiber Composite Fuselage:

   • This drone's fuselage is constructed from a combination of carbon fiber and Kevlar composite materials. This design choice ensures a lightweight yet sturdy structure, providing the UAV with high strength and durability. The result is an extended service life and reduced maintenance needs.

2. Push Back Motor Design:

   • Equipped with a push-back motor design, this drone incorporates low KV, large pitch propellers. This design enhances motor efficiency without obstructing the camera's field of view, ensuring optimal performance during flights.

3. Quick Loading Structure for Portability:

   • The fluid design of the fuselage minimizes flight resistance, while the quick-loading structure facilitates easy disassembly and assembly. This allows for swift transport and operation, making the drone highly portable.

4. Self-Developed Core System:

   • Powered by CUAV's self-developed autopilot and communication link, this drone Pro supports various advanced features. These include off-site takeoff and landing, moving platform takeoff and landing, GPS rejection, terrain following, and cluster formation, providing versatile capabilities for different applications.

5. 2kg Payload Capacity:

   • With a payload capacity of 2kg, this drone accommodates various cameras, making it suitable for a range of applications, including surveying, mapping, inspection, and monitoring.

Application Scenarios:

This drone is designed to excel in a multitude of scenarios, including but not limited to:

• Mapping and Surveying
• Inspection and Monitoring
• Security and Firefighting
• 3D Modeling
• Urban Planning
• Geological Exploration
• Anti-Smuggling and Anti-Drug Operations
• Land Title Confirmation
• Emergency Rescue
• Scientific Research
• Transportation and Logistics
• Precision Agriculture
• Environmental Protection
• Logistics

In conclusion, this VTOL is a state-of-the-art drone that combines advanced features, durable construction, and a versatile design to cater to a wide range of applications. Whether it's for surveying expansive landscapes, ensuring security, or responding to emergencies, this VTOL UAV delivers exceptional performance and reliability.

This Electric VTOL UAV Carbon Fiber Composite Push Back Motor Long battery life 310km Cruising Range Autopilot Self-Developed Portable Transportation 2kg Payload Fast Disassembly Design Autopilot 2

This  model is a lightweight electric Vertical Takeoff and Landing (VTOL) Unmanned Aerial Vehicle (UAV). Its fuselage is constructed from carbon fiber and Kevlar composite materials, boasting exceptional lightness and high strength. The battery has a life span of up to 4 hours, while the cruising range reaches an impressive 310 kilometers.

This drone features a pushback motor design that combines high efficiency with unobstructed vision. The use of low-KV, large-pitch propellers enables greater motor efficiency while maintaining an open field of view for the camera.

This drone features a battery life that lasts up to 4 hours, with a cruising range of approximately 310 kilometers. This lightweight aircraft boasts a high-performance fuselage, allowing it to carry a payload of up to 2 kilograms and achieve a range of over 260 kilometers.

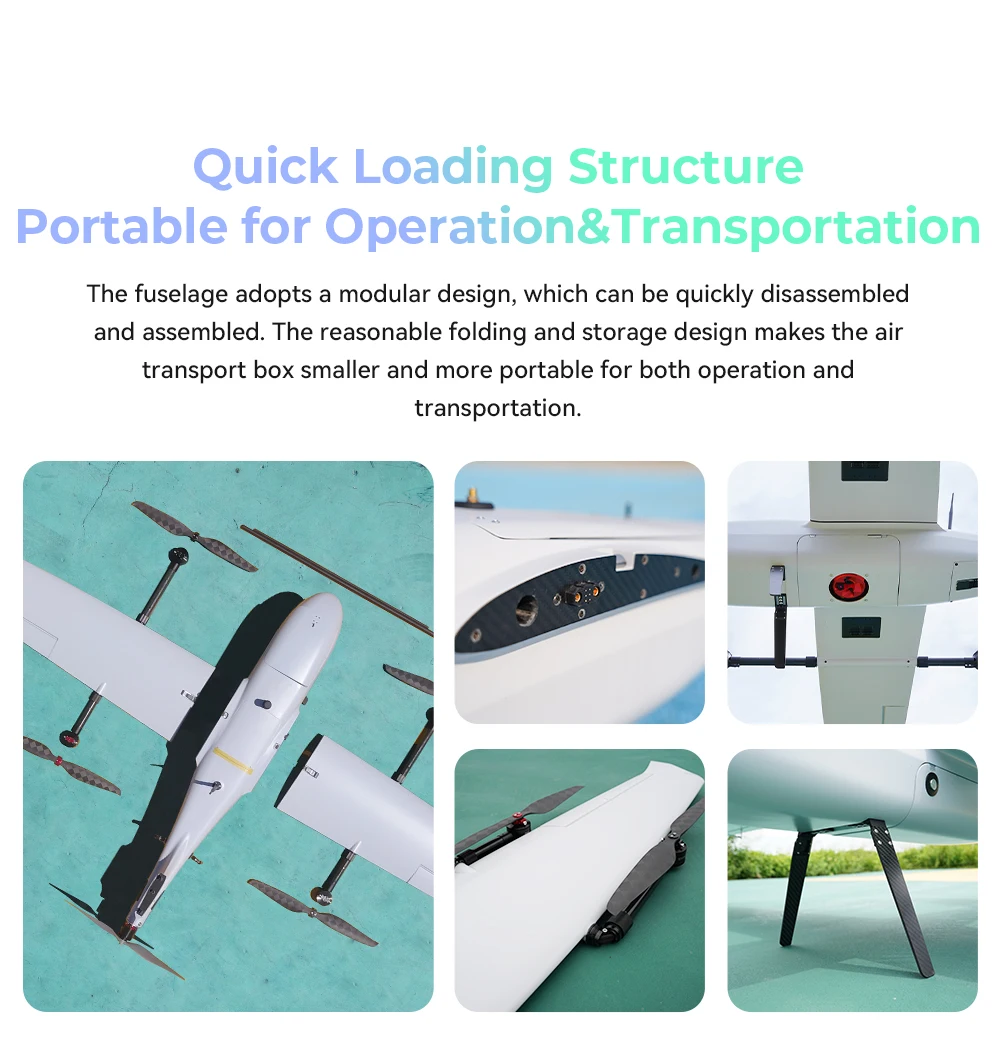

This drone features a quick-release structure that allows for rapid disassembly and assembly, making it easy to transport or store. Additionally, its compact and foldable design enables a smaller and more portable air transport box, perfect for convenient transportation and storage.

This drone is equipped with CUAV's core system, featuring advanced autopilot capabilities that integrate powerful features such as Real-Time Kinematics (RTK), airspeed sensors, and more. This sophisticated system supports remote takeoff and landing, moving platform takeoff and landing, terrain following, cluster formation, and other complex functions.

This drone features a durable fuselage constructed from carbon fiber and Kevlar composite materials, offering exceptional lightweight properties and high strength. This robust design enables the UAV to maintain a longer service life, reduce maintenance needs, and increase overall reliability.

This drone boasts a generous 2-kilogram payload capacity, making it compatible with various camera options. This flexibility enables users to adapt the drone to a wide range of applications and capture high-quality footage or images in various formats.

Applications of this drone include mapping and surveying, security monitoring, 3D modeling, urban planning, geological exploration, fire prevention, emergency rescue, inspection, scientific research, land and transportation surveys, environmental protection, water management, logistics, agriculture, precision agriculture, material transportation, ecological protection, poppy patrol, and other fields such as oil and gas pipeline surveillance, forestry monitoring, and education training.

This drone features an impressive cruising range of 310 kilometers, with a wind resistance level of 5. It supports take-off and landing modes, including Vertical Takeoff and Landing (VTOL). The drone is powered by a single point positioning system, offering accuracy down to 1.5 meters with RTK capabilities of 1 centimeter plus IPMS. The standard flight controller is the CUAV Autopilot, which can be customized with optional features such as GNSS receiver, remote controller, mission payload, fuselage coating, waterproof design, and remote ID.

This drone features a quick-detachable loading compartment, allowing for swift replacement of payloads and enabling the drone to adapt to various operational scenarios.

This drone features a CUAV-designed landing gear system, which includes automatic center motor quick-release paddles, a head-cooling air duct, and a rear cooling air conduit. Additionally, the drone is equipped with rotor ESC cooling air ducts to enhance overall performance and longevity.
