15" 1000 Watt RMS Pro Car Audio Subwoofer Combo w/APHF 1500 Watt Mono Amplifier

15" 1000 Watt RMS Pro Car Audio Subwoofer Combo w/APHF 1500 Watt Mono Amplifier

This Listing Includes:

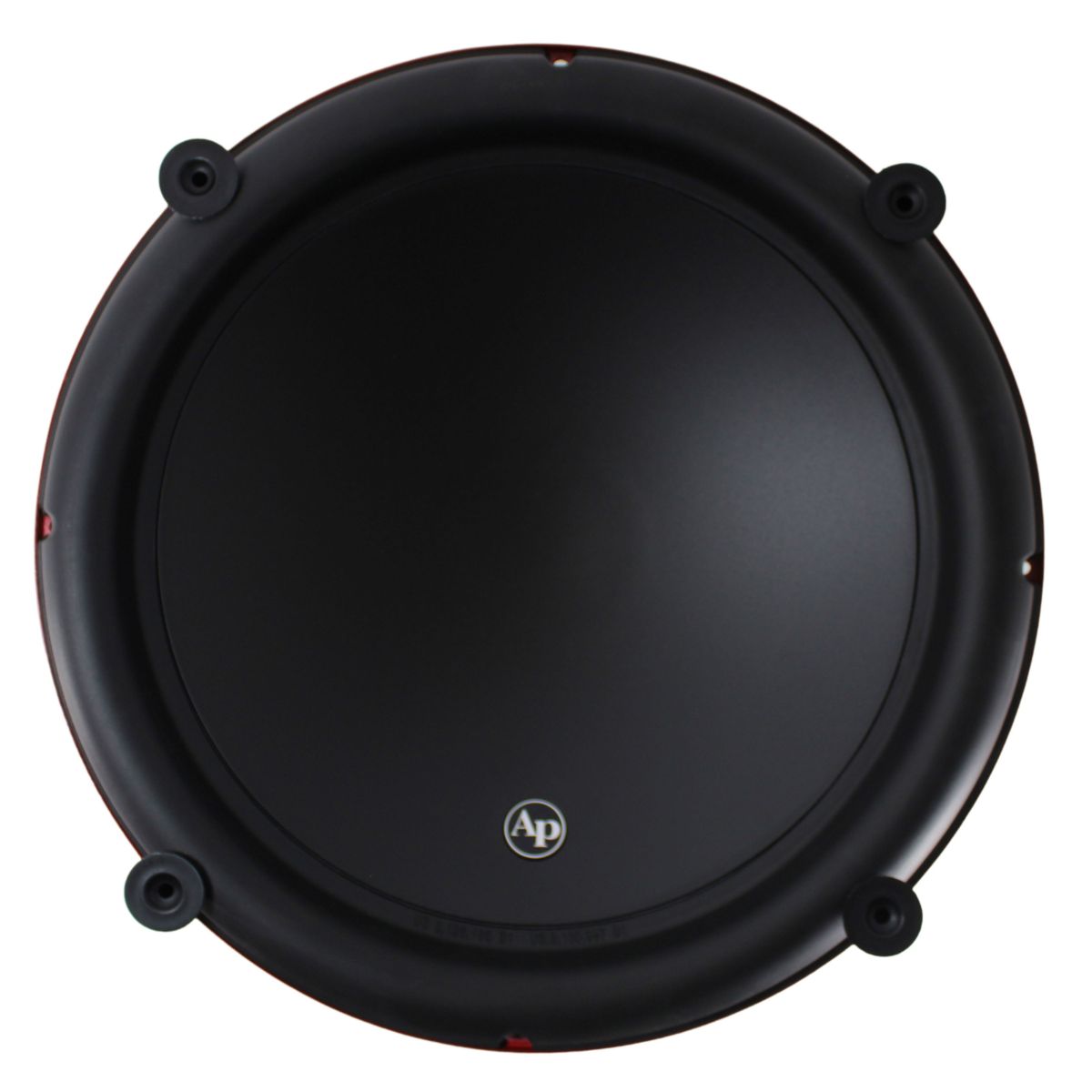

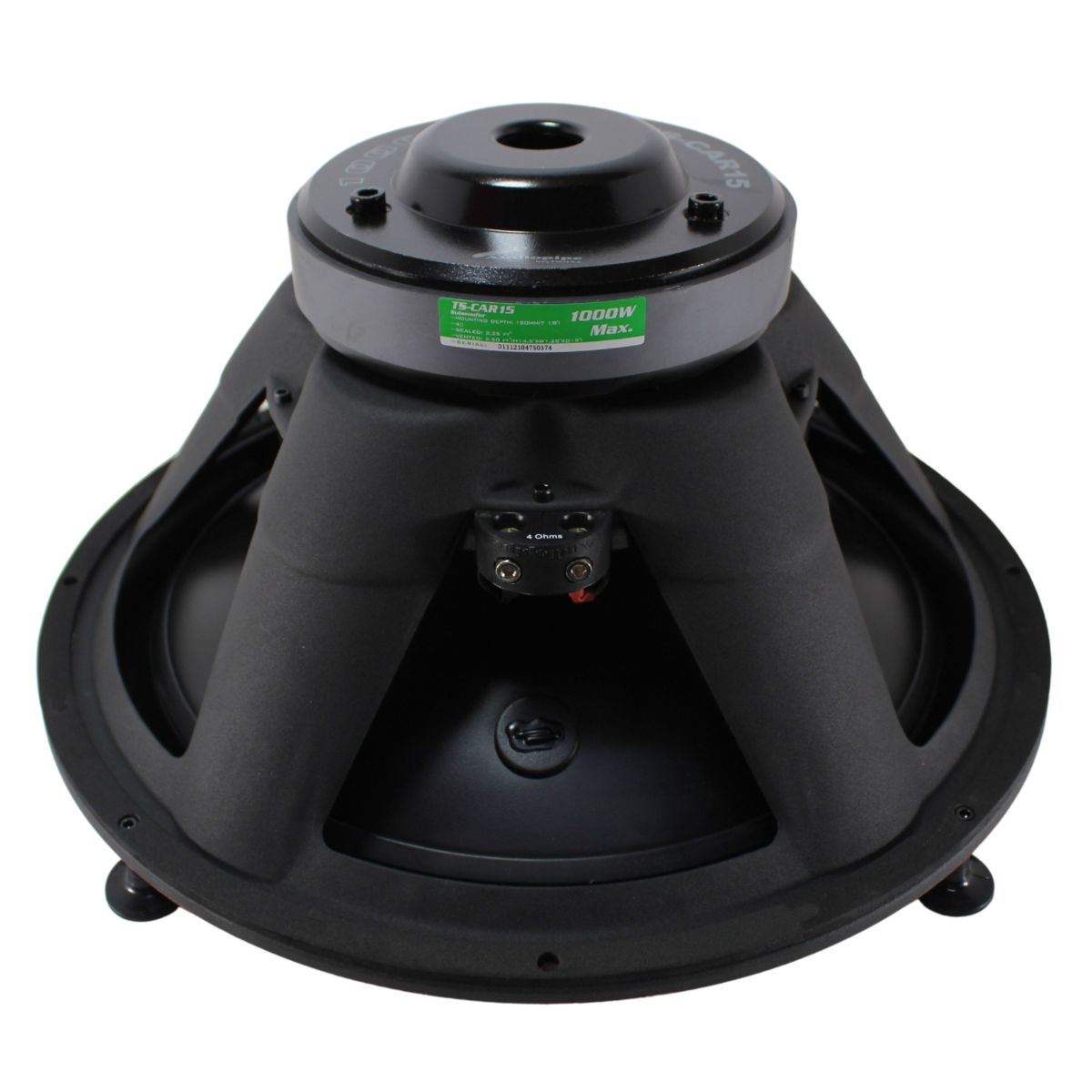

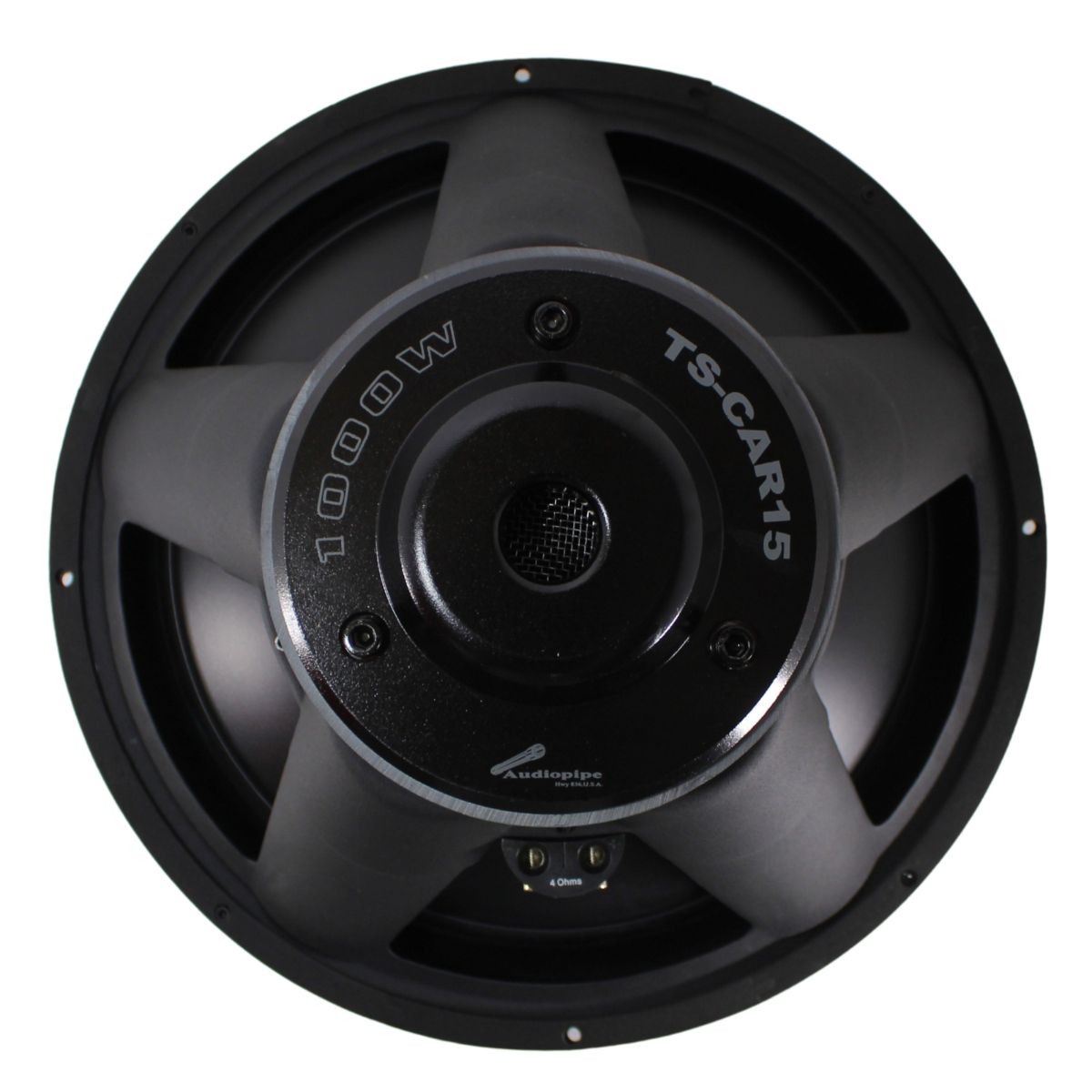

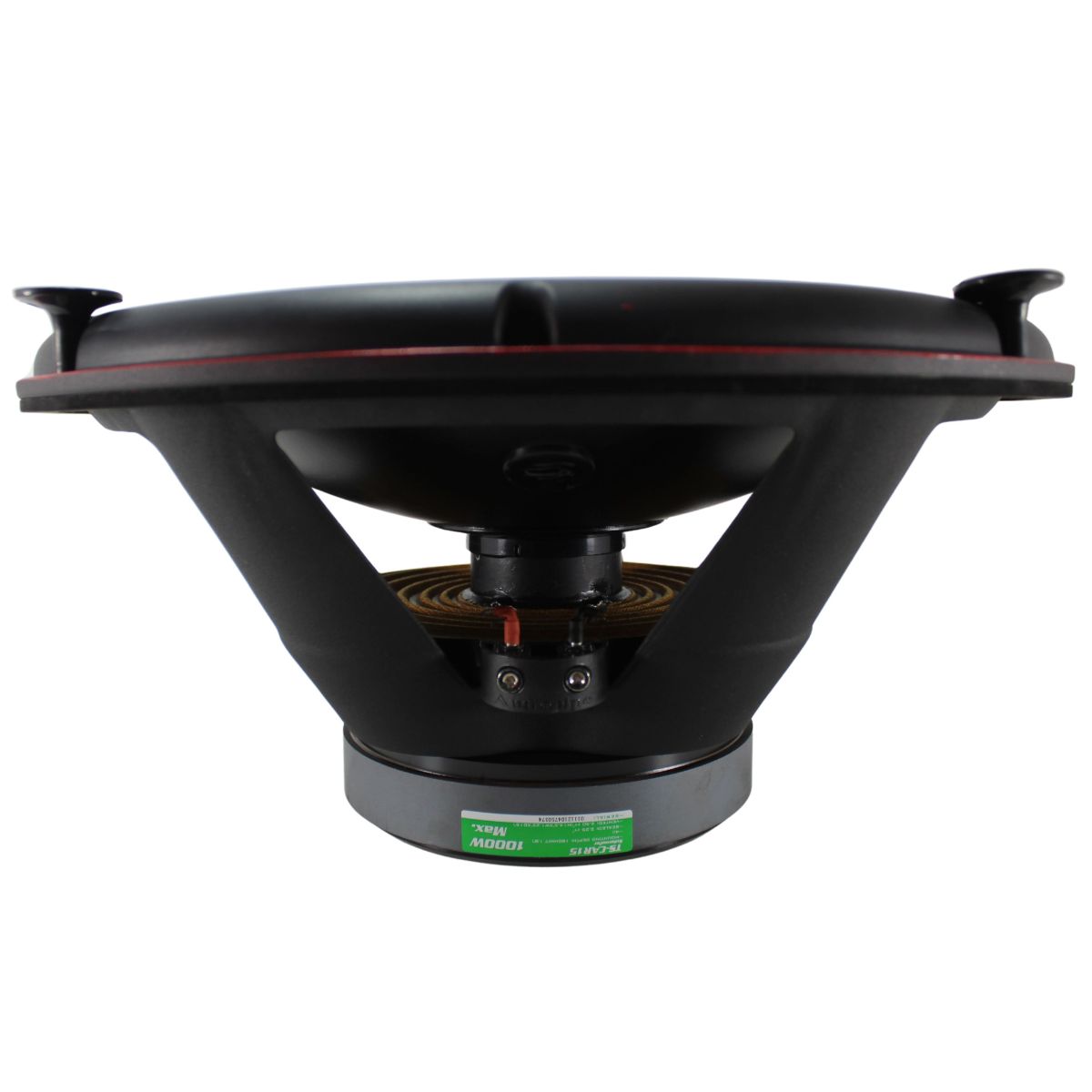

• (2) Audiopipe TS-CAR15 15" 500W RMS SVC 2-Ohm Subwoofers

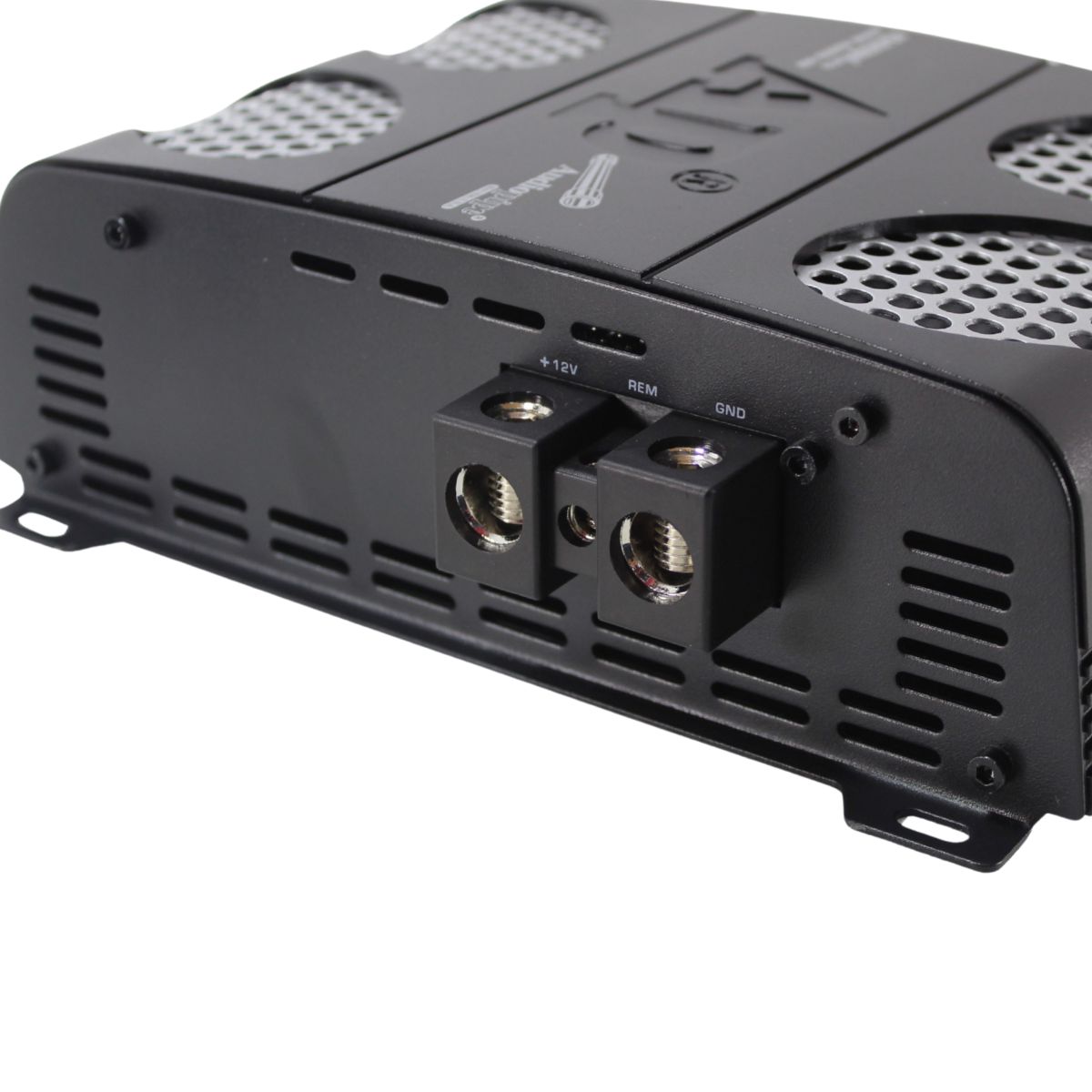

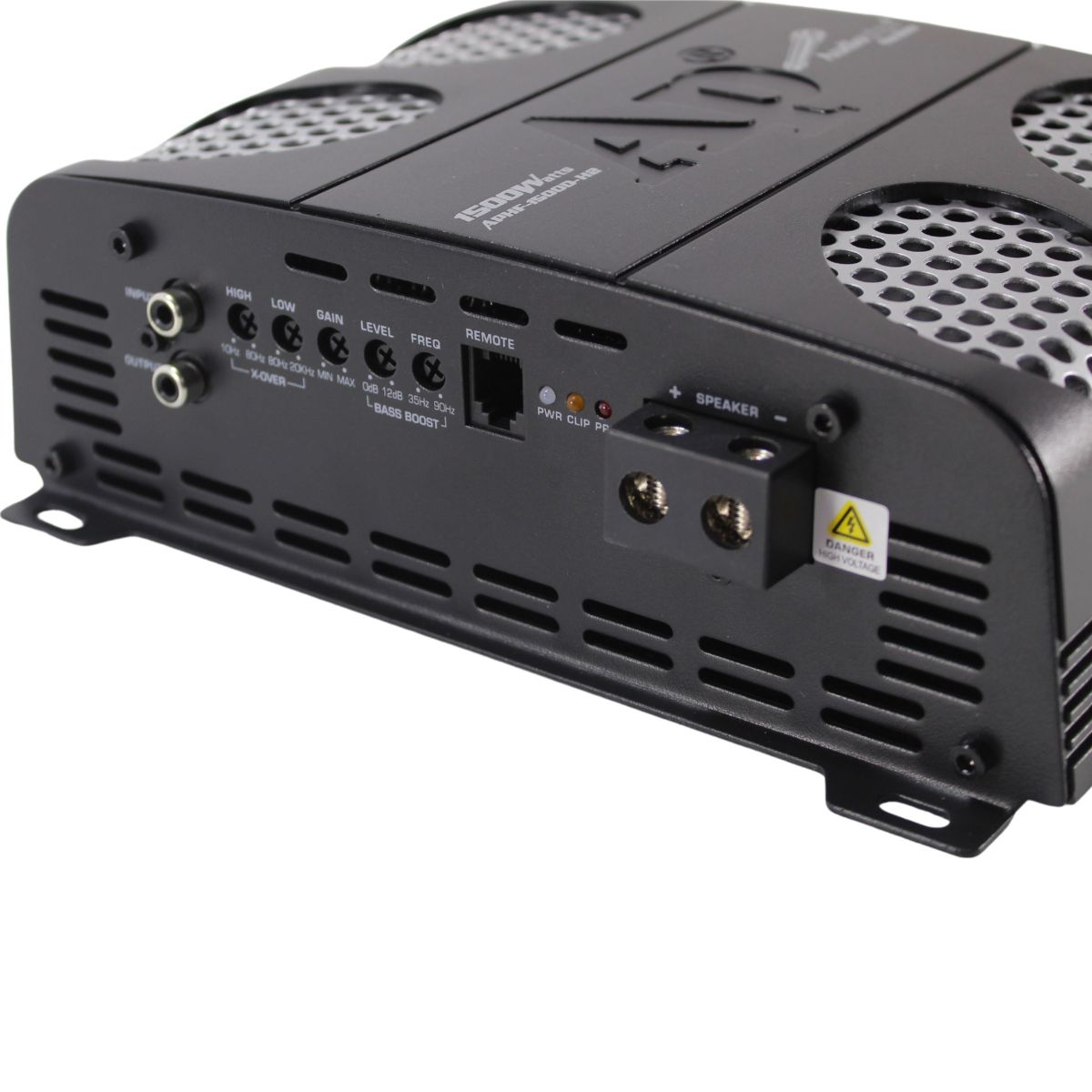

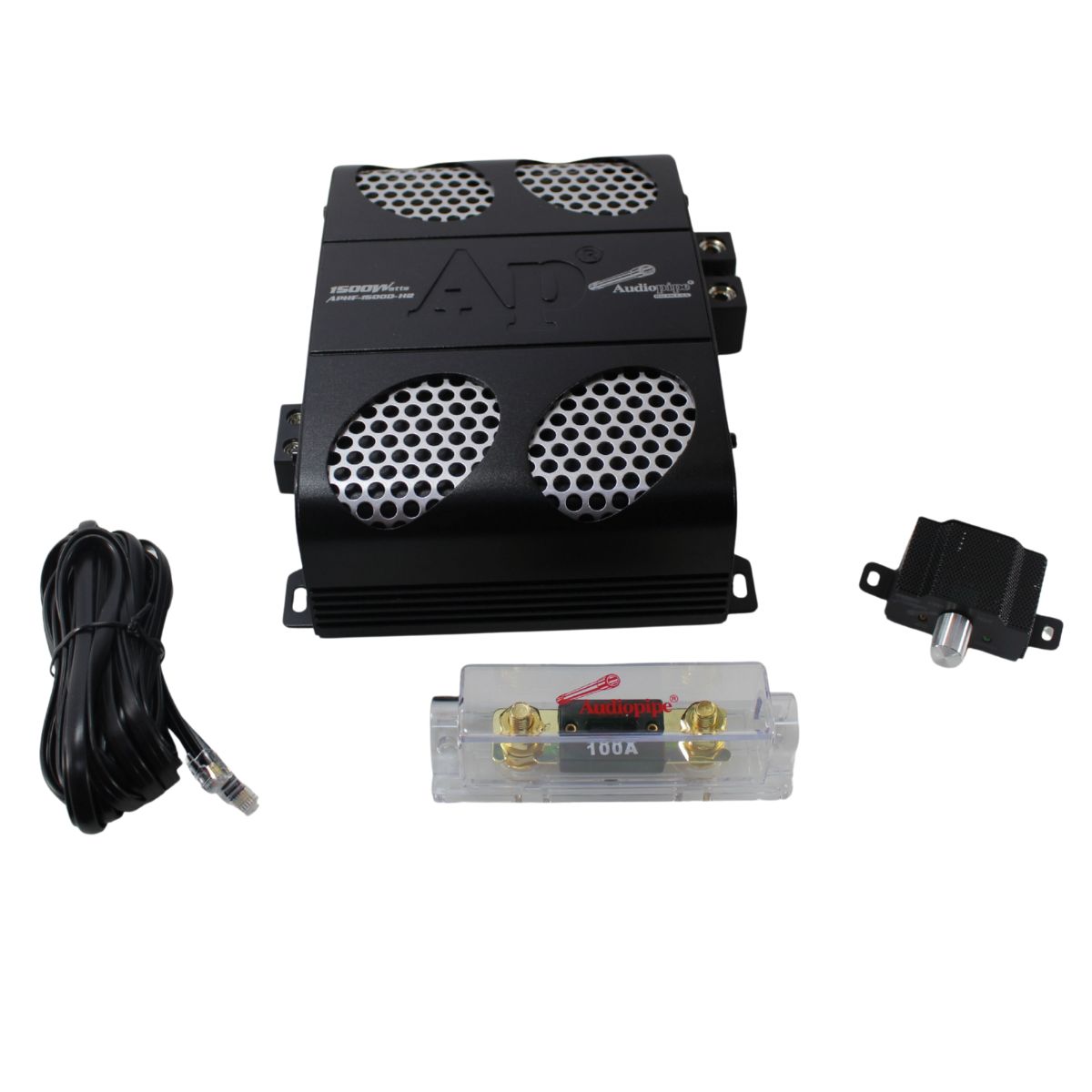

• (1) Audiopipe APHF-1500D-H1 Full-Range Class D Monoblock Amplifier (1500W Max, 1000W RMS @ 2 Ohm)

Product Description:

Crank up your low-end with this powerful Audiopipe combo featuring two 15" SVC 2-ohm subwoofers paired with a 1000W RMS monoblock amplifier. Whether you're building your first system or adding more bass to your current setup, this combo is engineered for clean, deep, and chest-thumping performance.

Combo Highlights:

• Perfect match for budget builds and single-sub setups


• Trusted Audiopipe performance


• Easy to install and tune


• Delivers clean bass and headroom for daily listening

Wiring Configuration:

• Wire both SVC 2-ohm subwoofers in parallel to achieve a final 1-ohm load, ideal for extracting maximum power from the APHF-1500D-H1 amplifier.


• This configuration allows the amp to deliver close to its full-rated 1000W RMS, powering each subwoofer with ~500W RMS.


• Use high-quality 10 AWG or thicker speaker wire and a 4 AWG amp kit for optimal results.

Subwoofer Features:

• Power Handling: 500 Watts RMS / 1000 Watts Max


• 4 Ohm Single Voice Coil


• 2.5" High-Temperature Voice Coil


• Stamped Steel Basket


• Treated Cloth Surround


• Vented Pole Piece for Cooling


• Mounting Depth: 7.4"


• Frequency Response: 30Hz-1.5kHz

Specifications:

• 1000 Watts Power (P.M.P.O.)


• 500 Watts Power (R.M.S)


• Frequency Response: 20-1000Hz


• Sensitivity: 91dB


• 2.5" 4-Layer Single Voice Coil BASV


• Powdered Black Paint Steel Basket


• Patent Pipe Multi-Connect Terminal


• Impedance: 4-Ohms


• 73 Oz. Magnet

Measurements:

• Length: 17"


• Width: 17"


• Height: 10"


• Weight: 17.4 lbs


• Overall Diameter: 15 3/8"


• Mounting Diameter: 14 3/8"


• Mounting Depth: 7 1/16"

Enclosure Recommendations:

• Ported (Vented)


• Ported boxes offer louder and deeper bass response, which pairs well with the 500W RMS sub and full-range amp combo.


• Internal Volume: 3.0 -3.5 cu. ft. (net)


• Tuning Frequency: 34Hz-38Hz


• Port Area: 40–50 sq. in. (slot port recommended)


• Material: 3/4" MDF minimum


• Mounting Depth Required: 7.5" minimum

Pre-Fab Options Available at Big Jeff Audio:

• Single 15" Ported Subwoofer Box (3.25 cu. ft. tuned to 36Hz)


• Custom 15" Enclosures: Available with tuning options and heavy-duty terminals.

Sealed enclosures are possible for tighter bass response but will reduce output. Go sealed only if space is limited or you want a more accurate (less boomy) sound.

Amplifier Features:

• Full-Range Class D Monoblock


• Max Power: 1500 Watts


• Stable at 2 Ohms


• Variable Low Pass Filter (50Hz-250Hz)


• Variable Subsonic Filter (10Hz-50Hz)


• Bass Boost Control


• RCA Line Level Inputs


• Compact and Efficient Design


• Dimensions: 8.5"X7"X2.3"

Specifications:

• FREQUENCY RESPONSE: 10Hz-20KHz


• RMS @ 4-Ohm (<1% DISTORTION): 500W (14.4V)


• RMS @ 2-Ohm (<1% DISTORTION): 1000W (14.4V)


• RMS @ 1-Ohm (<1% DISTORTION): 1500W (14.4V)


• SIGNAL TO NOISE RATIO: >85dB


• INPUT SENSITIVITY: 0.25 -4V


• HIGH PASS: 10Hz-80Hz 12dB/Octave


• LOW PASS: 80Hz-20KHz 12dB/Octave


• BASS BOOST: 0-12 dB @ 35Hz-90Hz


• OVER-VOLTAGE PROTECTION: 16V


• UNDER-VOLTAGE PROTECTION: 9V

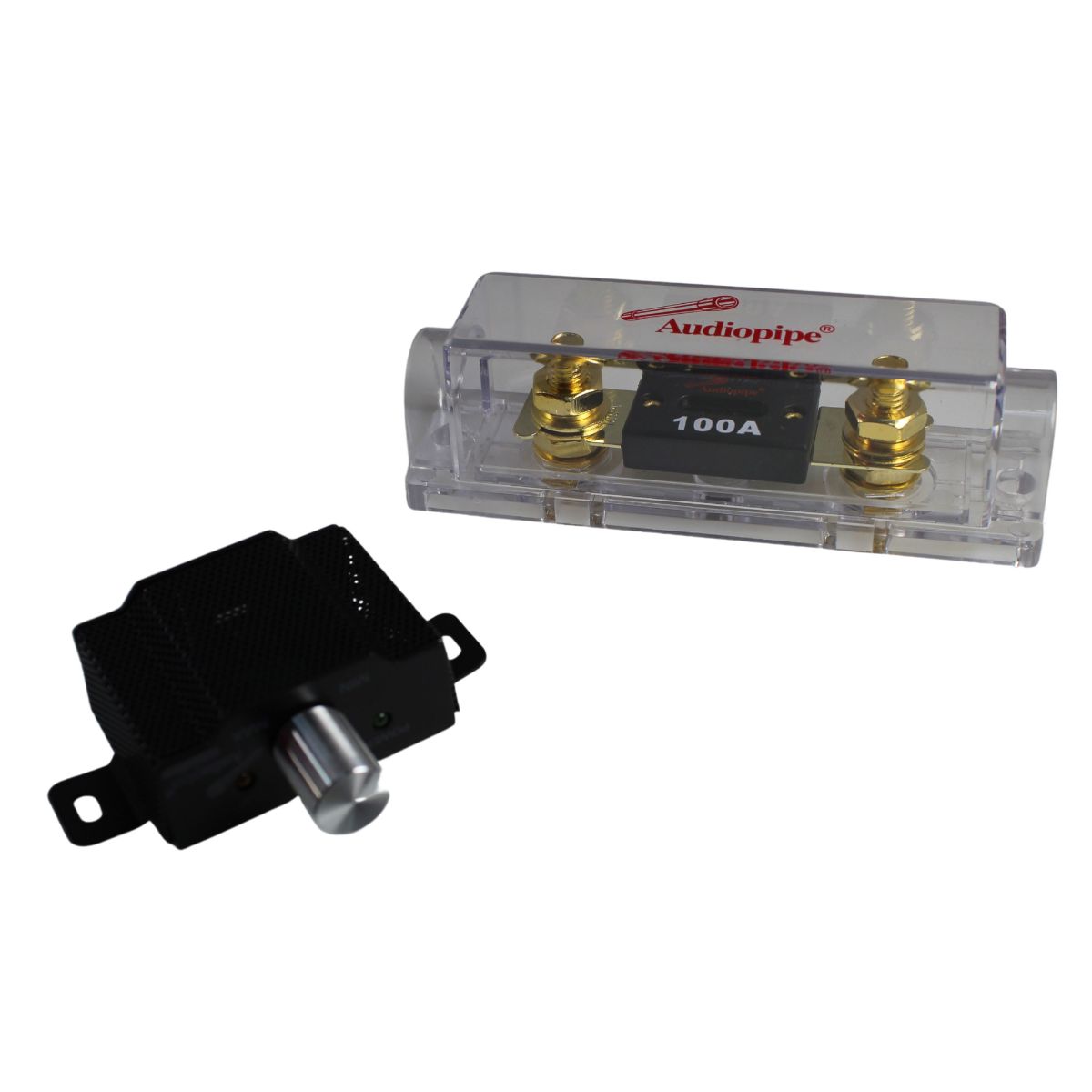

• FUSE TYPE: 100A ANL Fuse


• Power/Ground Terminal Inputs: 0 Ga


• Speaker Terminal Inputs: 4 Ga

Dimensions:

• Length: 5.9" (150mm)


• Width: 9.0" (229mm)


• Height: 2.9" (73mm)
