Product Description

ANT Smart BMS 8S-22S 40A-230A Li-ion LiFePo4 LTO Battery w/Balance BT Built in

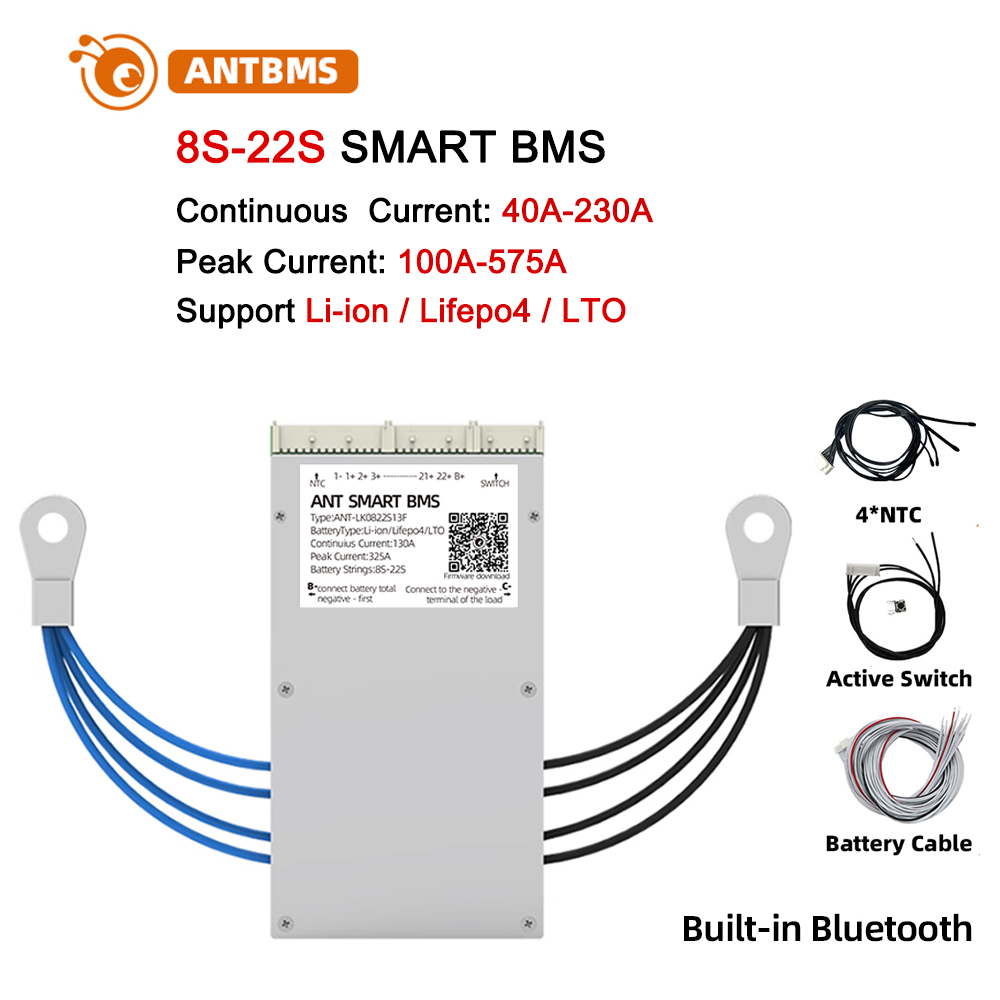

8S-22S ANT SMART BMS

Built-in Bluetooth: Support for Android and IOS

Number of detectable strings: 8S-22S  battery

Support cell: Li-ion, LiFePo4, LTO

Power supply: battery pack self-powered, 24-150V DC input

Monomer voltage detection: 0-5V, error < 10mV in the whole working range, typical error value < 5mV

Single voltage drop detection: Supported

Balancing function: maximum 280mA passive balancing



Product characteristics



Bluetooth function

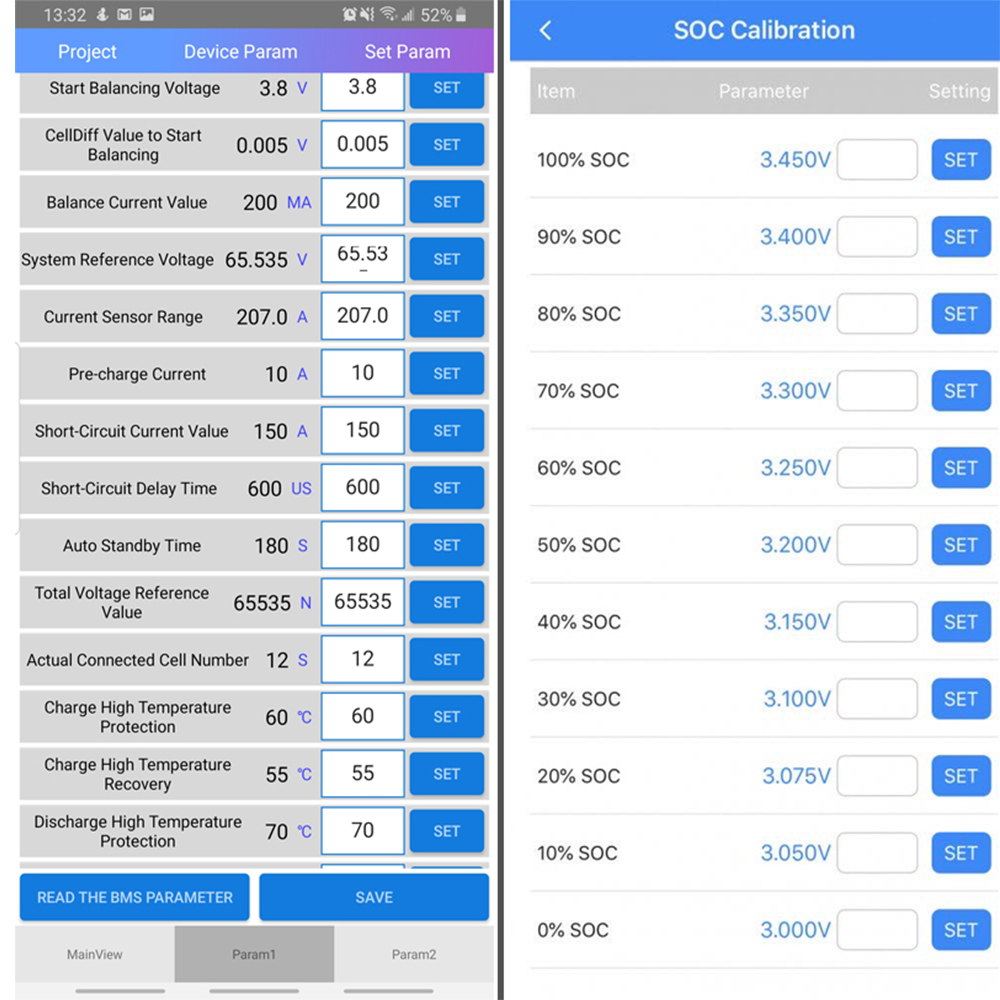

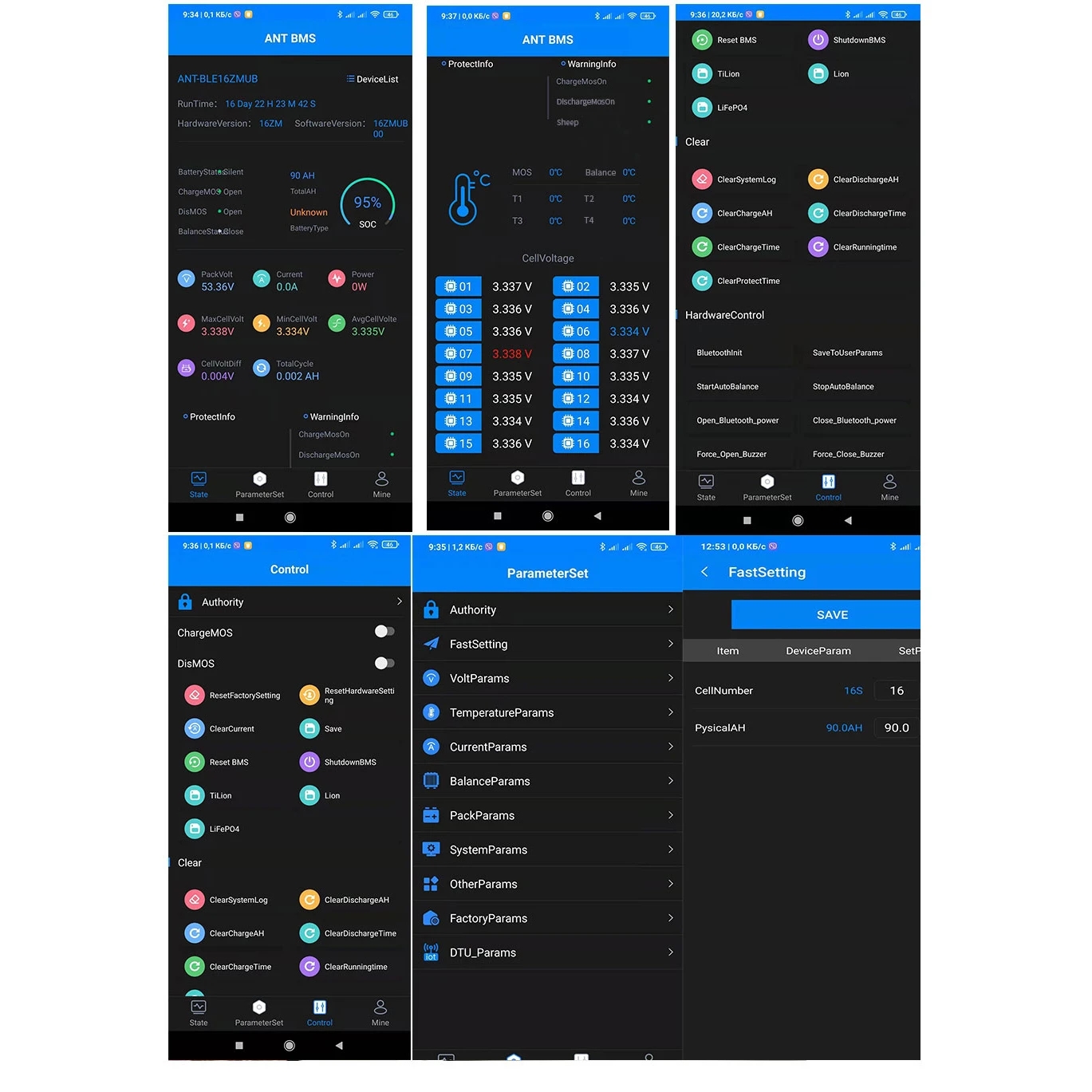

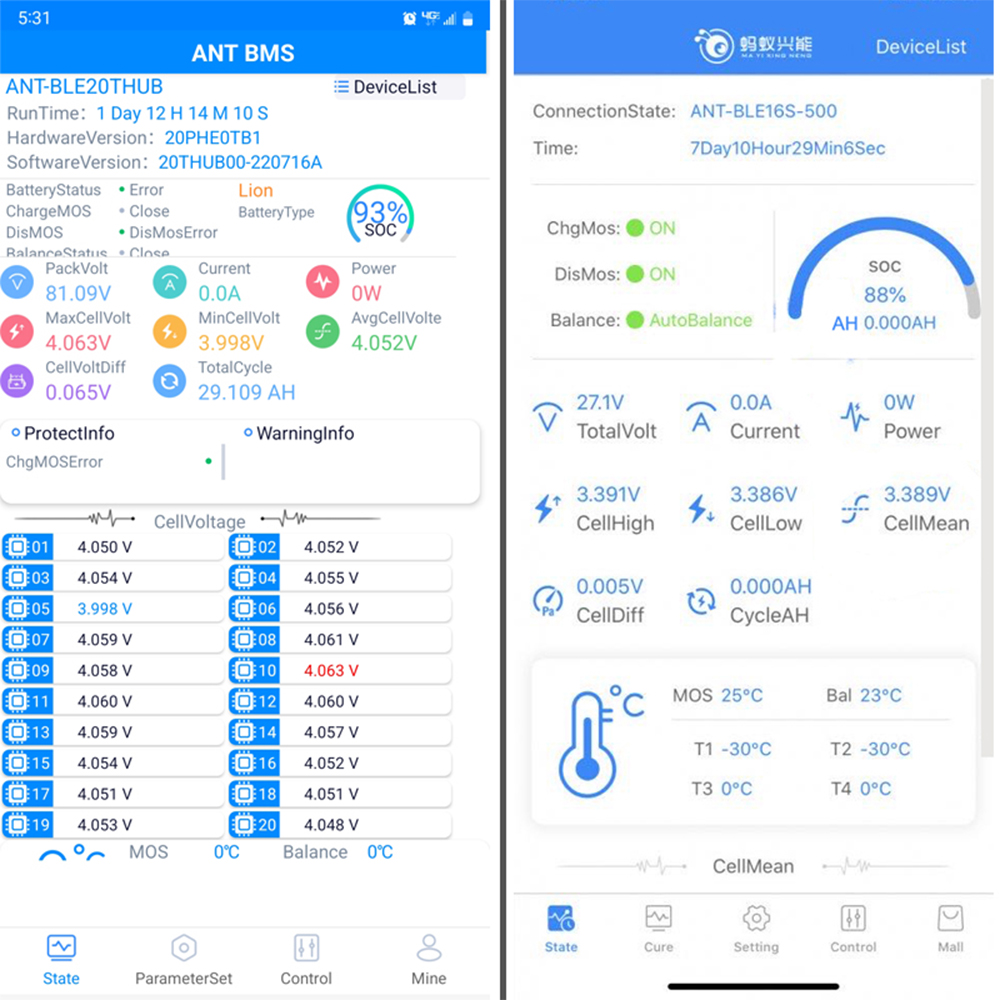

APP can view parameters, set different cell types, battery string number, battery capacity and other parameters, display protection information, fault records, etc

Monomer voltage acquisition

Supports a maximum of 22S battery for real-time voltage sampling, and the total voltage is greater than 24V. Support 8S~22S of Li-ion, LiFePo4, and Lithium Titanate

Temperature acquisition

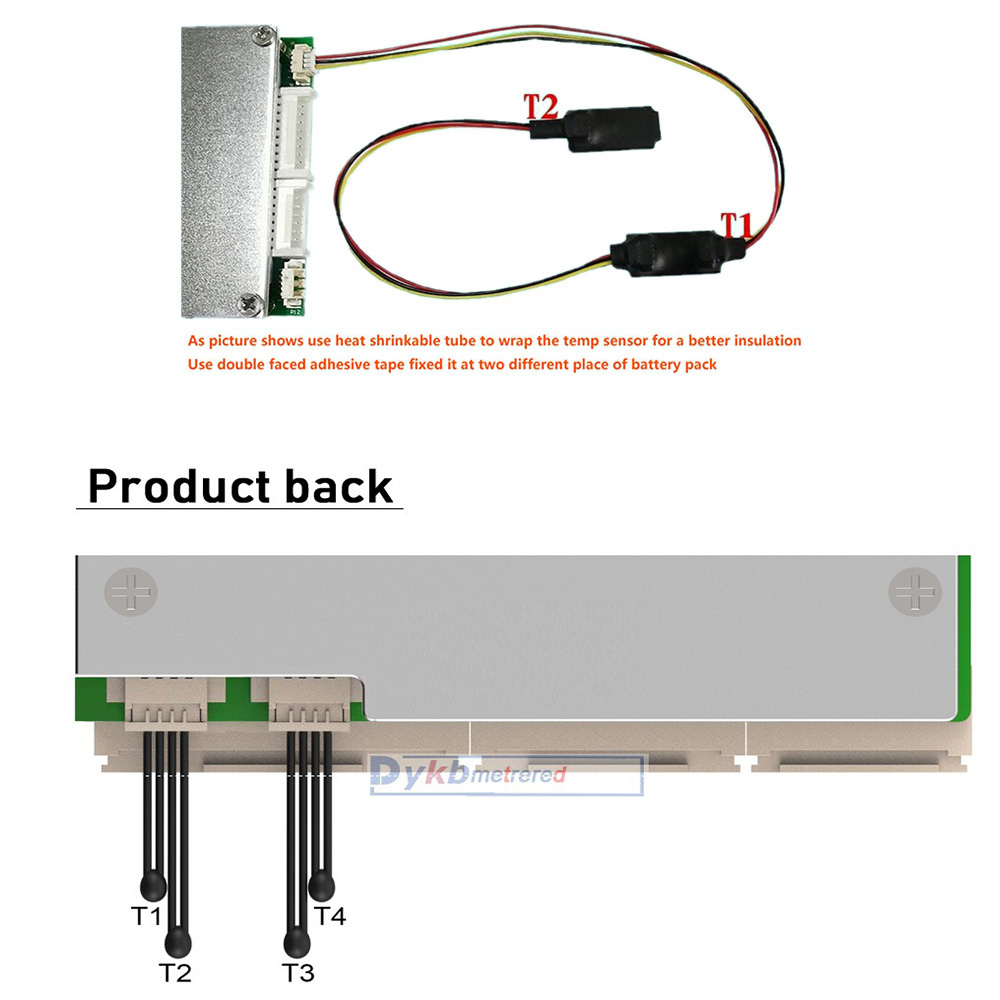

Sample cell surface temperature, ambient temperature, MOSFET temperature and equalization circuit temperature

SOC/ SOH calculation

Calculate the remaining capacity of the battery and the health information to get the working status of the battery string

MOSFET driver

Driven by MOSFET, the power loop is switched on/off

Total voltage detection

You can check whether precharge is complete and check the total battery voltage

Current detection

By detecting current, real-time current detection, short circuit protection, sleep/wake up and other functions are realized

Battery equalization

Energy dissipation balance through passive resistance can effectively maintain the battery and improve the consistency. Active balance can be achieved by setting parameters to meet the conditions



Description：

This BMS supports 8S-22S of LiPo, LiFePo4 and LTO batteries etc...



Charge current 50A

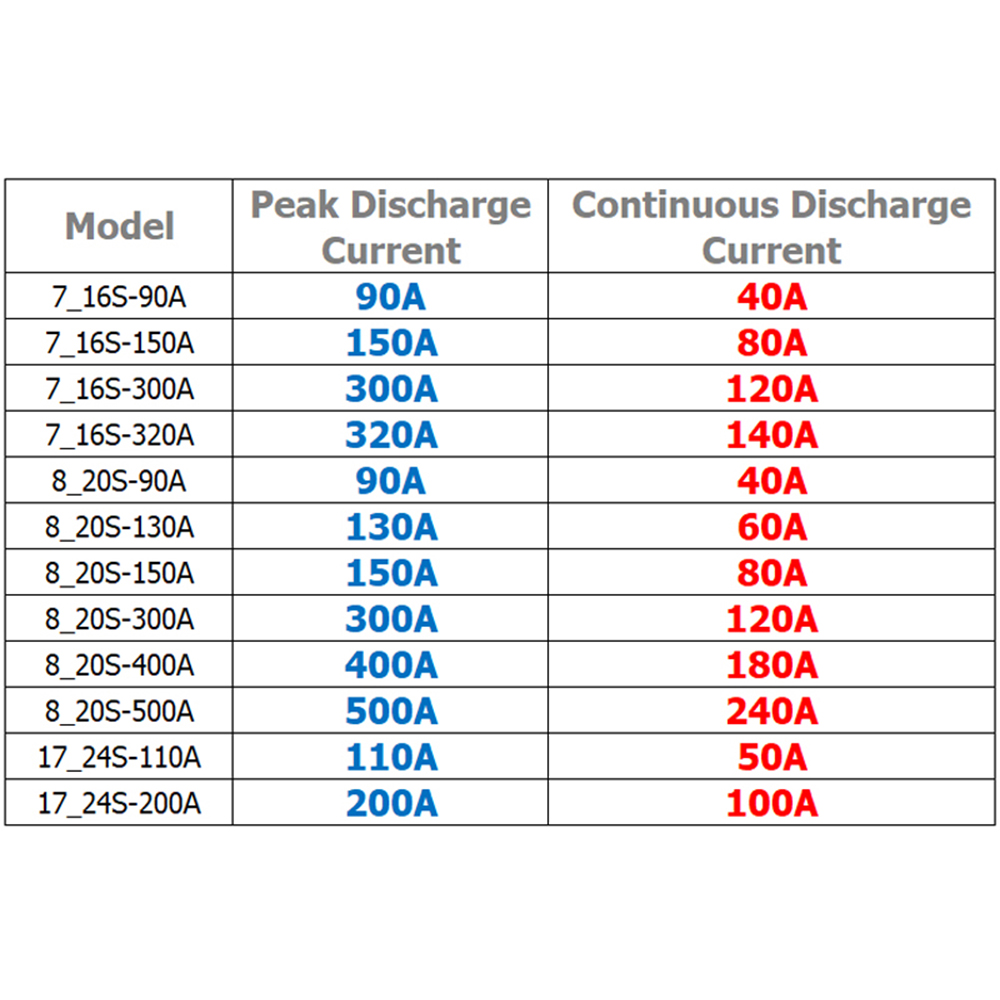

Discharge:

40A cont 90A peak: BMS Continuous discharge current 40A, peak discharge 90A  .



80A cont 150A peak: BMS Continuous discharge current 80A, peak discharge 150A .



120A cont 300A peak : BMS Continuous discharge current 120A, peak discharge 300A .



180A cont 400A peak : BMS Continuous discharge current 180A, peak discharge 400A .



240A cont 500A peak : BMS Continuous discharge current 240A, peak discharge 500A .

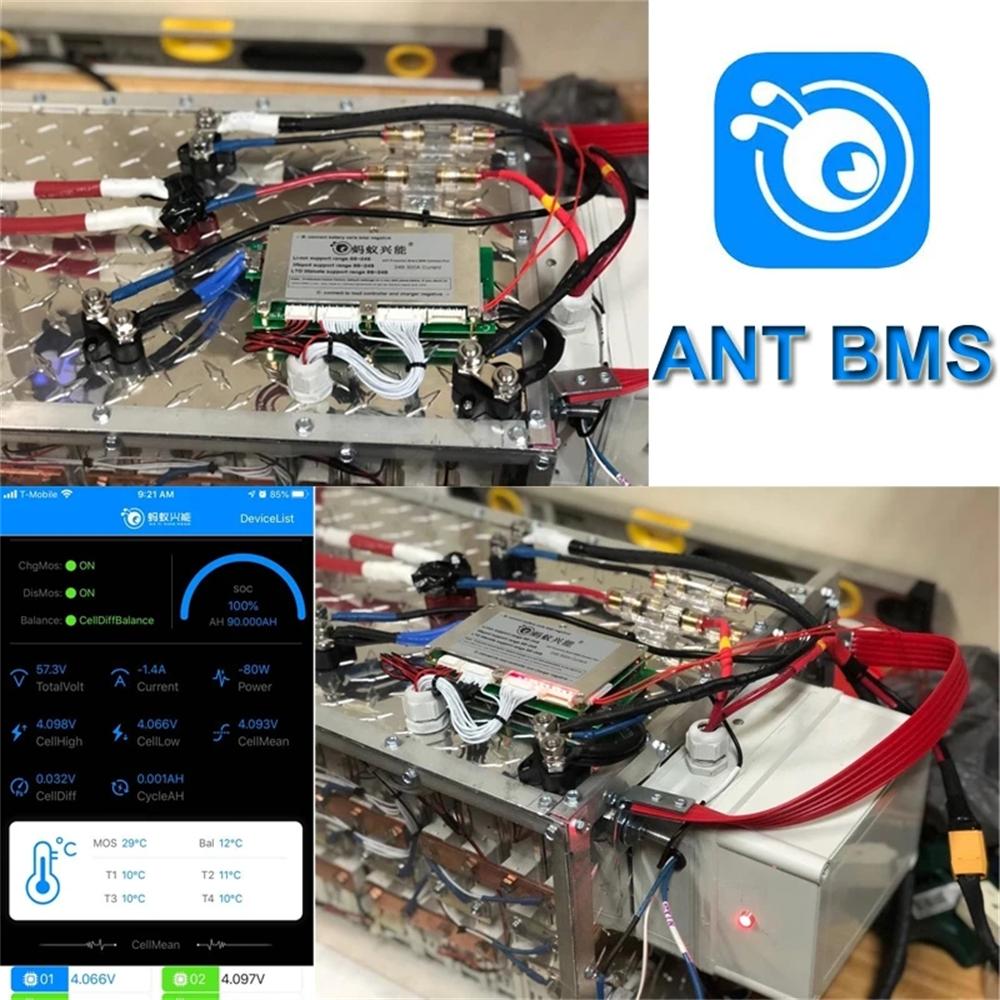

The QR code on the label of the protection board can be directly scanned through the applet connection, or the applet search: The Little Ant BMS can enter the software (Android or Apple APP supports the switch between Chinese and English, and the applet can only be in Chinese)



Note :please carefully check the version you need before you place order !!!

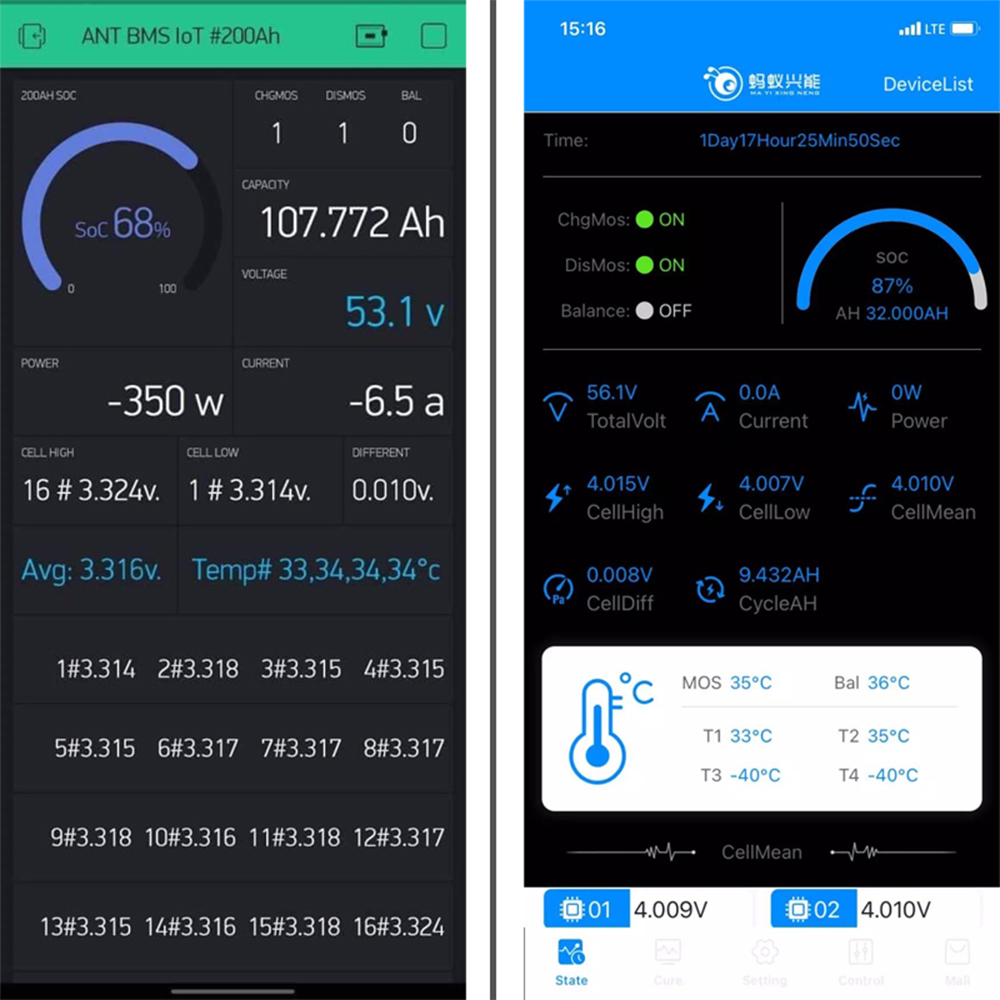

It is with built-in bluetooth and support for Android and Iphone APP to monitor



please contact us for newest app and other documents before you use !!!



Note:

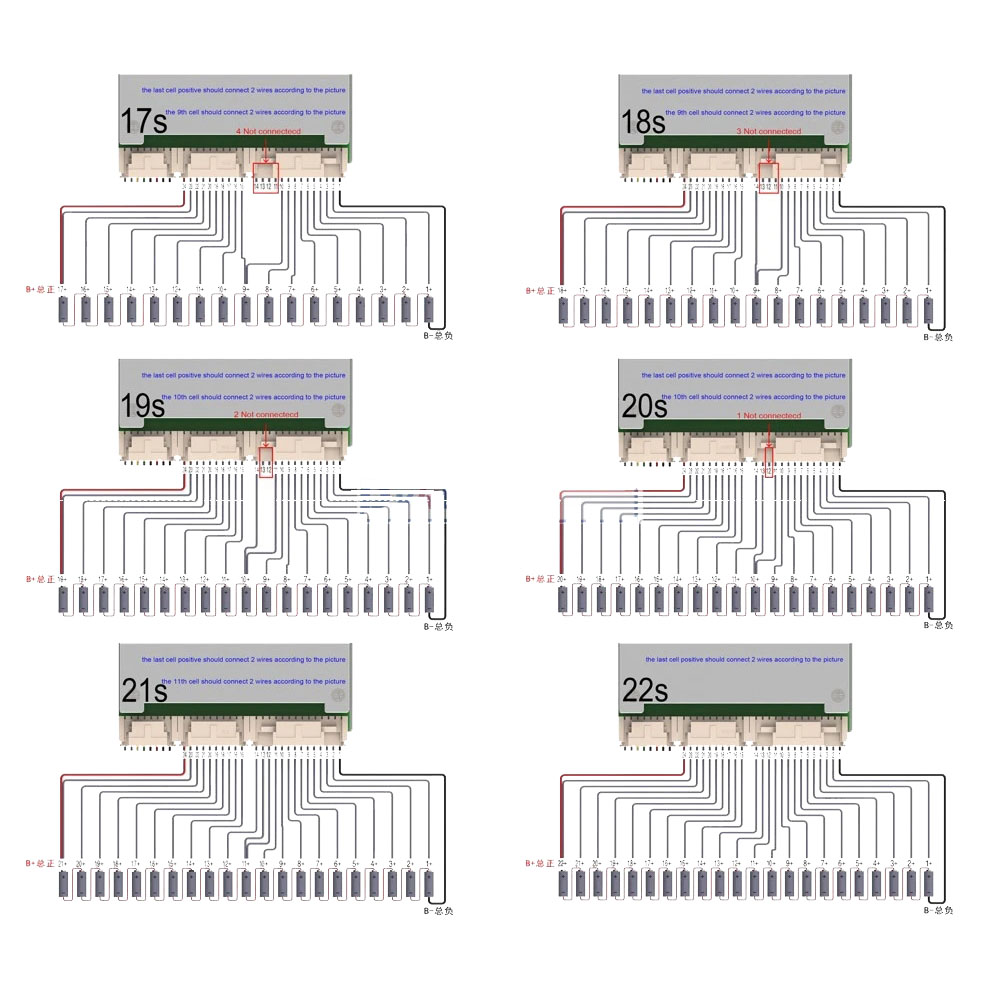

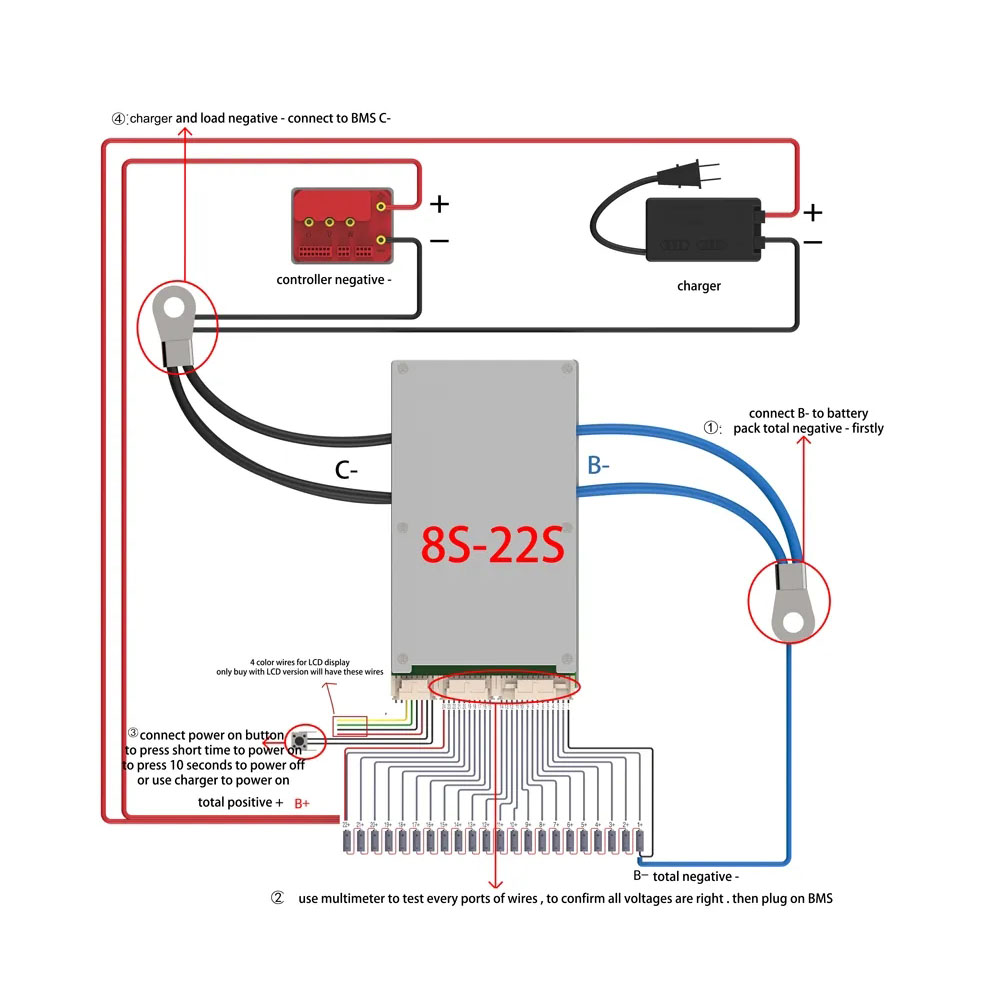

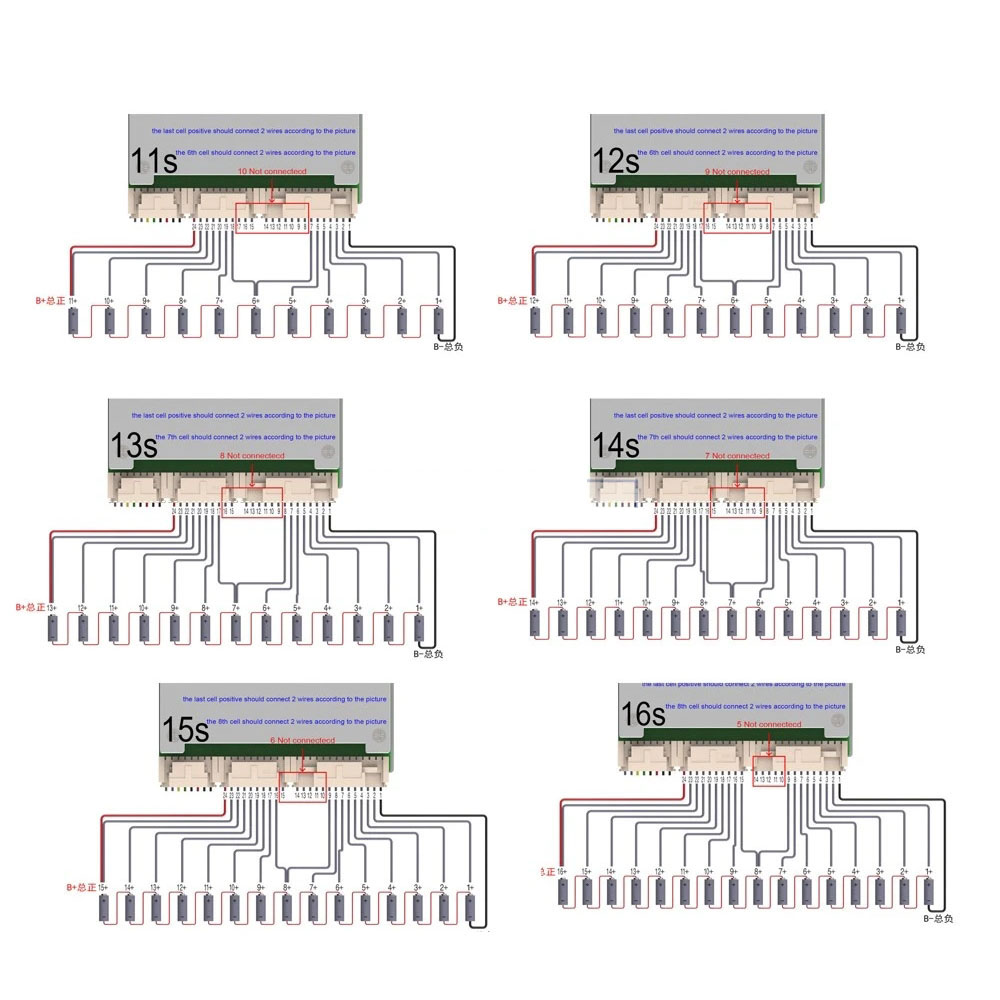

The cable is connected from the first black wire on the far right to the total negative electrode of the battery pack, which is the negative electrode of the first cell of batteries.

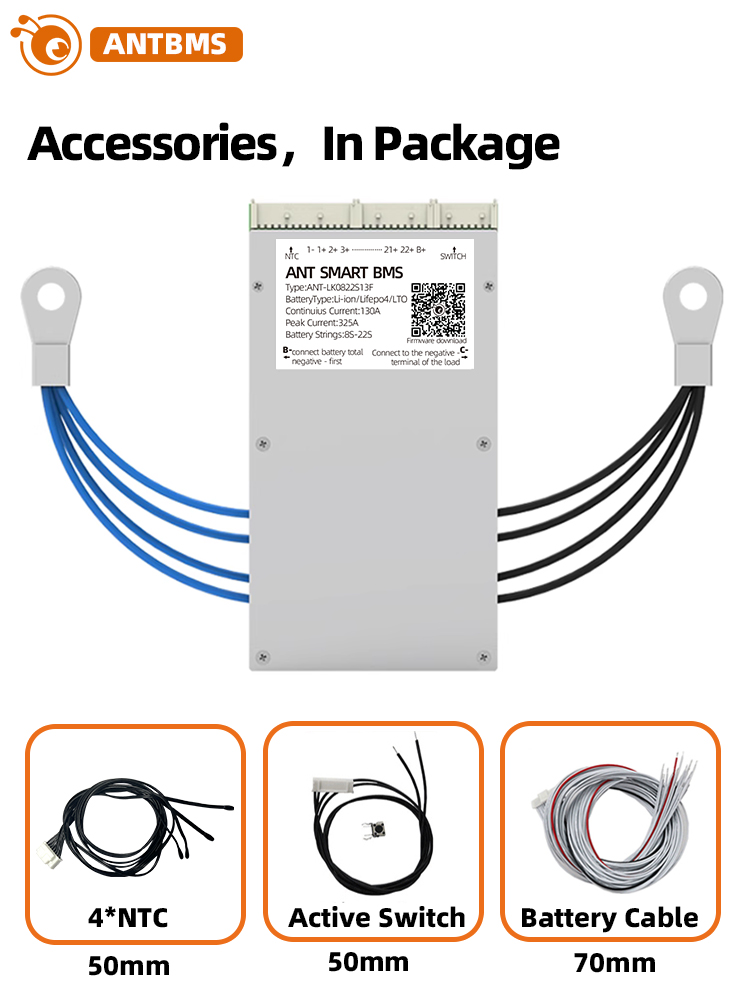

 Package includes.

1*8S-22S ANT SMART BMS

1*Cable
