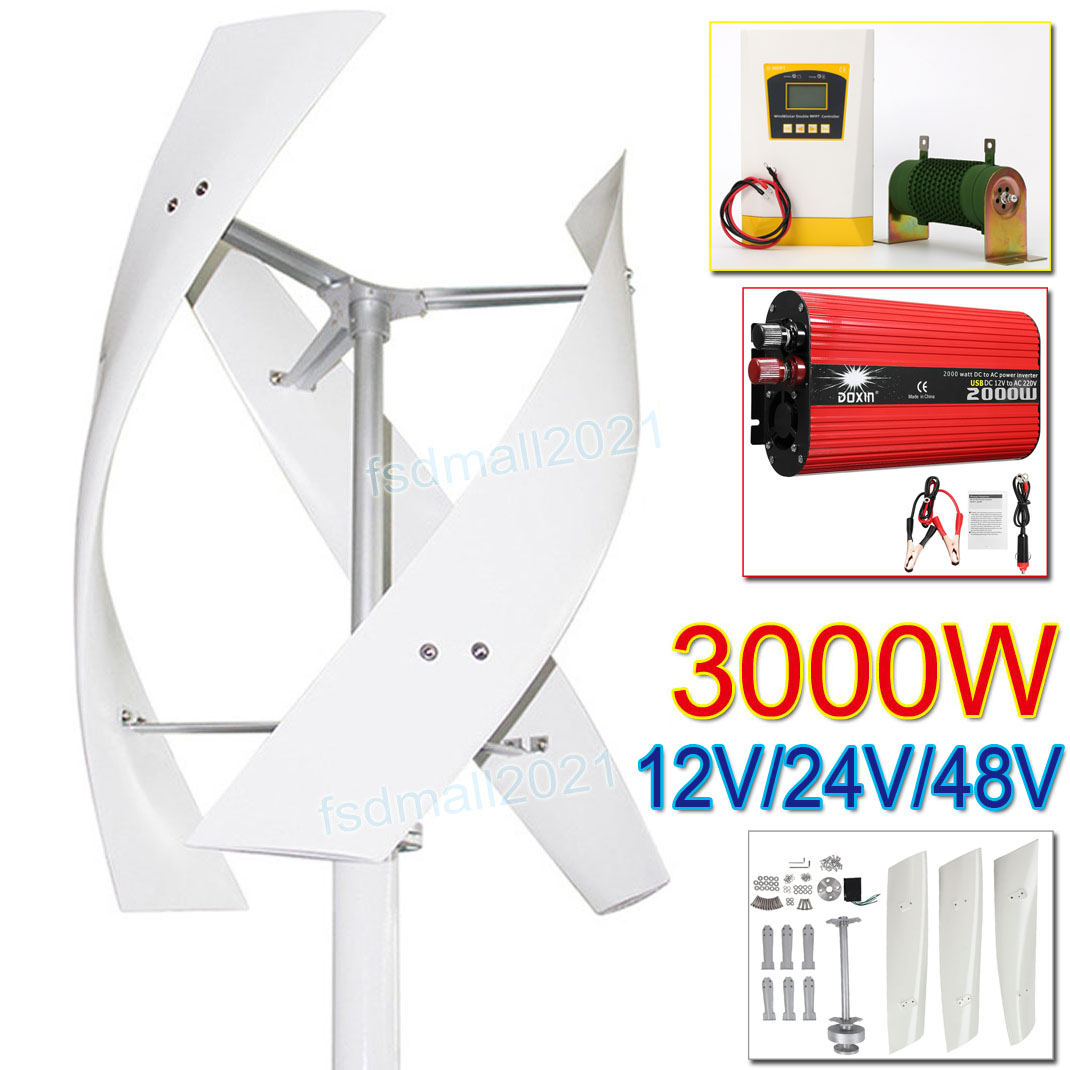

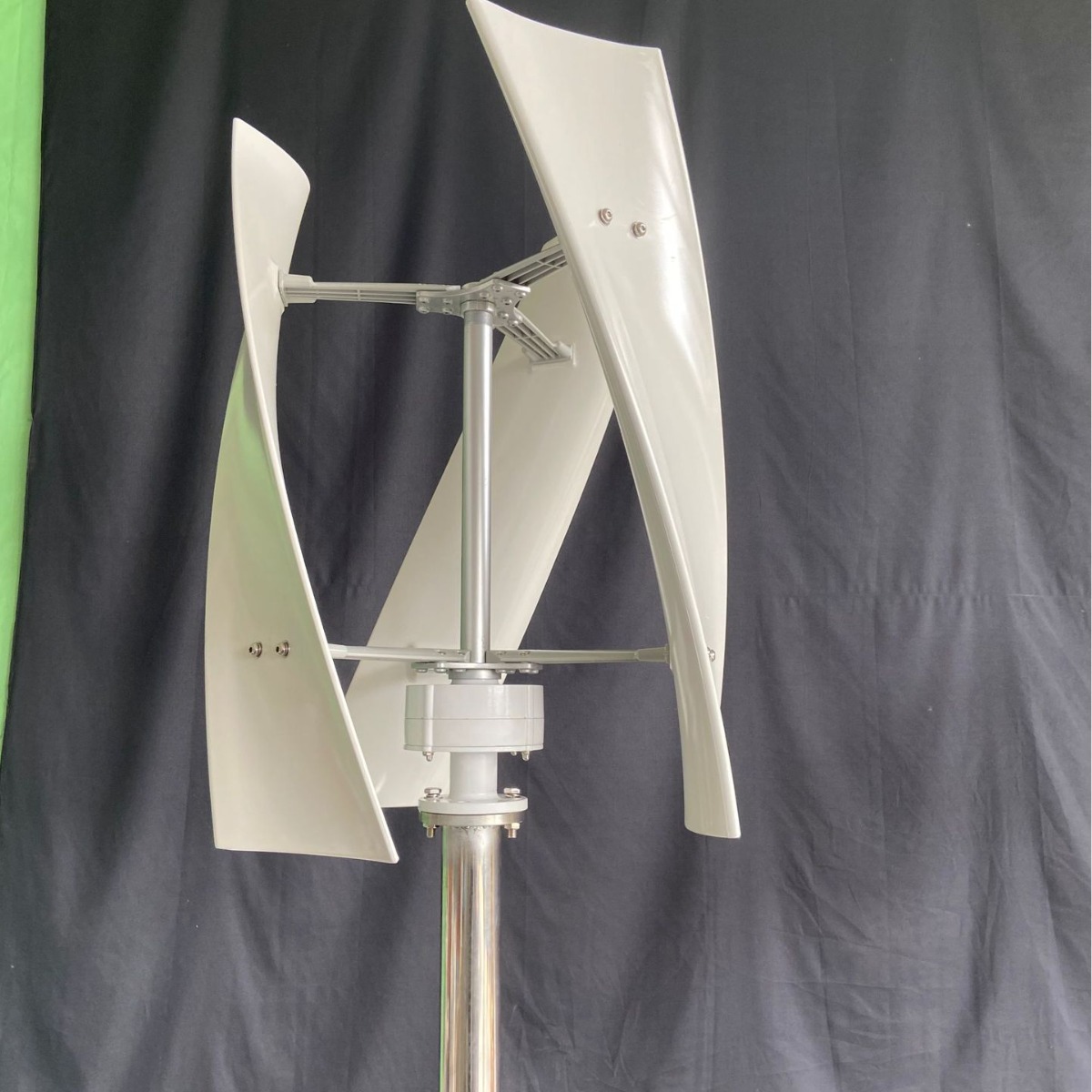

[Wind Turbine]

Description:
The Wind Turbine with the Coreless Permanent Magnet Generator and Three High-strength Fiberglass Blades Is More Durable and Has a Long Service Life. the Spiral Blades Are Aerodynamically Designed to Make the Rotor Run Smoothly and Reliably, Which Leads to Stable Electricity Generation. Besides, It Has Maximum Speed Protection. It Is Well Suited for Boats, Gazebos, Cabins or Mobile Houses, and Other Energy Supplies for Homes, Businesses and Industry.

Features:
1. Great Durability: the Wind Turbine with the Coreless Permanent Magnet Generator and Three High-strength Fiberglass Blades Is More Durable and Has a Long Service Life.
2. Smooth Running: the Spiral Blades Are Aerodynamically Designed to Make the Rotor Run Smoothly and Reliably, Which Leads to Stable Electricity Generation. the Double Bearing and Low Vibration Also Ensure More Stable Operation.
3. Low Noise: Drawing on the Design Principle of Aircraft Wings and the Horizontal Plane Rotation, Noise Can Be Reduced to a Level That Cannot Be Measured in the Natural Environment.
4. Generating Electricity at Lower Wind Speeds: Due to Its Compact Shape, Low Starting Wind Speed, and Large Windward Area, the Wind Turbine Can Generate Electricity at Lower Wind Speeds.
5. Strong Wind Resistance: the Horizontal Rotation Brings Small Wind Pressure so That It Can Resist a Super Typhoon.
6. Maximum Speed Protection: When the Wind Turbine Reaches the Maximum Speed of 300rpm, It Will Automatically Brake.
7. Easy to Install: Everything You Need for Installation Is Included. the Wind Turbine with a User-friendly and Convenient Flange Design Is Easy to Install.
8. Low Starting Wind Speed: Its Starting Wind Speed Is Lower than Other Wind Turbines, and the Rising Arc of Power Generation Is Gentle, so It Can Generate More Power than others within a certain range.
9. Vertical Blades: the Main Force Point of the Wind Turbine Is Concentrated on the Blade Edge, so That It Can Effectively Avoid Blade Shedding, Fracture, or Flying out.

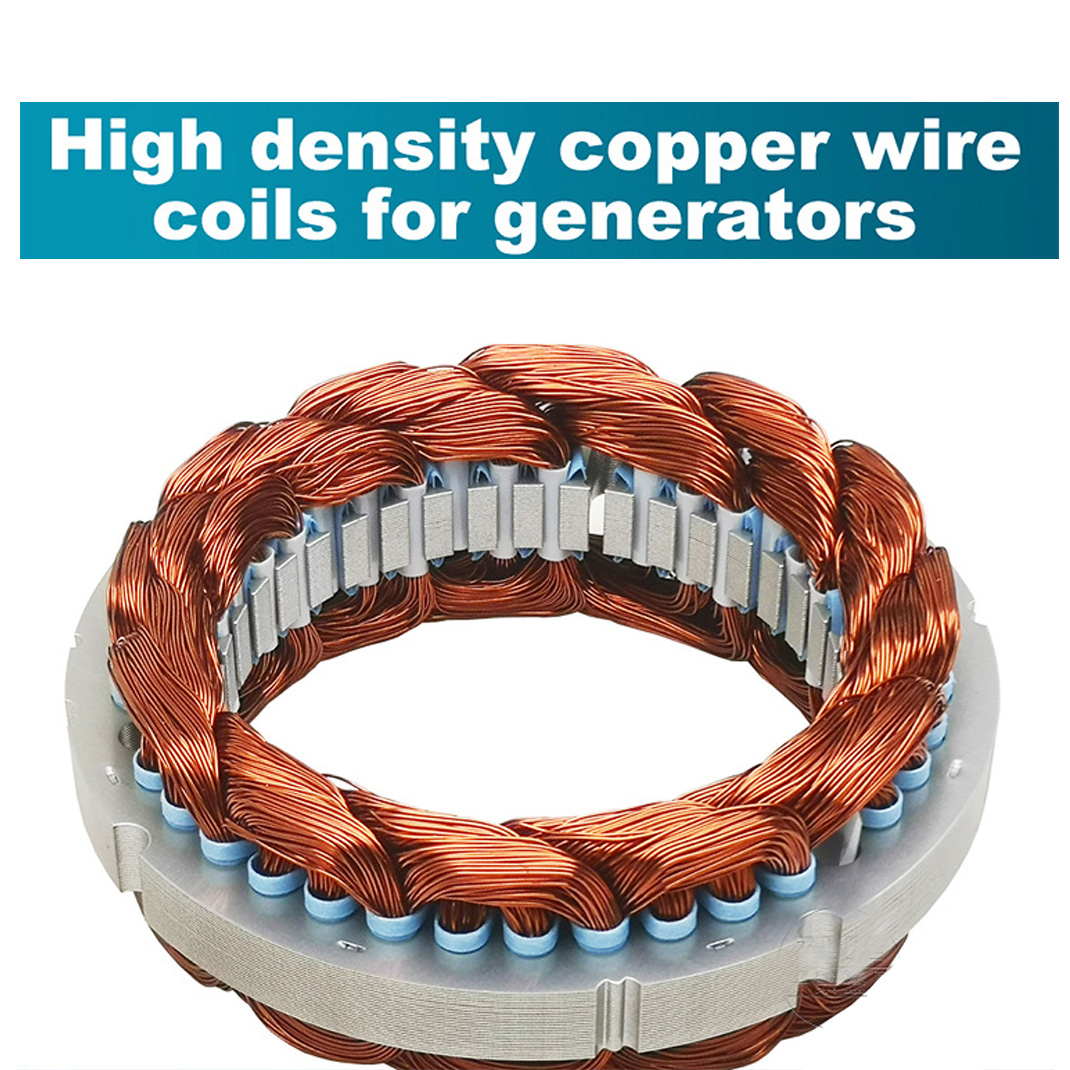

10. Three-phase Ac Permanent Magnet Generator: the Wind Turbine with a Low-torque and High-power Intelligent Tracking Microprocessor Can Regulate Current and Voltage.
11. Efficiently: It Significantly Increases Wind Energy Utilization and Annual Power Production.

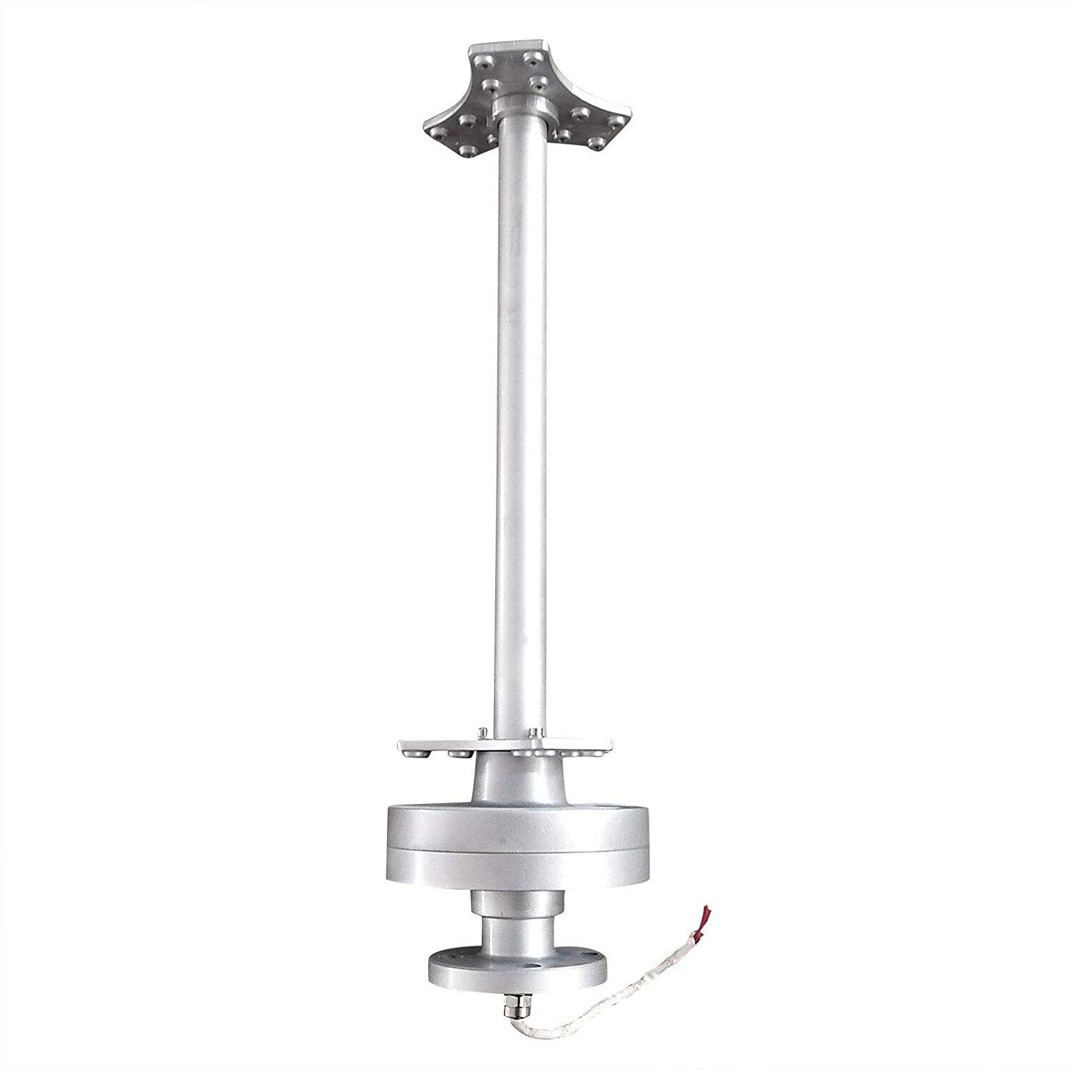

12. Aluminum Main Rod: the Main Rod Is Made of Aluminum with High Hardness and Can Be Fully Recycled, so It Is Uneasy to Break and Eco-friendly.

Application:
It Is Well Suited for Boats, Gazebos, Cabins or Mobile Houses, and Other Energy Supplies for Homes, Businesses and Industry.

Specification:
Condition: New
Controller System: Electromagnetism
Starting Wind Speed: 2.5m/s
Cut-in Wind Speed: 2.5m(98inch)/S
Rated Wind Speed: 18m/s
Max Instantaneous Wind Speed: ≤40m(1575inch)/S
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/S
Blades Quantity: 3

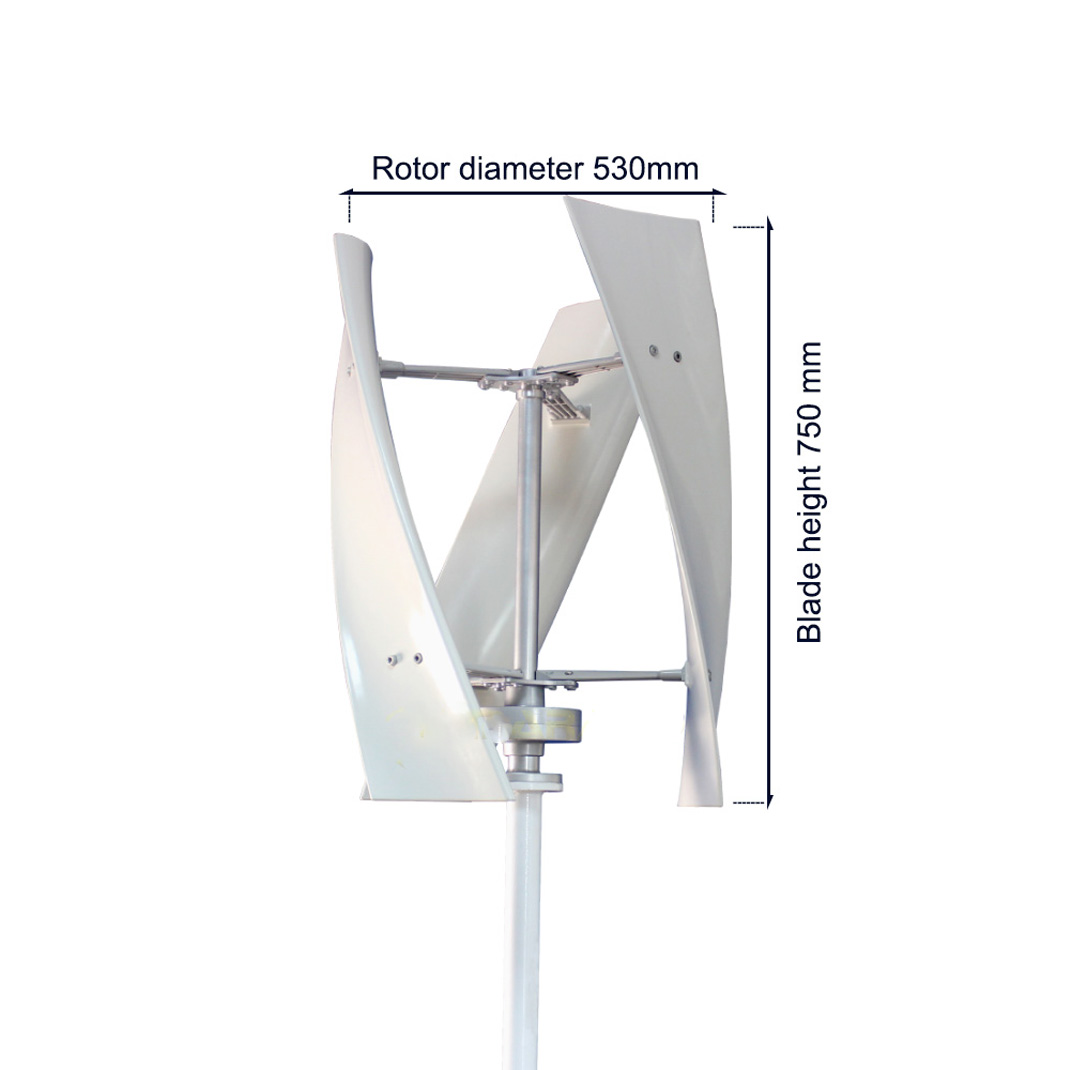

Diameter of Blades: 0.6m/24inch
Blades Height: 0.8m/31inch
Speed Regulation: Automatic
Rated Voltage: 12V/24V
Max Power: 3000W
Generator Protection Grade: IP67
Work Environment Temperature: -40—+60℃
Product Assembly Weight: <10kg/22lbs
Over-speed Protection: Electromagnetic Brake
Blade Material: Glass Fiber

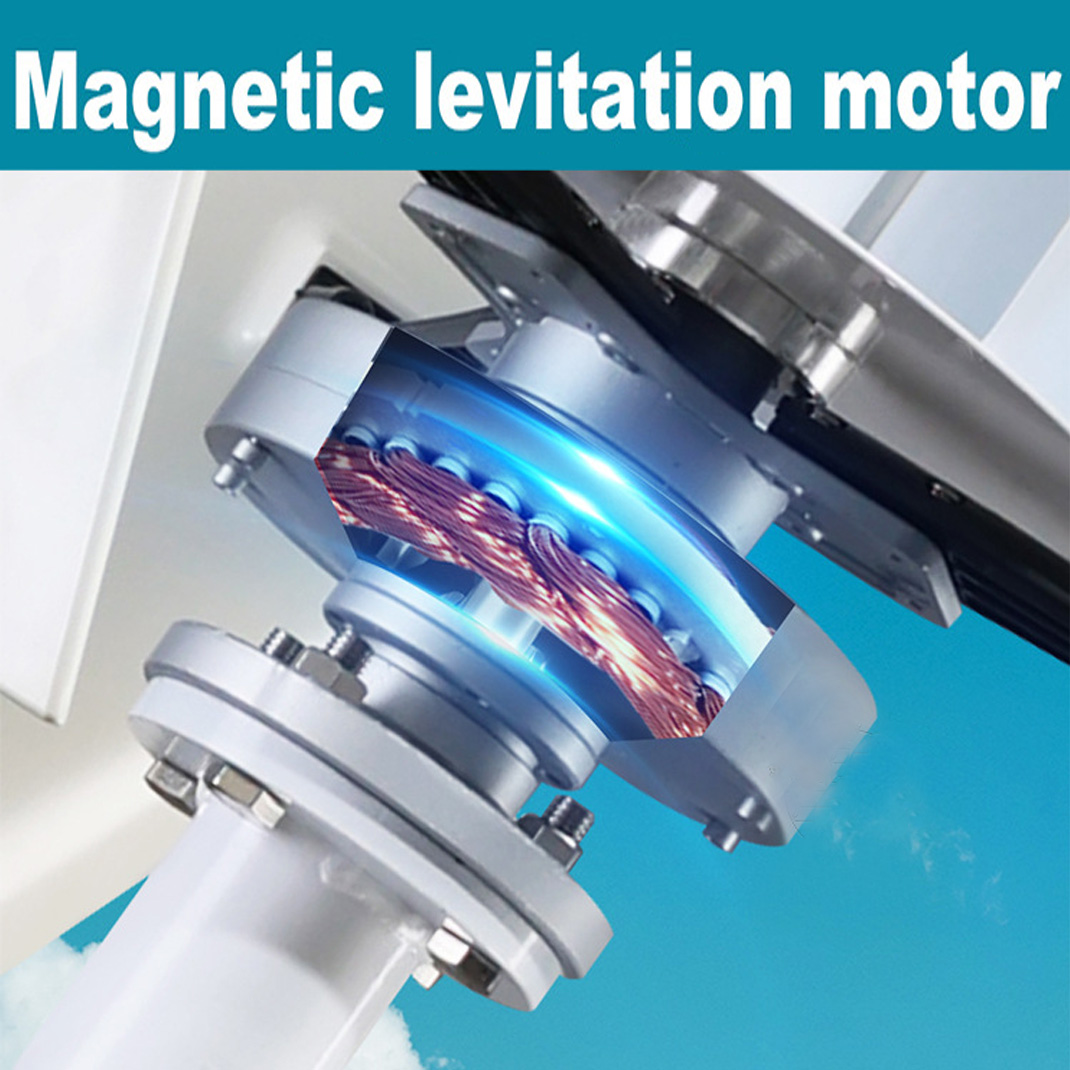

Generator: Maglev Generator
Service Life: 10-15 Years

Installation:
1. Check All the Parts of the Wind Turbine, Which Includes 6 Brackets and 3 Blades in Total.
2. Place the Wind Turbine Vertically.

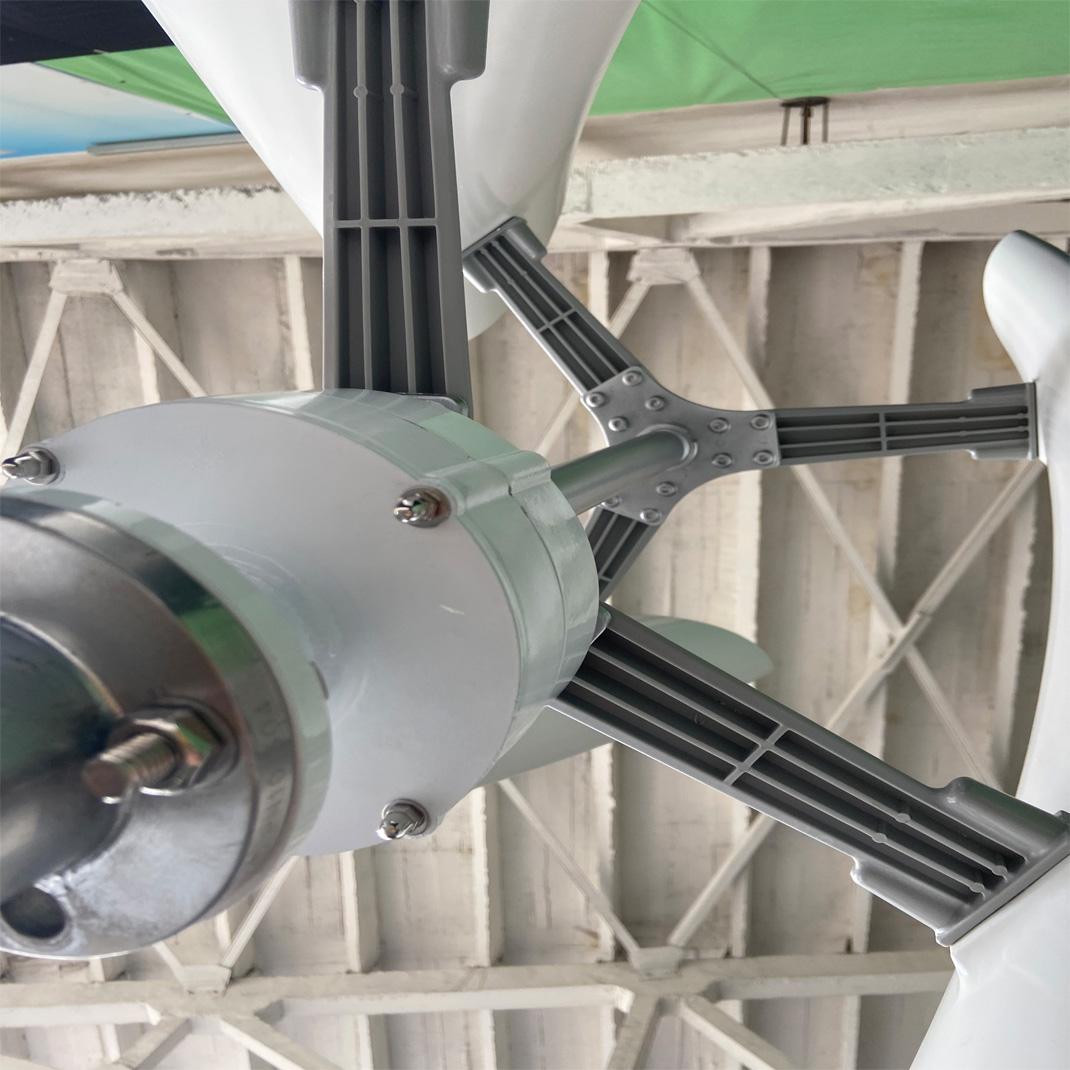

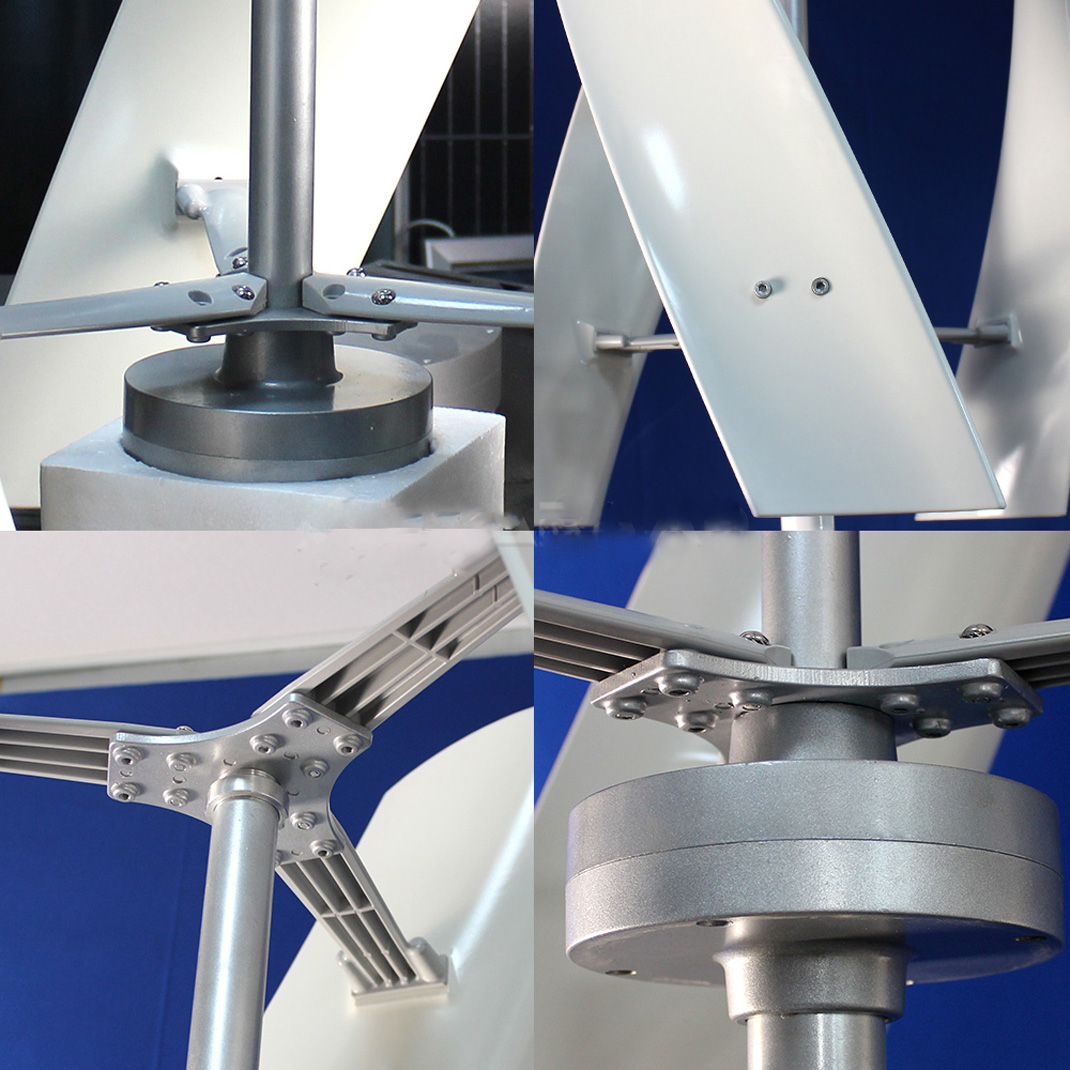

3. Connect Brackets with Blades by the Bolt. Load the Upper Cover Plate and Lower Cover Plate.

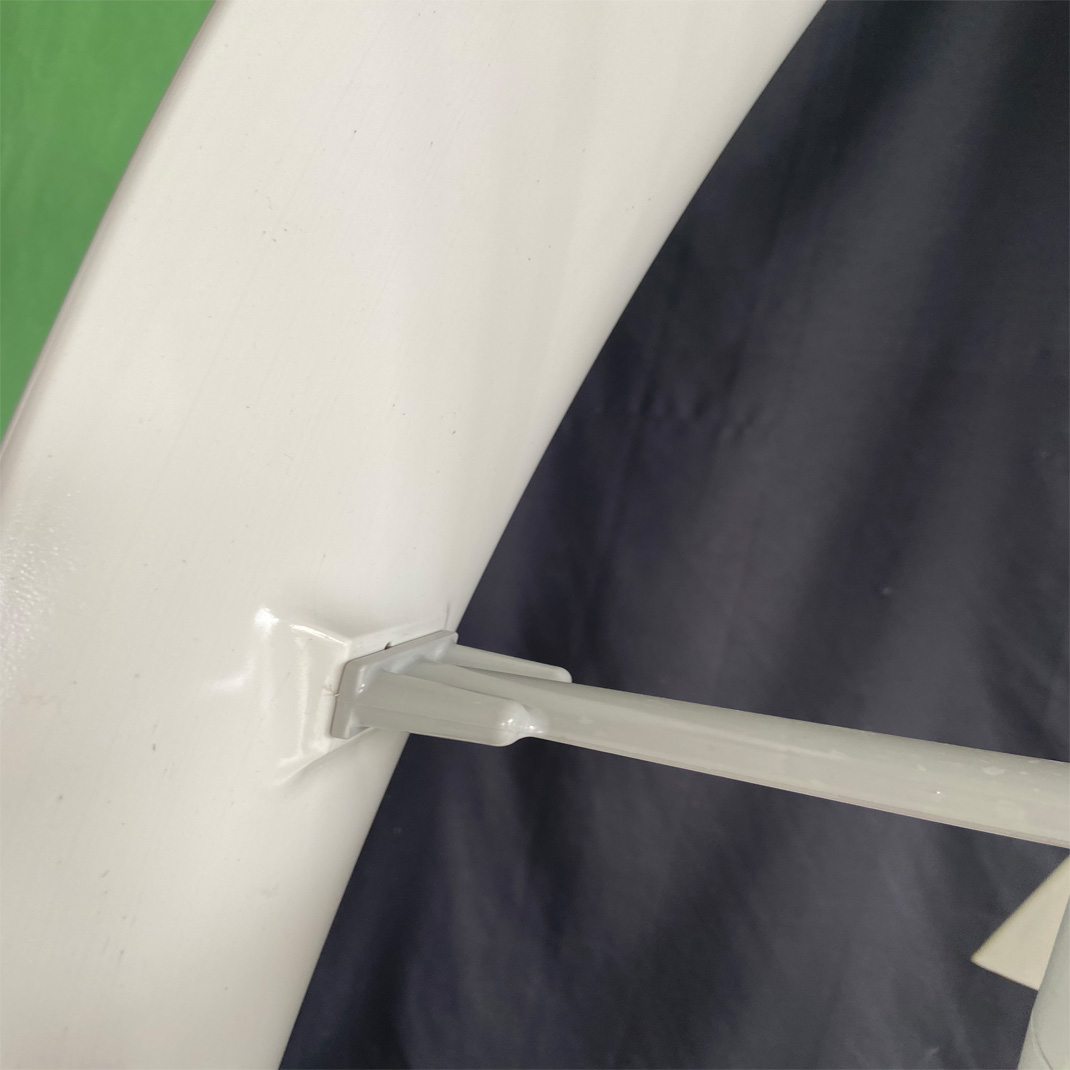

4. Fix the Bolt in the Mounting Hole (at the End of the Bracket) from the Outside of the Wind Blade.
5. Tighten All the Bolts of Blades and Brackets, and Toggle the Blades. It Should Not Have Abnormal Noise or Jamming. Tighten the Nut (Under the Upper Cover Plate of the Wind Turbine) to Make the Upper Cover Plate Tightly Fixed.

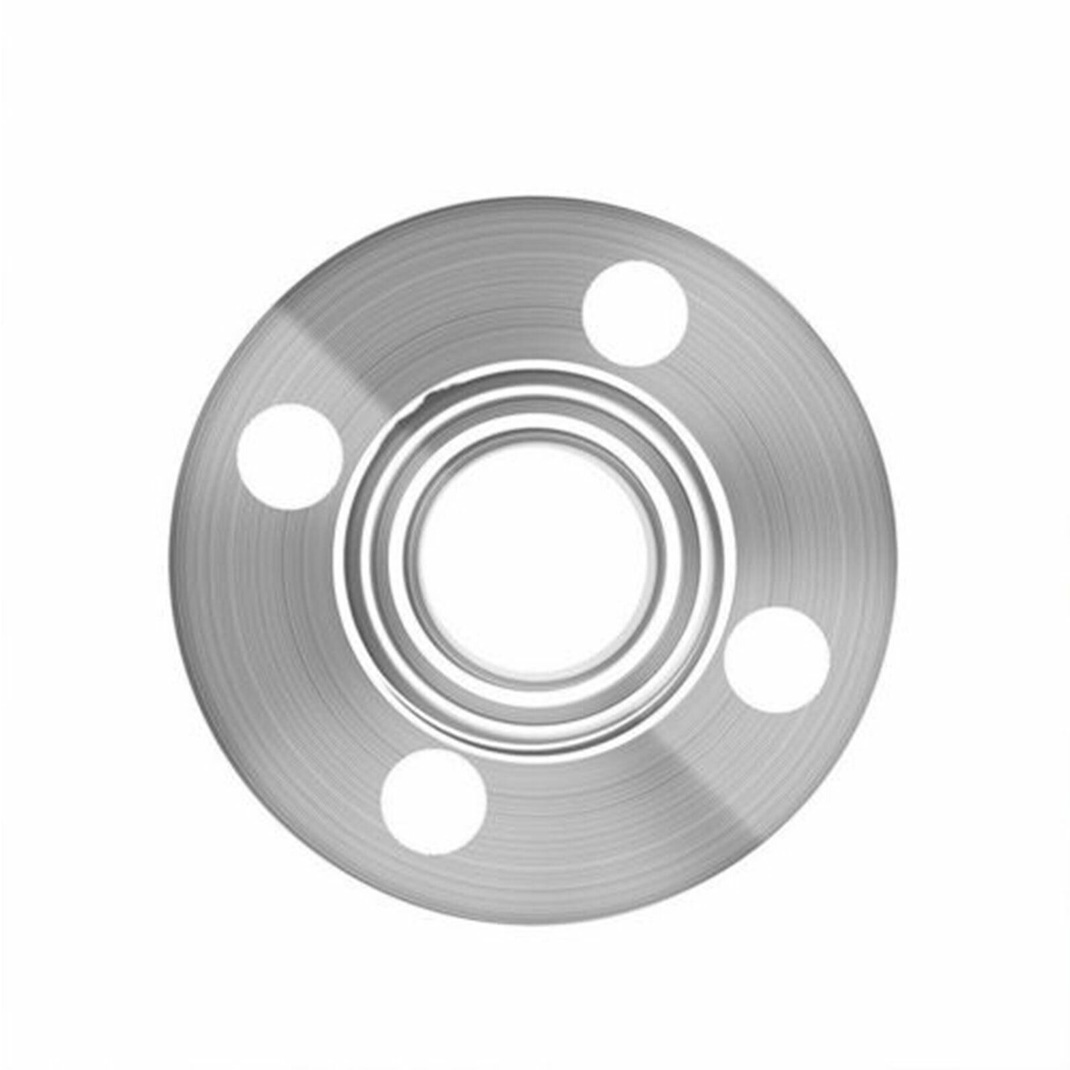

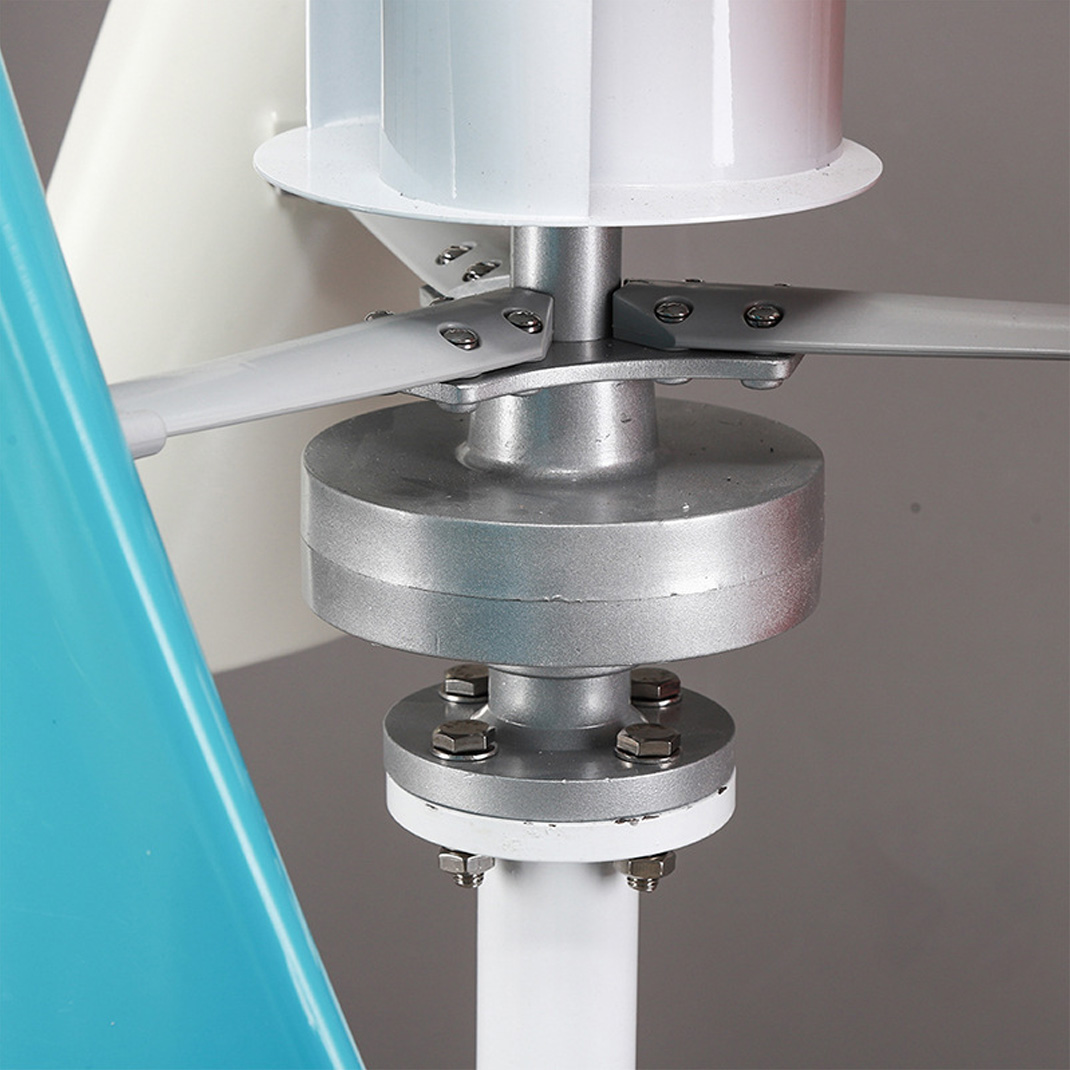

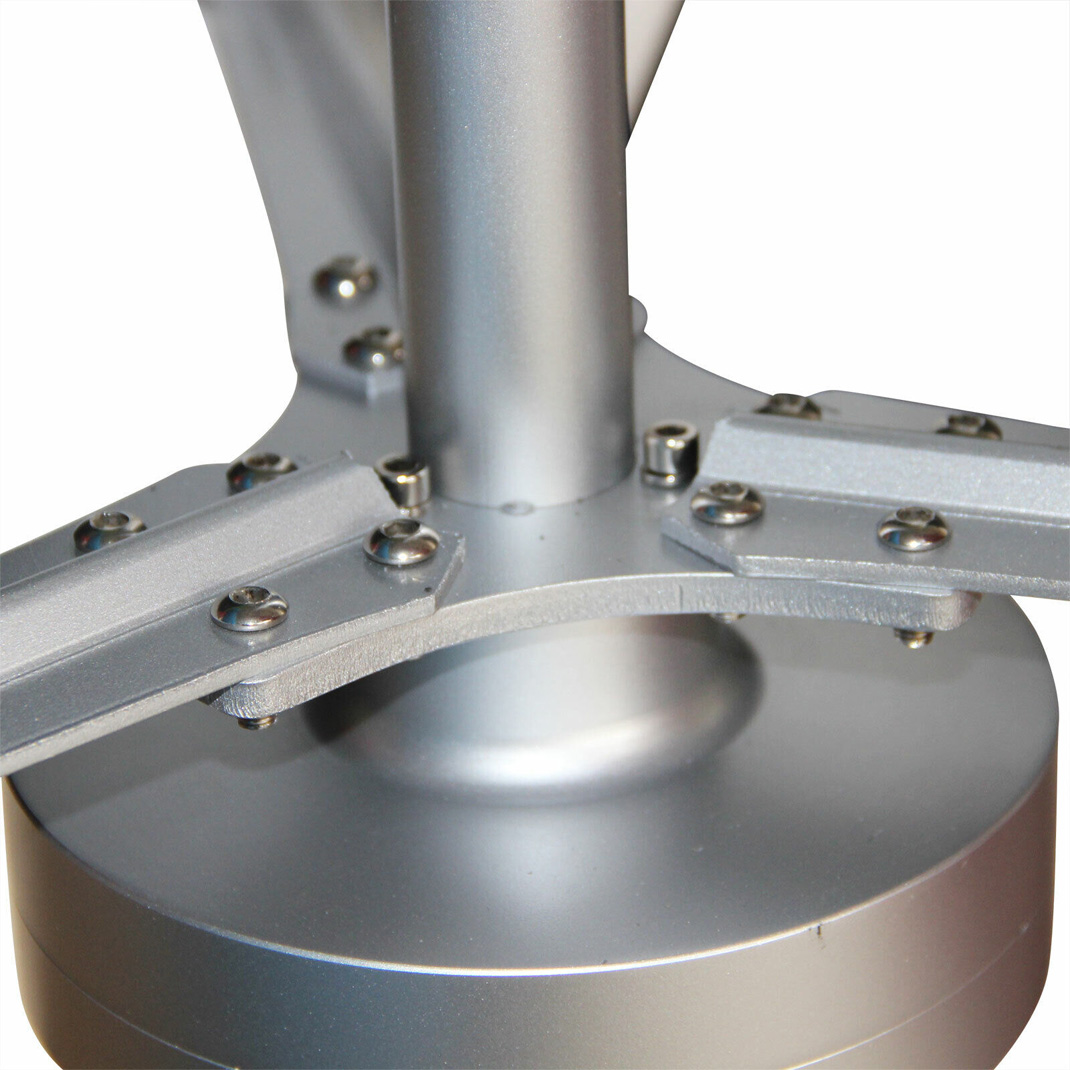

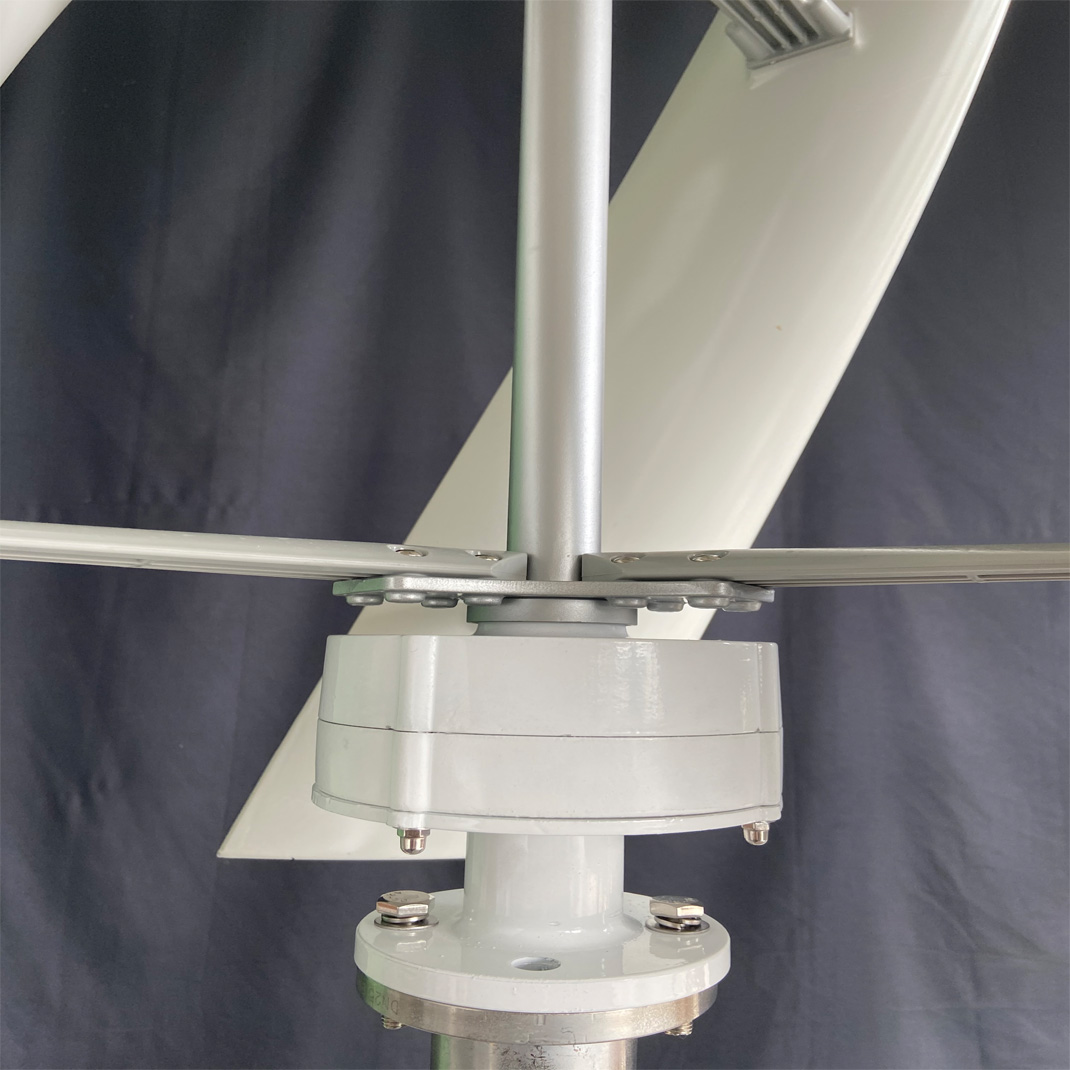

6. Align the Flange Hole of the Wind Turbine with the Flange Hole on the Tower Pole, Put on Flat Washers and Spring Washers, and Tighten the Nut.
7. Professional Installation Is Highly Recommended If You Have No Previous Installation Experience.
8. You Can Watch the Attached Installation Video As a Reference.
9. If You Have Any Problems, Please Feel Free to Contact Us. We Will Reply and Solve the Problem for You As Soon As Possible.

Package Included:
1 X Wind Turbine
1 X Controller
3 X Blades

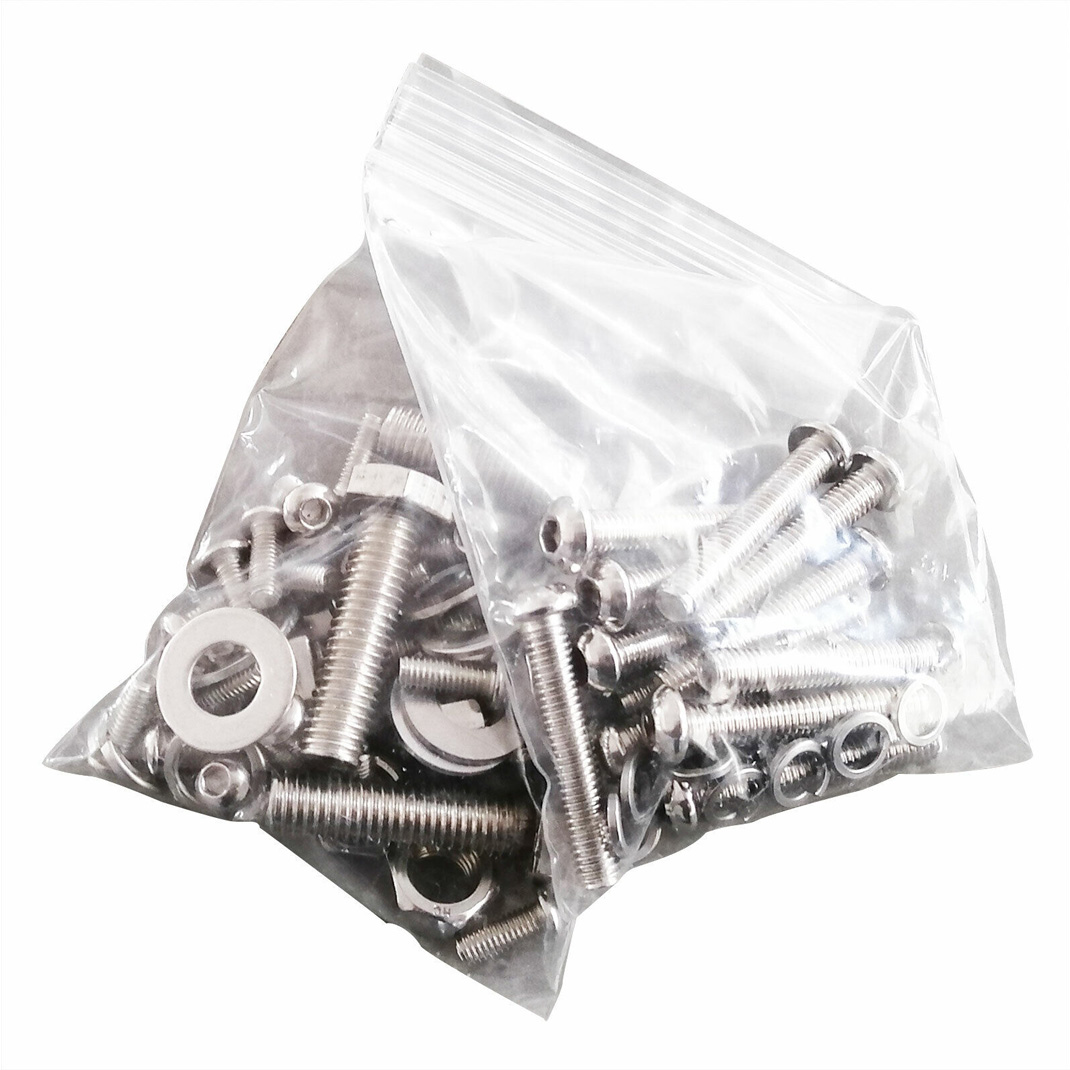

1 X Bag of Screws to Connect the Main Body
1 X Bag of Screws for Connecting the Bracket Blades
Other Accessory for Assembly

Notes:
1. There Are Two Different Kinds of Screws. Please Confirm the Correct Position of the Screws Before Installation.
2. The Upper Cover Plate of the Wind Turbine Does Not Need to Be Tightened, and the Blades Can Be Properly Adjusted Upward or Downward During Installation.

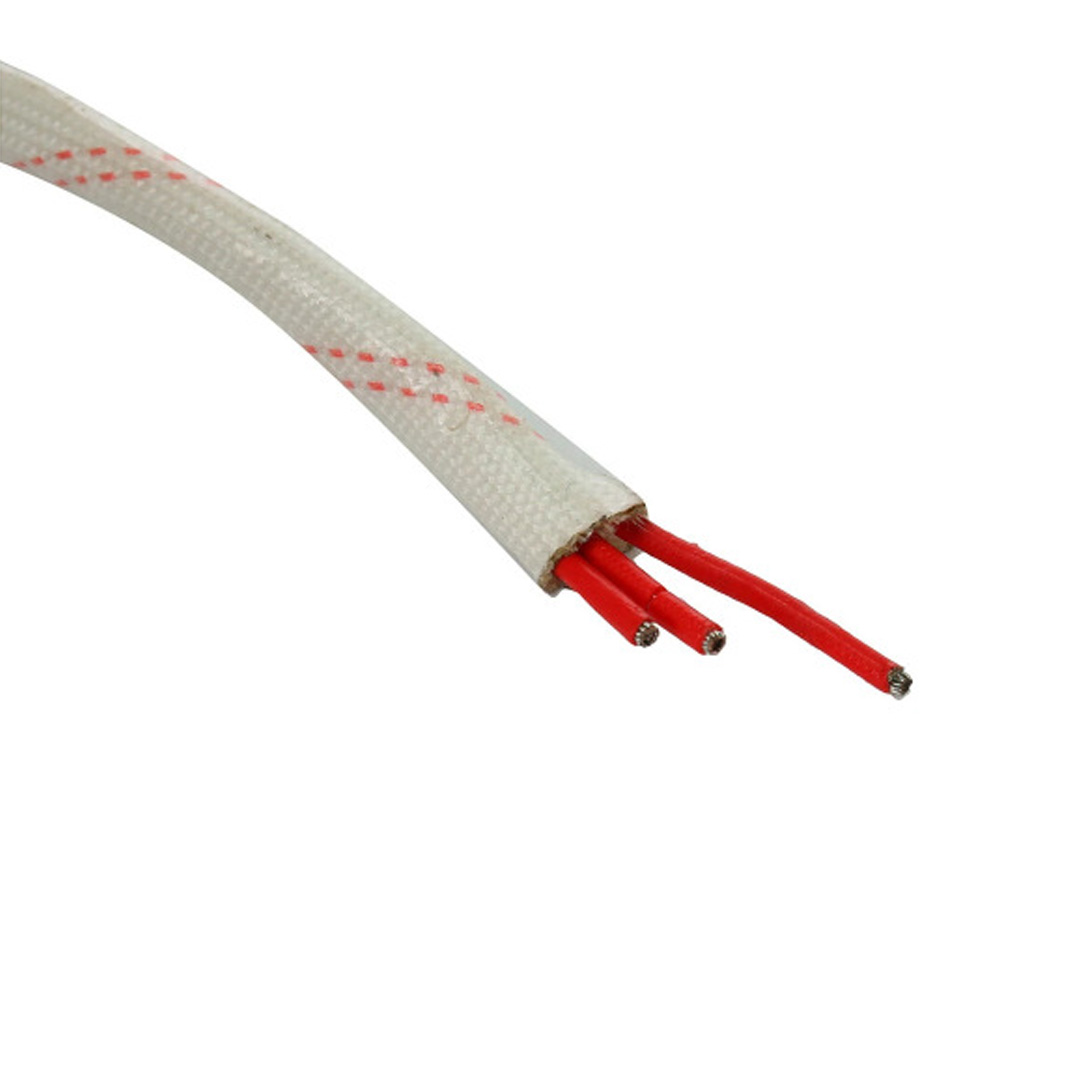

3. When You Place the Wind Turbine Vertically, Please Prevent the Bottom Flange from Crushing the Output Wire.
4. Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before Ordering.
5. The controller, screws and flange are fixed in the foam.

General Safety Information:
1. Before receive the product, check it carefully. Make sure whether the product is damaged during transport. If it is damaged, contact the shipping company or our company immediately.
2. All installation and electrical work must only be performed by professional personnel.
3. Without any professional guidance, do not disassemble or attempt to repair the controller.
4. Do not use the controller without batteries.
5. Do not cut off the connection of controller and batteries when controller is working normally.
6. Keep children away from controller.
7. Do not allow water to enter the controller.
8. Strictly prohibit the use within flammable, explosive gases environment, cautious fire and
sparks
9. Confirm that power connections are tightened to avoid excessive heating from a loose connection.
Make sure cables are suitable for system.

Product Introduction:
This kind of wind & solar hybrid charge controller is special designed for small off-grid wind
generation and solar hybrid system. Appearance is elegant, operations are easy. It also makes the
course of which wind generator and solar panels charge to batteries safely and efficiently.

Functions and Features:
1. Wind generator MPPT boost charging function,improved charge efficiency.
2. External dump load resistant to strong wind,work more stable .
3. Solar MPPT charge，Solar intelligent disconnect charging,high efficiency charge.
4. Bluetooth function can monitor the system information by the app on the app on the phone(Only for Android).
5. Dual power supply function: Battery + solar power supply.
6. LCD displays parameters such as voltage and current of wind, solar and
load .Some parameters can be set by users.
7. DC output with 3 output modes.
8. Battery module type can be selected and parameters can be set；
9. The controller has a built-in dust net, which is easy to replace and clean, ensuring
the service life of the controller.
10. The inner circuit board of the controller is sprayed with conformal coating to prevent dust, moisture and static electricity.

Protection:
** Reversed charging & Protection of solar: Such as at night, the voltage of the battery may be higher than solar panel. The controller protect the battery from charging the solar panel.
** Reverse polarity  & Protection of battery: When the battery polarity is reversed, the controller does not work and there is no
display. The fuse protects the internal circuit.If the battery does not work properly after it is connected correctly, just need to replace the fuse .
Battery open circuit  & Protection: After long-term use, the battery may be Open-Circuit or poor connect. The controller can protect itself from damage.Check the connection regularly.
** Over voltage & Over current & Over load voltage & Protection: When it’s strong wind or over voltage, the controller will automatically start braking function to protect the wind generator and battery. The controller will
automatically cuts off the circuit when the output is over voltage.
** Lightning Protection: Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, special lightning protection devices and other components of the multilevel lightning protection system are needed. It need additional payment If the user need this function.

Package include:
Charge controller

Features:
Max continuous power: 2000W
NO Load Power Rate: <0.5A,<0.3A
Input DC voltage Range: DC10-15V,20V-30V
Output Voltage Range: AC220±5%
Output Frequency Range: 50+/- 3Hz
Max Outer Temperature: < 75℃
Max Power Efficiency: >85%
High Voltage Cut Off Level: 15 +/- 1V,30V+/-1V
Low Voltage Alarm Level: 11V+/-0.1,21V+/-0.1V
Low Voltage Cut Off Level: 10.5 +/- 0.3V,20V+/-0.3V
Input Voltage: AC 12V, AC 24V, AC 48V (according to your choose)
USB: 2
THD: ≤5%
Size: 200*116*56 mm
Weight: 1.25kg

Package Include:
1 x Power Inverter
