Specifications

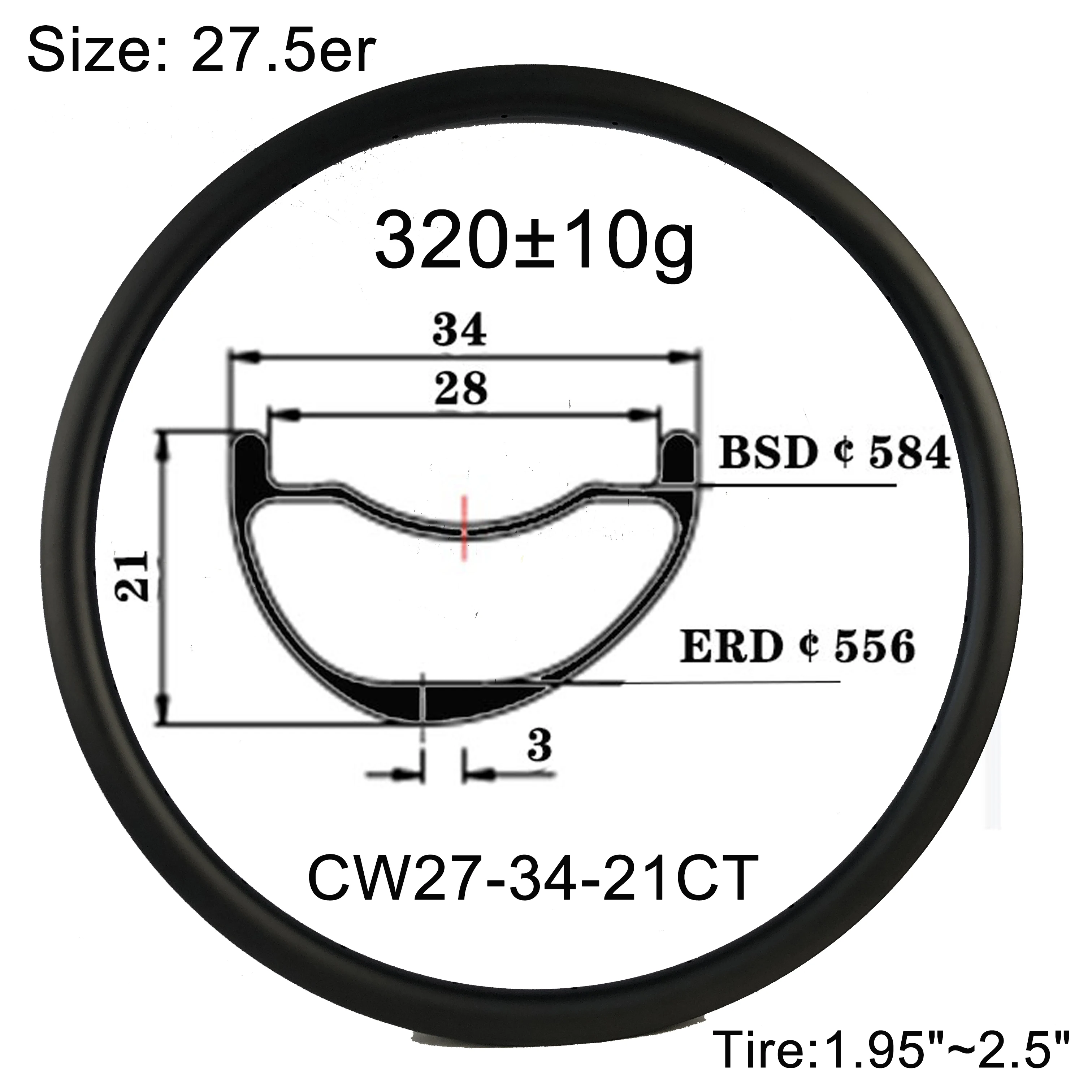

27.5er carbon MTB rims 34mm width 21mm depth hookless clincher for XC

Type: mtb

Size:27.5er

Weave:UD/3K/12K/18K/3K twill/12K twill

 Spoke holes dia:￠4.5mm (Normal)

Rims' roundness:+/- 0.2mmHoles:28/32/36H

Brake system: Disc brake

Application: Cross country (XC)

Assembly Hole Dia.: 7.5mmValve HoleDia.: 6.5mm

Weight: 320±15g (xc);

Materials:Toray T800 50% & T700 50% carbon fiber

Tech improvements

* New tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.

Tech improvements

*  The 34mm width MTB rims were designed according to the latest trend. By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  High TG and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

Notes for use

Max weight limit: 120kg

Max spoke tension: 180kgf

Max tire pressure: 65psi

Product Photos

Package

The box we use for package is specially designed with strong inside structure. It could protect the goods from violentlythrowing and pressure during the shipping. It may have some damage to the box during the shipping, but you will getcomplete and brand new wheels finally.
