Specifications

27.5er/29er asymmetric carbon MTB rims 36mm width 28mm depth hookless clincher tubeless compatible 50% T700+50% T800 mixed materials.

Brake system: Disc brake                                                  Application: Cross country-XC

Assembly Hole Dia.: 7.5mm Valve HoleDia.: 6.5mm

Weight: 430/450 ±15g                                                          Materials:Toray T800 50% & T700 50% carbon fiber

Tech improvements

* New tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller     density    ,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.

*  Tubeless compatible can run lower pressure better cornering better pinch flat protection.

*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

Notes for use

 Max weight limit: 120kg

 Max spoke tension: 180kgf

 Max tire pressure: 65psi

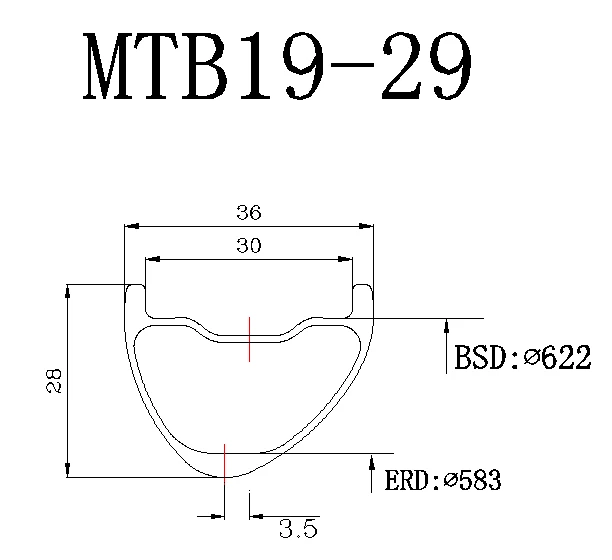

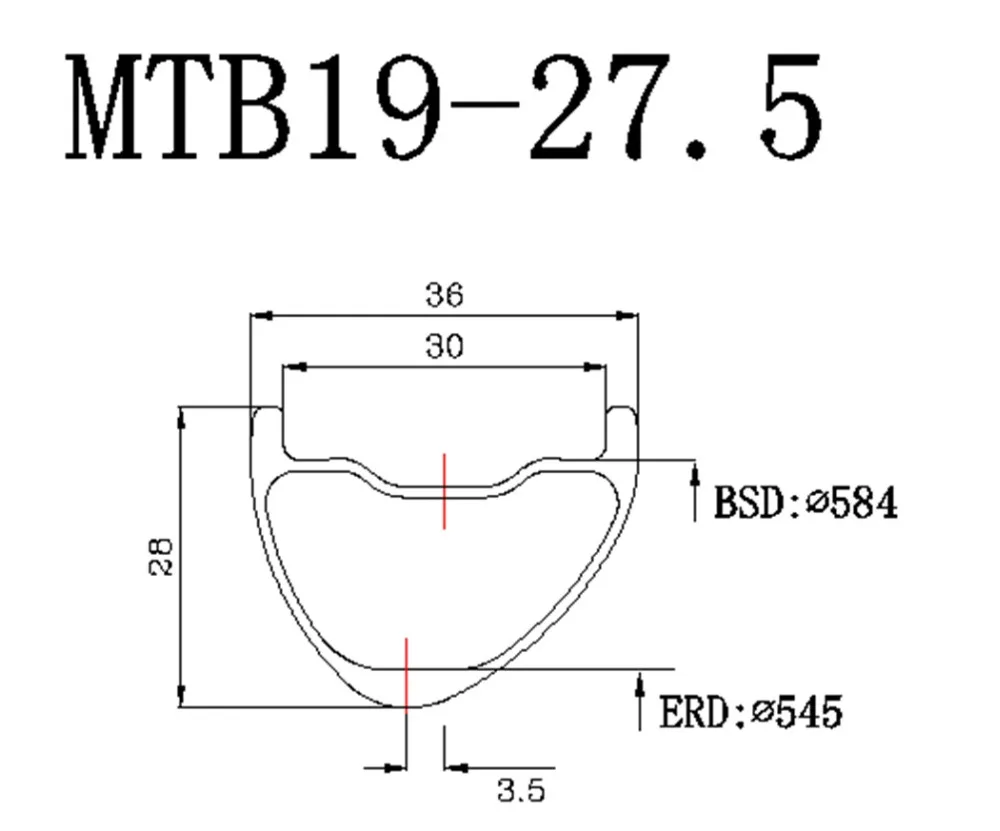

Rims' section:

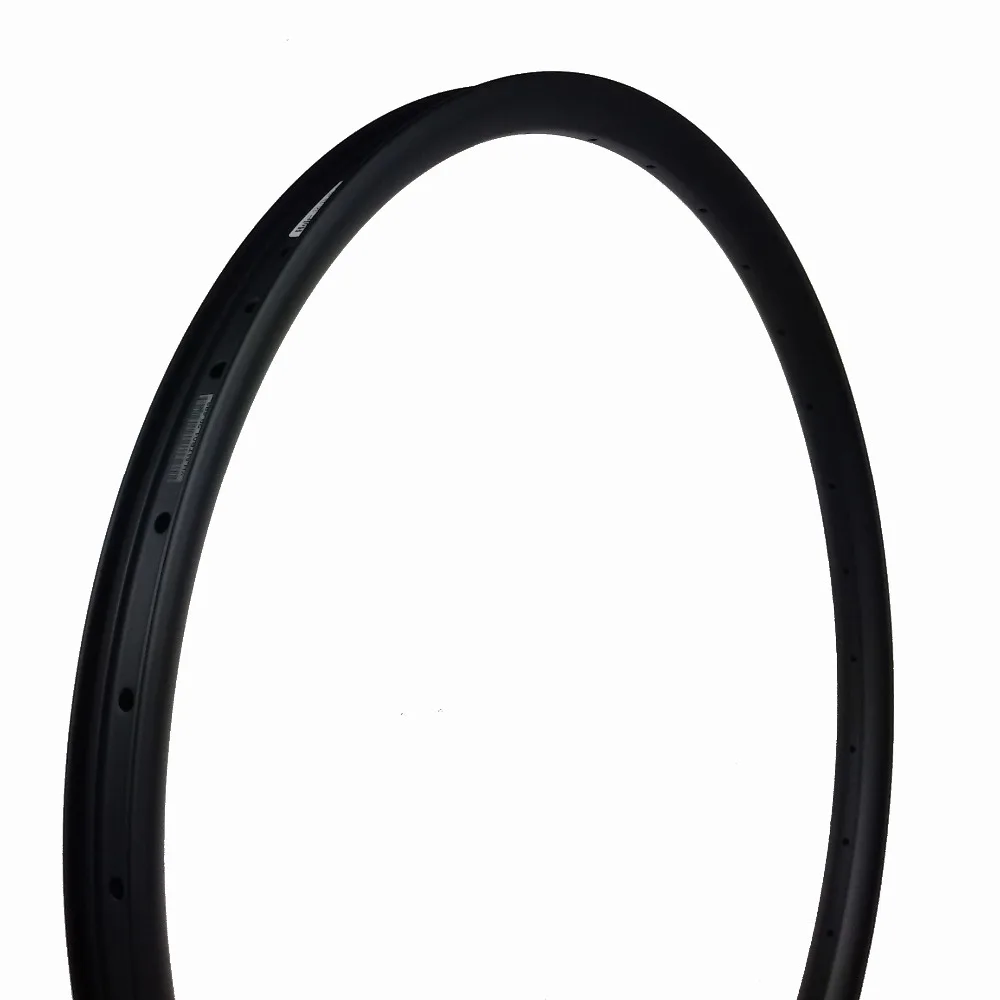

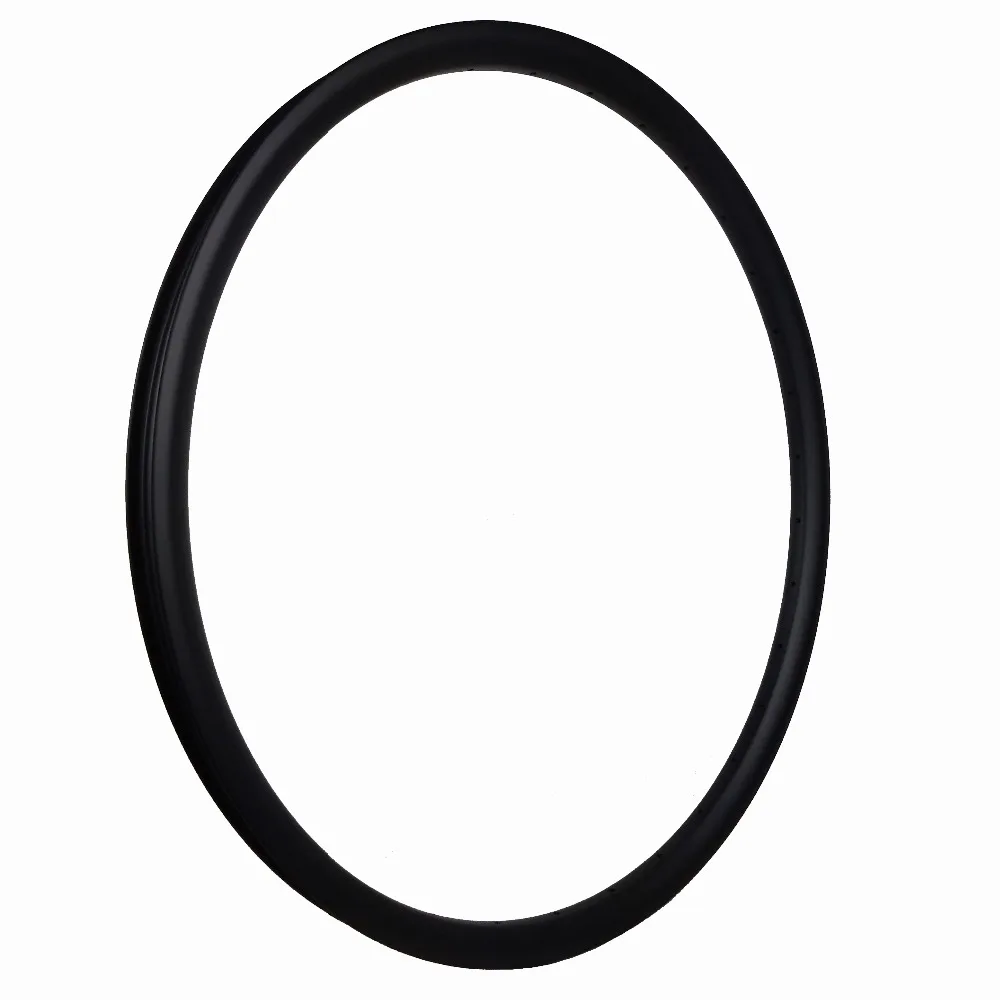

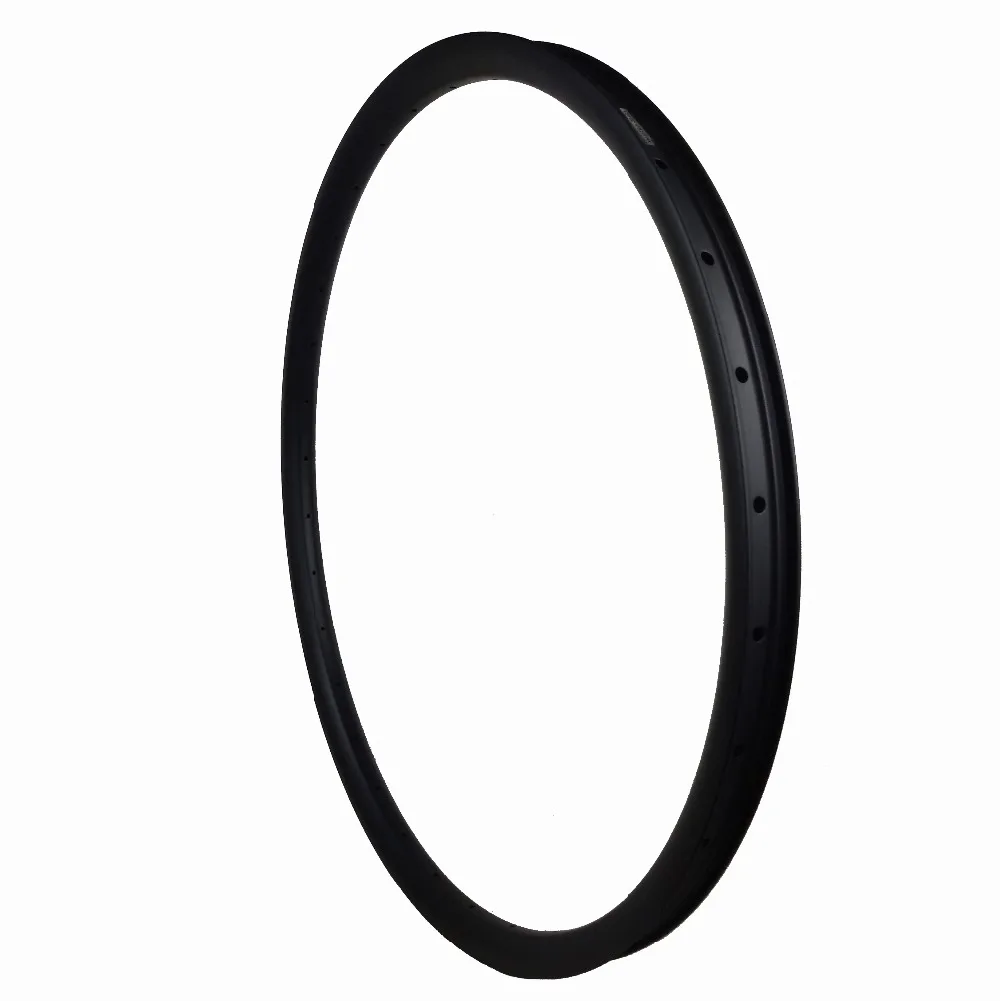

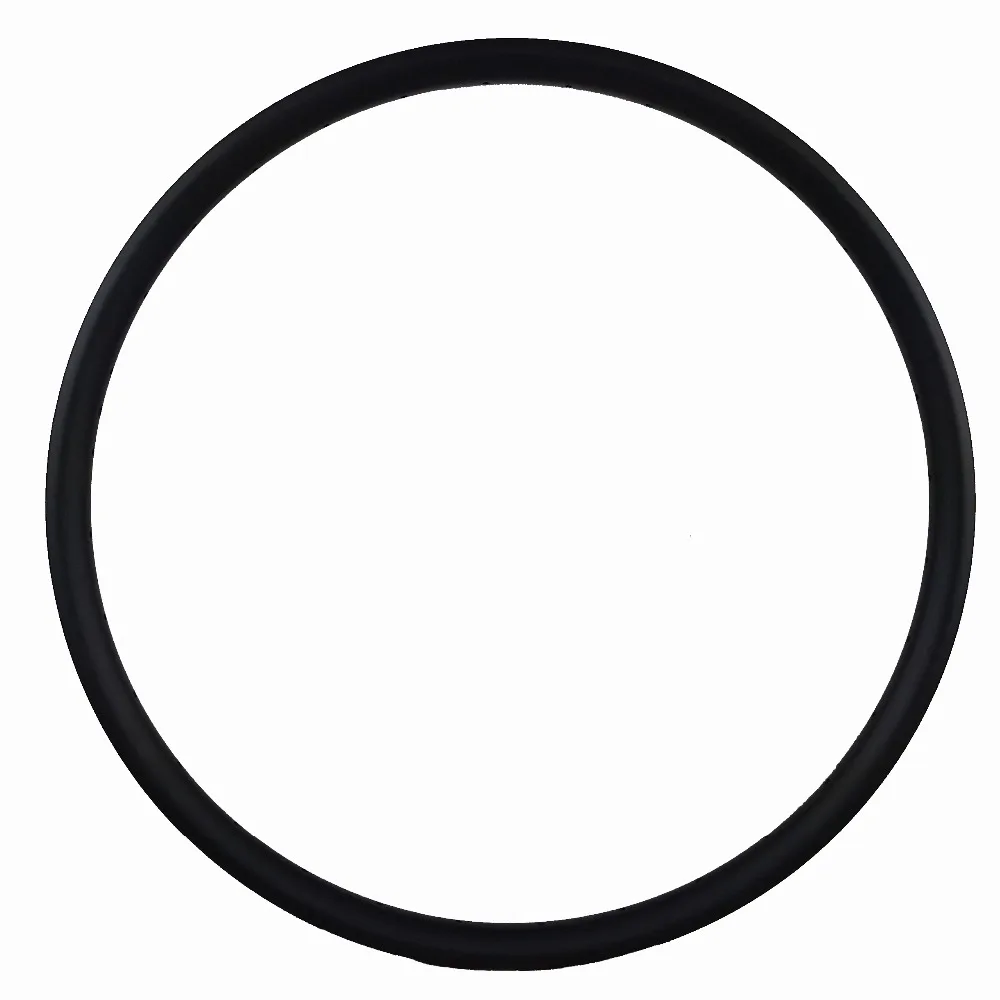

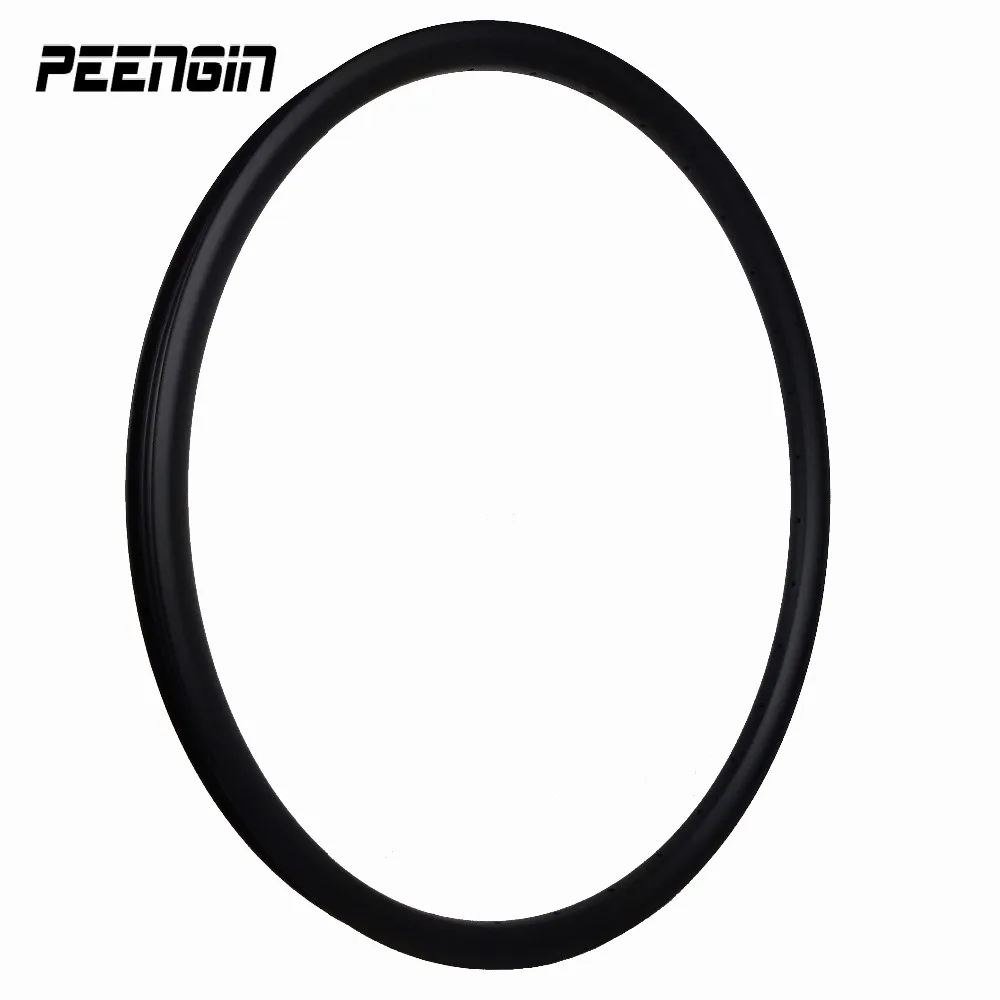

Product Photos

Package

The box we use for package is specially designed with strong inside structure. It could protect the goods from violently throwing and pressure during the shipping. It may have some damage to the box during the shipping, but you will get complete and brand new wheels finally.
