Specifications

24inch carbon FAT bike rims 80mm width 25mm depth clincher tubeless compatible.

Rims details:

Brake system: Disc brakeApplication: Snow/Cross Country(XC version)

Assembly Hole Dia.: 7.5mmValve HoleDia.: 6.5mm

Weight:600±15gHoles:28/32/36/64

Spoke hole diameter:4.5mmrims roundness:+/-0.2mm

Carbon weave:UD/3K/12K/18KFinishing:matt or glossy

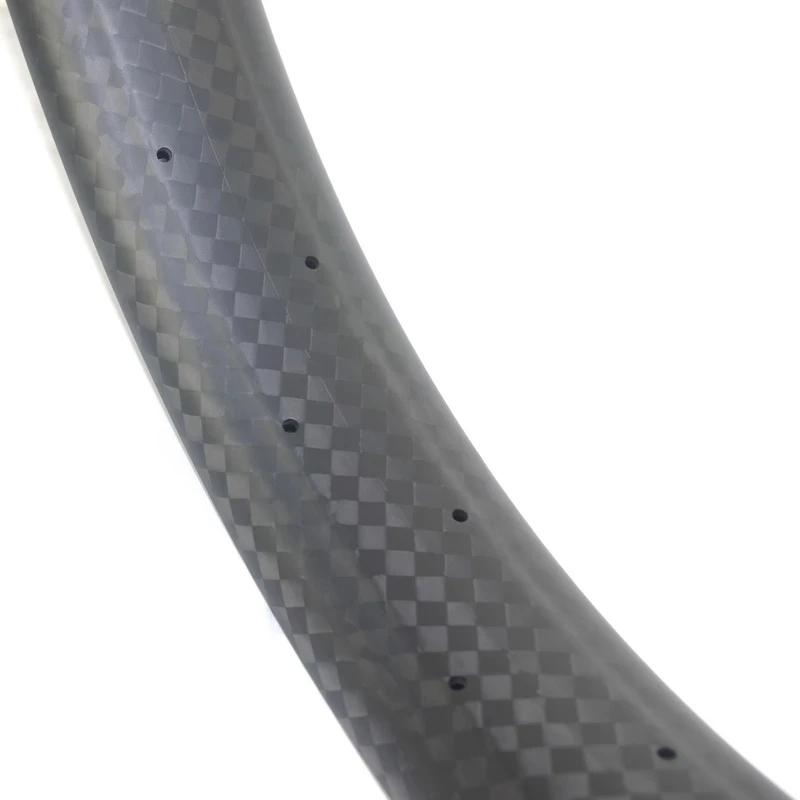

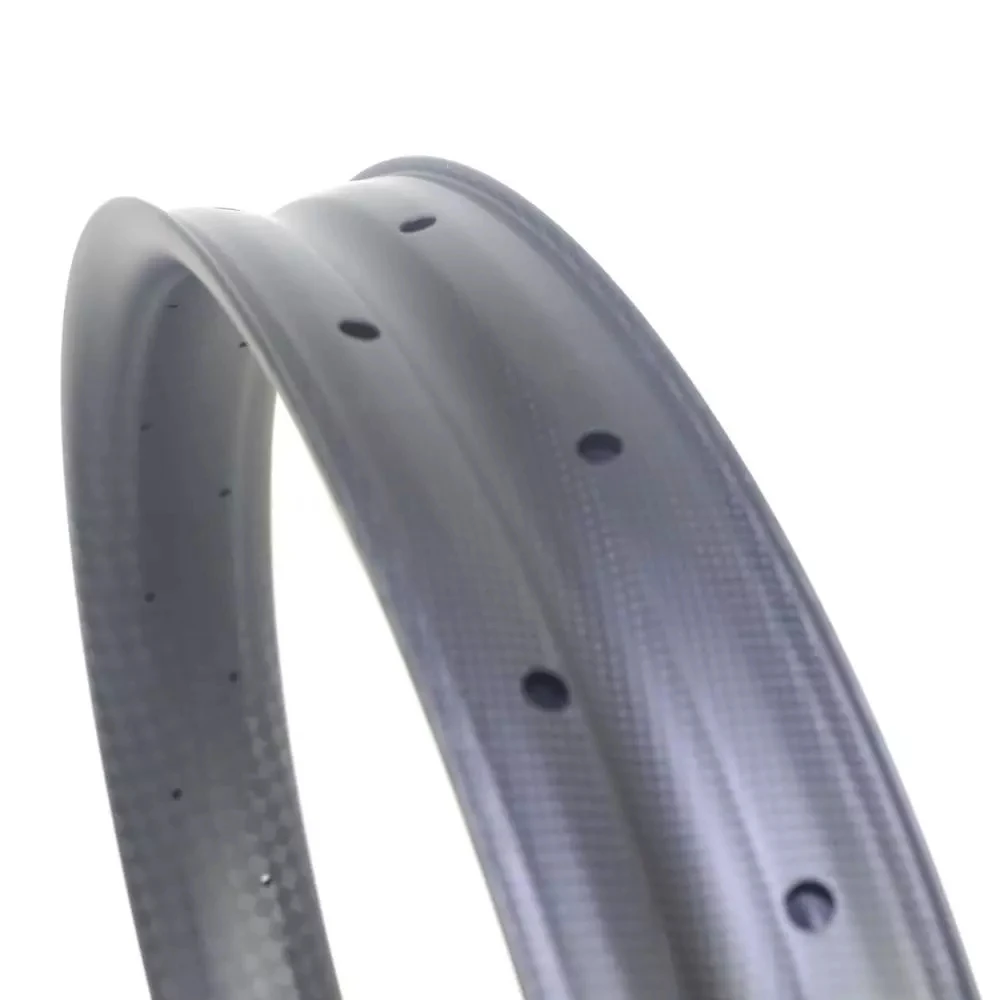

Details photoes:

Section:

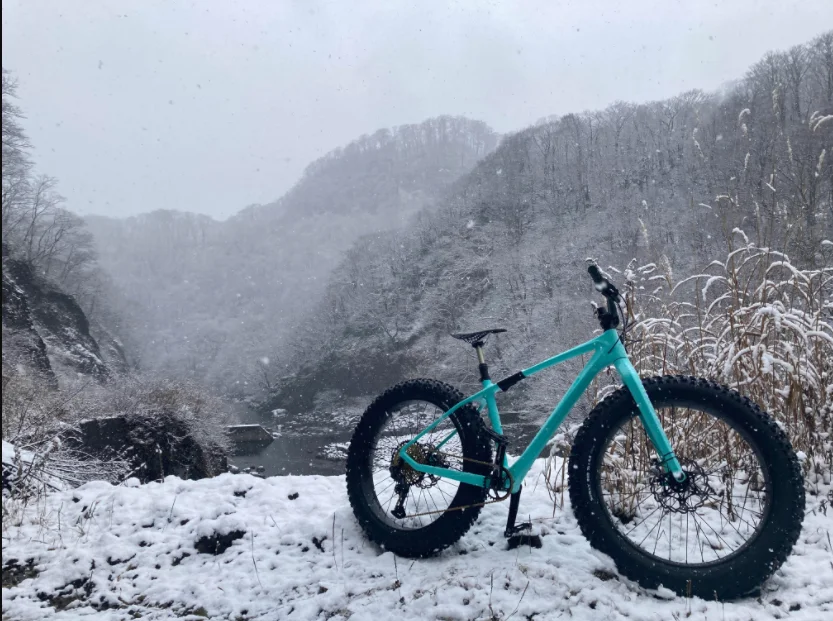

Custom Install & Review:

Tech improvements

*  Double-wall design makes the rim much stiffer and stronger.

*  The rim is more durable due to the hookless design, since the rim wall structure is simpler and straighter, carbon fiber will be more continuous.

*  Filled with 3D weave, that will make the rim stable, safe and durable.

*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.

*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

Notes for use

Max weight limit: 200kg

Max spoke tension: 150kgf

Max tire pressure: 25psi

Package

The box we use for package is specially designed with strong inside structure. It could protect the goods from violentlythrowing and pressure during the shipping. It may have some damage to the box during the shipping, but you will getcomplete and brand new wheels finally.
