Description
| Rim |
Used for |
Road disc brake bike |
| Meterial |
T700 Toray Carbon Fiber |
|
| Size |
700C |
|
| Type |
Tubeless |
|
| Weave options |
UD(3K/12K/3K twill Available) |
|
| Finish |
Matte(Glossy Available) |
|
| Depth |
38mm |
|
| Brake track width |
25mm |
|
| Weight |
450g+/-15g |
|
| Hole count |
24/24 |
|
| Hole type |
External |
|
| ERD |
564mm |
|
| Hub |
Model name |
Novatec 411/412 |
| Sealed Bearlings |
Front:2 Rear:4 |
|
| O.L.D |
Front:12*100mm Rear:12*142mm |
|
| Compatible |
shima0 10/11speed or XDR 12 speed |
|
| Color |
Black |
|
| Weight |
Front:92g Rear:236g |
|
| Spoke |
Pattern |
Front -------------------- radial |
| Rear drive side -------------------- 2X cross |
||
| Rear non drive side -------------- 2X cross |
||
| Shape |
Pillar 1432/1423 Aero/CN |
|
| Color |
Black |
|
| Nipple |
Meterial |
DSN black alloy |
| Color |
Black |
|
| Brake surface |
Meterial |
non |
| Paramete |
Max tire pressure |
125 psi |
| Max ride weight |
120kg/240lb |
|
| Quick releases color |
only QR hubs with skewers |
|
| Including items |
Front and rear wheelsets,quick releases and gifts （Note:thru axle hubs without skewers,tubeless without rim tape) |
|
| Warranty |
2 years |

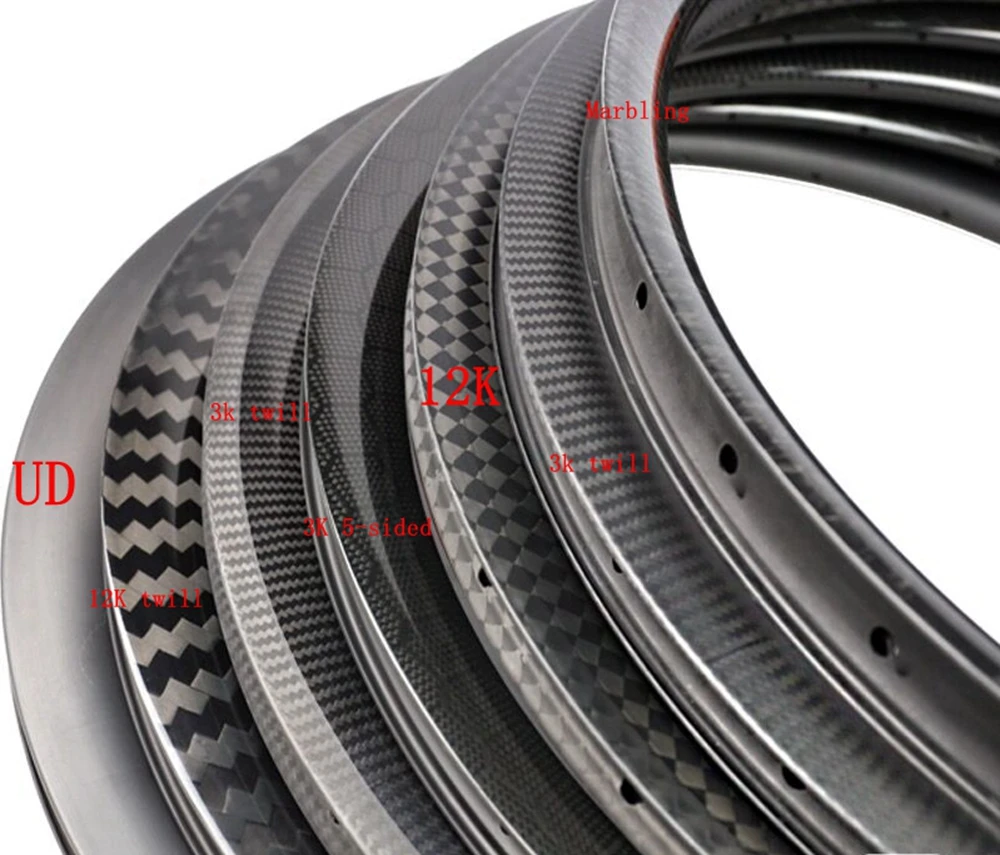

Weave Option

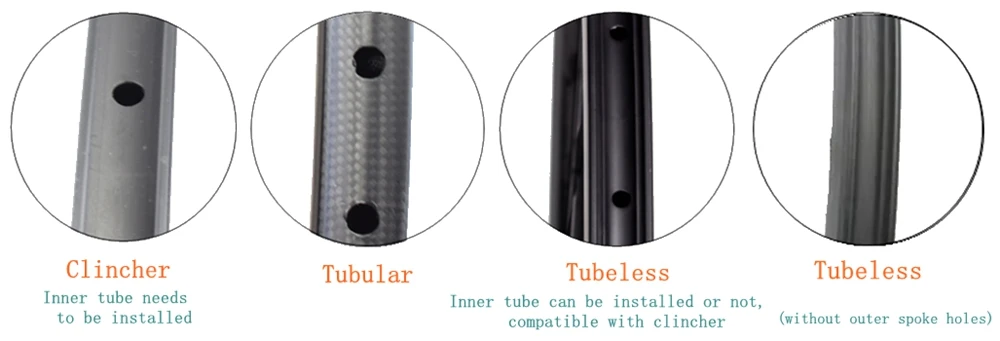

Rims Type

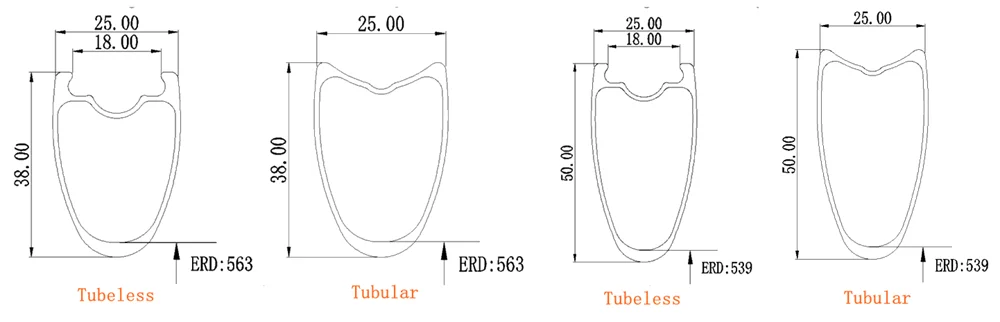

Rims section drawing

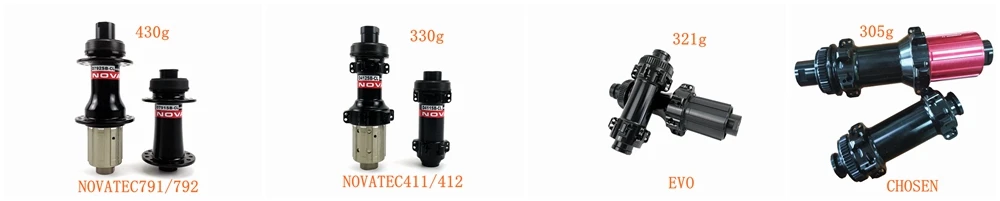

Hub option
Wheelsets Weight
Novatec 411/412 hubs
| 38mm Tubeless wheelset |
about 1560+/-30g |
| 50mm Tubeless wheelset |
about 1630+/-30g |
| 38mm Tubular wheelset |
about 1420+/-30g |
| 50mm Tubular wheelset |
about 1470+/-30g |
| chosen hubs |
|
| 38mm Tubeless wheelset |
about 1530+/-30g |
| 50mm Tubeless wheelset |
about 1600+/-30g |
| 38mm Tubular wheelset |
about 1390+/-30g |
| 50mm Tubular wheelset |
about 1440+/-30g |
| DT350 hubs |
|
| 38mm Tubeless wheelset |
about 1630+/-30g |
| 50mm Tubeless wheelset |
about 1700+/-30g |
| 38mm Tubular wheelset |
about 1490+/-30g |
| 50mm Tubular wheelset |
about 1540+/-30g |
NOTE:
If you decide to purchase, please choose from the following order spec template and tell us.
Weave: UD (default）or 3K or 3K twill
Finishing:Matte(default) or Glossy
Hub Compatibility:Shima0 11Speed(default) or XDR 12 speed
Nipples Color:Black(default) or Red Color
Hub thru axle options:
Front：9mm x 100 (standard quick release skewers)
12mm x 100 (Thru axle)
15mm x 100 (Thru axle)
Rear: 10mm x 135 (standard quick release skewers)
12mm x 135 (Thru axle)
12mm x 142 (Thru axle)

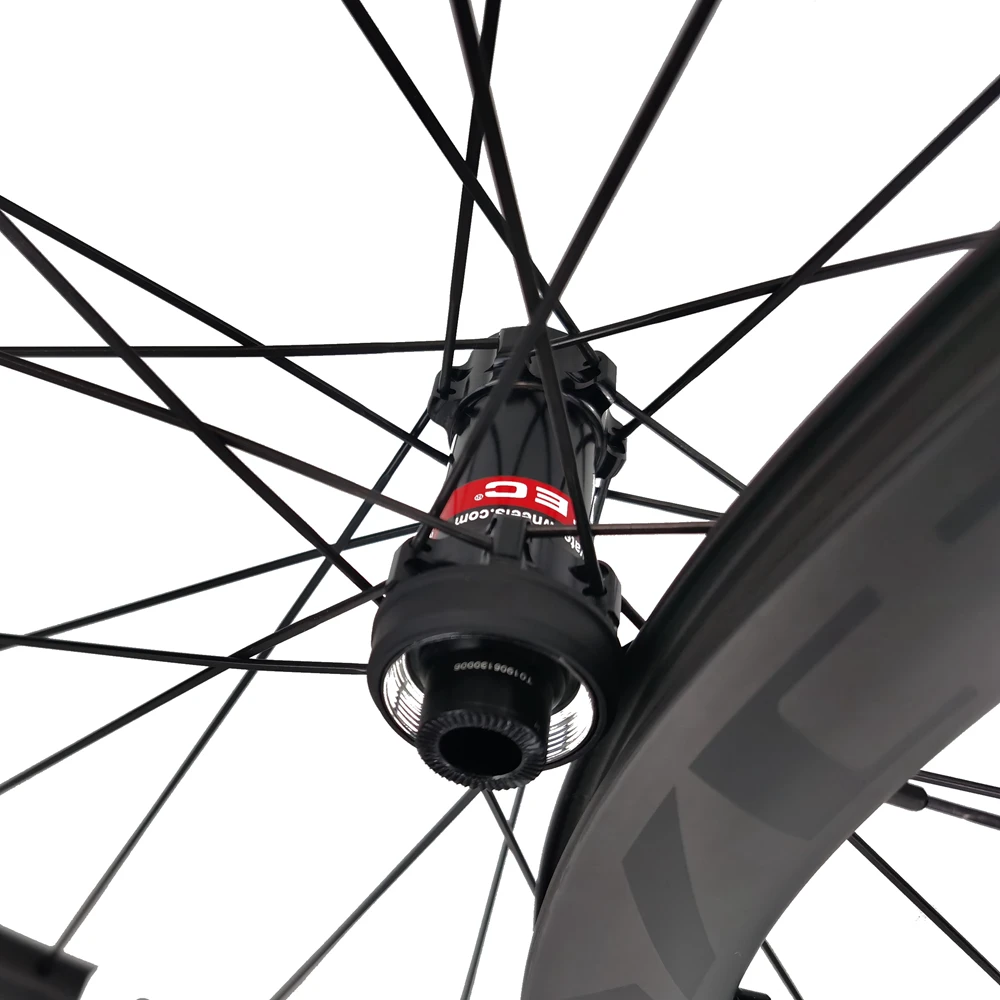

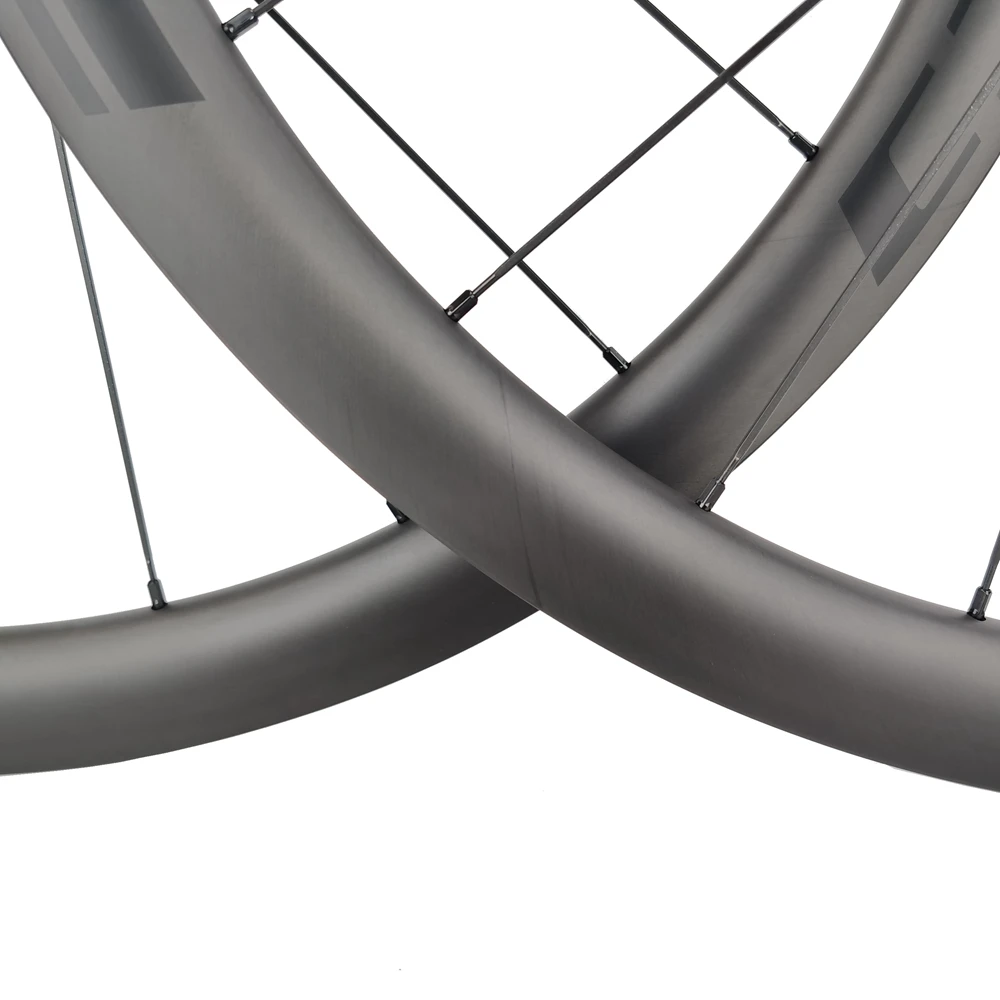

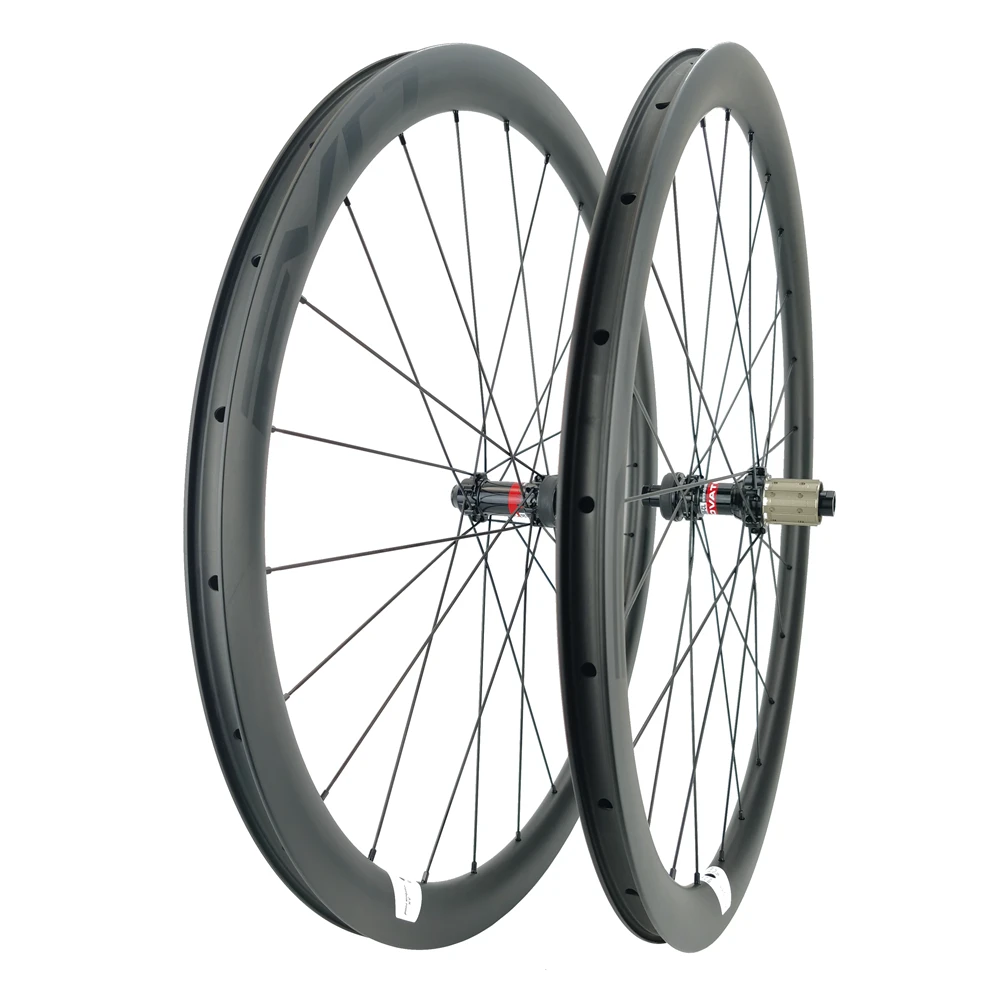

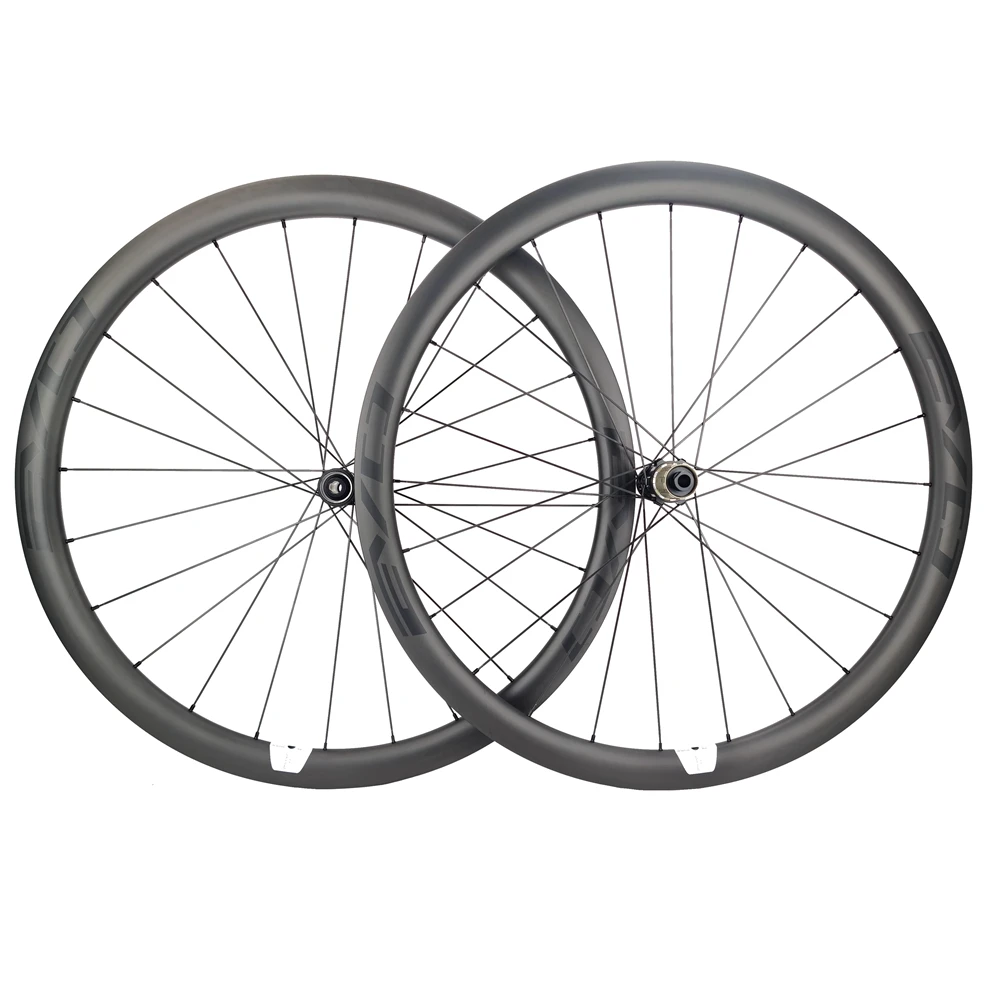

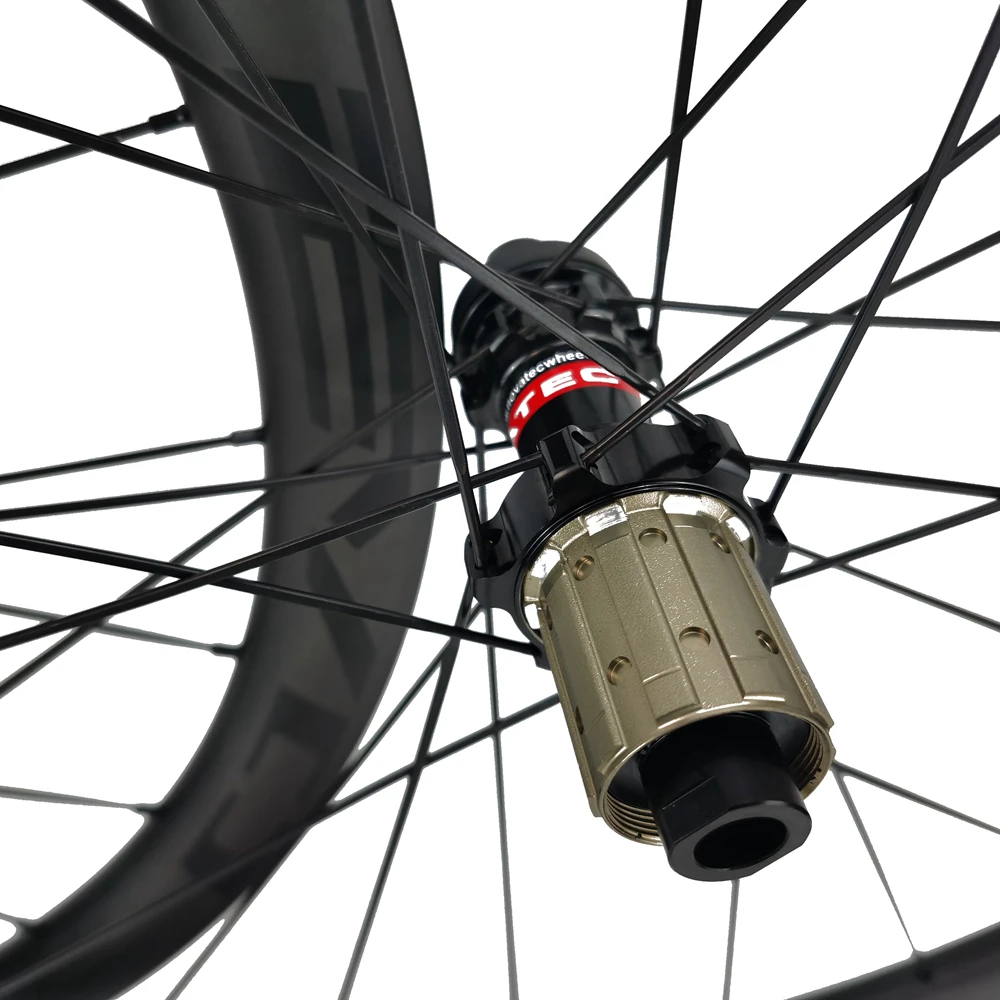

Details picture
