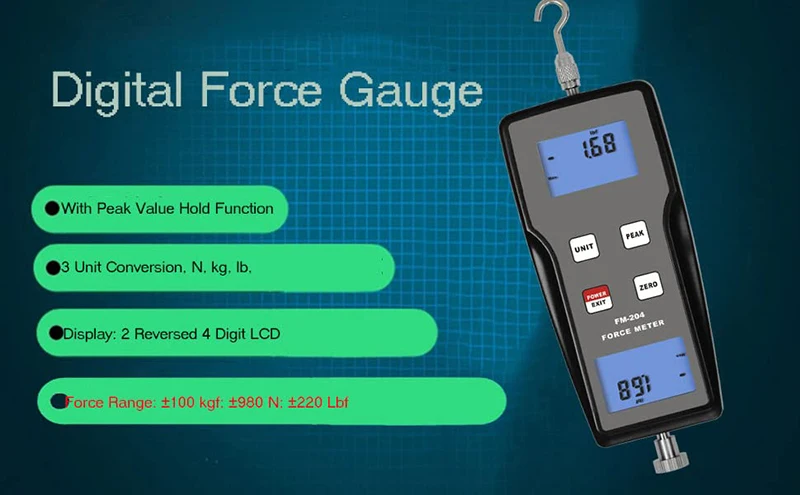

Digital Push Pull Force Gauges Force Meter With External Sensor ±100kgf ±980N

Note: Battery not Included During The Shipping !!!

Introduction:

* The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, etc.

Features:

* High accuracy and high resolution.

* Digital display with no guessing or errors.

* With 4 measurement unit for selection and conversion, N, kg, lb, g.

* With peak value hold function.

* With 10 minutes auto power off and manual power off.

* Power can be supplied by either alkaline battery (Standard)or 6V DC power.(Optional Accessories)

Technical Specifications:

* Force Range: ±100 kgf; ±980 N; ±220 Lbf

* Resolution: 0.01 kgf; 0.1 N; 0.1 Lbf

* Accuracy: ±0.5%FS±1Digit

* Unit: kgf,gf,N,Lbf

* Measurement State: Peak Value Measurement,Real Time Measurement

* Display: 2 Reversed 4Digit LCD

* Power Off: 10 Minutes Auto Power Off, Manual Power Off

* Backlight: Blue Backlight

* Safe Load: 150%FS(Buzzer Alarm Over 110%FS)

* Power Supply: 2X1.5 AA(UM-3)Battery (Battery not included in the package)or 6VDC Power Supply (Optional Accessories)

* Operating: Temperature:0~40ºC, Conditions, Humidity:<80%; Surrounding, No Vibration Source or Corrosive Medium Around

* Weight: 390g

* Size: 211x80x36mm

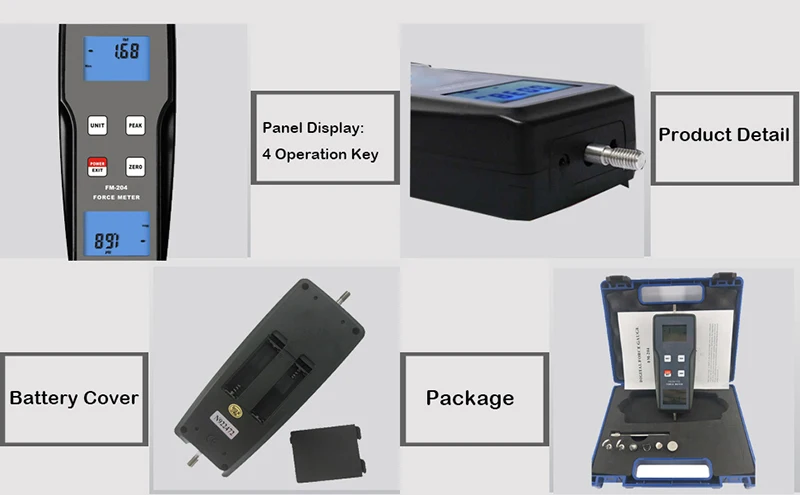

* Standard Accessories: Digital Force Gauge; Pulling Hook; Flat Tip; Cone Tip; V-shaped Groove Tip; V-shaped Wedge Tip; Lengthening Connection Rod(Screw Rod, Cap Nut)Manual; Carrying Case

* Optional Accessories: Power Adapter

* If you need Optional Accessories, Please contact us.
