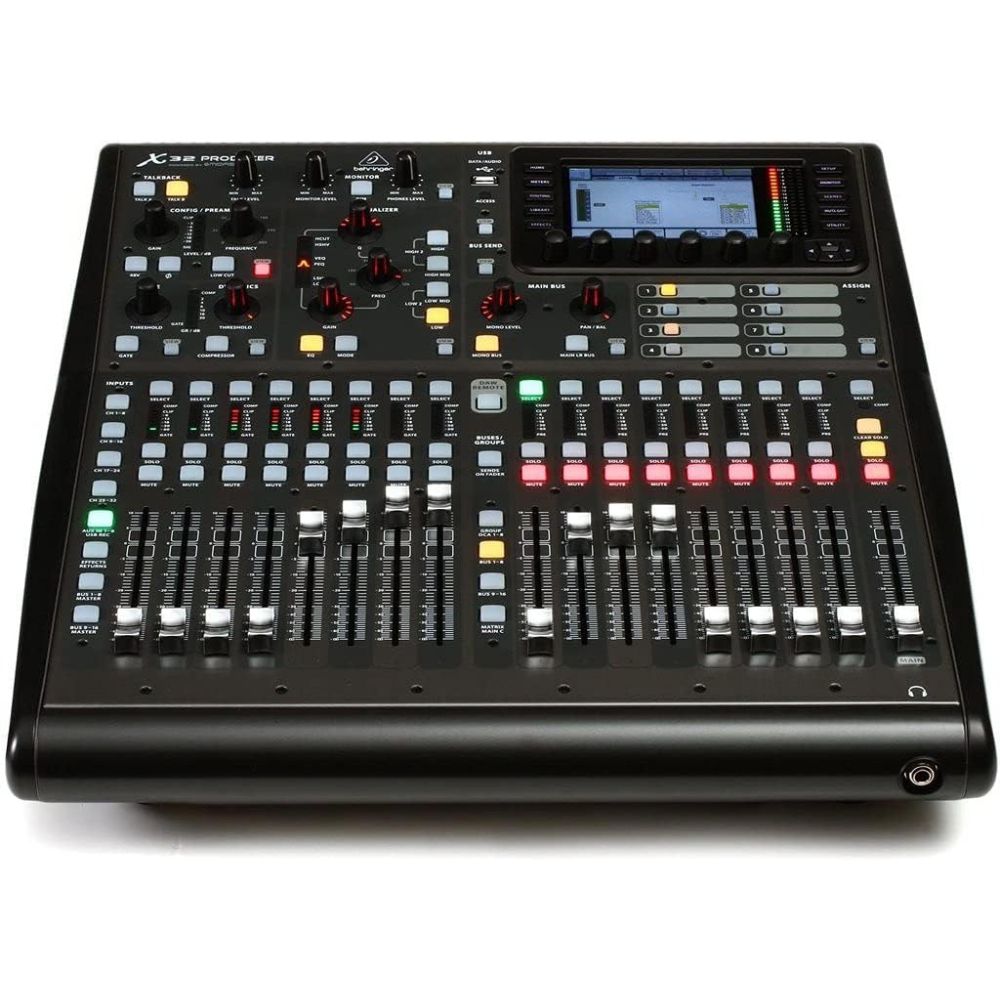

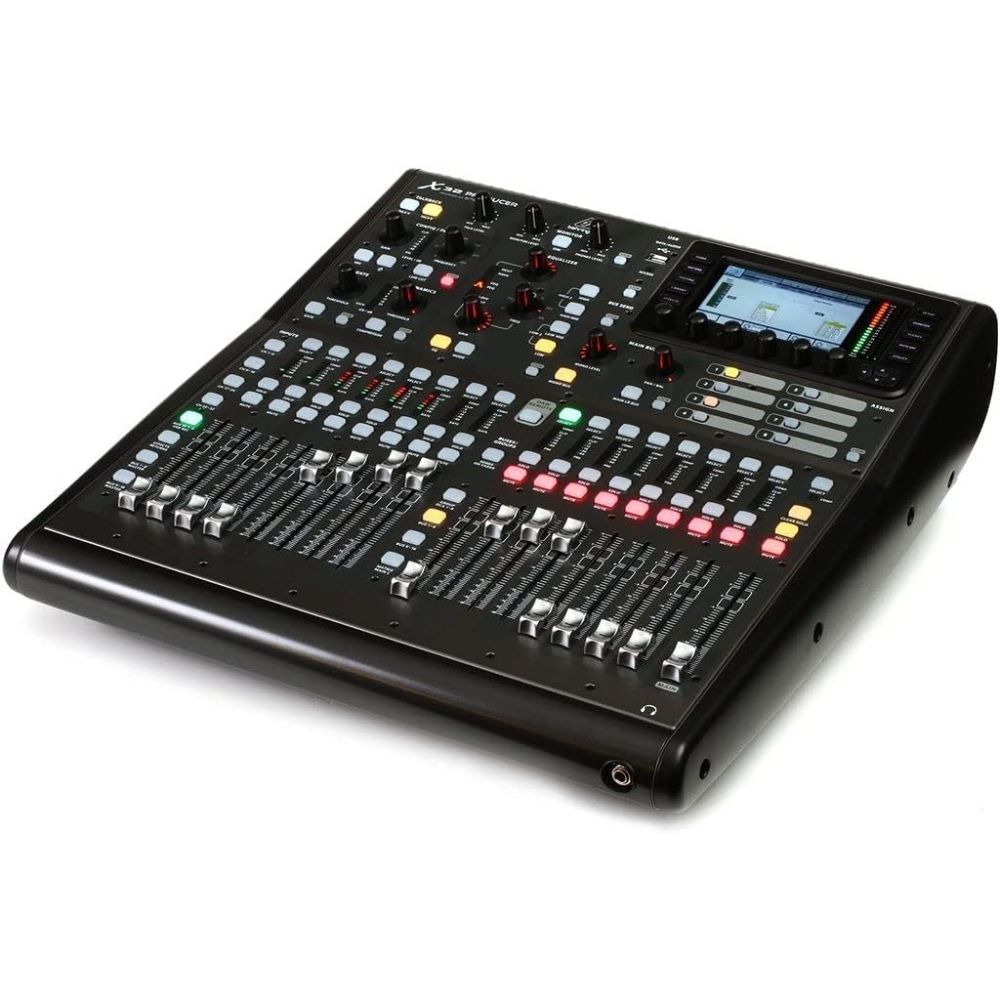

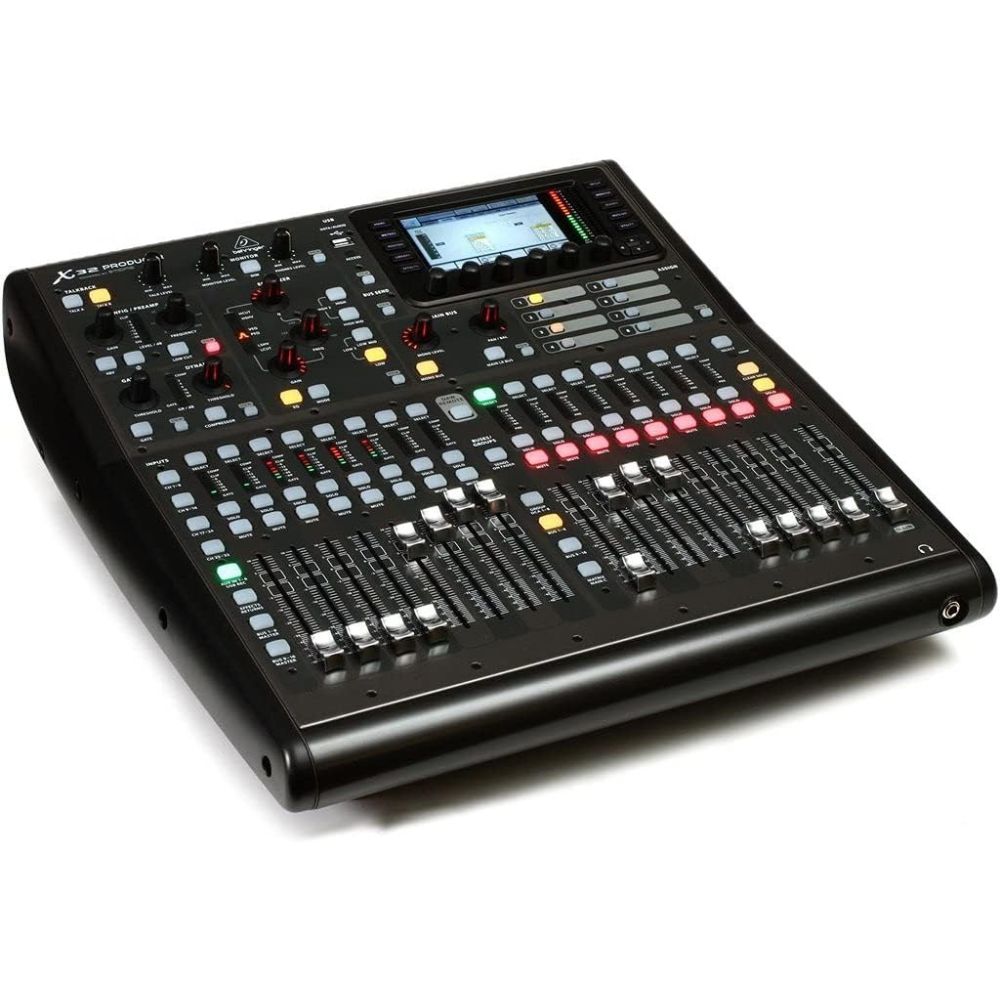

Ideal for professional live and recording applications, the Behringer X32 PRODUCER is a 40-channel, 25-bus digital mixing console that provides a wealth of features in a compact design. The mixer features 16 fully programmable MIDAS-designed mic preamps. The main outputs, mix busses, and independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The X32 PRODUCER also has 8 analog XLR outputs as well as 6 balanced line-level 1/4" Aux inputs and outputs and two 1/4" headphone jacks. The talkback section allows you to communicate with an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultralow jitter and latency. The integrated expansion port ships with a 32 x 32 X-USB USB audio card installed.

X32 PRODUCER Overview

• 40-input channel, 25-bus rack-mountable digital mixing console for Studio and Live application
• 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 17 Fully automated motorized 100mm faders allow for instant overview, powerful scene management, and DAW control
• 8 XLR outputs plus 6 additional line in/outputs, a phones connector and a talkback section with XLR mic input
• 32 x 32 channel USB 2.0 audio interface, with DAW remote control, emulating HUI and Mackie Control
• iPad and iPhone apps for professional remote operation available free of charge—no host PC required
• High-resolution 5" day-viewable Color TFT for easy viewing of workflow components and parameters
• Main LCR, 6 matrix buses, and all 16 mix buses, each featuring inserts, 6-band parametric EQ's, and full dynamics processing, plus 8 DCA groups and 6 mute groups
• Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250, and Quantec QRS, etc.
• 40-bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency for mixing a total of 48 signals on 25 buses
• Powerful scene management for convenient handling of complex productions
• 48-channel Digital Snake ready via AES50 ports, featuring Klark Teknik's SuperMAC networking capability for ultralow jitter and latency
• USB type-A connector, providing file storage and uncompressed stereo recordings plus show presets and system updates
• Dedicated and easy-to-use channel-strip section with direct access controls and graphic user interface for intuitive workflow
• Additional user-definable control section allows to set up shortcuts to your favorite views or parameters
• ULTRANET connectivity for Behringer's P16 Personal Monitoring System
• Networked remote control via Ethernet for show setups with on-screen software editor
• Built-in expansion port for audio interface cards or digital networking bridges
• MIDI In/Out for remote scene recall or controlling other MIDI equipment
• Future firmware updates, including new FX “Plug Ins”, downloadable from behringer.com free of charge
• Rackmount brackets included for ultimate flexibility

Box Contains

Behringer X32 PRODUCER 16 x 8 Rack-Mountable Digital Mixing Console

• 1 x Power Cord

Box Contains

Behringer X32 PRODUCER 16 x 8 Rack-Mountable Digital Mixing Console

• 1 x Power Cord

Brand	Behringer
Model	Behringer X32 PRODUCER
MPN	BEX32PRDCRV2
Type	Digital Mixing Console
Max I/O Capacity	40x Input / 25x Output
Number of Analog Input Channels	16
Number of Mic Preamps	16
Number of Analog Output Channels	8
Faders & Level Adjustment	17x 3.9 / 100 mm Motorized Fader(Touch Sensitive)

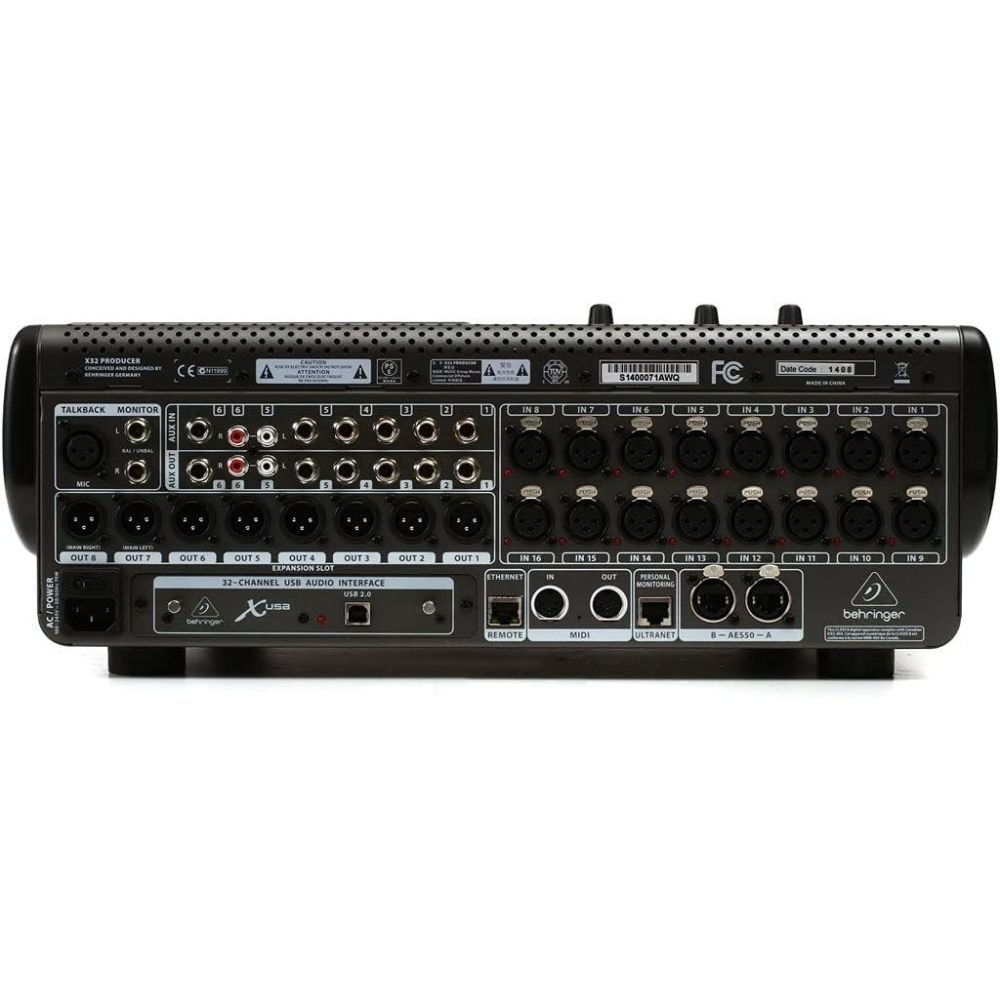

Analog Inputs	16x XLR 3-Pin Balanced Mic/Line Input 1x XLR 3-Pin Balanced Mic/Talkback Input 1x Stereo RCA Coaxial
Analog Outputs	8x XLR 3-Pin Main/Bus Output 1x Stereo RCA Aux Output (1 Stereo Pair) 2x 1/4 TRS Stereo Control Roo
Digital I/O	1x RJ45 Ethernet (Control, 1 Gb/s) 1x RJ45 Ultranet (I/O) 2x RJ45 AES50 (I/O)
USB I/O	1x USB-B 2.0 (Audio Playback, Multitrack Record)
Wireless	No
Rack Mountable	No
Mix Routing	25x Stereo Bus
Groups	8x DCA Group 6x Mute Group
Presets	No
Display	5 LCD (Daylight-Viewable)
Meters	2x 18-Segment LED
Gain/Trim Range	Mic: 0 dB to +72 dB
Input Polarity	Normal/Reverse
Dynamic Processing	Input Channels: Compressor, Limiter, Soft Limiter, Gate
EQ	6-Band EQ
Graphic EQ	31-Band 1/3 Octave
Solo/Mute	Solo, Mute per Input Channel Mute per Master
Automatic Mic Mixing	No
Sample Rates	44.1 / 48 kHz
Bit Depth	AD/DA Conversion: 24-Bit
Frequency Response	10 Hz to 22 kHz +0/-1 dB (at 48 kHz)
Max Input Level	Mic Input: +23 dBu Line Input: +16 dBu
Analog Dynamic Range	Input to Output: 106 dB at Unity Gain
I/O Impedance	XLR Mic Input: 5 Kilohms (Unbalanced) 10 Kilohms (Balanced) 1/4 TRS Line Input: 20 Kilohms (Unbalan
Noise Floor	-87 dB A-Weighted
THD+N	Mic Input to Analog Output: 0.006% at +20 dB Gain (0 dBu)
Phantom Power	+48 V (Selectable on Individual Inputs)
