Condition: Used
Dimensions: 30.00 x 12.00 x 12.00 inches (L x W x H)
Weight: 27.00 Lbs.

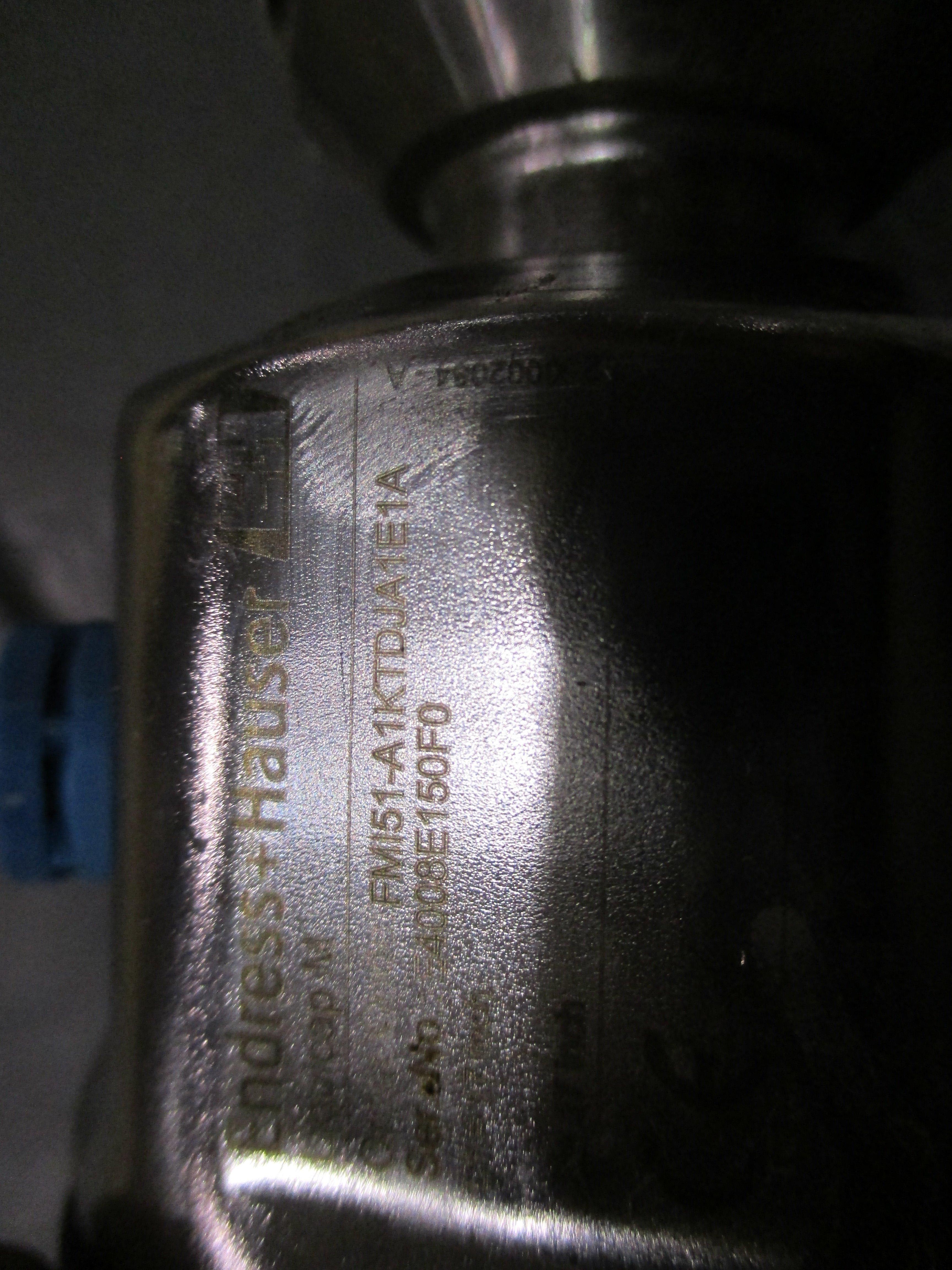

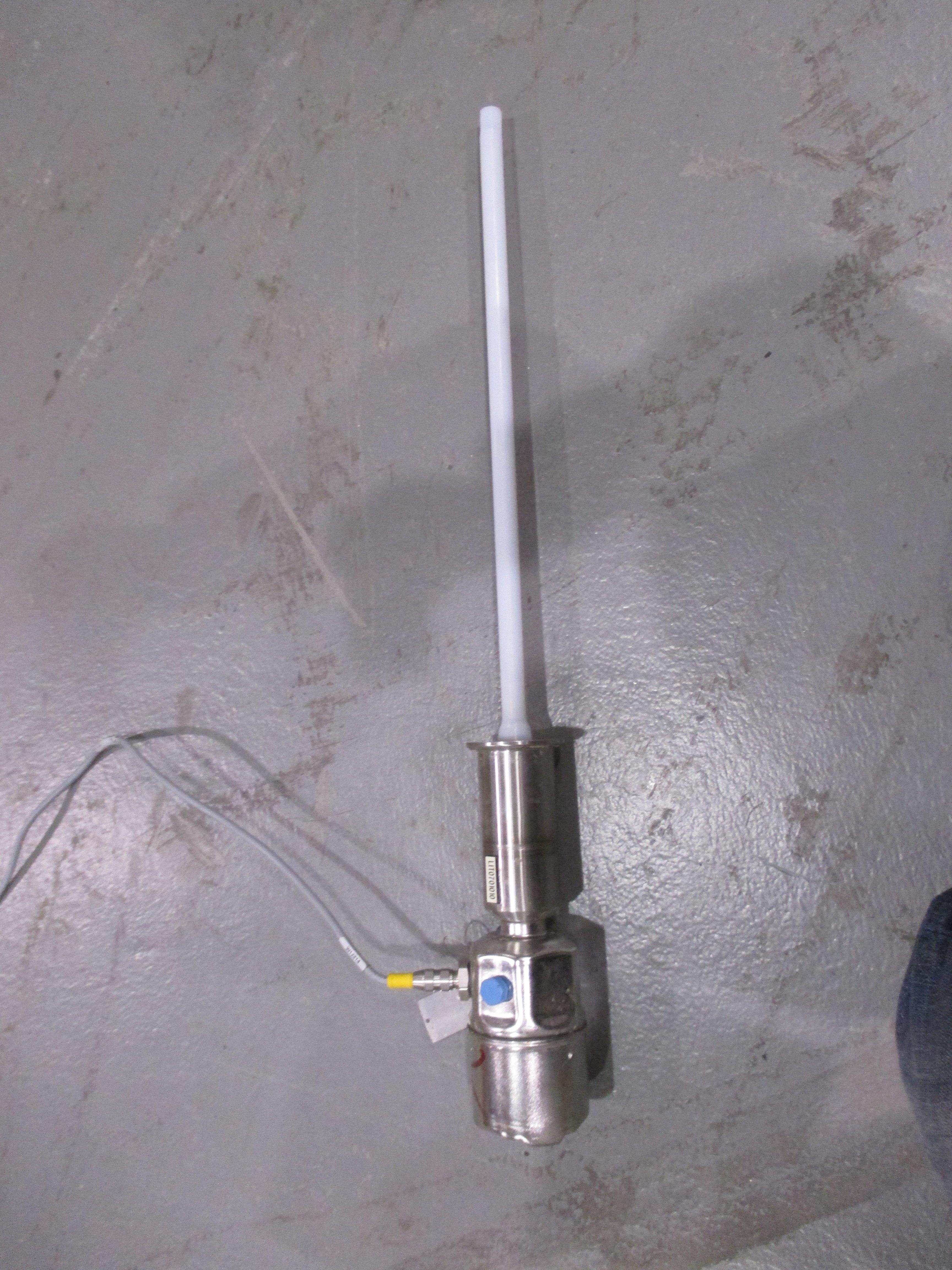

The Endress+Hauser Liquicap M FMI51-A1KTDJA1E1A is a capacitance-based level transmitter used for continuous level measurement in liquids, particularly in harsh process environments. It is suitable for applications involving conductive and non-conductive liquids, even with build-up or foam. Sensor Type: Capacitance level transmitter Model: FMI51-A1KTDJA1E1A Series: Liquicap M FMI51 Measuring Principle: Capacitive (rod probe) Measuring Range: Up to 6 m (depending on probe length and medium) Process Connection: Threaded or flanged (A1KTDJA1E1A = threaded G1½" or NPT 1½", confirm variant) Output Signal: 4–20 mA with HART communication Power Supply: 12–36 VDC (loop-powered) Electrode Type: Coated rod (typically PFA or PEK for aggressive media) Process Temperature: -50°C to +200°C (depending on probe and seal materials) Process Pressure: -1 to +16 bar (up to 232 psi) Enclosure Rating: IP66/IP68, NEMA 6P Electronics Housing: Aluminum or stainless steel (coated) Application: Continuous level monitoring in storage tanks, process vessels, and hygienic systems Approvals: ATEX, IECEx, CSA, FM (depending on configuration) Manufacturer: Endress+Hauser Made in: Germany/Switzerland
